The 3HSS2208H-110 stepper servo drive system integrates the servo control technology into the digital stepper drive perfectly, and fit the 110 three-phase stepper motor. This stepper servo driver uses the latest 32-bit DSP and combines the advanced servo algorithm to control.
1.1 Electrical and EnvironmentSpecifications
Input Voltage
180~250VAC
Continuous Current Output
4.0A
Maximum Input Frequency
200K
Signal Input Current
7~20mA(10mA Typical)
Default Communication Rate
57.6Kbps
l Over current peak value12A±10%
Protections
l Over voltage value400VDC
l The range of over positionerror
can be setbythefront panel or HISU
Overall Dimensions(mm)
140×70×56
Weight
Approximate 1500g
Environment specifications
Environment
Avoid dust, oil fog and corrosive gasses
Operating
Temperature
0~70℃
Storage
Temperature
-20℃~+65℃
Humidity
40~90%RH
Cooling
method
Natural cooling or forced air cooling

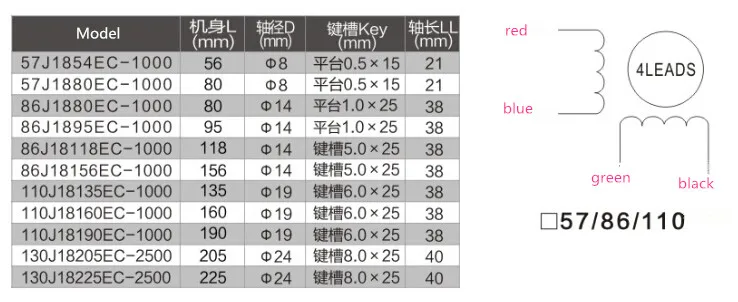

Motor specification
Model
Step Angle
Holding Torque
Current / Phase
Resistance / Phase
Inductance / Phase
Detent Torque
Rotor Inetria
57J1854EC-1000
1.8
0.9NM
2.8A
0.4
1.2
400
280
57J1880EC-1000
1.8
2.2NM
4A
0.35
1.8
700
480
86J1880EC-1000
1.8
4.5NM
4A
0.4
3.5
1300
1400
86J1895EC-1000
1.8
7NM
5A
0.37
3.3
2000
1850
86J18118EC-1000
1.8
8.5NM
5A
0.44
4.4
2500
2700
86J18156EC-1000
1.8
12NM
6A
0.72
5.5
4000
4000
110J18135EC-1000
1.8
12NM
6A
0.78
12.7
3000
10000
110J18160EC-1000
1.8
18NM
6.5A
0.87
15.5
6000
12350
110J18190EC-1000
1.8
20NM
6.8A
0.97
17.5
7500
13800
130J12205EC-2500
1.8
28NM
7.5A
1.1
12
24000
33500

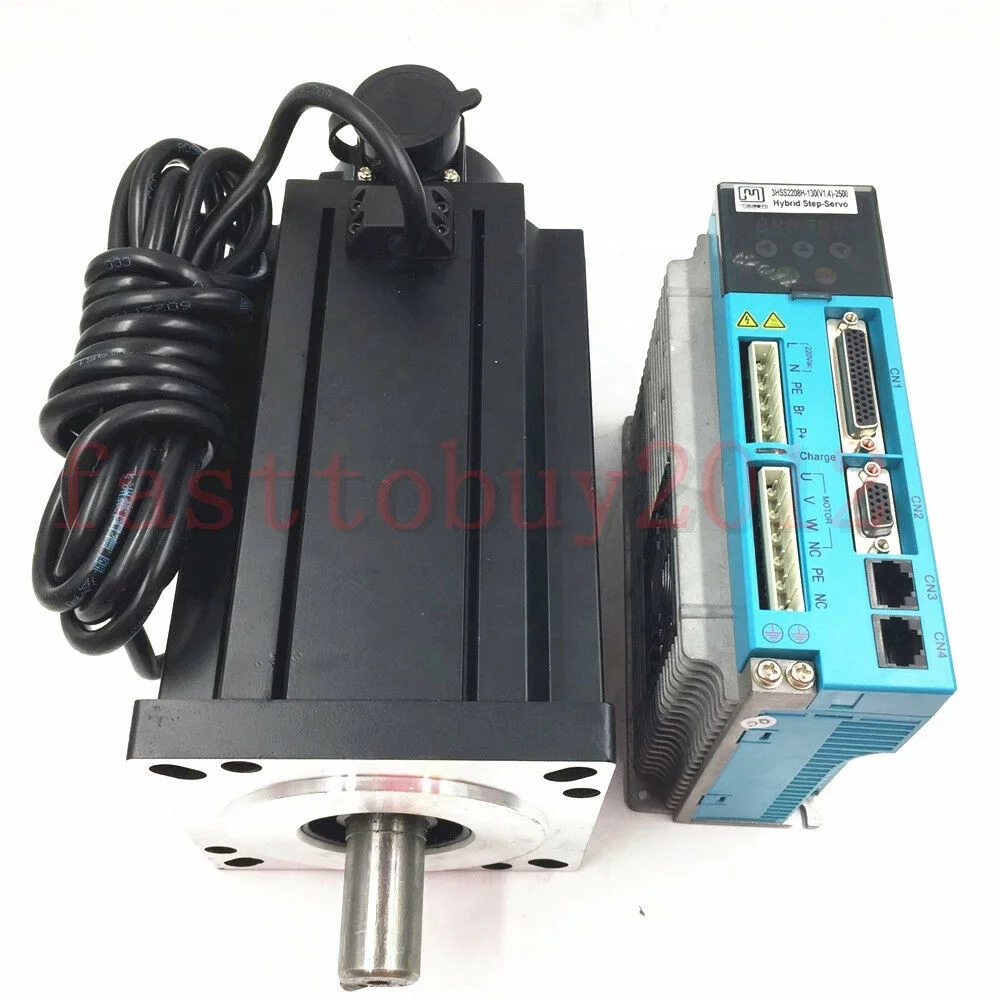

Product photos
Similar items
Stepper set
Name
Phrase
Motor frame 1
Motor frame 2
Holding torque
Current
57J1854EC-1000+2HSS57
closed loop Stepper Motor+Drive Kit
2ph
57mm
NEMA23
1NM
4A
57J1880EC-1000+2HSS57
closed loop Stepper Motor+Drive Kit
2ph
57mm
NEMA23
2.2NM
5A
86J1880EC-1000+2HSS86H
closed loop Stepper Motor+Drive Kit
2ph
86mm
NEMA34
4.5NM
4A
86J18118EC-1000+2HSS86H-A-5/24
closed loop Stepper Motor+Drive Kit
2ph
86mm
NEMA34
8.5NM
5A
86J18156EC-1000+2HSS86H-A-5/24
closed loop Stepper Motor+Drive Kit
2ph
86mm
NEMA34
12NM
6A
110J18135EC-1000+2HSS1108H
closed loop Stepper Motor+Drive Kit
2ph
110mm
NEMA42
12NM
6A
110J18160EC-1000+2HSS1108H
closed loop Stepper Motor+Drive Kit
2ph
110mm
NEMA42
18NM
6.5A
110J18190EC-1000+2HSS1108H
closed loop Stepper Motor+Drive Kit
2ph
110mm
NEMA42
20NM
6.8A
130J18205EC-2500+2HSS2208H
closed loop Stepper Motor+Drive Kit
2ph
130mm
NEMA54
28NM
7.5A
