wood pallet making machine/Engineers available to service machinery overseas

Product Overview

Description

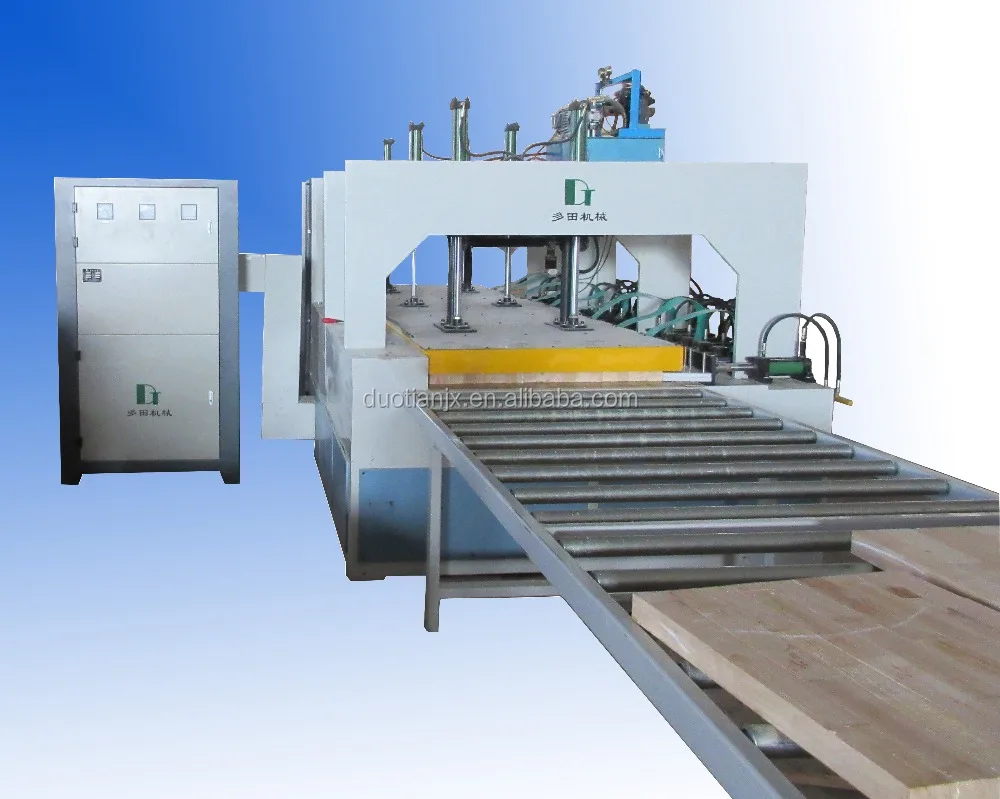

High Frequency Board Jointing Machine

Description

It is a kind of splicing machine to splice the smaller volume wood (veneer, bamboo) into a larger volume material. The electrical components of it are Omron, Siemens, Eaton, etc., which are imported or domestic top accessories. All of the Hydraulic components are Taiwan's original elements. It uses touch screen display interface, combining with PLC centralized control. Simply operate and easily be understood.

There are five components, mainframe, HF generator, hydraulic press, feeder and discharging table.



Specification

Model	GPB-27-DT	GPB-36-DT	GPB-45-DT	GPB-68-DT
Control Mode	PLC touch screen program automatic control
Gluing Size(mm)	≥2440*1220
Gluing Thickness (mm)	≤40	≤60	≤80	≤150
Total Pressure (Ton)	27	36	45	68
HF Output Power (KW)	15	20	30	50





Character

High heating rate and efficiency

Uniform heating

Easy control of heating process

Being heating selective

Biostimulation, sterilization and electrotherapy

Automatic production, low labor

Environmental protection, dust and smog free

safety and health at work, no radiation



Application

It applied to finger puzzle jointing board, glulam puzzle, solid wood edge, L-type Door lines.

Laminated wood

Solid wood windows and doors

Plywood floor

The top of Dining-table or Meeting-room table

Gluing wood

Cabinet, E-guitar sound tube





Company Introduction



Shijiazhuang Duotian Machinery Co., Ltd



The professional manufacturer of HF Heating Equipments



The experienced exporter to the whole world



The high quality and good price products



The suitable pre-sale and after-sale service system







Do not hesitate to Contact us
