50Nm to 100,000Nm force torque sensor cheap shaft rotary torque sensor

1, Technical Features:

• Measures both static and rotary torque;


• High precision with high signal integrity;


• Small size, light weight, easy to install;


• Continuous measurement in both positive and negative torque without repeated zero


• Long operating lifetime at high speed with minimal wear on components


• Strain Elastomer strength, can withstand 150% load;


• Flexible installation;


• Direct sensor measurement thru measurement board, PLC or DCS torque measuring device.

\u007F

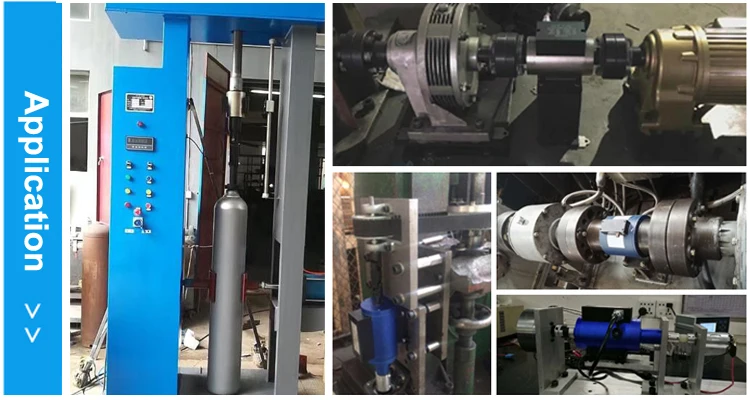

2, Applications:

• Detection of electric motors, internal combustion engines and other rotating power equipment requiring output torque and power measurements;


• Detection of the load torque and input power of the motor, wind pump, mixer, reducer, transmission, hoist, propeller, drilling machinery and other equipment;


• Detection of various machining centers, automatic machine work in the process of torque;


• Detects the torque and efficiency delivered by various rotating power plant systems;


• Detection of torque and speed, shaft power at the same time;


• For manufacturing of viscometer, electric, pneumatic, hydraulic torque wrench;

3, Torque Sensor Range Selection

Choosing torque sensor range should be based on actual maximum torque measuring,

normally should have a certain margin, keep sensor from damage.

Formula:  M = 9550 x P/N

M: torque capacity: N.m
P: motor power consumption: KW
N: speed: r/min
If the motor you use is three-phase induction motor, due to large instantaneous torque motor start,

we suggest torque range should be 2 to 3 times of the rated torque.

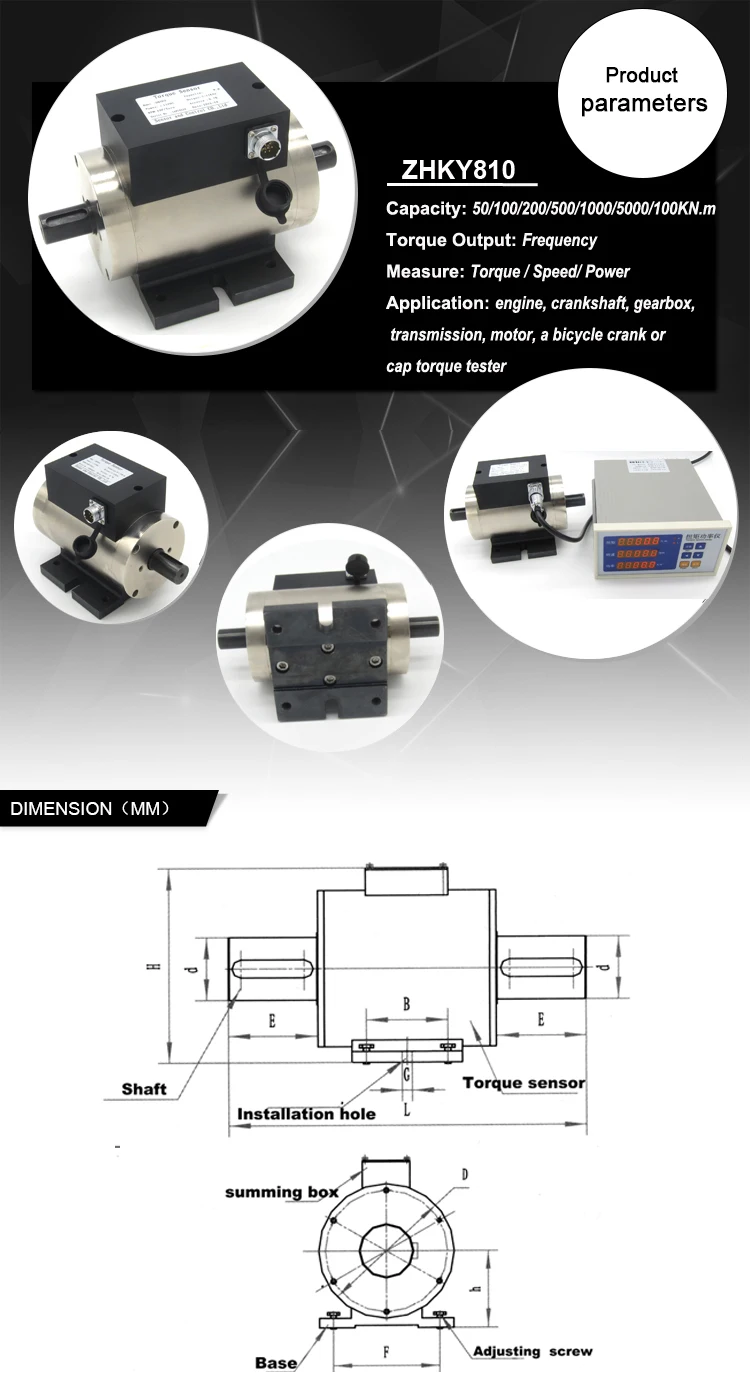

4, Parameters:

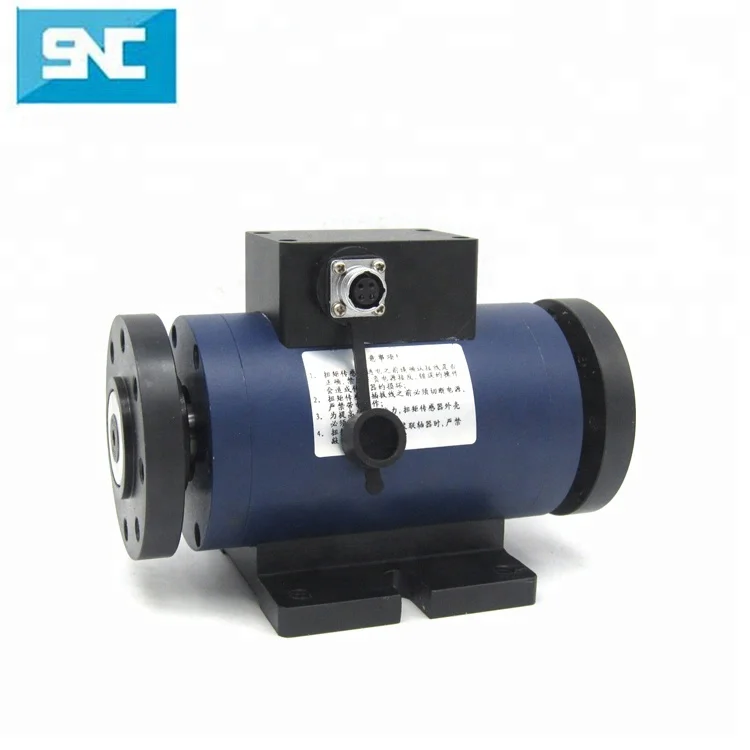

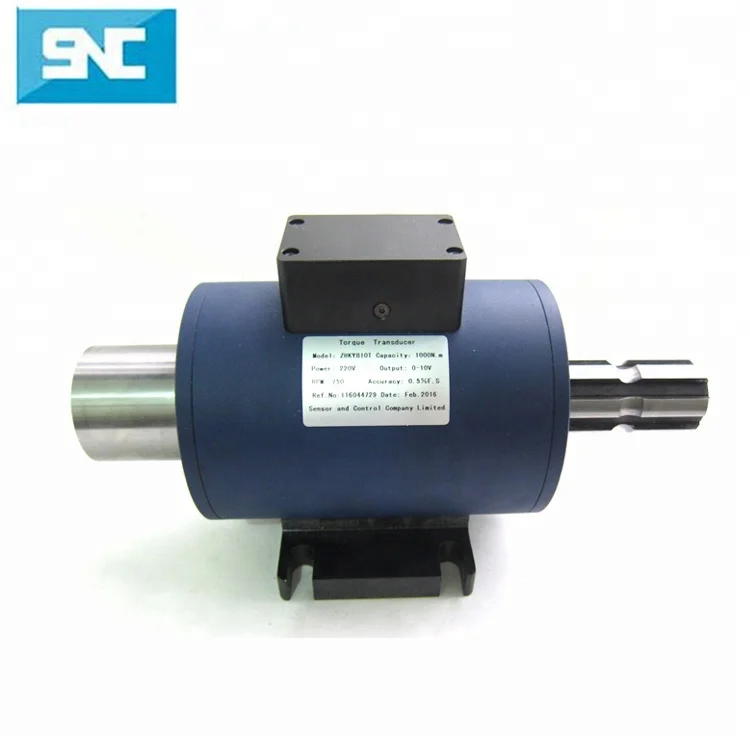

5, Product Details

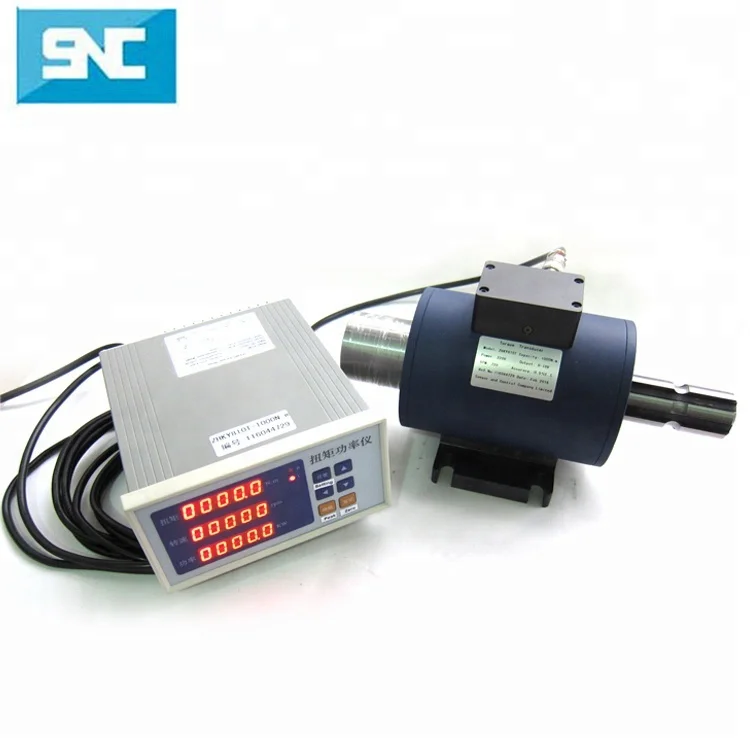

6, Default products and accessories

1, Torque sensor
2, Calibration certificate
3, Quality certificate
4, Cable with connector / cable
5, User manual
6, Torque Speed Power meter
7, Couplings (optional with extra cost)

8, Software  (optional with extra cost)

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
