Two layer double glass lined chemical reactor with condenser
- Category: >>>
- Supplier: Shanghai Yuanhuai Intelligent Technology Co. Ltd
Share on (60478543682):
Product Overview
Description
Product Description
Double deck esterification reactor with digital speed control
Double deck esterification reactor with digital speed control
JGR series esterification reactor have been widely used in chemical reaction, combination, separation and concentration.
Strucuture Demonstration of esterification reactor
Technical specifications for esterification reactor
Model | JGR10L | JGR20L | JGR30L | JGR50L | JGR100L | JGR200L | |||||
Volume(L) | 10L | 20L | 30L | 50L | 100L | 200L | |||||
Neck No. On Lid | 6 | 6 | 6 | 6 | 6 | 6 | |||||
Max. torque(N.cm) | 250 | 250 | 250 | 250 | 400 | 550 | |||||
Jacket Volume(L) | 3 | 6 | 10 | 16 | 30 | 60 | |||||
Stirring power(W) | 120 | 120 | 120 | 120 | 200 | 750 | |||||
Rotating speed(rpm) | 0~680 | 0~680 | 0~680 | 0~680 | 0~680 | 0~680 | |||||
Power supply | 220V/50-60HZ (Optional: 110V) | ||||||||||

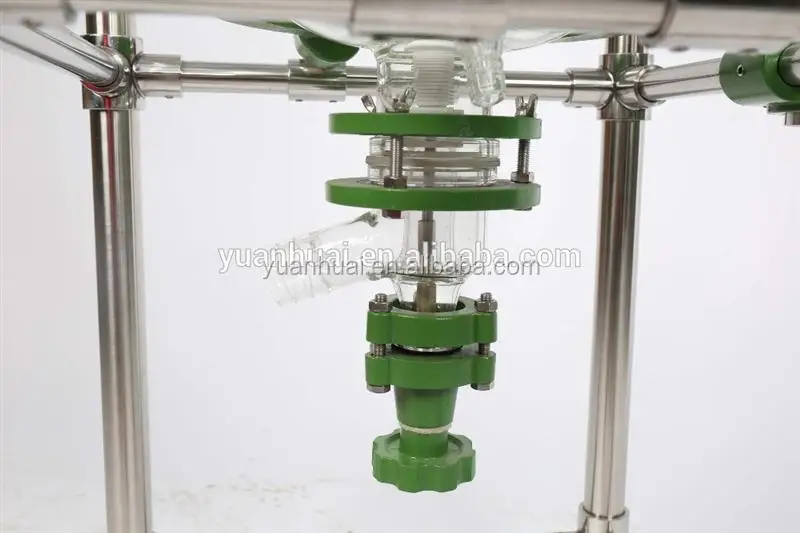

Discharge | PTFE Bottom Discharge Valve | ||||||||||
Working Temp range | -60 to 200°C | ||||||||||
Attention here:
YHCHEM is a professional chemical and phramaceutical equipment manufacturer and we can produce customized esterification reactor as per clients' required specifications. YHCHEM is also dedicated to provide the best product solution for clients' lab or pilot scale experiment.
Main seatures of esterification reactor
1) High quality borosilicate glass 3.3 with excellent physical and chemical properties
2) Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
3) Frequency-conversion stirring system + PTFE seal & bearing system
4) Digital display and control
5) Easy-to-install modular design for exceptional ease and low cost of maintenance
6) Explosion-proof type is optional
Detailed Images
Glass parts
Name : Neck on the reaction tank lid
Brand : YHCHEM
Original : China (Mainland)
* Made by high-borosilicate glass 3.3, with good physical and chemical performance
* The number of necks on reaction lid can be customized as clients' requiest
Glass parts

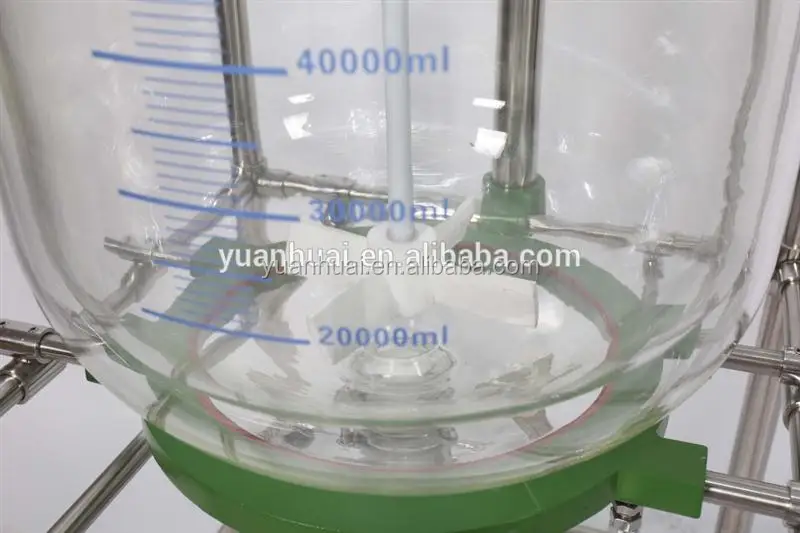

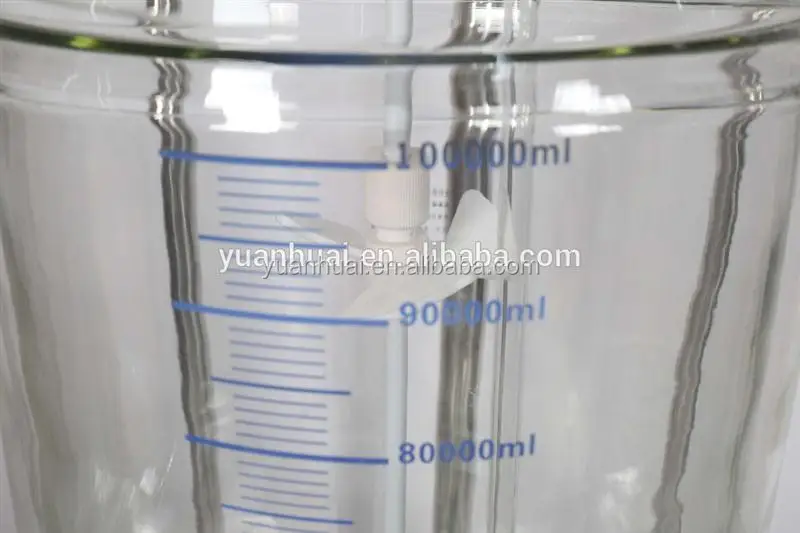

Name : Double layer jacketed kettle
Brand : YHCHEM
Original : China (Mainland)
* Made high-borosilicate glass 3.3, with good physical and chemical performance
* Clear and transparent design allows the operator to see live reaction process
* single layer & triple layer reactors are also available
Machine parts

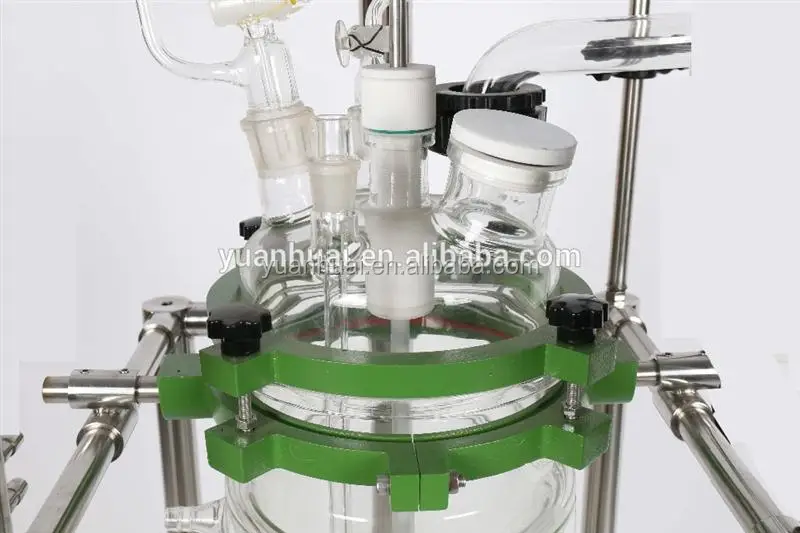

Name : Reactor lid
Brand : YHCHEM
Original : China (Mainland)
* 5-neck lid with additional powder addition port
* Perfect match between lid and reaction flask with frosted surface for perfect sealing
Machine parts

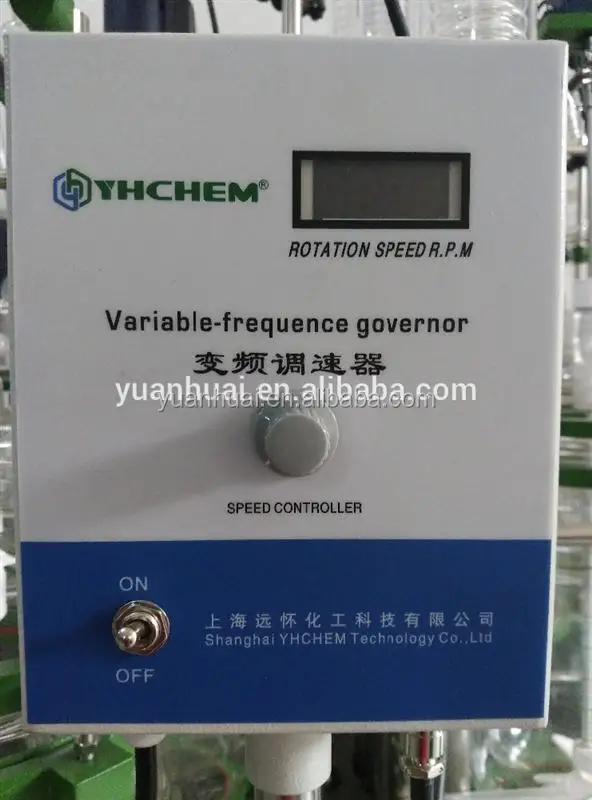

Name : Control panel
Brand : YHCHEM
Original : China (Mainland)
* Accurate control of rotating speed
* Optional Explosion-proof
* High borosilicate glass 3.3 reaction flask for esterification reactor
