Galaxy UD 2512LC 8 feet large format eco solvent novajet plotter printer
- Category: >>>
- Supplier: Guangzhou Caixu Digital Technology Co. Ltd.
Share on (60478603551):
Product Overview
Description
Product Description
Galaxy UD-2512LC
1.Printhead: dx5 printhead (F186000)
2.Printing media: vinyl, polyester,flex,back-lit film, PS Board, KT Board, PVC Foam Board etc
3.Printing Width 2.5m,Other size 1.6m,1.8m,2.1m,3.2m are available.
Advantage for UD printer:
1. Full aluminum platform, high quality and long life.

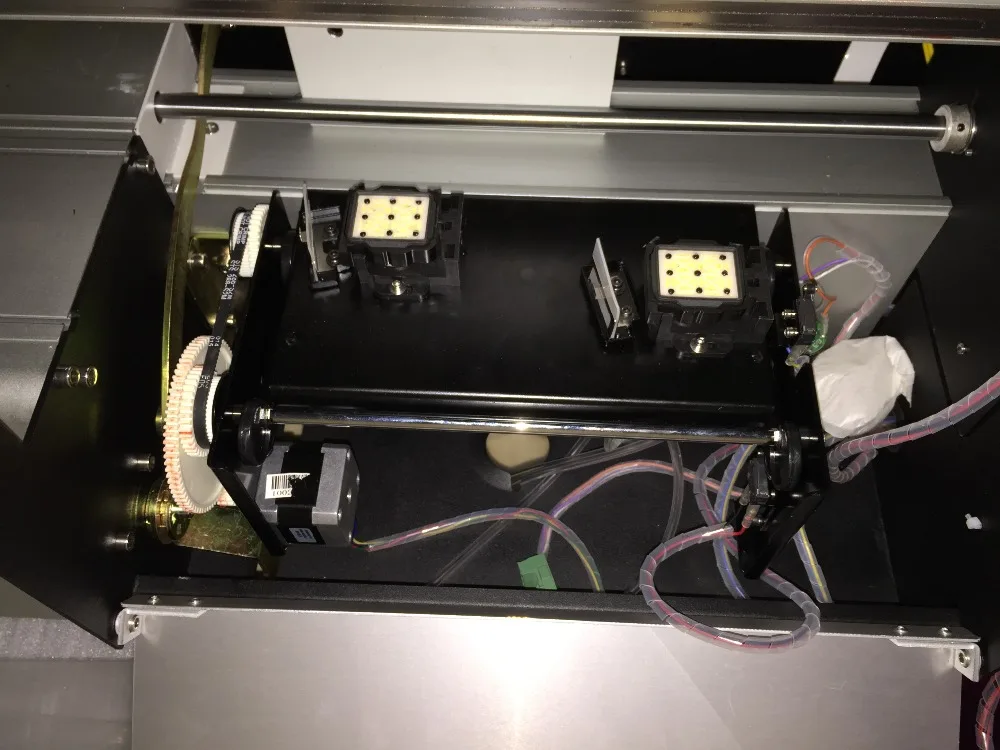

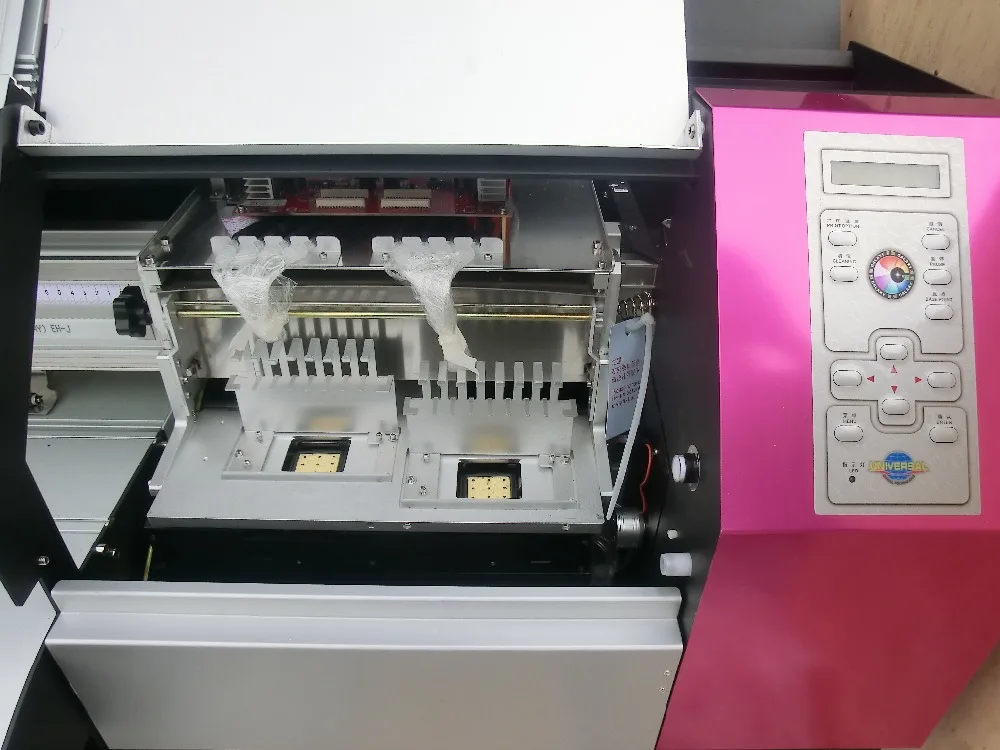

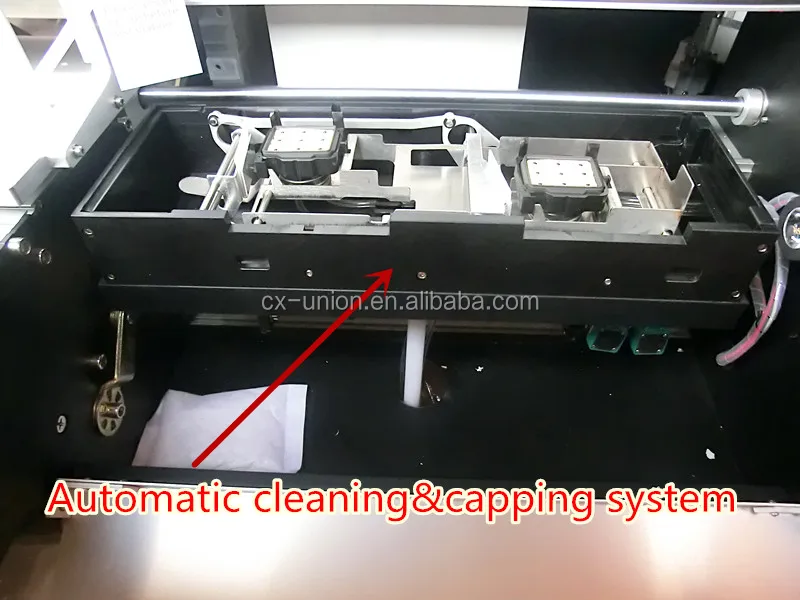

2. Self-developed automatic cleaning and capping system which make the operation and maintenance convenient.

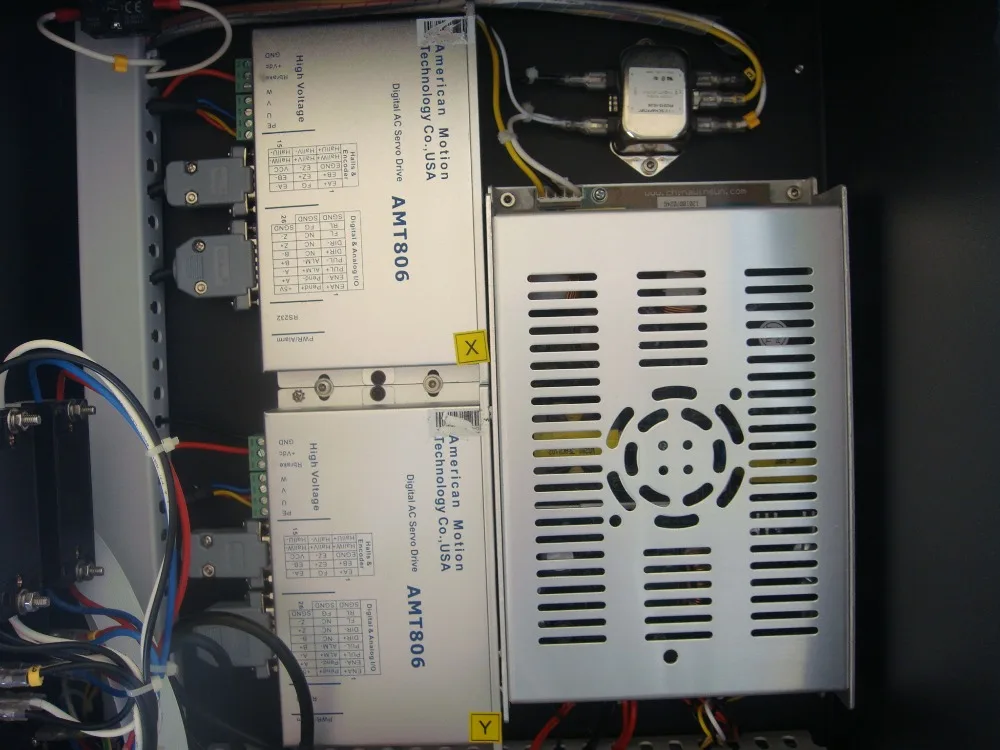

3. X,Y axis AC servo motors, which is stable and durable..
4. Bearing and rail with less noise, low resistance and no vibration.
5. Individual color purging minmizes the waste of the ink

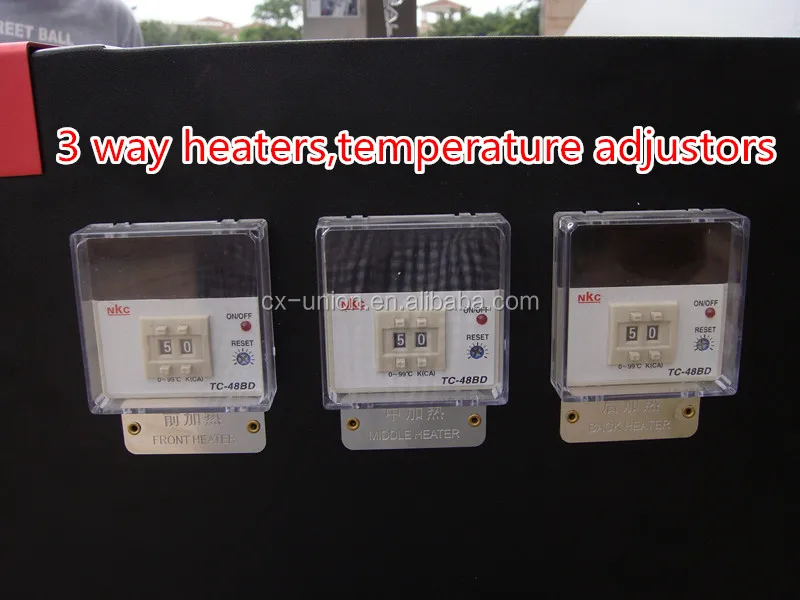

6. 3 way intelligent heater improve the printing quality
7. Adopt USB2.0 output system,which is faster and more flexible.
Specification:
Model | UD-2512LC | |
Print Head | DX5 | |
Number of Print Head | 2 Head | |
Max Printing Width | 2500mm | |
Print Speed (m2/h) | Print mode | Standard output(m2/h) |
Draft | 4 PASS 36 | |
Standard | 6 PASS 24 | |
Quality | 8 PASS 18 | |
High Quality | 8 PASS 18 | |
Backlit | 12 PASS 12 | |
Ink | Type | Solvent Ink / ECO Solvent Ink |
Color | 4 Color (C,M,Y,K) | |
Capacity | 1L per Main Tank of Each Color | |

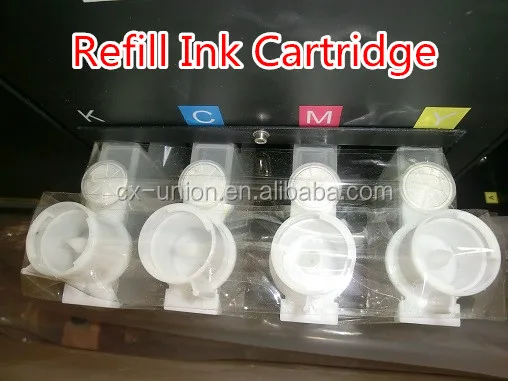

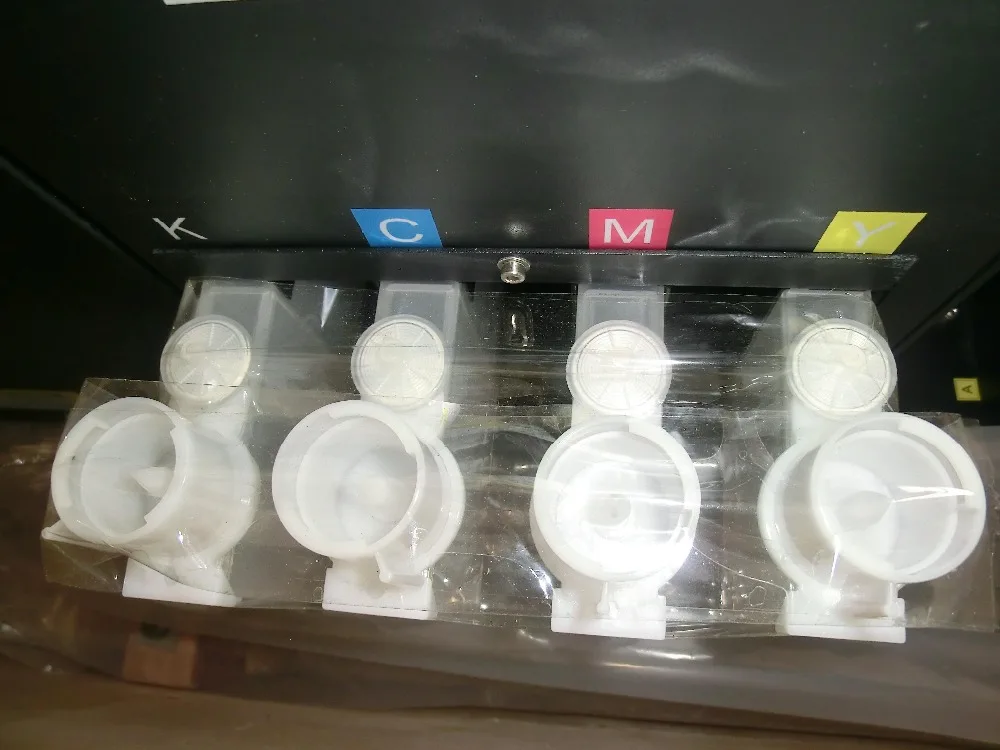

Ink Supply System | Auto Ink Supply System | |
Media | Width | Maximum 2,580mm |
Type | Vinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board… | |
Auto Media Feeding System | Equipped Max media weigh 40kg | |
Auto Cleaning System | Anti-clogged flash function and capping system | |
Pre-heating & Drying System | Equipped | |
Clamp | Equipped | |
Print Interface | USB2.0 | |
Print Head Height | 2-10mm from media | |
Rip Software | Ultraprint, Maintop, Photoprint, Shiraz, Wasatch | |
Input Power | AC220v, 50HZ/60HZ | |
Machine Dimension | L3,780 x W990 x H1,260mm / 242KG | |
Package Dimension | L3,890 x W1,100 x H845mm / 443KG | |
Requirement | Temperature: 20-28 degree, Humidity: 40% - 60% | |

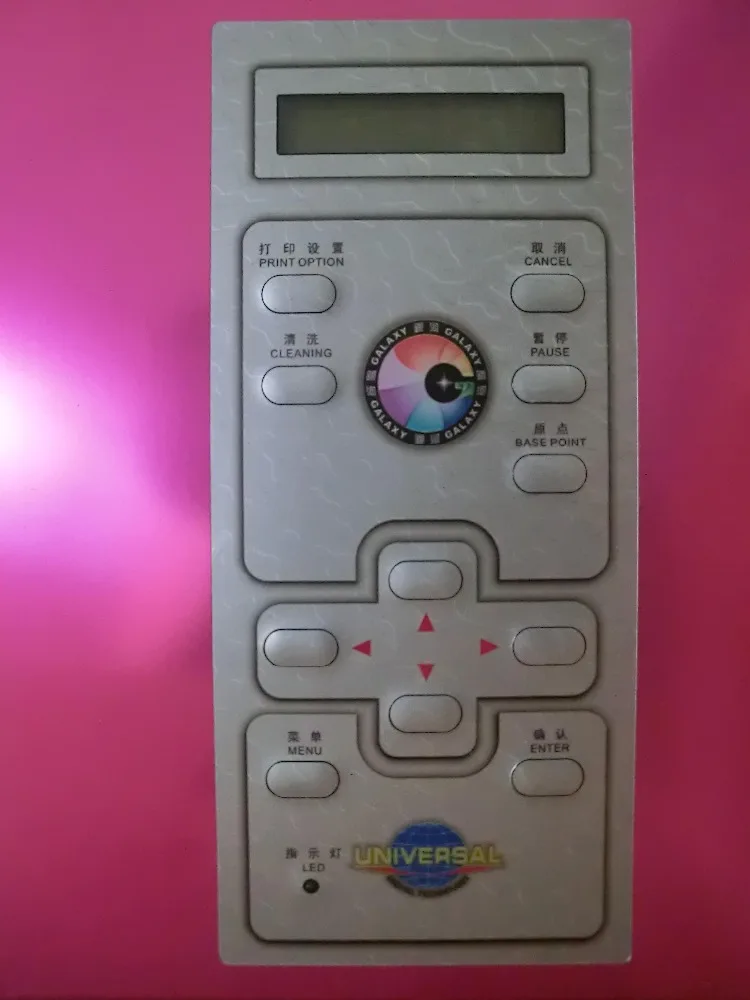

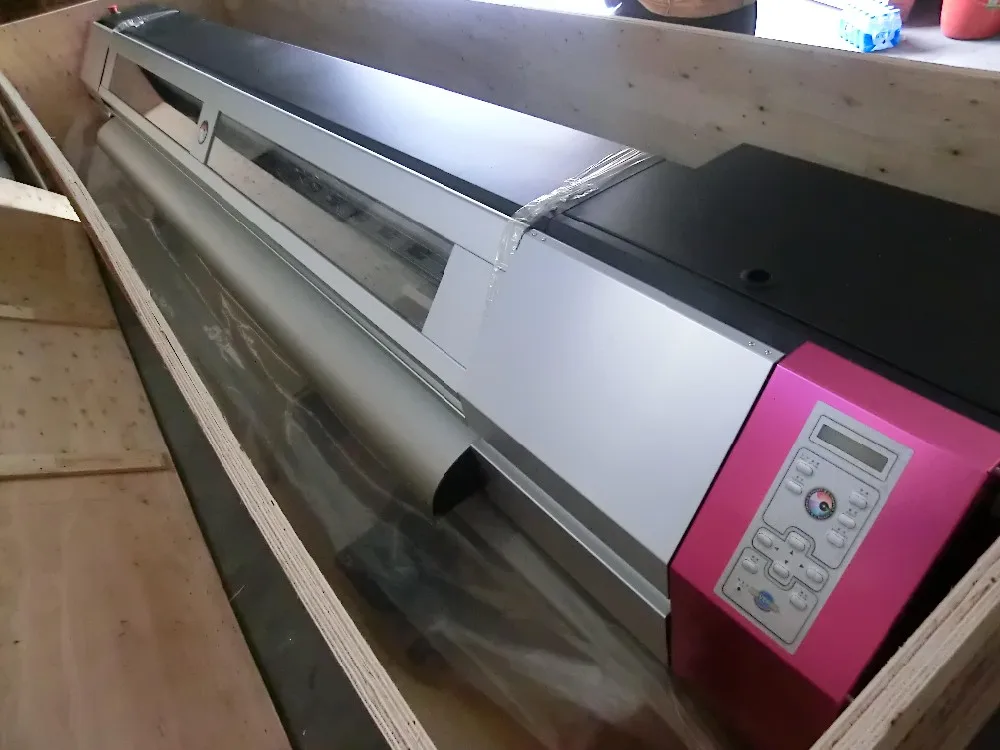

Photo for Reference:
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us .
Contacting information :
Name : Mandy wen Sales manager
Tel: 0086 020 32053500
Cellphone and whatsapp : +0086 15989224480
Skype: mandywen76
Hope to receive your massage !
