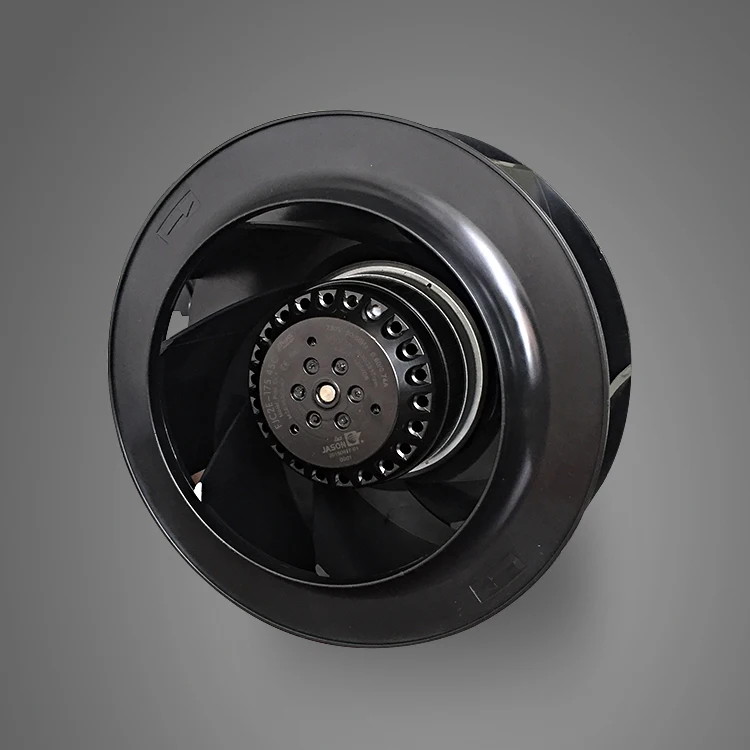

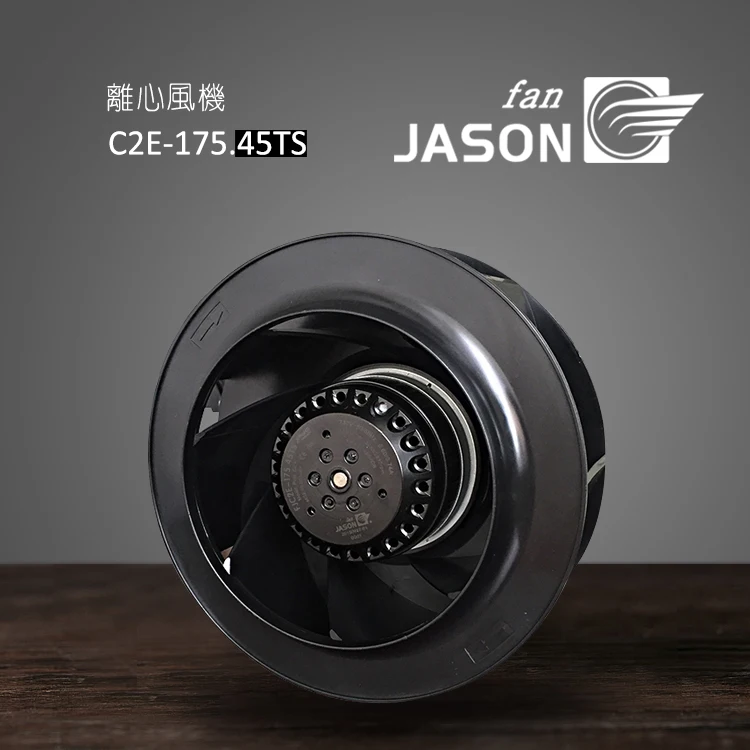

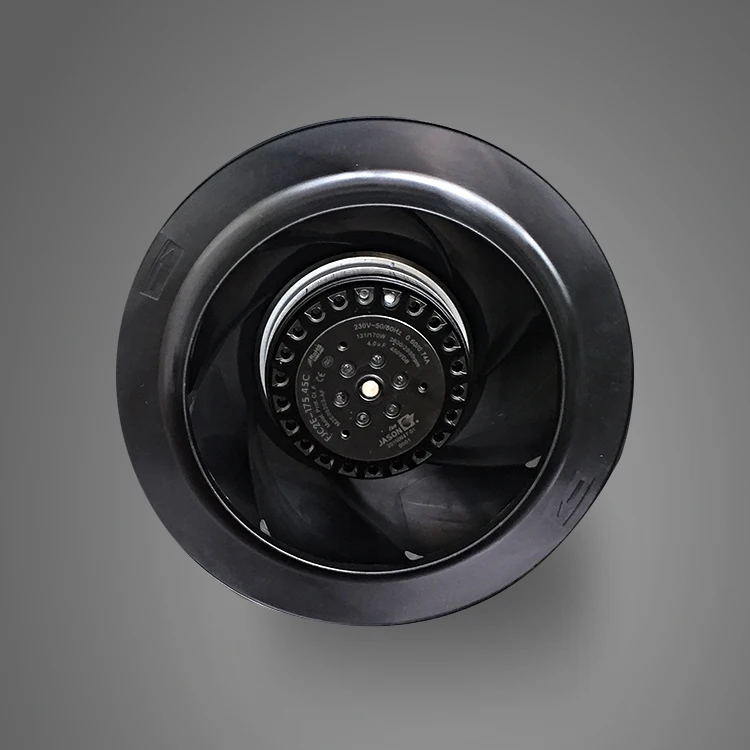

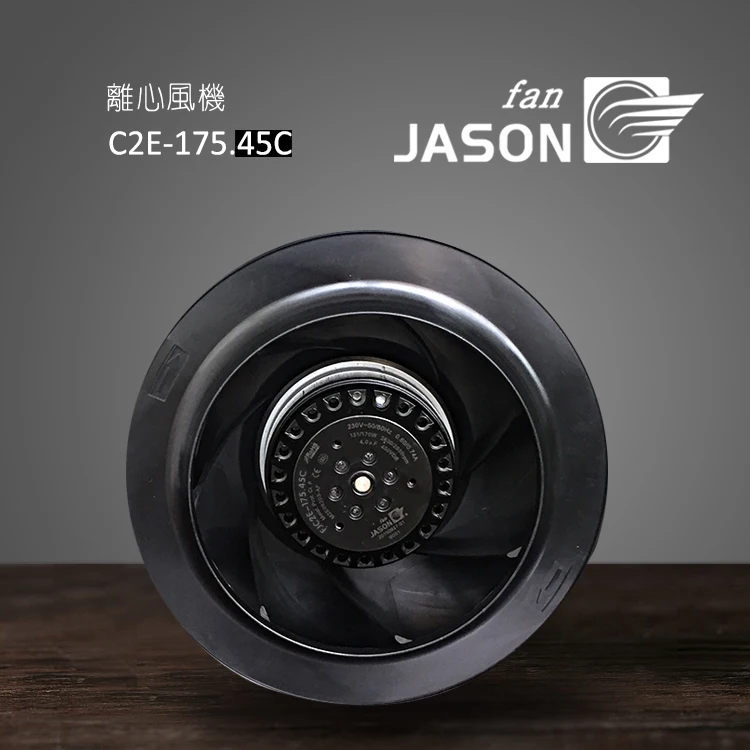

JASONFAN 175*92mm radial fan
- Category: >>>
- Supplier: Wenzhou Jason Fan Manufacturer Co. Ltd.
Share on (60478768350):
Product Overview
Description
Products Description
1、Motor
Cage type capacitor structure external rotor motor
2、Impeller
Black PA nylon one-time injection moulding
3、Allowable environment temperature and
humidity range:(under unconcretionary condition)
humidity range:(under unconcretionary condition)
-40℃ ~ +80℃ (temperature) 0% ~ 95% (humidity)
4、Protection
Motor Internal with automatic recovery thermal protector
5、Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
6、Insulation Grade
design according to IEC61858 Grade F,
7、Protection Grade IP44

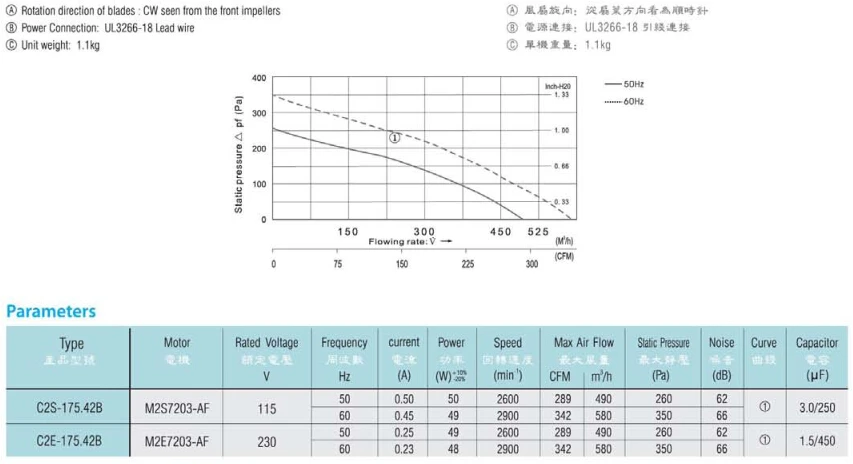

A：Rotation direction of blades:CW seen from the fromnt impellers
B：Power Connection：UL3266-18 Lead wire
C：Unit weight:1.24kg
Company Profile
Company Information
We are specialized in developing and producing axial fans, centrifugal fans and air filters in different sizes with high quality in the cooling and ventilation fields. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Durable life.
Our company reposes on a simple Chinese
city - Yueqing, which is famous for low-voltage
electronics and precision industry around the
Our company reposes on a simple Chinese
city - Yueqing, which is famous for low-voltage
electronics and precision industry around the
Why Choose Us
Certifications
Application
Product packaging
It is very important to protect our fans during their transportation to our customers. We replaced our foam packing with carton paperboard as interval of fans in order to avoid environmental problem of foam. We load all the cartons on pallet in order to save labor force cost for our customer. And we also supply plastic film parcel up the outside of the pallet for waterproof if our customers’ end are in rain reason.
