Micro 220V Quarter Turn Electric Actuator for butterfly Valve
- Category: >>>
- Supplier: Guangzhou Fols Valve Technology Co. Ltd.Guangzhou Ltd.
Share on (60478784425):
Product Overview
Description
,

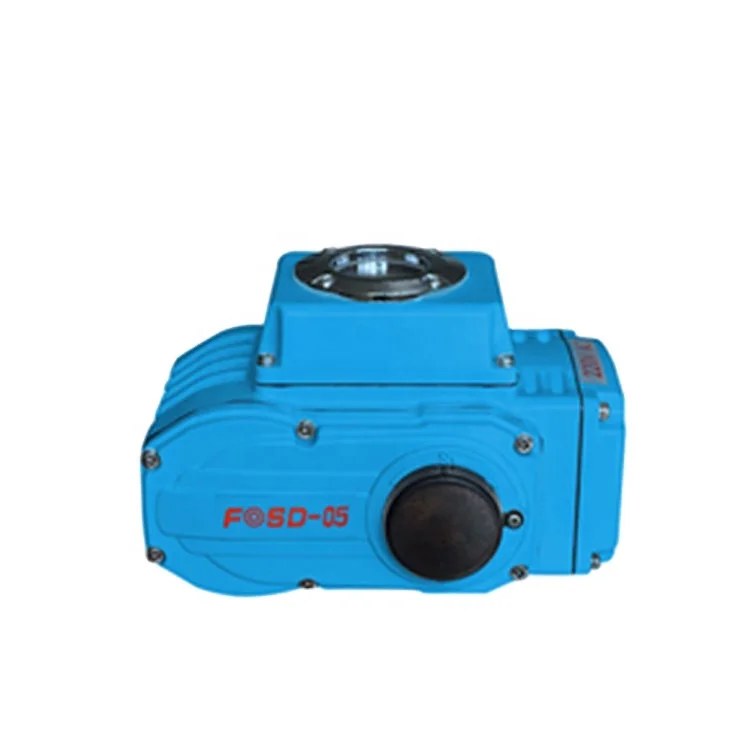

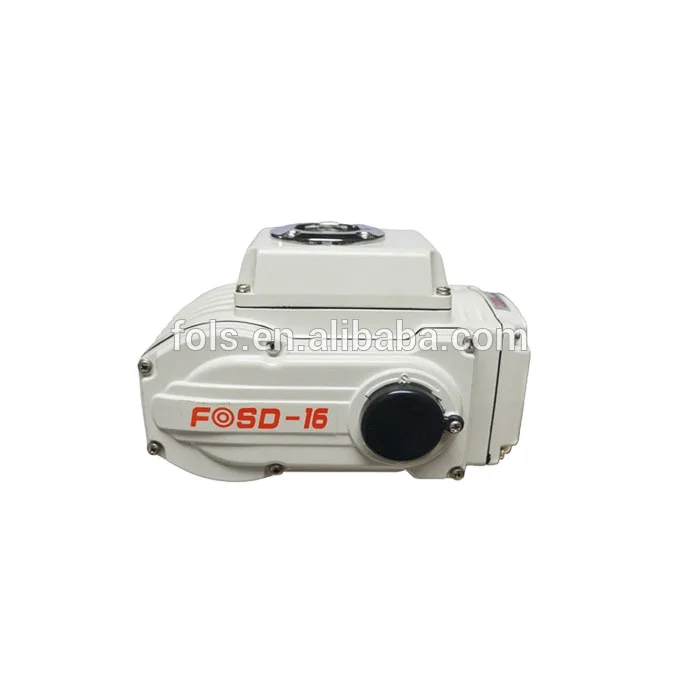

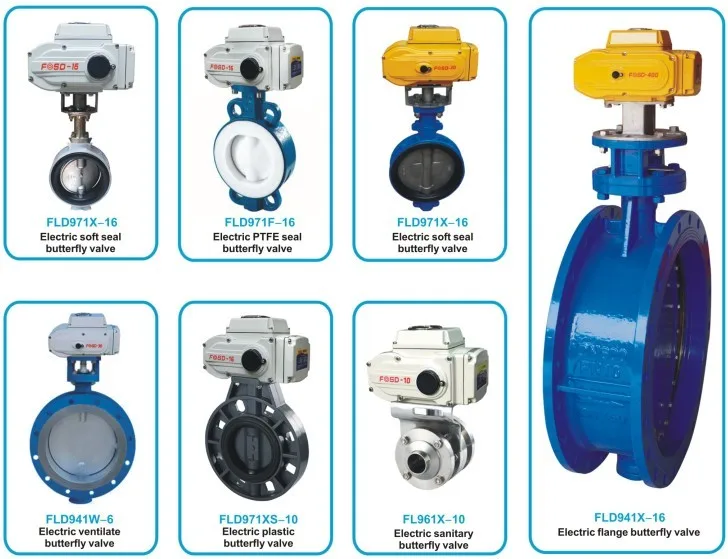

micro 220V quarter turn electric actuator for butterfly valve
Product Description

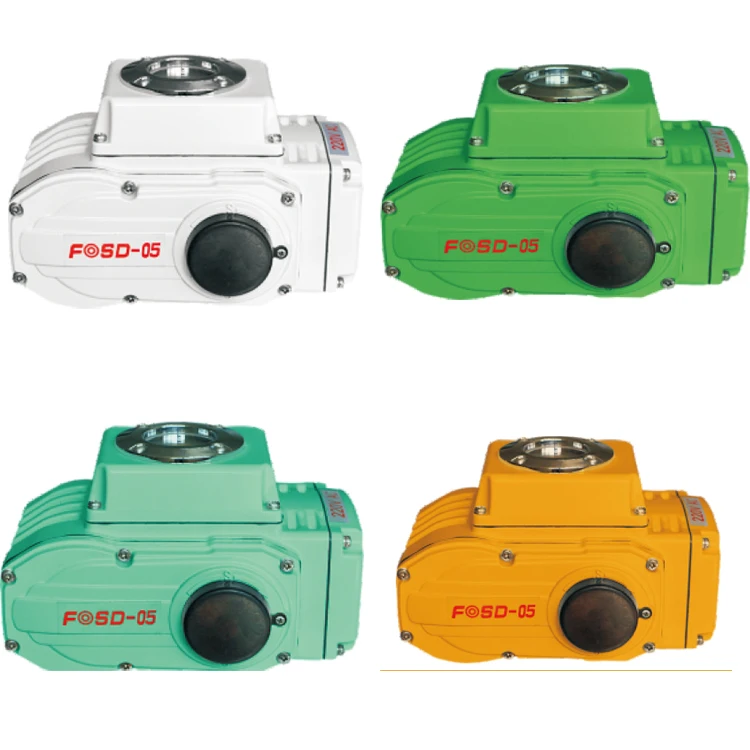

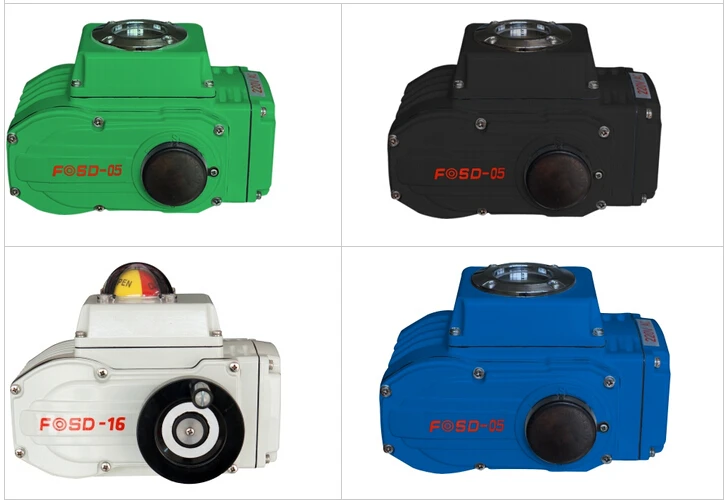

All our electric valve actuator could be various colors as below:
Other Electiric electric actuators' peformance:

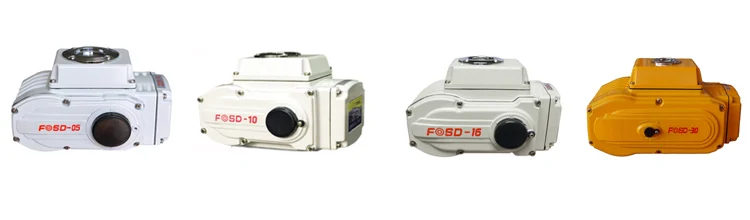

| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AV220V, AC24V, AC110V , AV220 , AC380, DC24V (choose options) | |||||||
| Insulation resistance | 100M/500VDC | |||||||
| Pressure withstanding | 1500 VAC , one minutes | |||||||
| Inbreaking protection | IP65/IP67 | |||||||
| Installation angle | 360° any angle | |||||||
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port | |||||||
| Ambient humidity | -30°C to +60°C | |||||||
| Pilot circuit options | A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style | |||||||

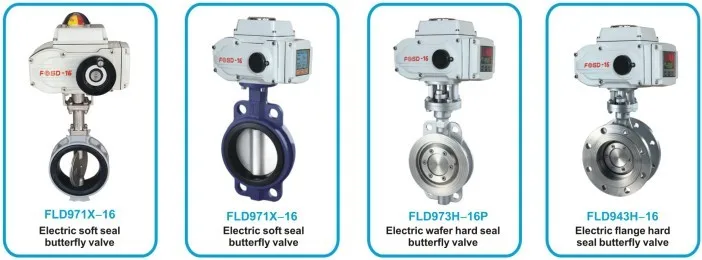

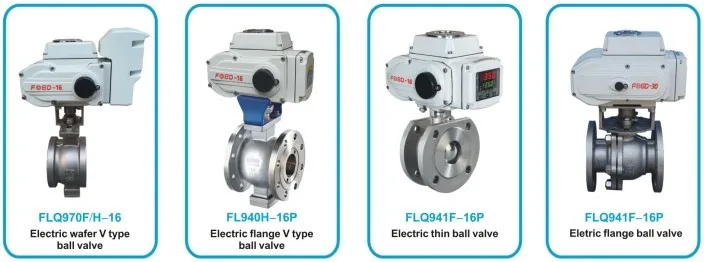

The mini valve electric actuator is the mechanism for opening and closing a valve, The mini valve electric actuator
allow a valve to be adjusted remotely and rapid operation of large valves, turn the valve from close to open or from
open to close. The regulating electric actuator have the function to turn valve to any position.

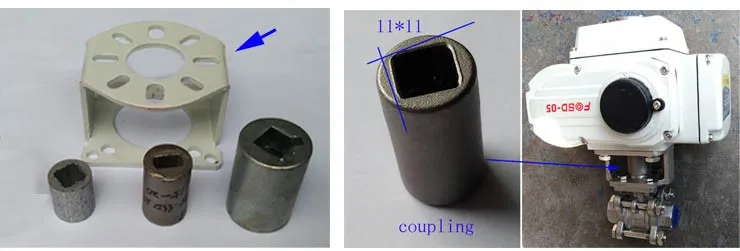

Do worry the coupling size and bracket:
The size of coupling is customized, whatever you need is feasible
Why Choose Us
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer and have our own factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
Q. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
