Product Overview

Description

Product Description

1. Grade: 50ww1300,50ww800,50ww350,50ww470,35w300,35w440,27q120,35jg155

2. Size: EI-28,EI-41,EI-76.2,EI-114,EI-360 ETC.DETAILS CHECK below form.

3. Standard: GB

4. Certification: ISO9001, SGS, ISO14001

5.Used:low-frequency transformer

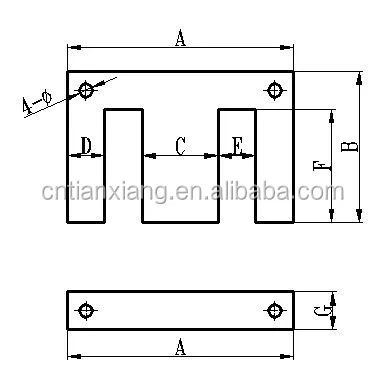

Drawing
Sizes detail
Model
A
B
C
D
E
F
G
(Φ)
EI-28
28
21
8
4
6
17
4
EI-30
30
20
10
5
5
15
5
EI-33
33
22
11
5.5
5.5
16.5
5.5
EI-35
35
23.4
11.6
5.84
5.84
17.46
5.84
EI-38.4
38.4
25.6
12.8
6.4
6.4
19.2
6.4
EI-38.4
38.4
44.8
12.8
6.4
6.4
38.4
6.4
EI-41
41
27
13
6
8
21
6
3.2
EI-42
42
28
14
7
7
21
7
3.5
EI-48
48
32
16
8
8
24
8
3.5
EI-50
50
34
14
9
9
25
9
EI-54
54
36
18
9
9
27
9
3.5
EI-57
57
38
19
9.5
9.5
28.5
9.5
4.0
EI-60
60
40
20
10
10
30
10
3.5
EI-66
66
44
22
11
11
33
11
4.5
EI-75
75
50
25
12.5
12.5
37.5
12.5
5.0
EI-76.2
76.2
50.8
25.4
12.7
12.7
38.1
12.7
5.0
EI-78
78
52
26
13
13
39
13
5.0
EI-78
78
53
22
14
14
39
14
5.0
EI-84
84
56
28
14
14
42
14
5.0
EI-85.8
85.8
57.2
28.6
14.3
14.3
42.9
14.3
5.0
EI-96
96
64
32
16
16
48
16
6.3
EI-105
105
70
35
17.5
17.5
52.5
17.5
6.0
EI-108
108
72
36
18
18
54
18
5.5
EI-114
114
76
38
19
19
57
19
7.0
EI-120
120
80
40
20
20
60
20
7.0
EI-126
126
84
42
21
21
63
21
7.0
EI-132
132
88
44
22
22
66
22
7.0
EI-133.2
133.2
88.8
44.4
22.2
22.2
66.6
22.2
7.0
EI-144
144
98
40
26
26
72
26
7.0
EI-150
150
100
50
25
25
75
25
8.0
EI-152.4
152.4
101.6
50.8
25.4
25.4
76.2
25.4
8.0
EI-162
162
108
54
27
27
81
27
8.5
EI-168
168
112
56
28
28
84
28
10.0
EI-171
171
114
57
28.5
28.5
85.5
28.5
9.0
EI-174
174
116
58
29
29
87
29
10.5
EI-180
180
120
60
30
30
90
30
9.0
EI-182
182
123.9
56
30
33
100
33
8.0
EI-192
192
128
64
32
32
96
32
9.0
EI-210
210
140
70
35
35
105
35
9.0
EI-240
240
160
80
40
40
120
40
12.0
EI-228
228
152
76
38
38
114
38
10.3
EI-270
270
180
90
45
45
135
35
10
EI-300
300
200
100
50
50
150
50
12.0
EI-360
360
240
120
60
60
180
60
12.0

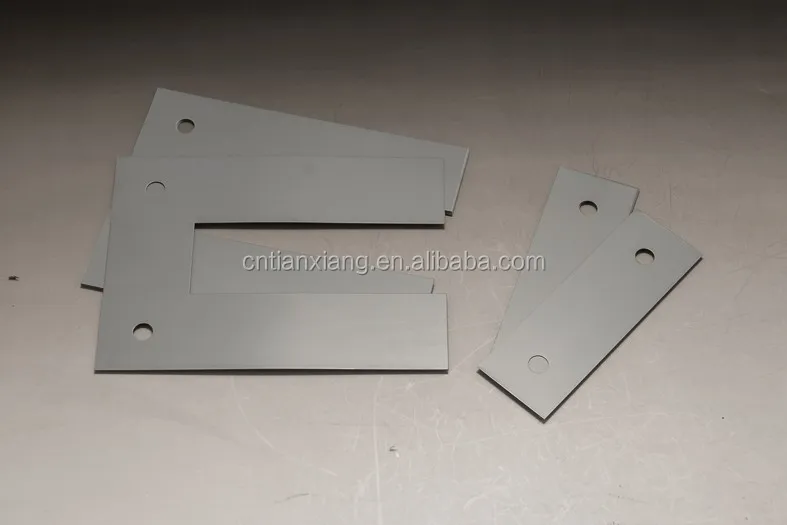

Products Show

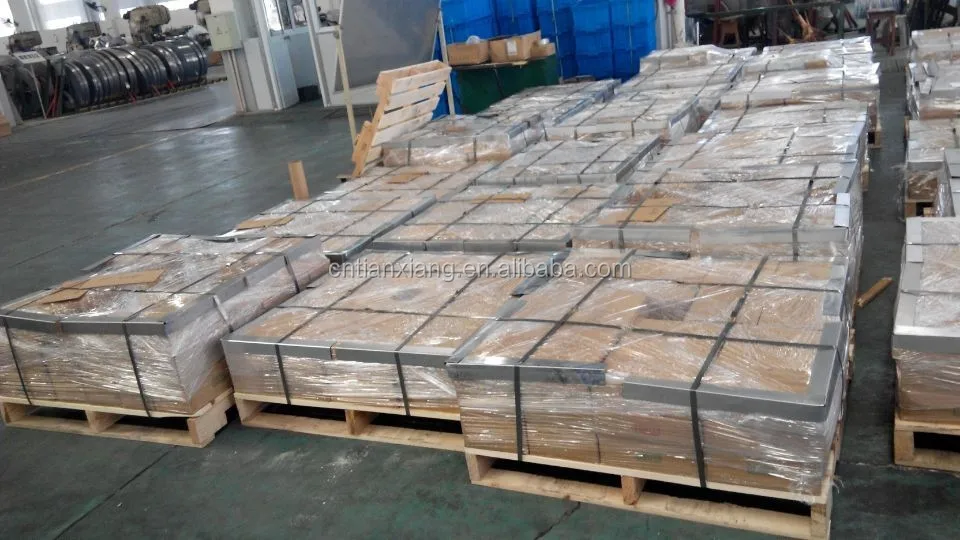

Packing & Delivery
1. Special logistics packaging,25 kg for each carton,plastic or anti-rusted bag inside
2. Suitable pallet size,fix all cartons on the pallets
3. Special request:big cartons outside.
