48V 1000w 16 28inch wheel size electric bike permanent magnet rear dc motor

Product Overview

Description

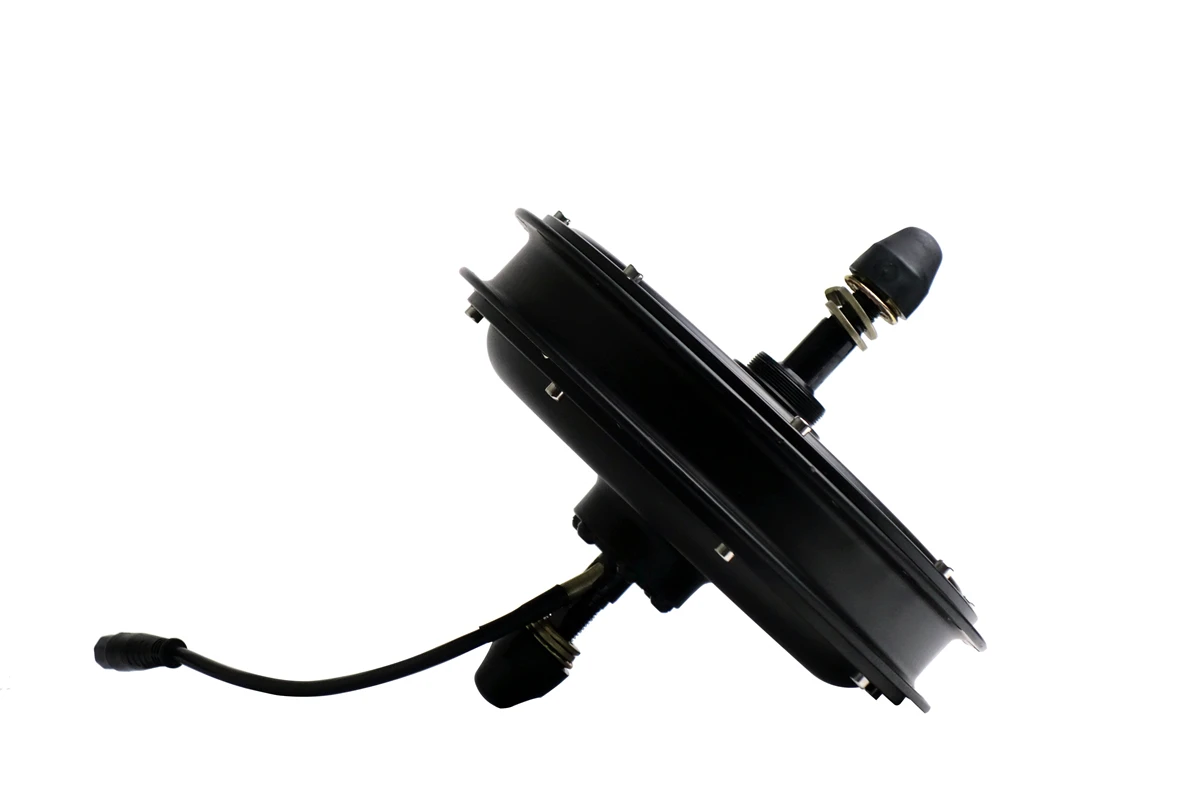

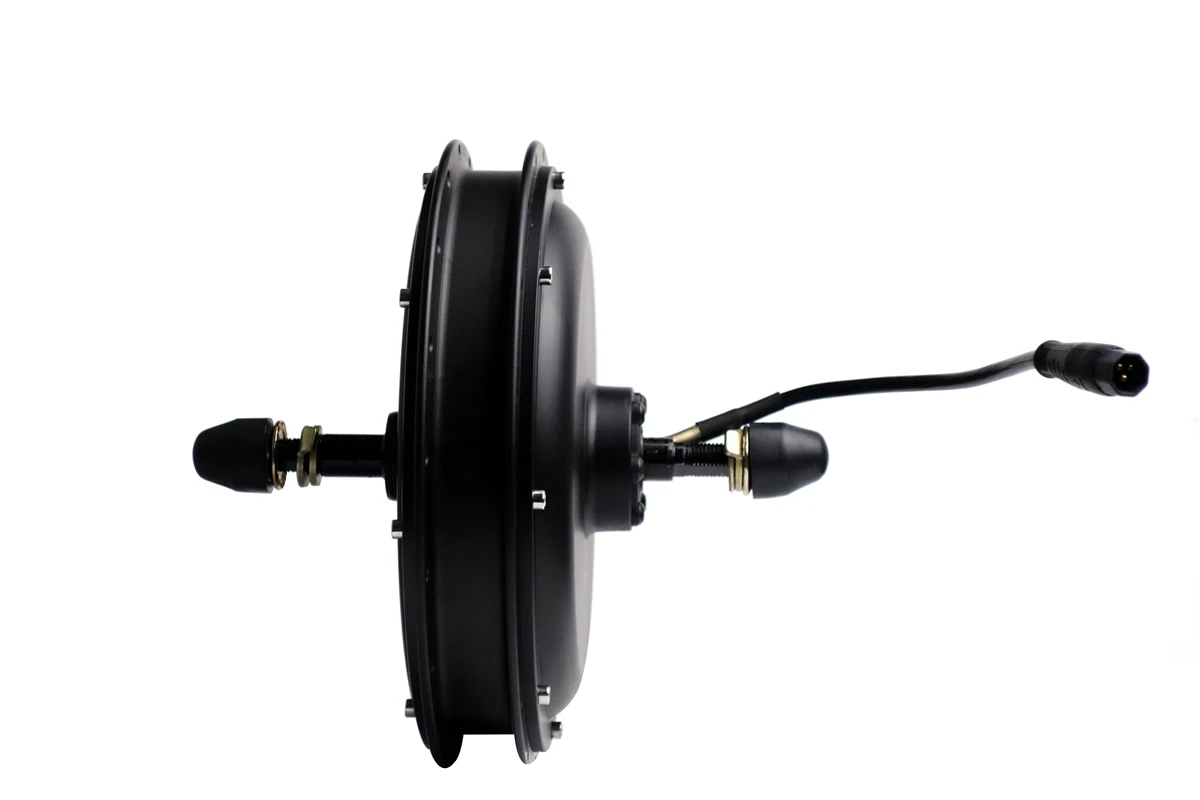

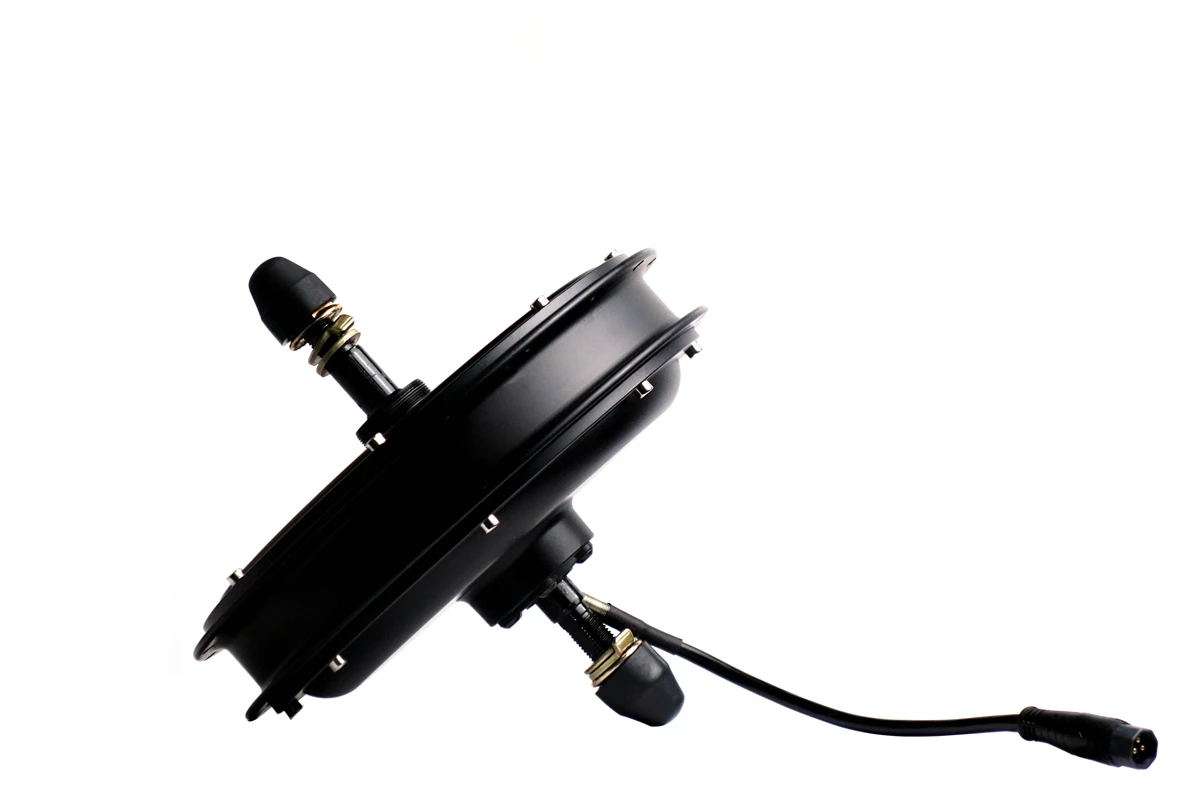

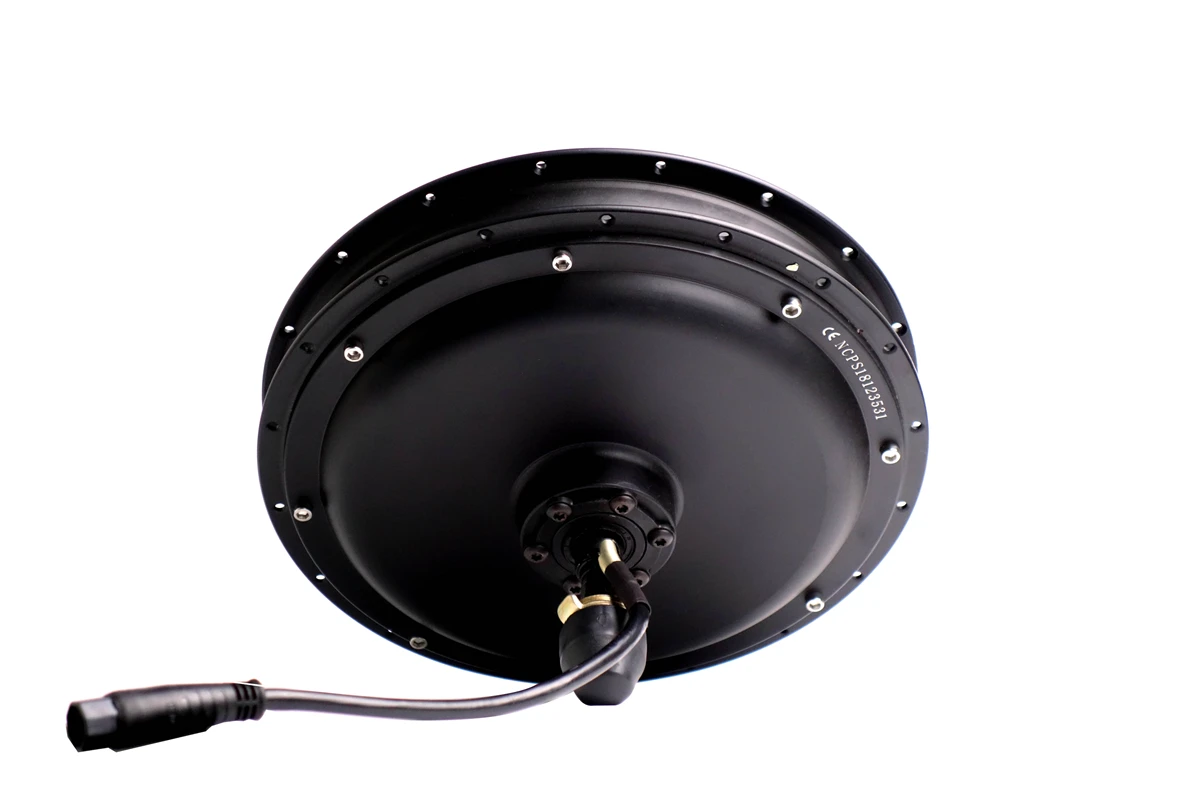

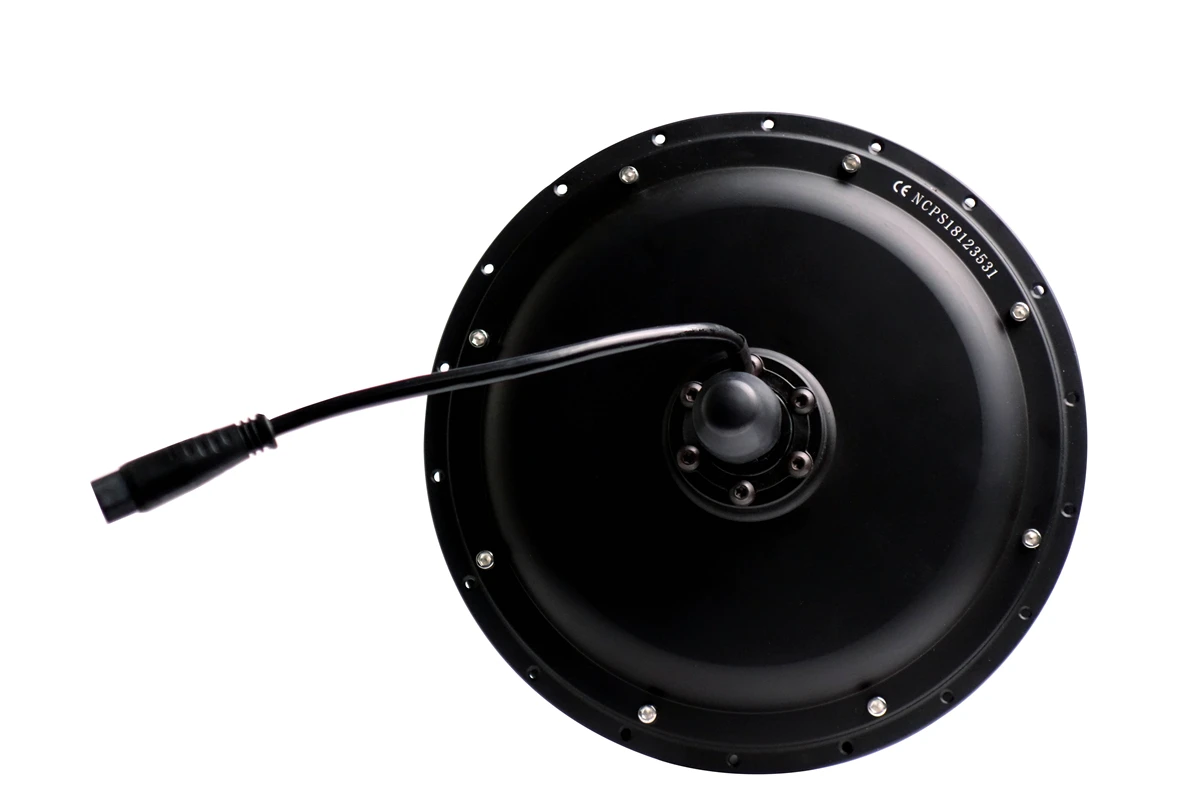

PRODUCT PICTURES

48V 1000w 16-28inch wheel size electric bike permanent magnet dc motor



PRODUCT SPECIFICATIONS

Model	NC481000
Motor power	1000w
Axle	10mm* 14mm
Type	Front or rear motor to choose
Voltage	48v
Magnet Height	30mm
Design	Brushless gearless dc
Windings	11*5
Waterproof grade	IP54
RPM/min	520
Cable size	2mm2
Max torque	40N.M
Max Efficiency	>=88%
Open size	100mm for front motor, 135mm for rear motor
Wheel size	16-28inch
Hall sensor	Optional
Hall sensor angle	120 degrees
Integrate speed sensor	Optional
Brake	Disc brake
Surface color	dark black/ sliver white
Temperature sensor	Yes
N.W	6.2kgs







PRODUCT DRAWING

48V 1000w 16-28inch wheel size electric bike permanent magnet dc motor







PRODUCT FEATURES

48V 1000w 16-28inch wheel size electric bike permanent magnet dc motor

l  Low noise

l  Electricity saving

l  High torque

l  High strength

l  High safety coefficient, high efficiency

l  Long service life

l  Not easy to be hot

l  Big power

l  Warranty : 2 years

l  OEM

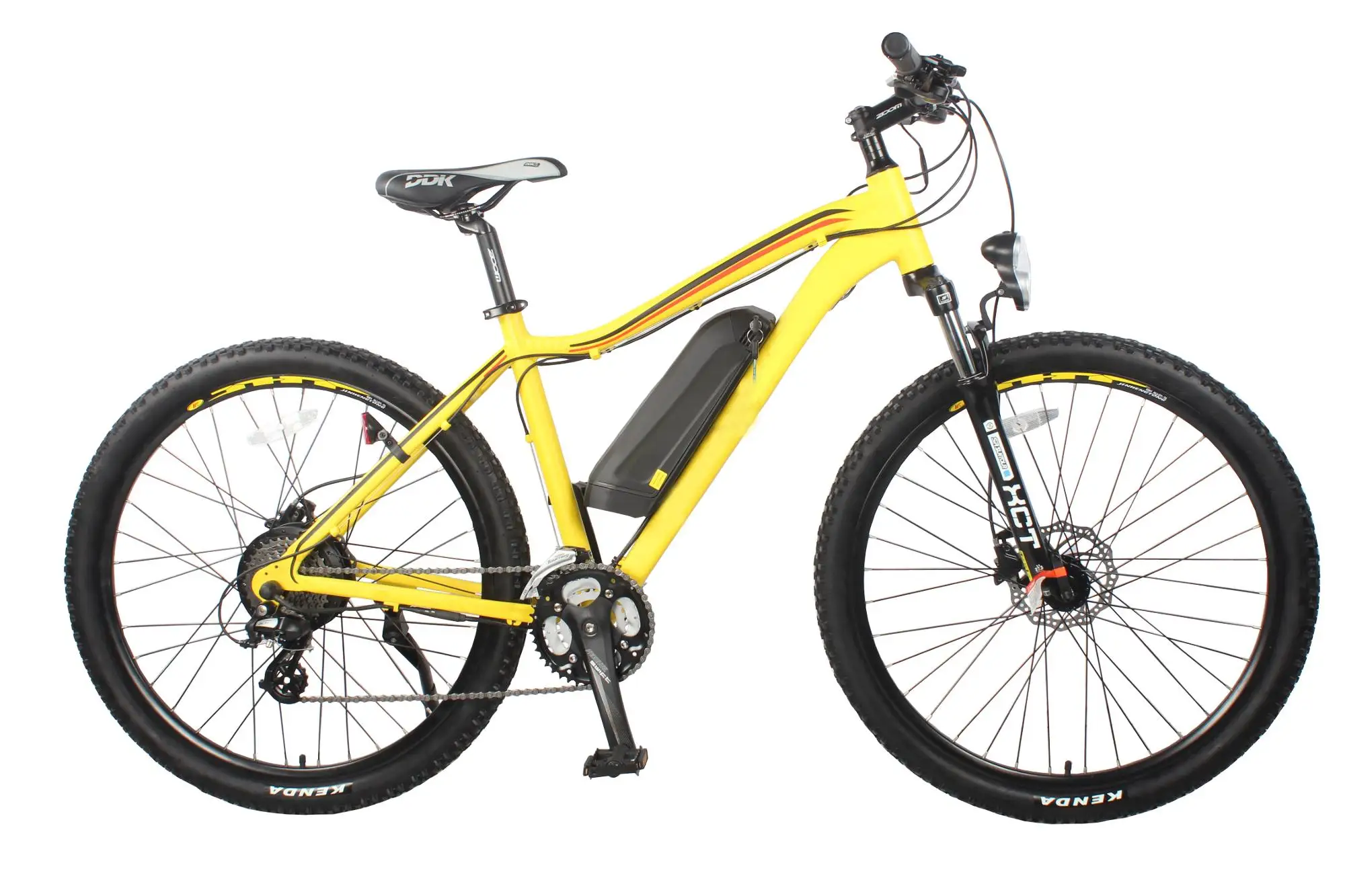

PRODUCT APPLICATION

48V 1000w 16-28inch wheel size electric bike permanent magnet dc motor





PRODUCT PACKING

Packing details for  48V 1000w 16-28inch wheel size electric bike permanent magnet dc motor

Material : carton with foam
