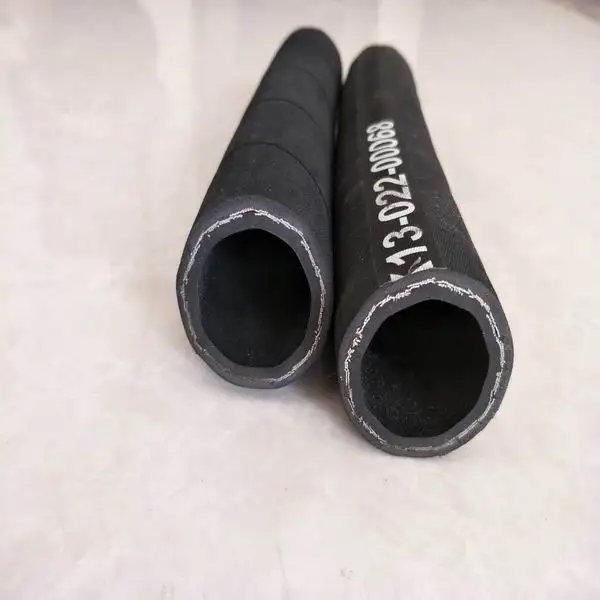

Steel Wire reinforcement Hydraulic hose/R1/1SC
- Category: Hydraulic Parts >>>
- Supplier: Hebei Aotong Rubber Product Co. Ltd.
Share on (60478964848):
Product Overview
Description
Product Description
Hydraulic hose:
1.SAE R1AT,1SN
2.RUBBER HOSE,OIL HOSE,PIPE,high pressure hose...
Wire Braid Hydraulic Hose: SAE 100 R1AT/DIN EN 853 1SN STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 to +100
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20to40 |
38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20to40 |
51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20to40 |

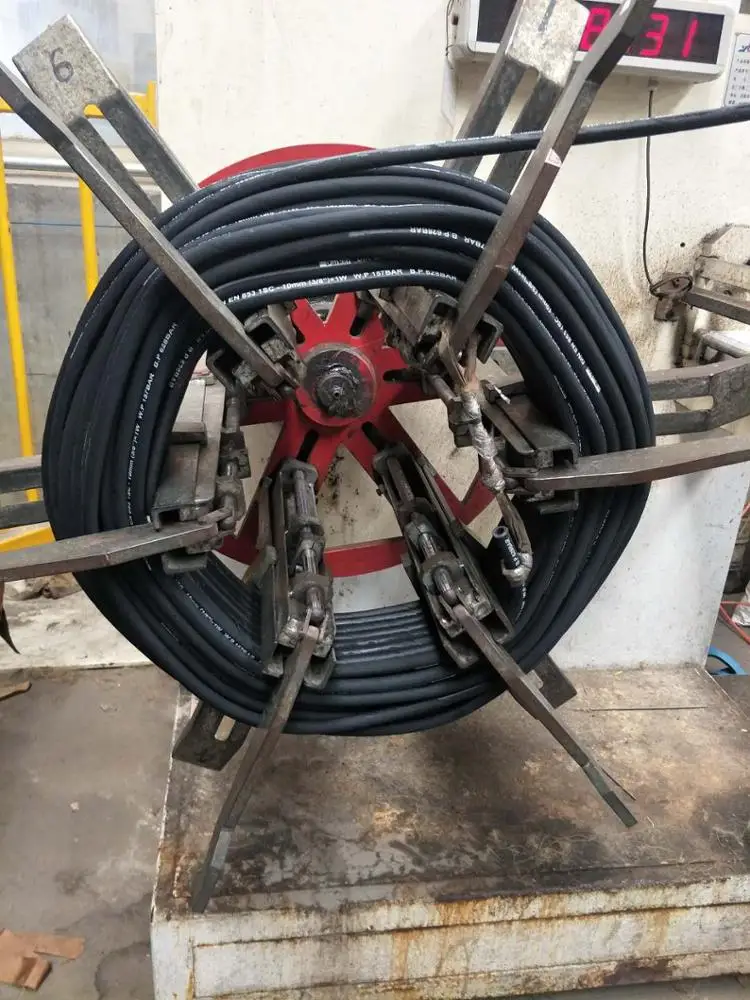

Packaging

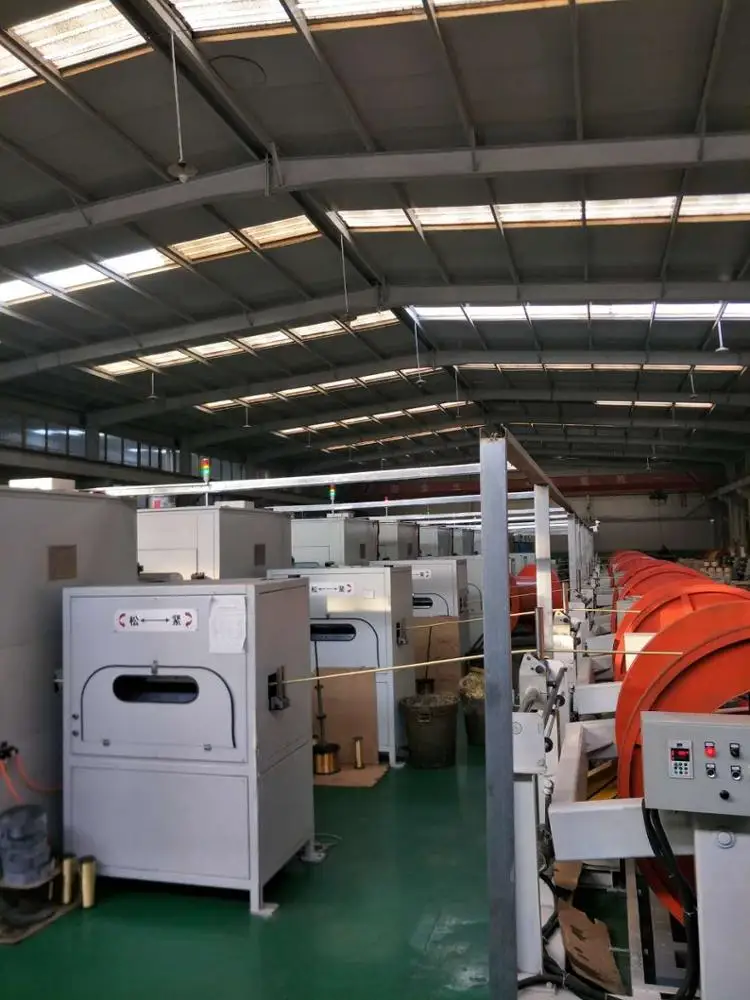

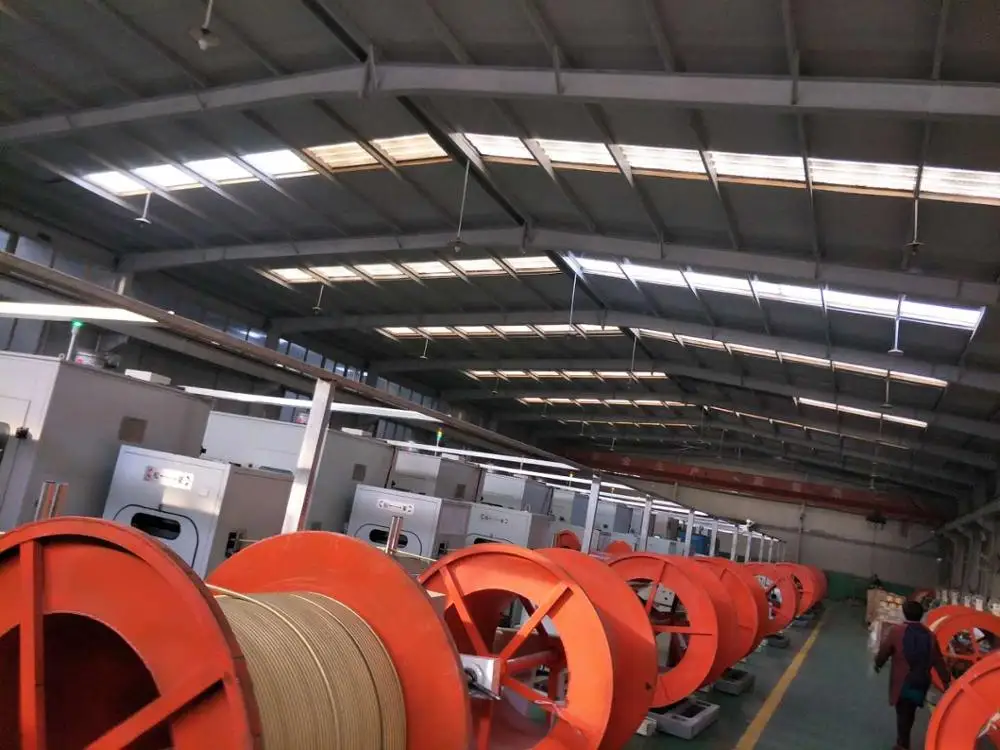

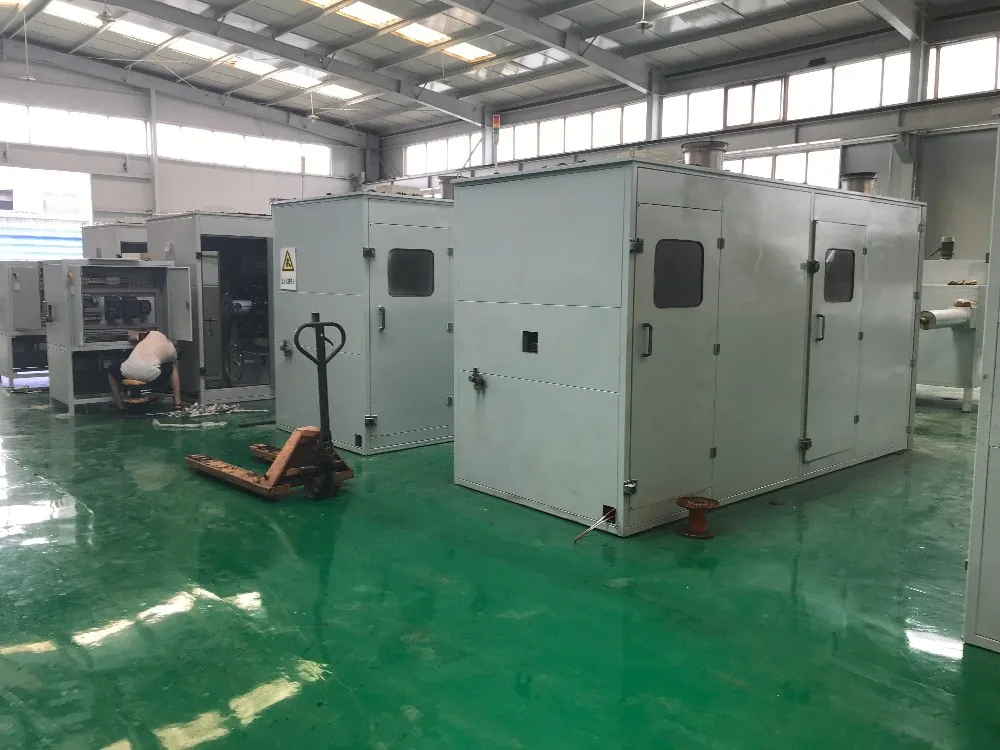

Our Plant1
Certifications1
SERVICES
1.OEM Order will be Accepted.
2.Free sample will be Supplied to You.
3.Well-trained and experienced Staff will answer your questions.
4.Your inquiry related to our products will be replied within 24 hours.
5.Welcome to Visit our factory for further understanding to our products and factory.
