HS 420D milk Powder automatic packaging machine automatic pouch packing machine powder packing machine

Product Overview

Description

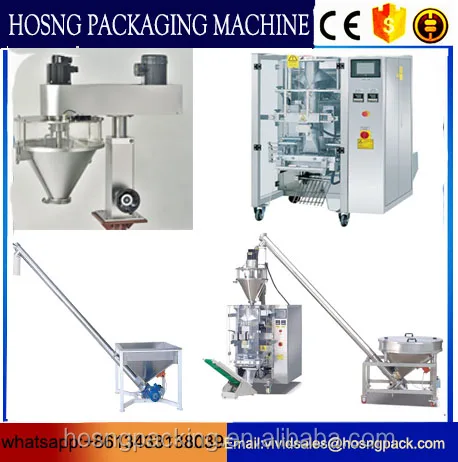

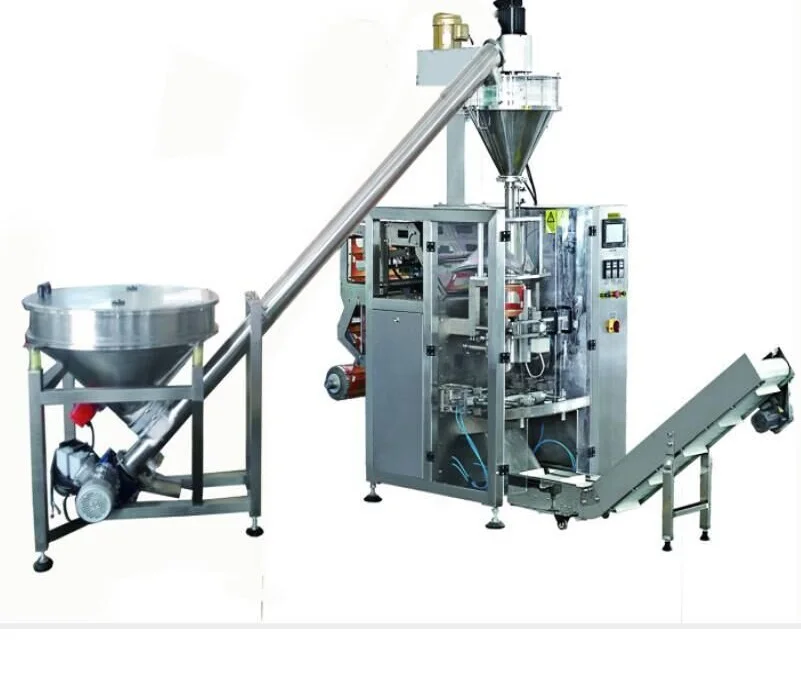

1,HS-420 vertical packing machine

Upper handler for packing machine when machine pack the weight more than 1kg:

 The scope of packaging:

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

The major performance and structural feature:

*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

* minimize the loss with complete automatic warn protection function;

* supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling,sealing.

* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Technical parameter

Items	Content
Packing speed	10-45 bags/min
Bag size	(L)50-300mm (W)70-200mm
Bag making mode	Pillow-type bag, standing bag, punching device
The maximum width of packing film	420mm
Air consumption	0.8Mpa300L/min
Main power/voltage	2.5KW/220V
Dimension	(L)1400×(W)950×(H)1600mm
The weight of switchboard	450kg

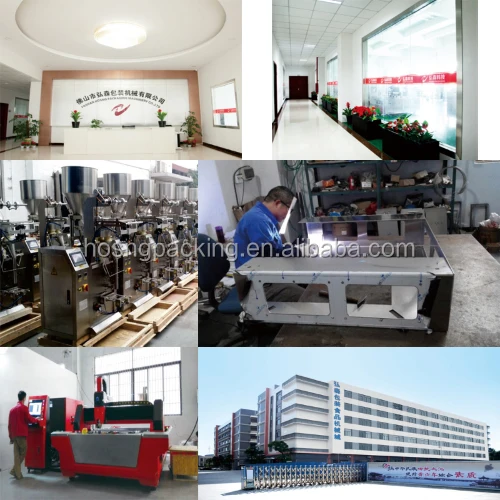

 1.Introduction of Company:



2.Our Exhibitions

Bag Type:Pillow bag





 Client  picture

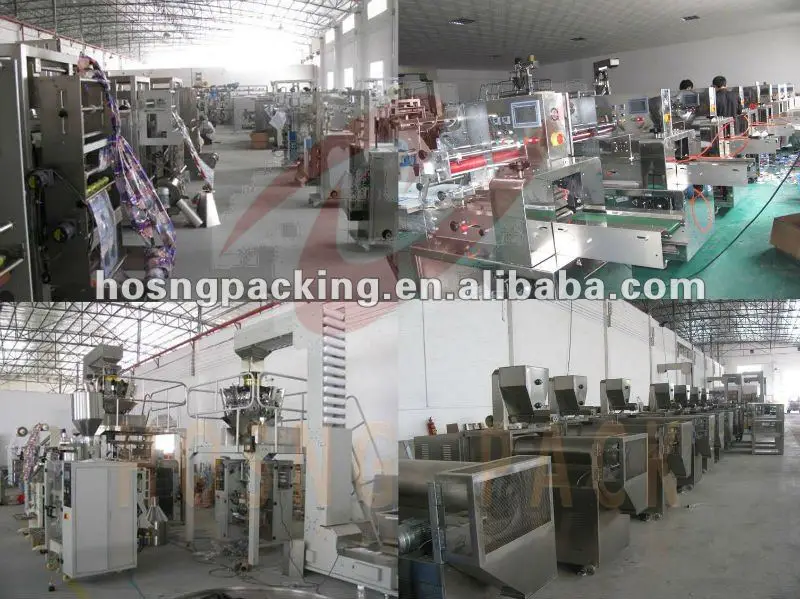

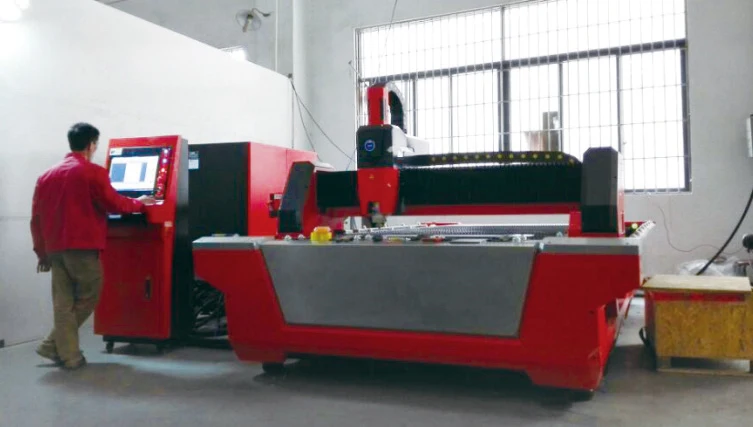

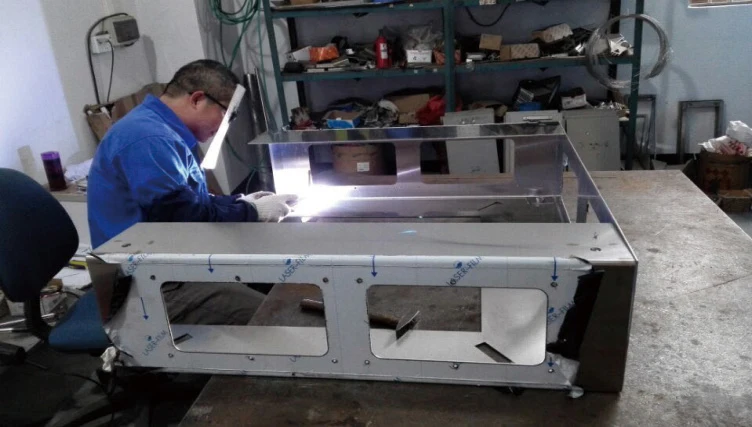

Pictures of Our Factory



 Our Exhibitions

Q&A

Q1: What is the material of contact food/material parts?

A: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.



Q2: Can this machine make different bag sizes?

A: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.



Q3: Does your company have any certificate

A: Yes, we have CE certificate and have professional design and technical team to accept customization.



Q4: When you can deliver the machine after the order is placed?

A: We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.



Q5: How about your warranty?

A: We provide one year warranty



Q6: What can you provide after service?

A: We can provide machine testing video and pictures before delivery, English manual, some free spare parts, installation in clients' factory and technical training.
