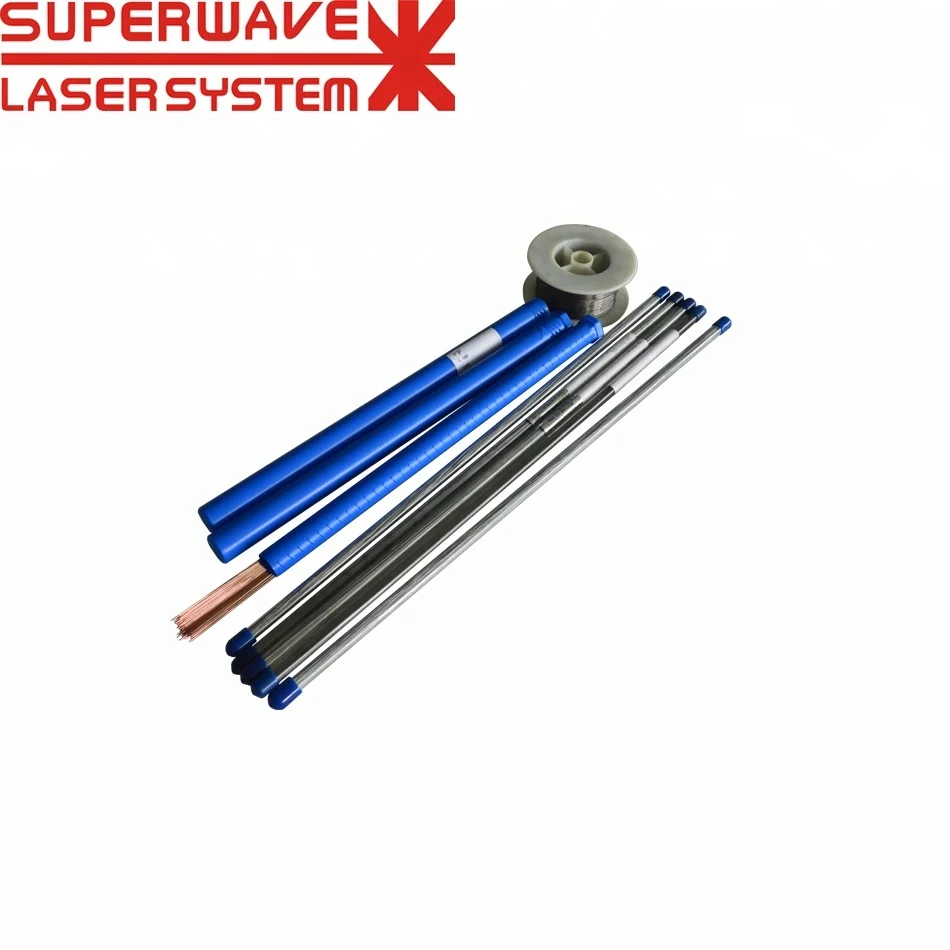

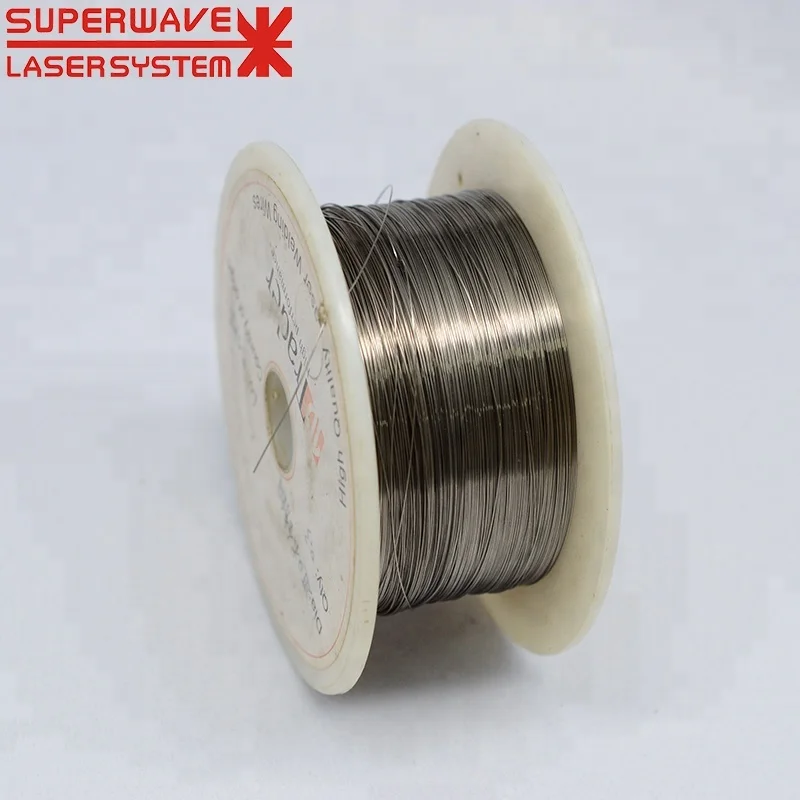

High Quality Laser Welding Wire Rod

Model

    Diameter(mm)

  Hardness

           Description

SKD11

0.2 0.3 0.4 0.5 0.6

 HRC50-55

Dedicated to laser weld up high hardness cold forming steel metal stamping die cutting die cutter forming die tool making hard surface

SKD61

0.2 0.3 0.4 0.5 0.6

 HRC48-58

Specialized in laser welding repair system zinc aluminum tin and other non-ferrous alloy and copper alloy of die mold, can be used for hot forging or hot stamping die with high toughness high abrasion resistance and anti hot corrosion preferred

8407

0.2 0.3 0.4 0.5 0.6

 HRC50-58

Dedicated to laser weld up hot work tool steel series steel hot forging mold heat die aluminum bronze hot die aluminum bronze casting mould has good heat resistance and the resistance to crack resistance

SKH-9

0.3

 HRC60-64

Dedicated to laser weld up high speed steel series alloy tool steel with high hardness tool hardfaced make weld up small area high hardness edge blade cut mouth position high wear resistance hard surface

738

0.2 0.3 0.4 0.5 0.6

 HRC28-32

Dedicated to laser weld up plastic corrosion resistant die, and so on the many kinds of plastic mould erosion flower sex is good, good processability, easy cutting polishing and electrical erosion

718

0.2 0.3 0.4 0.5 0.6

 HRC28-33

Specialized in laser welding repair welding for large home appliance toy communication electronic sports equipment and other plastic products die steel plastic injection mold heat resistant mold corrosion resistant die, machinability erosion flower sex is good, after grinding surface is bright and clean sex good

NAK80

0.2 0.3 0.4 0.5 0.6

 HRC30-38

Specialized in laser welding repair welding for NAK80 - NAK55. High mirror galvanic plastic mold

S136

0.2 0.3 0.4 0.5 0.6

 HRC38-42

Specialized in laser welding repair welding for plastic injection mold corrosion mirror plastic mold after welding hard permeability is good, good resistance to crack toughness

P20

0.2 0.3 0.4 0.5 0.6

 HRC26-30

Used for laser welding repair welding for general plastic die steel heat resistant die after welding crack sensitivity low alloy composition design, good polishing of sex, after pore-free crack, good finish

S55C

0.2 0.3 0.4 0.5 0.6

 HRC20-25

Specialized in laser welding repair welding for general mould     bottom base fillers and plane low wear position after hardness    lower easy milling processing, belongs to more economic base  filling laser welding wire

M2

0.2 0.3 0.4 0.5 0.6

 HRC60-63

Dedicated to laser weld up high speed steel series alloy tool steel with high hardness tool hardfaced make weld up small area high hardness edge blade cut mouth position high wear resistance hard surface

H13

0.2 0.3 0.4 0.5 0.6

 HRC54-57

Specialized in laser welding for H13 hot work steel series steel die mold hot die aluminum bronze casting mould has good heat resistance and the resistance to crack and does not contain the tungsten ingredients, after color match degree is high, high hardness, resistance to abrasion

888

0.2 0.3 0.4 0.5 0.6

 HRC38-42

Dedicated to laser weld up all kinds of nitrided steel, welding anastomotic good, color beautiful, prevent crack resistance, no sand hole, it is very good multi-purpose wire with Nitride2, W30N, W60N, WZ312

Titanium

0.3 0.4

Dedicated to laser weld up pure titanium and titanium alloy mechanical parts

5356

0.2 0.3 0.4 0.5 0.6

Specialized in laser welding repair cast aluminium and aluminium alloy mechanical parts

4043

0.2 0.3 0.4 0.5 0.6

This product is containing silicon 5% aluminum silicon alloy wire can be used for laser welding repair cast aluminum alloy

308

0.2 0.3 0.4 0.5 0.6

Dedicated to laser welding joint 304.301.306 stainless steel products, etc. Its characteristic crack resistance good, low carbon content has better corrosion resistance, light after welding. Don't rust. Flow resistance good advantages

316

0.2 0.3 0.4 0.5 0.6

Specialized in laser welding to need to resistance to acetic acid and phosphorus sulfurous acid salt corrosion resistant stainless steel products such as food processing equipment machinery. Watchcase. Medical equipment, etc

BeCu

0.2 0.3 0.4 0.5 0.6

Specialized in laser welding repair welding for electrolytic piece, iron, copper, steel or two different kinds of metal joint are generally used in welding repair molds, copper, copper casting cup and feeder, hot runner cooling system to transport water plug hole purposes

700

0.2 0.3 0.4 0.5 0.6

Pure nickel laser welding wire special laser weld up jingzhu. Electroforming. Plate industry small parts welding repair
