Бессенсорный бесщеточный двигатель 2435 4800KV 4P бесщеточный ESC 25A для радиоуправляемого автомобиля 1/16

Product Overview

Description

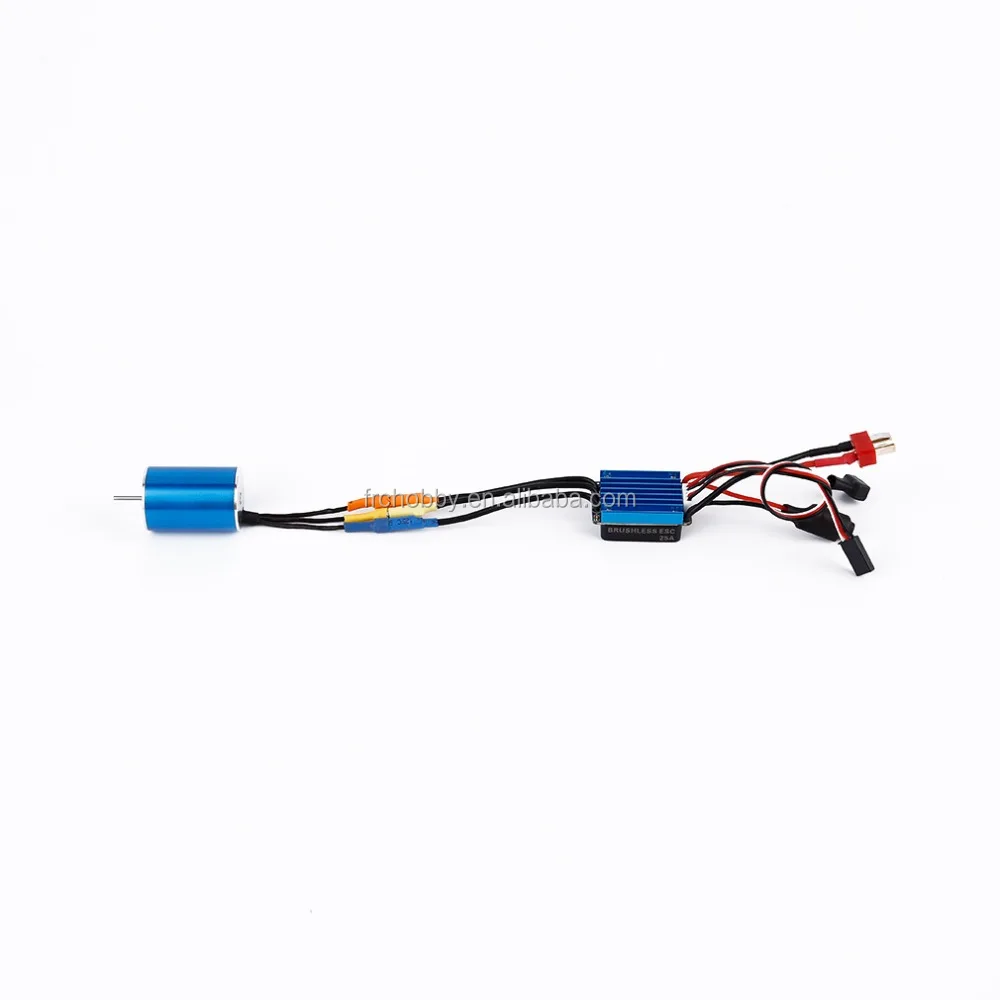

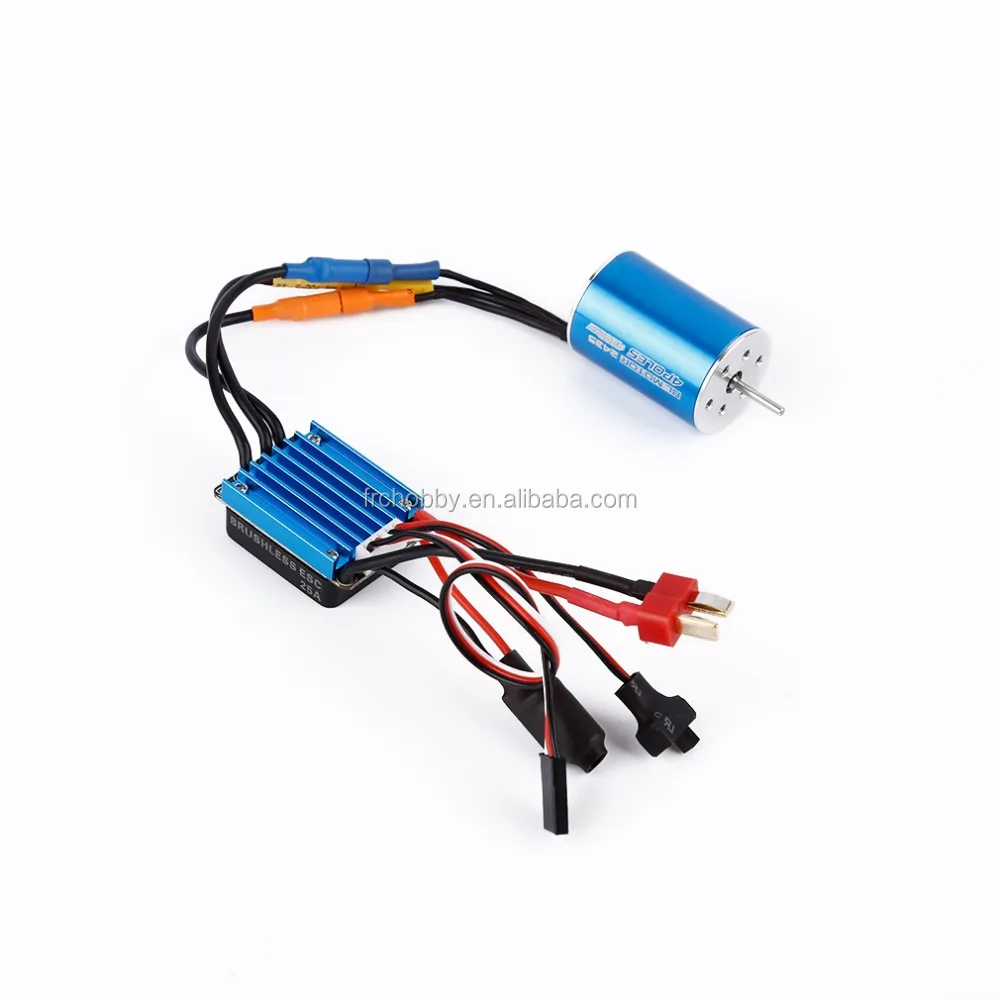

 MP 2435 4800KV 4P Sensorless Brushless Motor+25A Brushless ESC for 1/16 RC Car



Features:

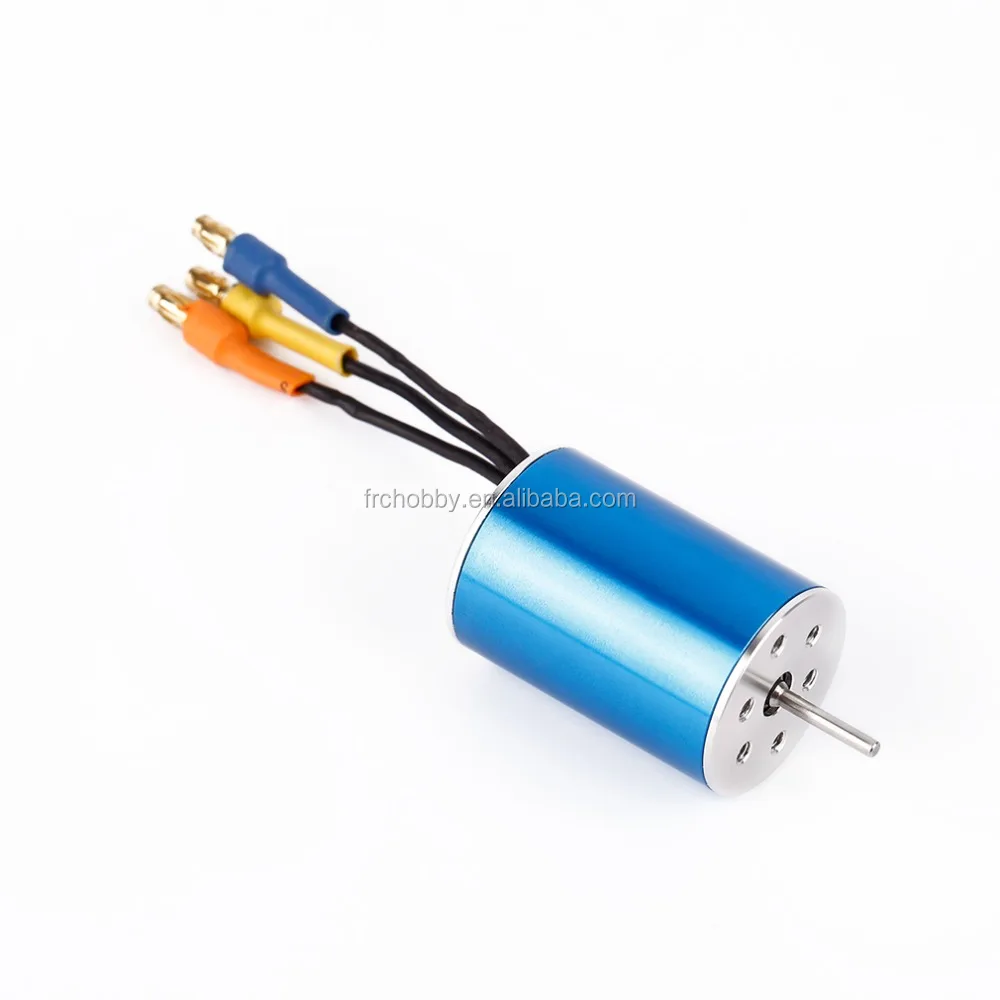

Motor
4 poles 12 slot Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/16 brushless cars-multi-mounting system for M2.5 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.

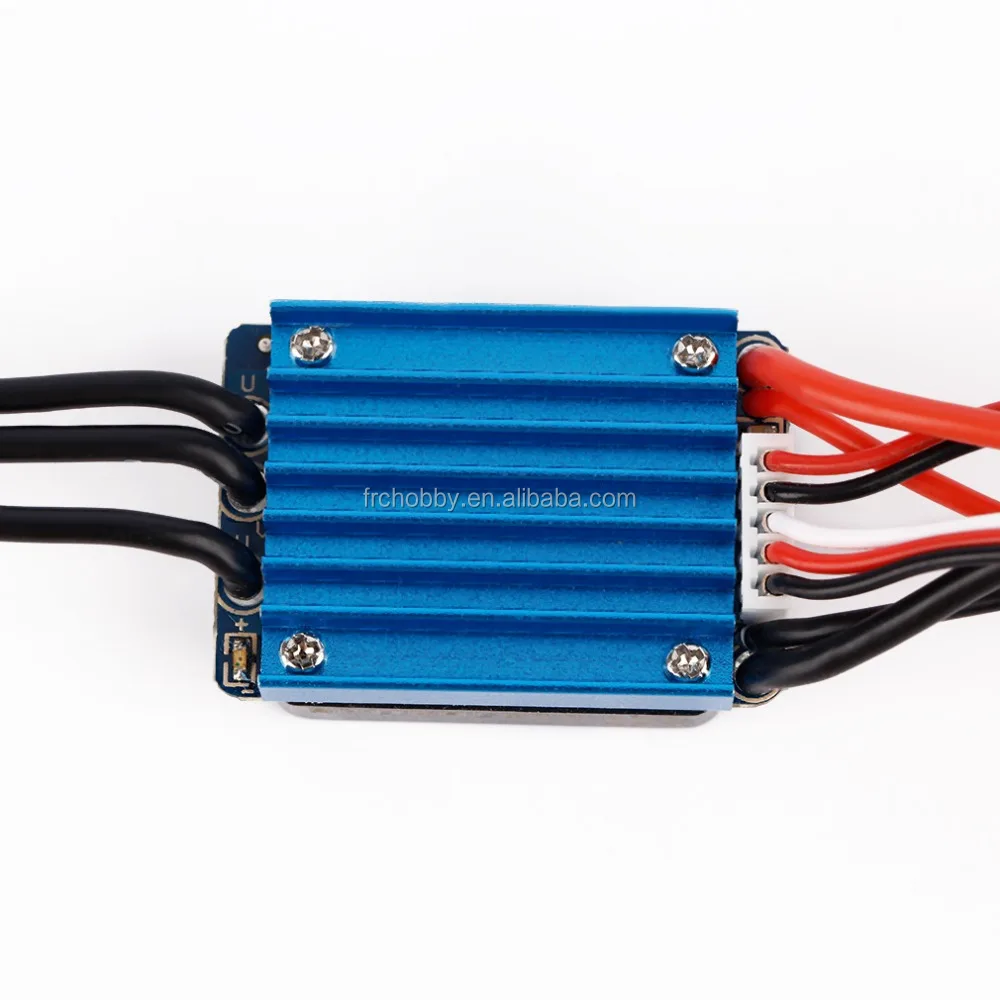

Electric Speed Controller
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.







Motor	2435	KV	4800
Max current	24A	Max power	300w
Can size	2435	Hall sensor	No
Shaft diameter	2mm	Shaft length	12mm
Bullet connector	3.5mm	Max voltage	7.4V(2S)-11.1V(3S)









ESC	25A	Burst current	90A/10sec
Battery	2 Cell Lipo / 4-6 Cell NiMh	BEC	yes

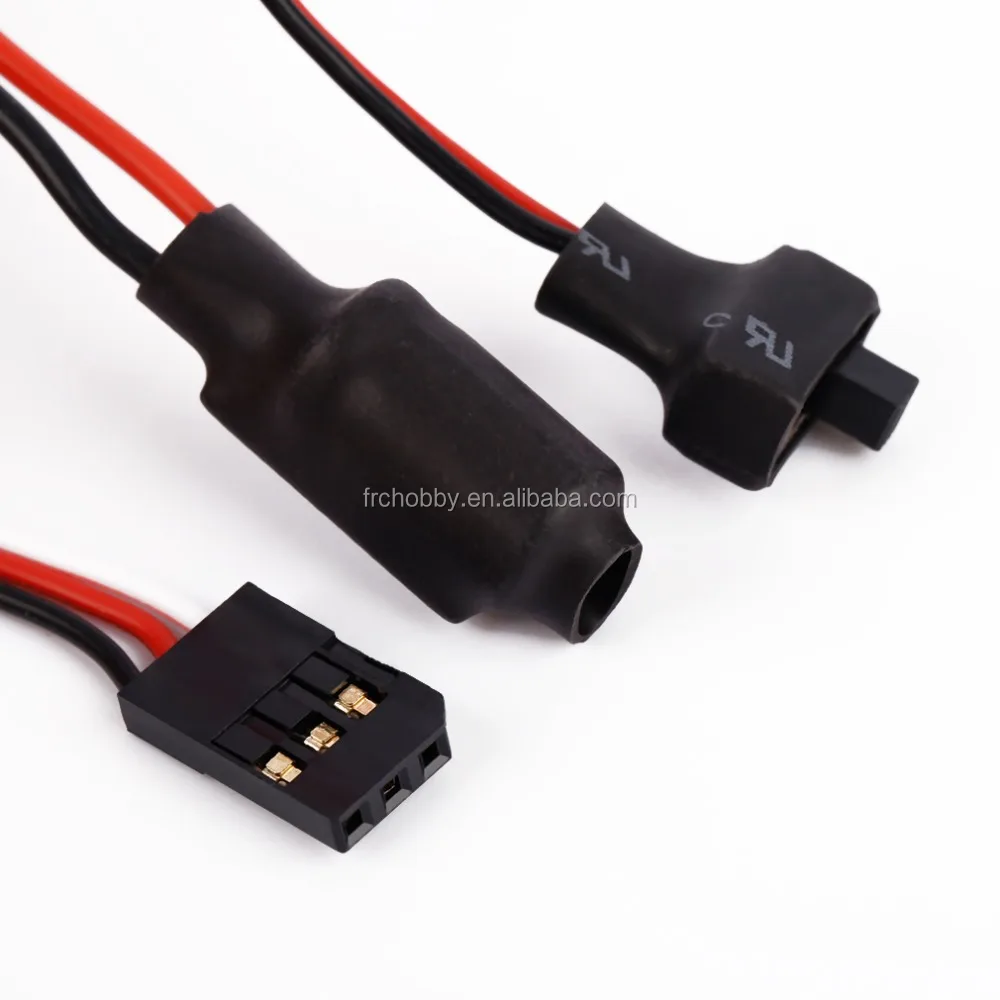

BEC output	5v/1A	Power Supply Plugs	T male
Motor plug	Female 3.5mm Bullet Connector	ESC size	37 x 26 x 15mm/1.5 x 1 x 0.6 inch
Net weight	89g	Package weight	111g



Package list:
1 * 2435 4800KV 4P Sensorless Brushless Motor
1 * 25A Brushless Electric Speed Controller
1 * manual
