Universal tool grinder machine

Product Overview

Description

Universal tool grinder machine



1. Grinding capacity of tool grinder: Dia:3 ~32mm (Straight shank & taper shank) double wheels. It only need to rotate the motor when want to grind the tool of different material. It can increase the safety & save the time for changing & repairing the grinding wheel.

2. The kinds of grinding tool include: drills, step drills, taps, lips of end mills, round bars, etc.

3. Adopts precision 4" 6 pawl self-centering chuck, clipping one time.
4. Universal tool grinder can grind the blade of drills and do the paring of drills abdomen. The angle of drills both sides and the length of the blade are the same after grinding. It can keep the accuracy of the center of drills without off center.

5. Double cams: The cam of grinding drills & The cam of grinding taps

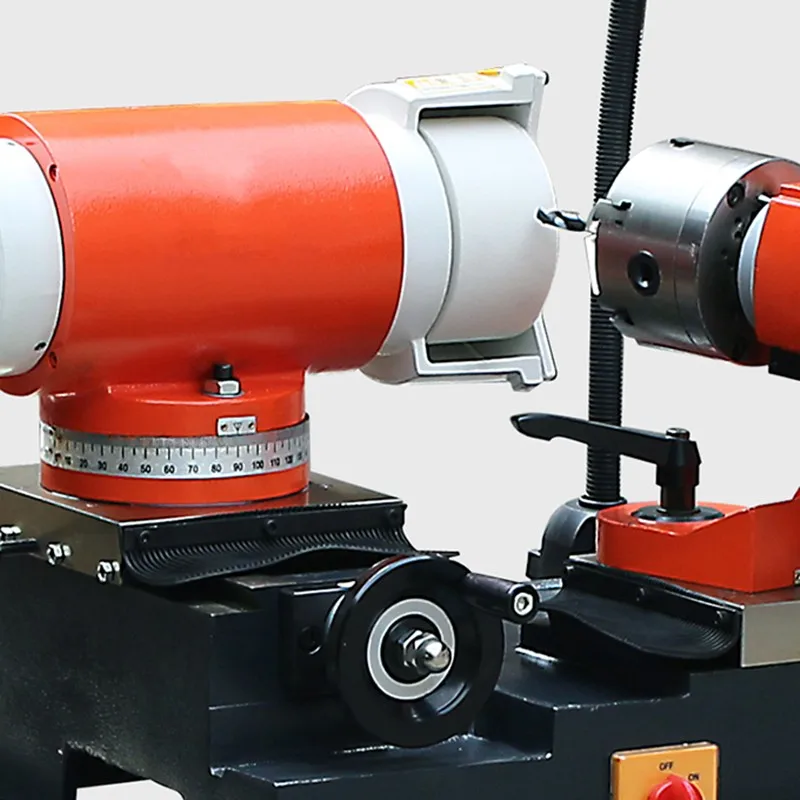

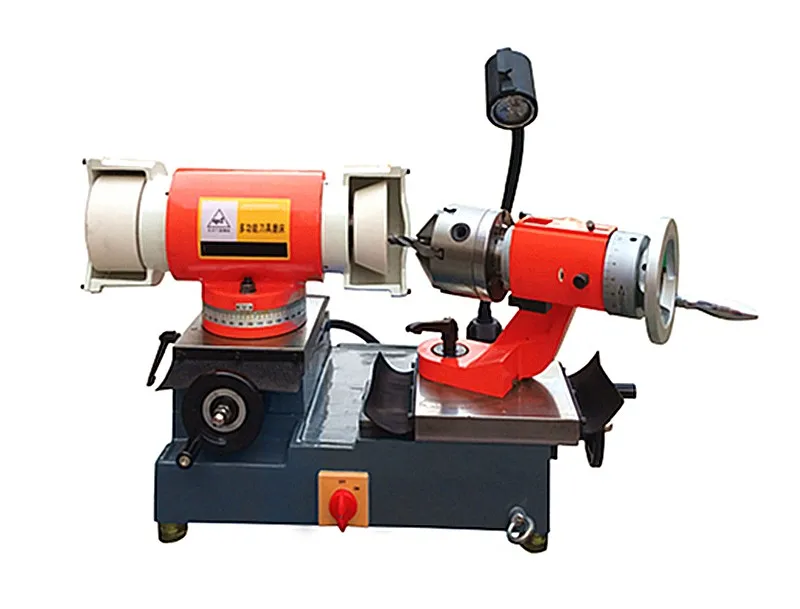

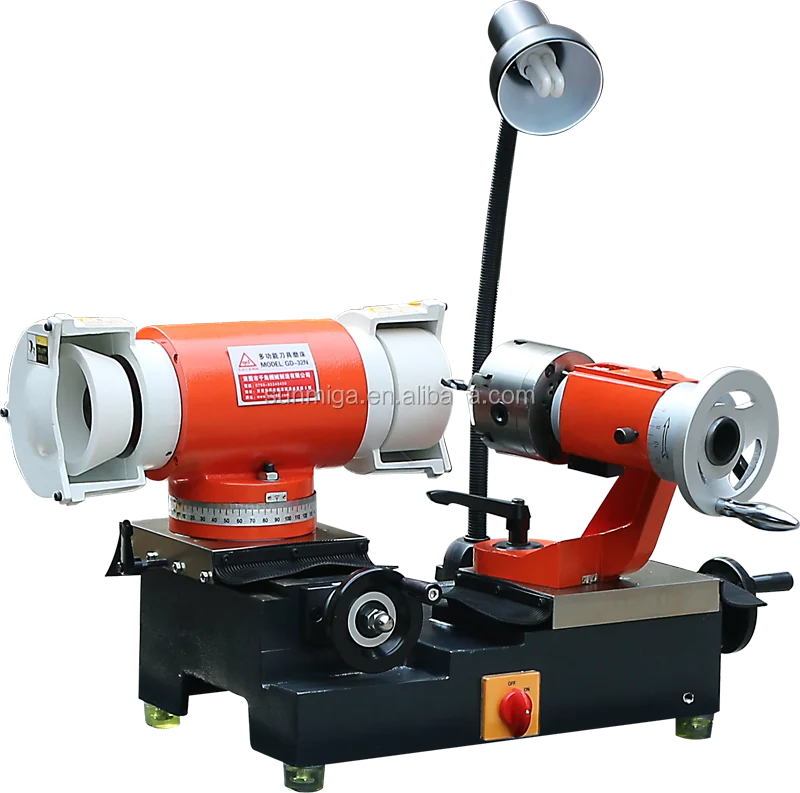

Product photos:







Technical parameters:

Grinding capacity	3-50mm
Working table right and left stroke	120mm
Working table front and back stroke	135mm
Grinding wheel rotating angle	360°
Drilling bit rake angle	90°~180°
Grinding wheel size	125 x 50 x 31.75mm
Grinding wheel rotation	3600rpm
Motor power	3/4HP, 110V/220V/380V
NW/GW	95KG/120KG
Packing size	800 x 550 x 670mm
