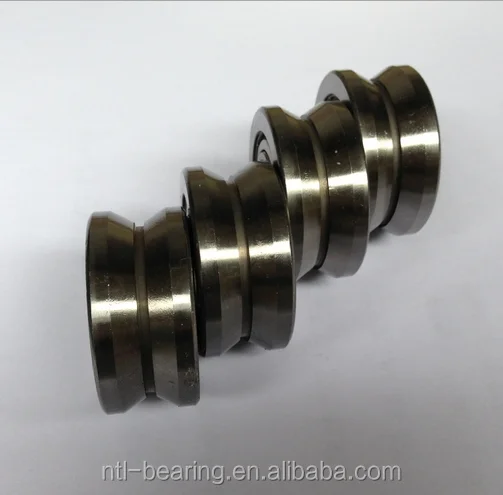

V type Track roller bearing for sliding rail LV202 38 15X38X17MM

Product Overview

Description

V type outer ring grooved bearing  LV202   15X38X17MM



The Track Roller is made very strictly, the inspection is critical, special for the runout of outer ring and roundness of working surface, to guarantee the smooth running and mini error and low the noise Level

Our precision guide wheel bearings are widely exported to USA, EU ,Germany and had been widely used in China many precision machineries,precision linear guides .

High tolerance and long life character ,we had wone good reputation from our customers !

Products includes:SG FR LR A W(RM/VW) LV(RV) LFR and Special series!



Shield type: Z, ZZ, RS, 2RS, NPP, KDD



LV Series Track Roller Bearings



 wheel size :





Wheels No .	Φdw mm	Bore  mm	O.D.  mm	Width  mm	Width  mm	A	Angle	Weight
	Φdw	D	D	B	C	A	α	G
LV 20/7 ZZ	10	7	22	11	11	14.5	120	17
LV 20/8 ZZ	10	8	30	14	14	18.1	120	49
LV20/10ZZ	10	10	30	14	14	18.1	120	48
LV 202-38 ZZ	10	15	38	17	17	22.25	120	87
LV 202-40 ZZ	10	15	40	18	18	22	120	110
LV 201 ZZ	20	12	41	20	20	28	120	130
LV 201-14.2RS	14	12	39.9	20.1	18	24	100	107
LV 202-41 ZZ	20	15	41	20	20	28	120	116
LV 203 ZZ	20	17	58	25	25	35	120	325
LV 204-57 ZZ	20	20	57	22	22	34.5	120	290
LV 204-58 ZZ	30	20	58	25	25	41	120	310
