Universal firmware V56 HDV56R AS AL CND Jumper selecting resolution TV Card motherboard mainboard board
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (60479635730):
Product Overview
Description
Product Description
Contact US:
Whatsapp:+86 18682001573
Skype wechat: mariageng
Email: maria @cndlcd.com

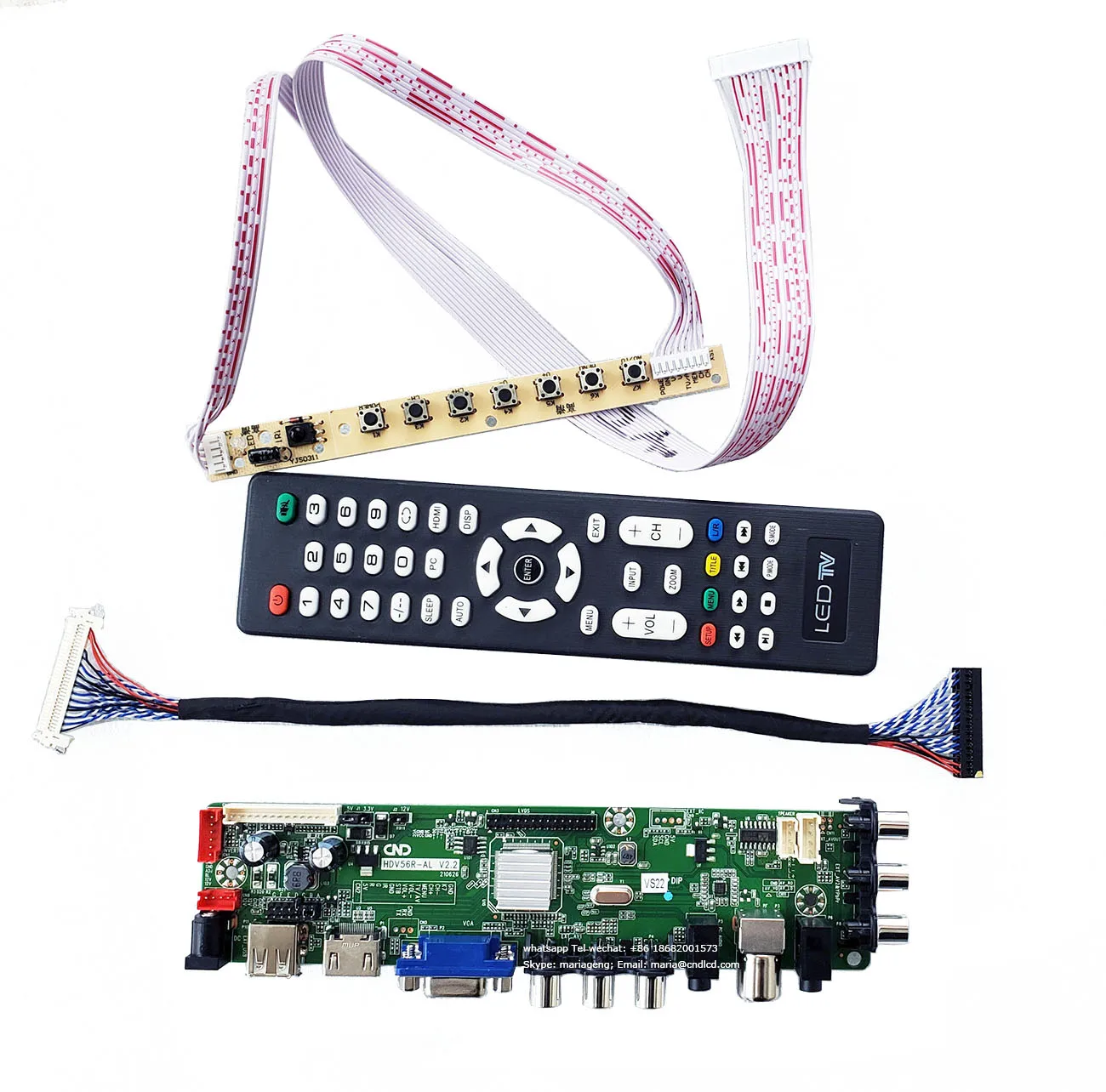

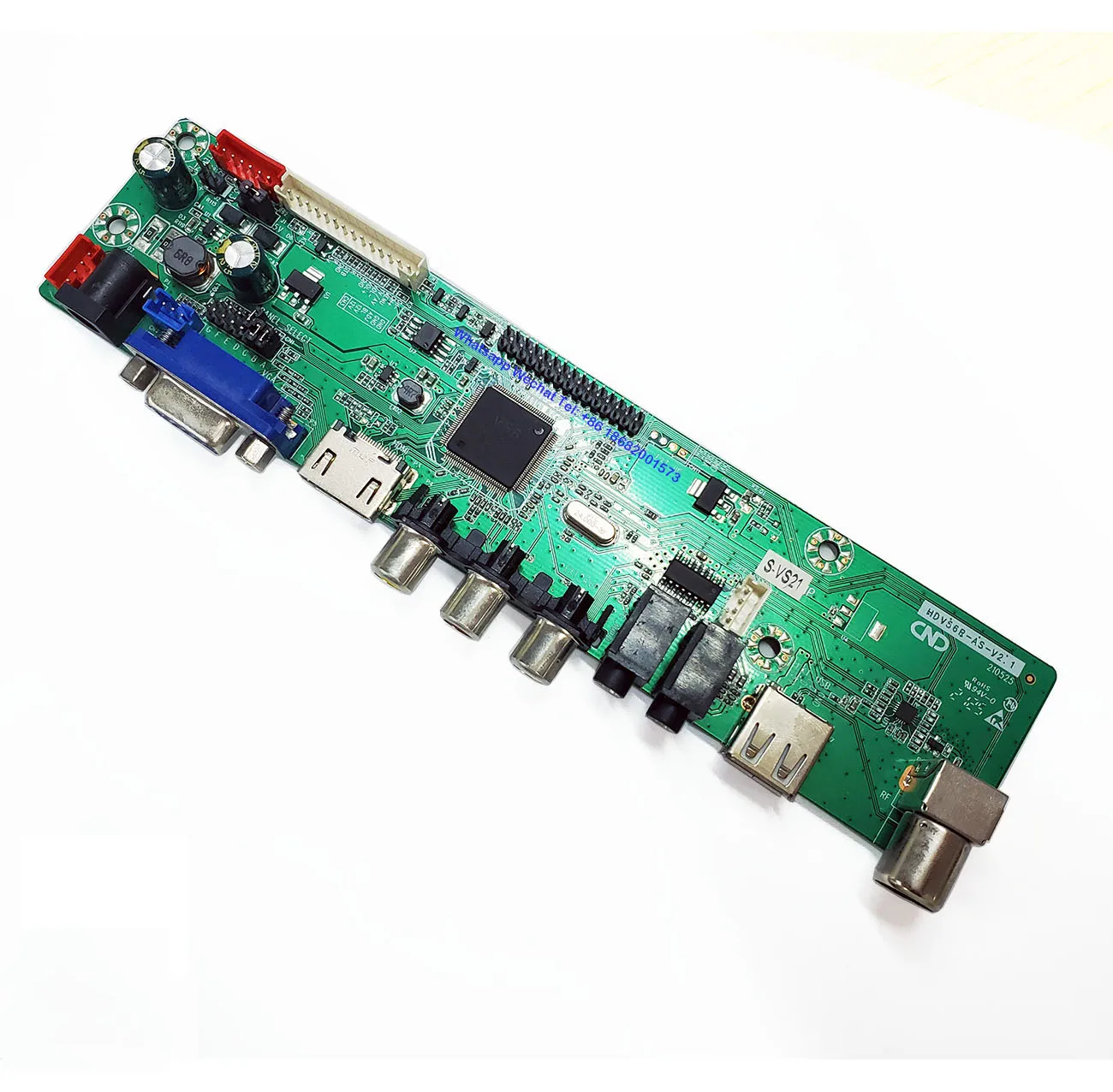

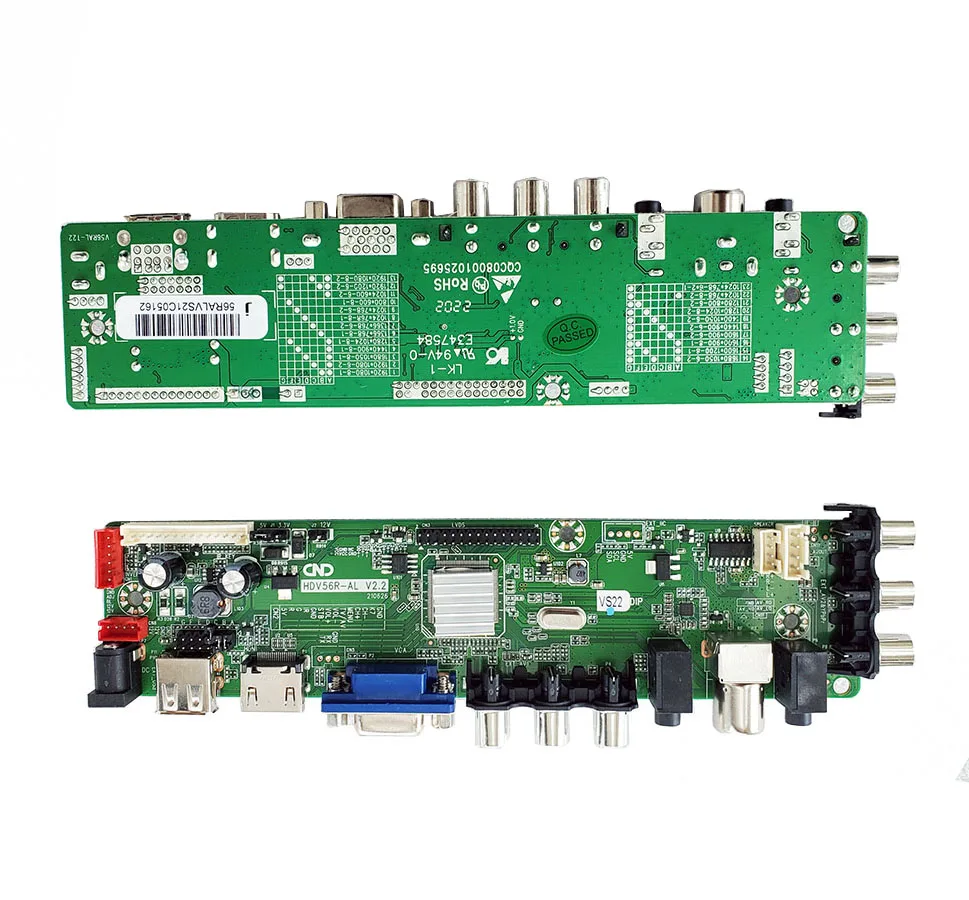

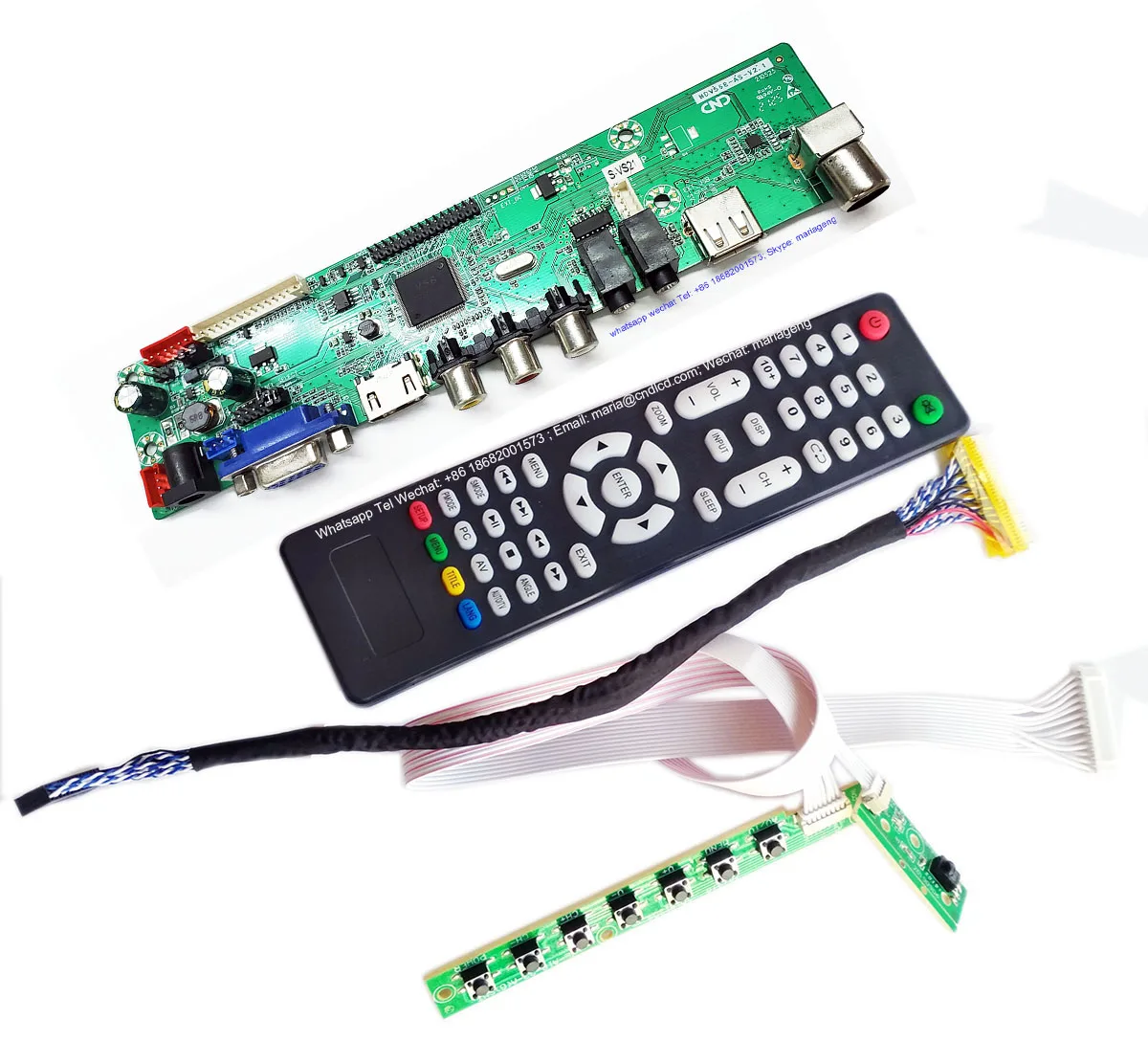

Universal firmware V56 V59 HDV56R-AS AL CND Jumper selecting resolution TV Card motherboard mainboard
Model No.: HDV56R-AS AL
Application: Monitor, digital frame, PAL NTSC TV
USB Function: play music, movie, image
Software: Universal Software, or customized software

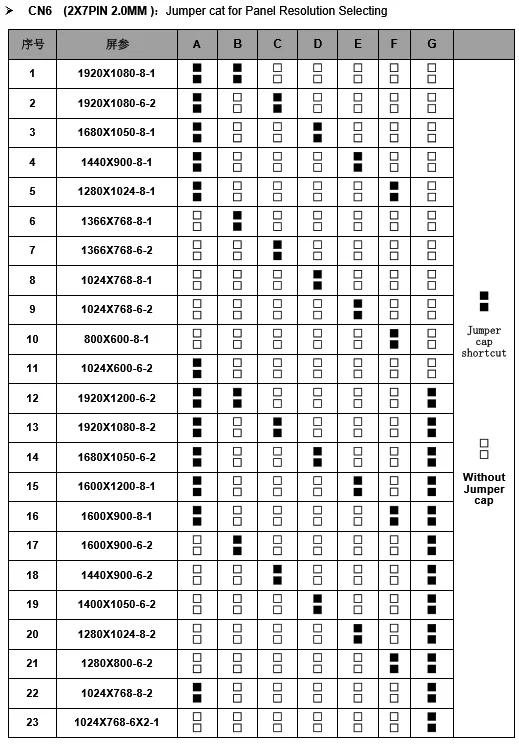

Unique Feature: for different resolution panel, Jumper Selecting Panel Resolution, no need update firmware.
Use USB Updating Firmware
- Step 1: Empty the U disk
- Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to
U disk - Step 3: Connect the U disk and TV Mainboard Via USB Interface
- Step 4: Connect the Keyboard and TV Mainboard
- Step 5: Connect power supply, check keyboard light. If light flashes, means firmware is being written; until light turns to Green, work is done.
(If light is not flashing, please cut off the power supply, then reconnect the USB, then connect the power supply again) - (Note: *During Step 5, the power supply can't be paused* The same firmware can only
be burned once time) - After all done, use the remote control to turn on the tv (after burning the firmware, the
mainbaord is on standby, the remote can wake up the tv)
Factory Settings
- Menu--remote control press 8896--factory setting
- Screen Specification Adustment: Factory setting--Use the right key to choose--MAP
data (LVDS MAP DATA has 16 items totally, it is enough for most of the screen)
BOOT LOGO SETTING
- Step 1: Put your logo into the U disk
- Step 2: connect your U disk with mainboard
- Step 3: Find your logo in Multi-media File
- Step 4: Select your logo
- Step 5: Press No."6 " on remote control to change to fullscreen play,then press "ok" on
the remote control, on the bottom of the option items, there is a " catch", choose it.
Done
Mirror Function Setup
| 1. Press: | Menu +8896 | |
| 2. Enter into: Factory Setting | ||
| 3. Enter into: Panel Control | ||
| 4. Select: Mirror on /Off | ||
or No need update firmware, just Jumper selecting Panel resolution
FAQ
Q: Who we are? what's our Brand?
A: We are CND Electronic Technology (ShenZhen) Co., Ltd.
Q: Where are you located? How can I get there?
A: Our office is in Shekou Nanshan Shen Zhen, very close to ShenZhen Bay Port. it takes just 0.5h from HK to ShenZhen Bay.
Q: What's delivery time? what's the shipping methord?
A: 3 days for some items in stock; and 15 days if out of stock, shipment via sea or air as customer requested.
Q: What's our core product and services?
A: Open Frame Touch Monitor, TV Mother boards, HD / Full HD / QHD /UHD AD board, Android board, Smart LCM
Q: What are our product applied in, and who is our Customer?
A: by far, our AD board solutions have applied in:
- Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc
- Mobile-TV of High-speed Railway Train for CRRC, and for subway train;
- Monitors of industrial control, for instance Security-montoring
- Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.
Q: What are our capability and advantages?
A: We've been proud that
- CND is the only AD board solution company whose 2K board have been sold more than 100K.
- CND is the first company developed UHD 4K board solutions.
- CND is the first one who have passed Freesync Cetification.
- CND is the first one developed Type-C 4K *2K board.
- Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...
- Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
CND is the best choice for LCD / LED main board solutions, and Open frame Touch Monitor Solutions, Android board Solutions, with over 12 years professional experiences both in hardware and software design, we provide one-stand services for both hardware and software. and CND has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
Our Services
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Hardware & Firmware customization
Firmware customization to meet any customer request;
Check the following link for more Android boards
A64 Android mother board cheap price cost efficient
RK3288 android mother board with 4G wirless LTE module
Android board with POE SKD kit
TV mother board
DTV3663 TNT Digital TV DVB-C DVB-T DVB-T2 TV mother board
V59 V56 DS-V56 DS-V59 TL-V59 Universal TV mother board
Open Frame Touch screen display
Open frame touch screen digital signage display with android OS RK3288
Open Frame touch screen monitor for HMI KIOSK self-terminal service Financial machine
Services | Service details |
P-CAP Capacitive touch display customization | customize size, shell structure, interface, etc. according to customer requirements |
Android Linux software development and customization
| Customize CMS, backstage management. |
RK3288 RK3399 RK3326 RK3368 and other PCBA motherboard customization | Customized size, enclosure structure, output interface, etc. according to customer requirements) |
Display controller motherboard customization 4K, 2K, HD and special resolution motherboard customization | Customize the size, shell structure, interface, etc. according to customer requirements) |
standard product ready stock inventory products | (HDV56U-AS HDV56U-AL DTV3663 UHD3941 AV6M16B-D TR104 TR106 TR102 MD6820 MT561 MHV7851 MHV7X01 MHD8561 MHD8753 MHD8651 MHD8652 CND-D190OF CND-D215OF CND-D156OF CND-D116OF CND-A156OF-PA |
Company Information
Brief introduction on CND Electronic Technology Co., Ltd.
l 2020 turnover exceeds USD 30,000,000
l ISO9001: 2015 international standard quality management system certification
l Nationally recognized high-tech enterprises
l Company R&D personnel: 60+ software engineers, 20+ hardware engineers
l Ten thousand class Non-dust workshop
l Workshop assembly staff: 150+ people
l SMT DIP production each 4 lines
Main product solutions:
Main product solutions | Details |
Open Frame touch display solution | used in major banks such as ICBC, Bank of China, Agricultural Bank, China Merchants Bank, China Construction Bank, Postal Savings Bank of China |
Android capacitive touch display panel solution | used in major brands of refrigerators, washing machines, medical equipment, advertising display such as Xiaomi Yunmi Sunmi Eco, JD, Tmall, Juding, etc. |
Rockchip Solutions for Android motherboard mainboard mother board main board | RK3288 RK3399 RK3326 All-winner A64 |
Novatek solutions: 3840*2160 2560*1440 1920*1080 display monitor motherboard, LCD controller board, LCD scaler board, LCD scaling board | used for various commercial and Industrial-grade displays, rail transit such as high-speed rail subway, etc.
|
Mstar TV motherboard, jumper TV board, Universal TV board, TV mother board, LCD spare parts
| the patent of jump cap selecting screen has been very popular in the market. Used for Analog TV, Digital TV DVB-C, DVB-T, DVB-T2. For bus TV, for railway TV |

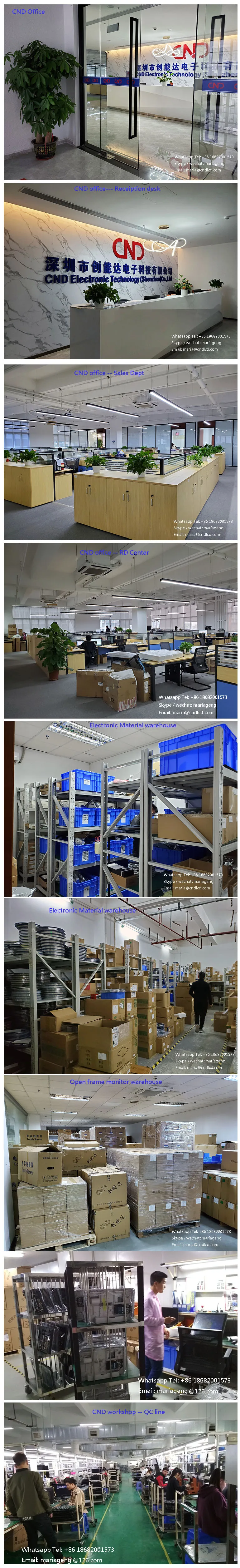

CND office and workshop overview
