Product Overview
Description

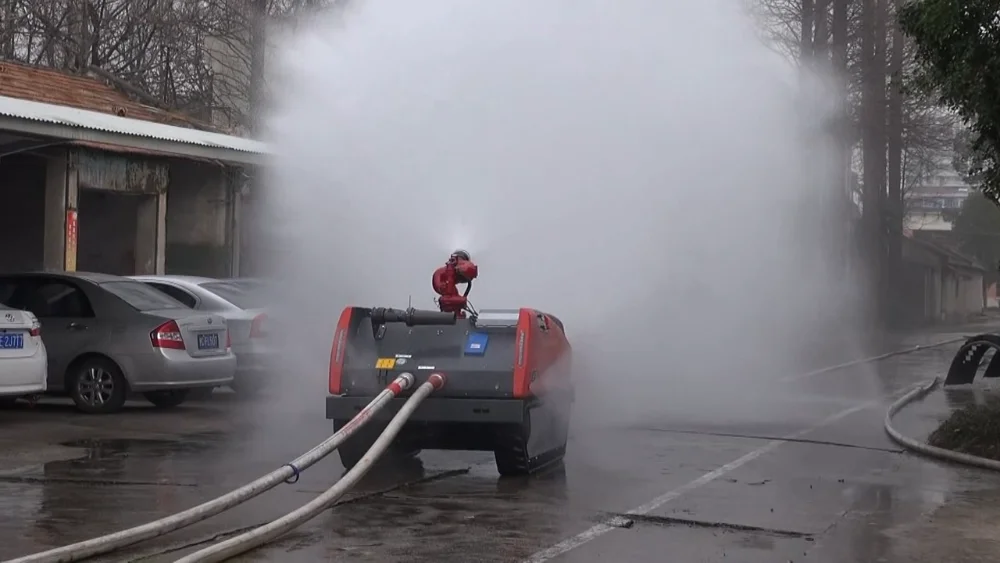

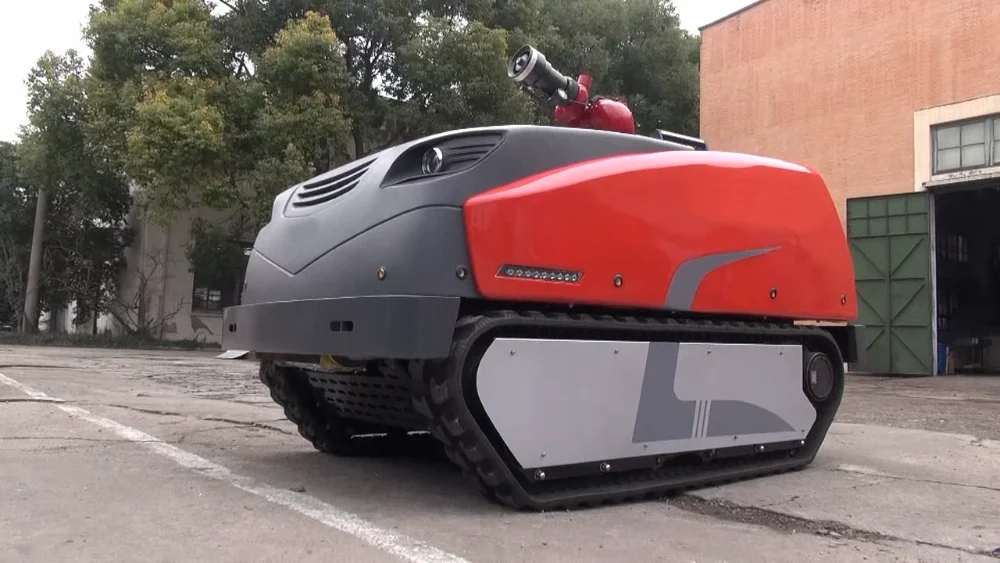

M80D Fire fighting robot
Details
Application
Fire-fighting in tunnel,subway station,underground facility,wide-span place,petrochemical industry,large area poison gas and smoke,and other fire hazard which is difficult for human to reach.
Features
M80D tracked fire-fighting robot, powered by diesel engine,using ATV hydraulic self-propelled chassis,is very flexible.It can turn at original point and climb 30° slope,has great off-road performance.With large flow water cannon and foam cannon,can approach fire source enormously.
Parameters
1.Chassis
| Type | ATV hydraulic self-propelled |
| Traveling | Rubber tracks |
| Diesel engine | 56kw |
| Ground clearance | 180mm |

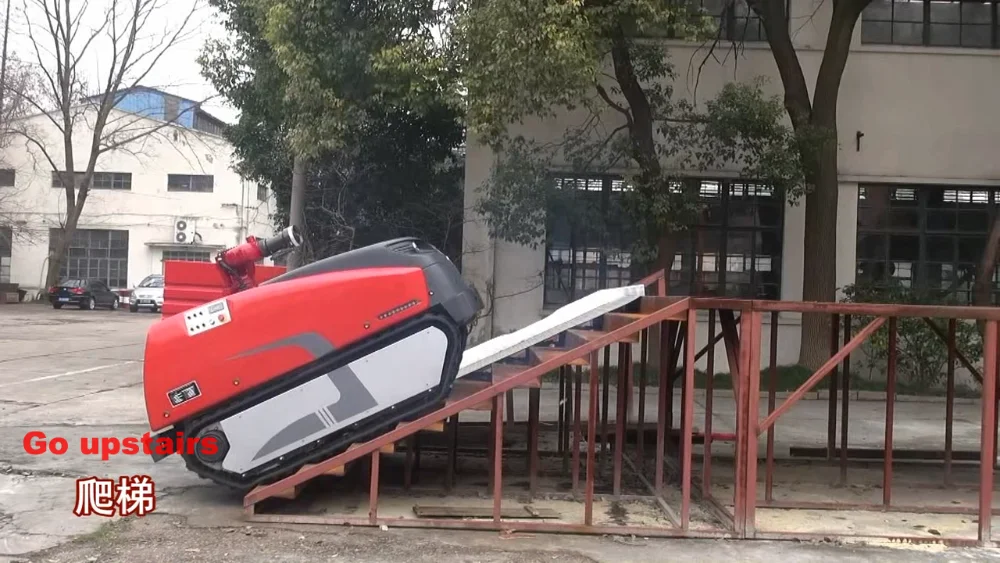

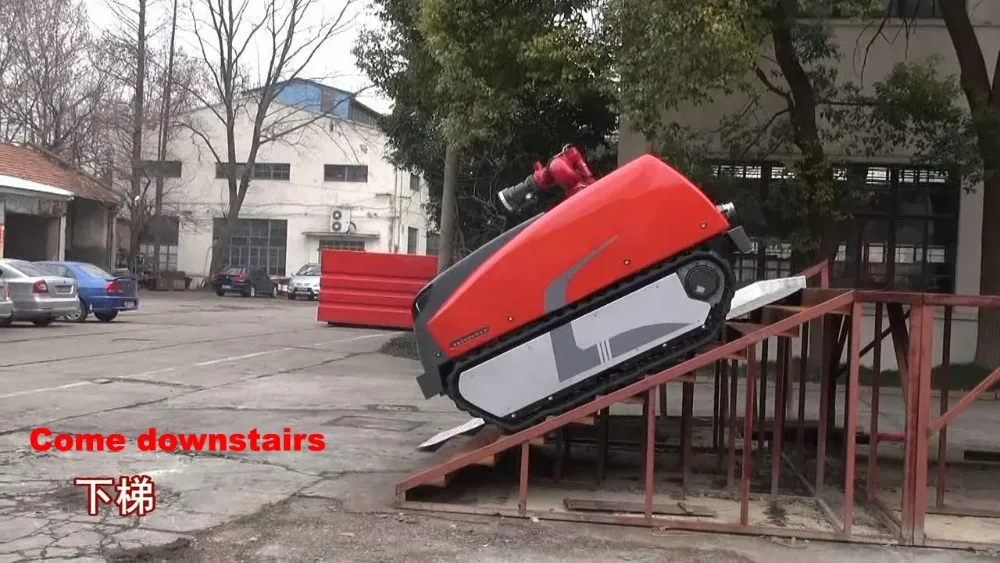

| Grade-ability | 20° stairs/30°slope |
| Total weight | 1800Kg |
| LxWxH | 2500×1500×1650 mm |
| Traveling speed | 0-4km/h (can tow water hose during working) |
| Controlling | Wireless remote control(≥150m),50m wired control |
| Self protection | Water mist system |
2.Fire-fighting system
| Electrical remote control water/foam cannon | 5177+3626 |
| Rated flow(L/s) | 80(can be adjusted automatically) |
| Range(m) | Foam(55) , Water( ≥70) |
| Max spray angle | ≥100° |
| Max water curtain width | ≥30m |
| Rotation angle(°) | 348 |
| Elevation angle(°) | -45~90 |

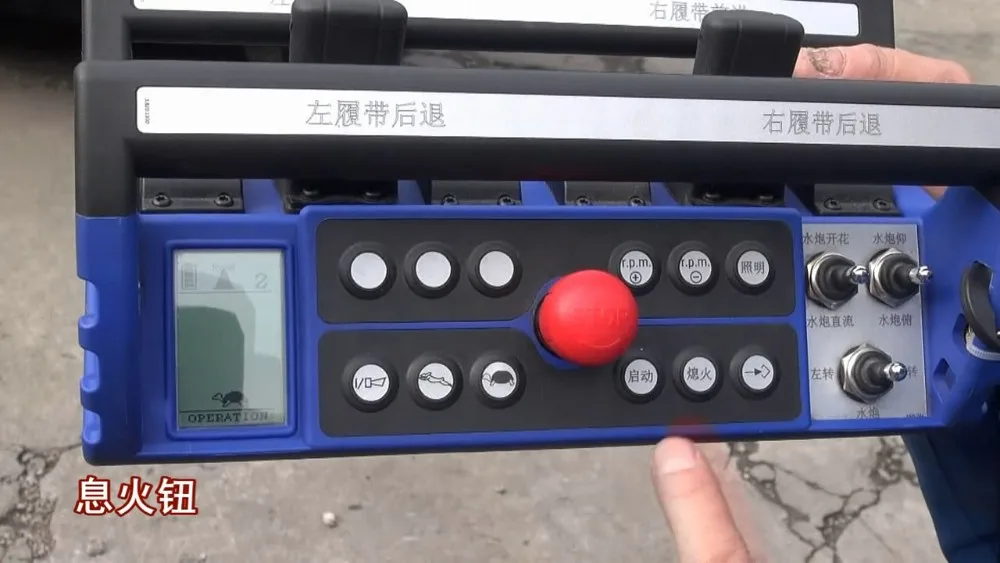

| Controlling | Wireless remote and Manual operation handle |
Smart tool.Keep humans out of hazard.
