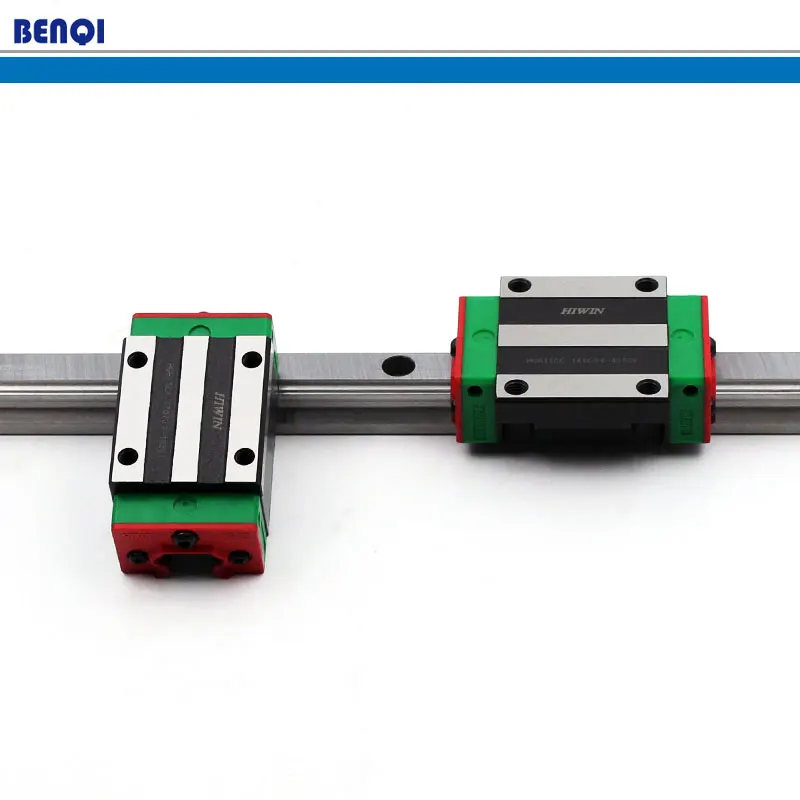

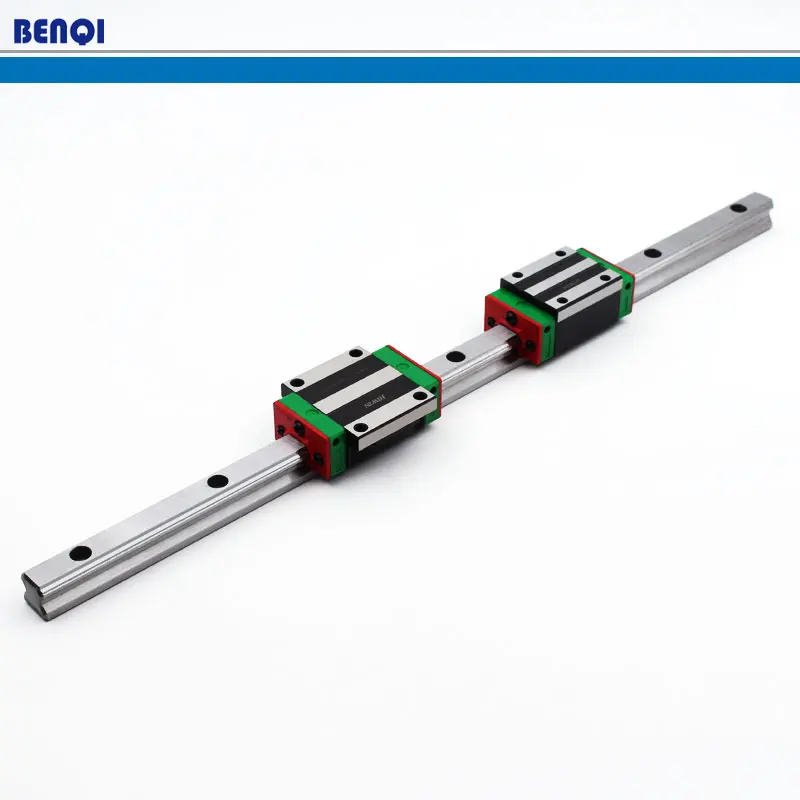

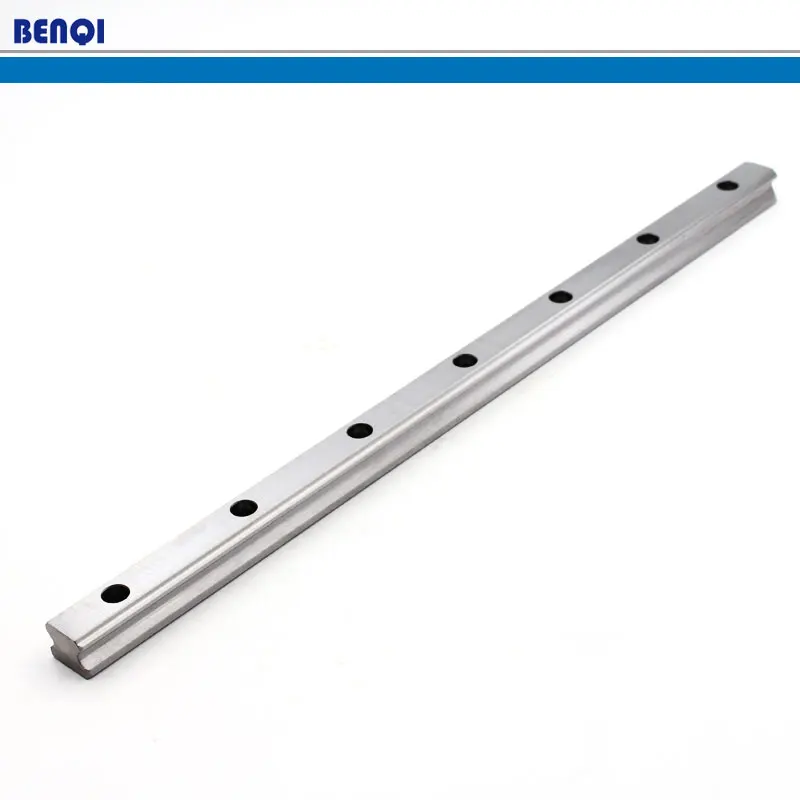

HGH15CA linear guideway original hiwin linear guide rail with hgr15 L1000mm customized length guide

Shanghai BenQi Mechanical & Electrical Equipment Co., Ltd. is a manufacturer of Mechanical and electrical, equipment, pneumatic and hydraulic equipment, hardware with 4 years experience in domestic market.

Services: Printing, Machinery, Military industry, Printing and Dyeing, Hardware, Electronic, Aerospace, Engineering and Engineering Design, Medical, Mechanical and Electrical, Equipment, Pneumatic and Hydraulic Equipment, Hardware Electrical Appliances, Building Materials, CNC Center, Lathe, Sewing Machine, Rooter,Elevator, Transmission, Video Camera, Automation...

We welcome new and old customers to contact us for future business relationships and mutual success!

A. High speed motion is possible with a low driving force

B. Equal loading capacity in all directions

C. Easy installation

D. Easy lubrication

E. Interchangeability

(1) Self-aligning capability

By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

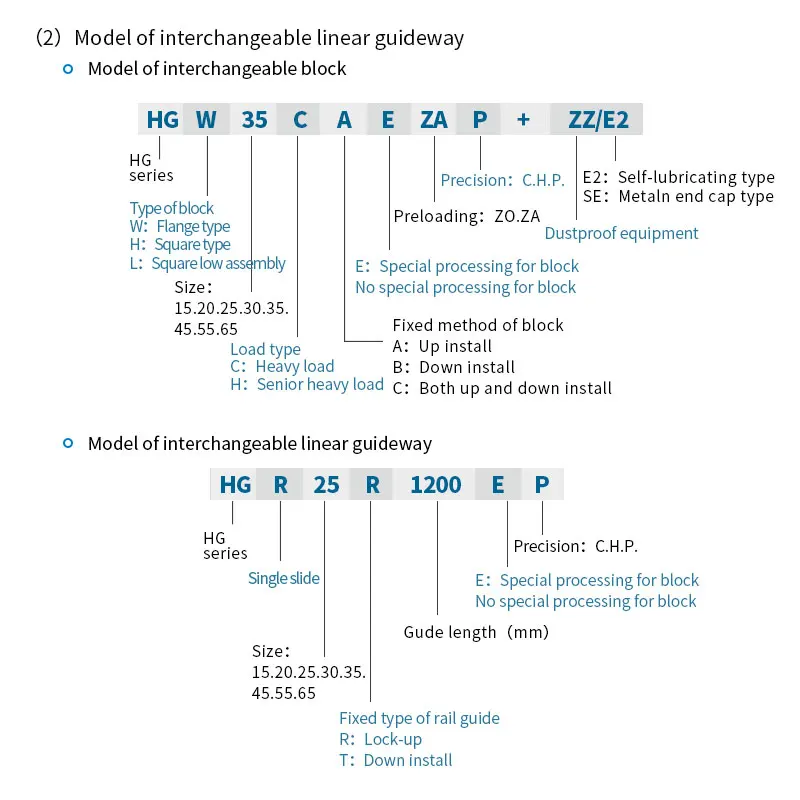

(2) Interchangeability

Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

(3) High rigidity in all four directions

Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good

Packing

Standard oacking: plastic bag + air bubble film + wood pallet
also can according to your requirement

Shipping

 1. Less than 45 KGS, send by express.
2. Between 45 - 150 KGS, send by air .
3. More than 150 KGS, send by sea.

Any questions please feel free to contact us!
