CNC HYRL 787 Terry Towel rapier Loom weaving machine

Product Overview

Description

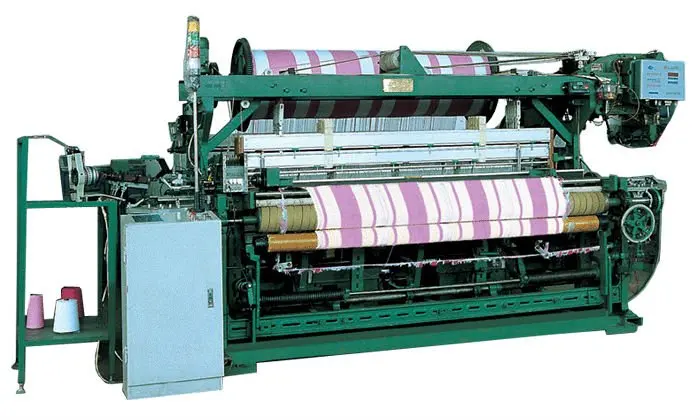

HYRL-787 Terry Towel Dobby Rapier Loom



USE:

This loom is used to weave all kinds of spiral satin or small jacquard satin towel for face, tea, bath and floor etc. with the material of cotton, wool and blended yarns.



FEATURE:

HY-787 towel rapier loom is our first generation towel rapier loom. Its speed improved 30-40% than the shuttle loom and the noise decreases 10-15dB. Automatically control the weft broken and warp broken. The warping machine complete with it is same with the shuttle loom.

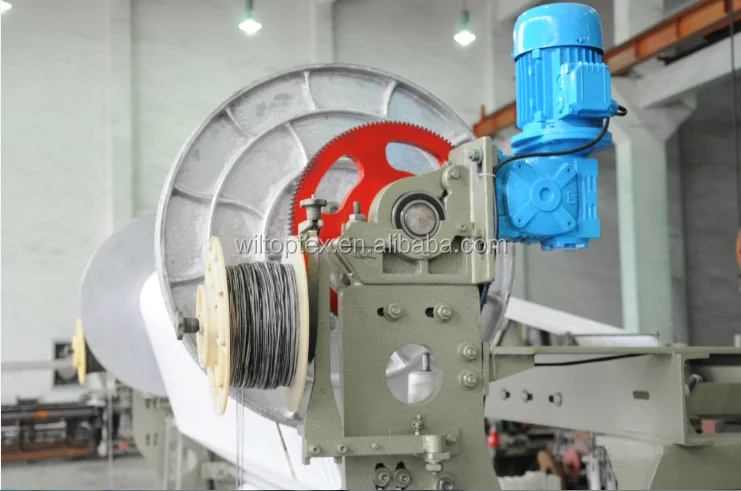

We can use servo motor let off, take up and make terry rasing by this model.

MAIN DATAS



Reed width(cm)	180(74”),200(78”),230(90”),260(102”),280(110”),300(119"),360(142")
Rotation speed	200~150 R.P.M

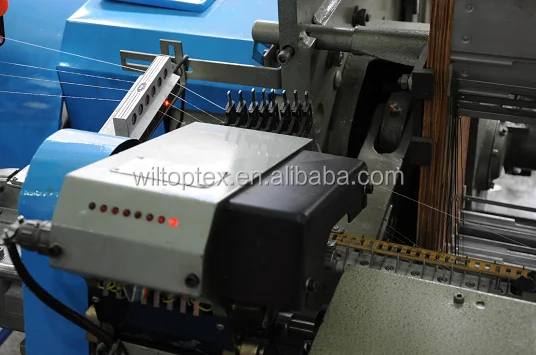

Weft selection:	6 colors
Yarn count	Cotton 7Ne-60Ne wool 12Nm-100Nm Chemical fabric 100-650D
Dia of warp beam(mm)	Φ600
Let-off type	positive electric let-off
Terry rasing type	proucing terry by movable reed
Height of terry(mm)	steeples adjustment from 2 to 12 times
Shedding device	upper-places mechmism dobby(24pages of shaft)
Numbers of heddle frame:	16 pages

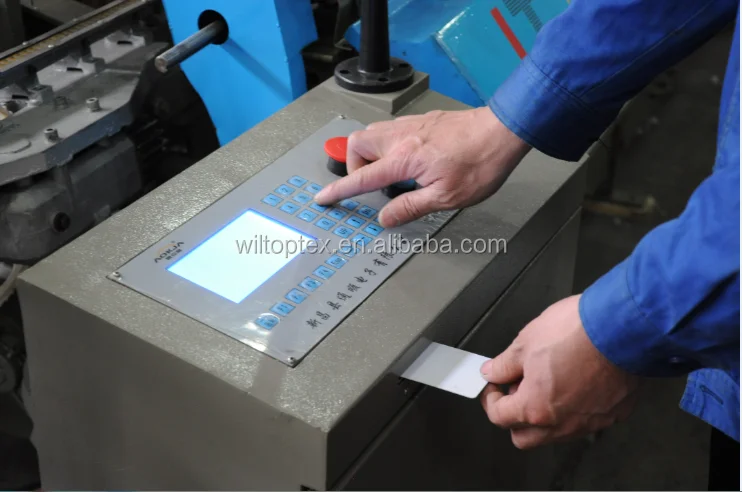

Electric control	P.L.C
Power(KW):	1.8-2.2KW
Weiht(kg)	1700-2100
Overall size(mm)	4300×2500×2120(200cm)


we can manufacture according to customer's requirements .
