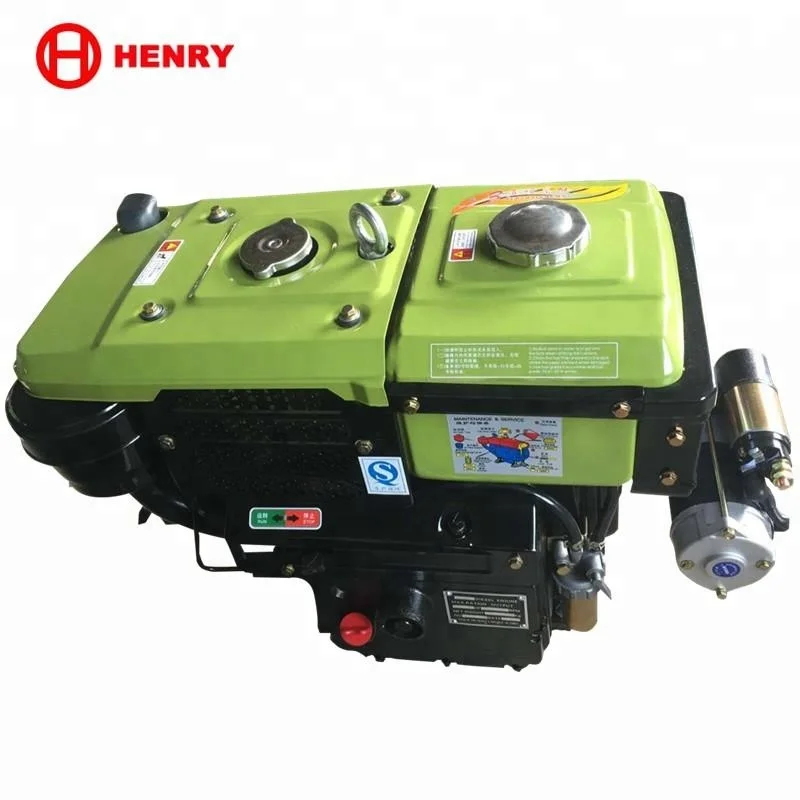

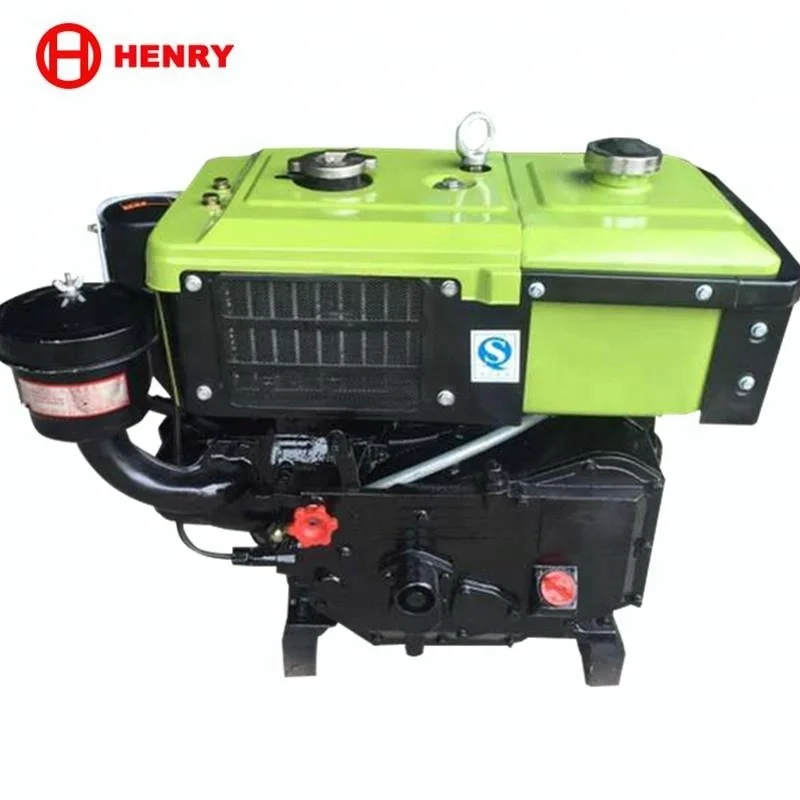

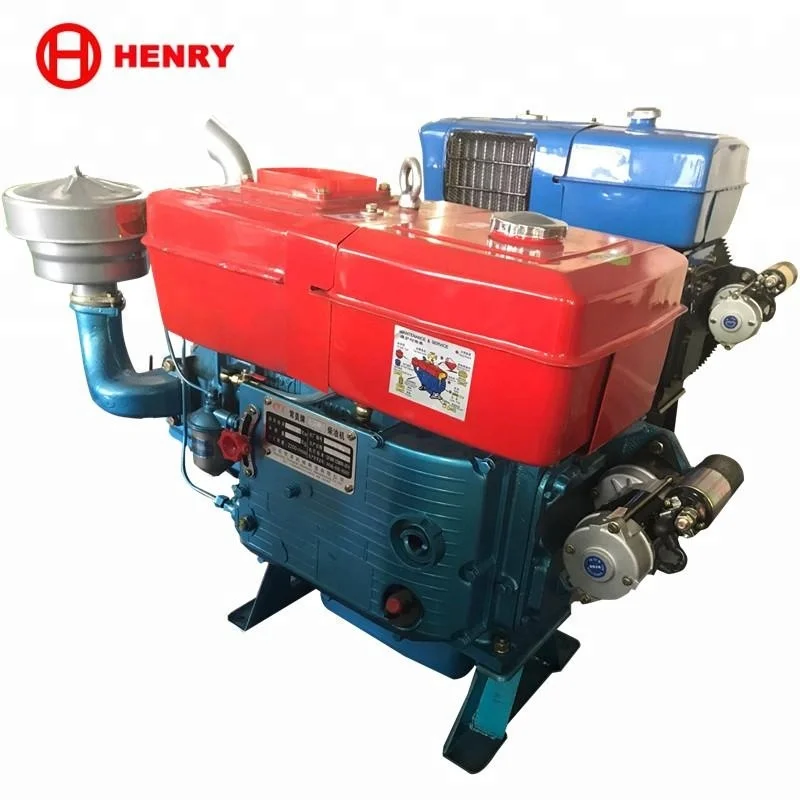

12hp engine

Product Overview

Description

  12hp  engine

It is a popular matched Engines at present ,windly use in different farm fiels.



Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)

Model	R192	R195	R196
TYPE	Single cylinder , horizontal ,4 stroke ,water cooling.
Combustion system	Swirl combustion chamber		Swirl combustion chamber
Bore x stroke(mm)	92 x 95	95 x 95	96x96
Total Displacement(L)	0.598	0.67	0.723
Rated Output(kw/rpm)	7.7	8.8	9.02
Max.Output(kw/rpm)	8.47	9.68	9.92
Rated speed(r/min)	2200	2200	2300
Specific Fuel(g/kw.h)	Less than or equal to 266.60	Less than or equal to 258.40	Less than or equal to 258.4
Coolingsystem comsumtion	Evaporative	Evaporative	Evaporative
Lubrication method	Pressure/splash	Pressure/splash	Pressure/splash
Starting method	Hand cranking electric cranking	Hand cranking or Electric cranking	Hand cranking Electric cranking
Net weight (kg)	95	107/109	110





Main Feature

1.Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32

2.Diesel engine ,compact ,agile ,light ,reliable, convenient , Excellent quality

3.windly use in the mini-tractor , transportation vehicle ,Small general sets ,air-compressor, inland river ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder) and so on.

4.Equipped with lighting equipment, traveling at night ,with walking tractor can do short transportation.

5.with quickly coupling ,easy to change farming implements

6.The colors can optional as request after the quantity more than 100sets

7.Every year sell more than 150000sets ,the products are welcome by the market in china and oversea market.

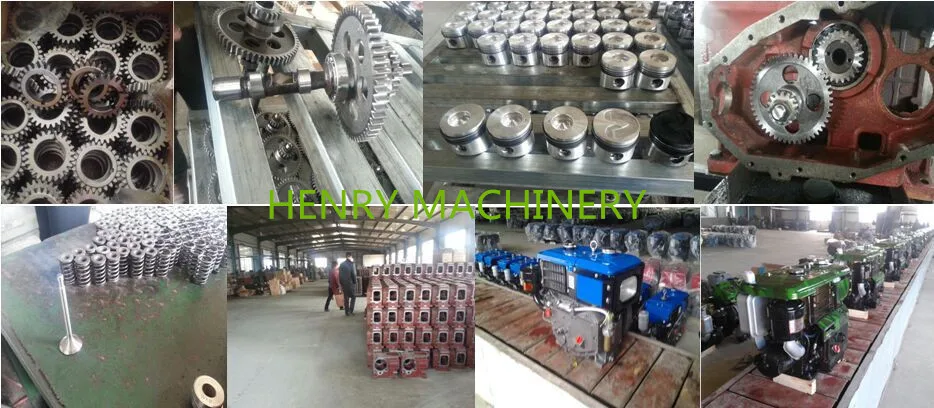

FACTORY



 WHY CHOOSE US



   1. Professional supply with certification: CCC, ISO and so on

   2. Perfect quality program.  100% test before delivery for every engine.

   3. One year guarantee.

   4. OEM service.

   5. Creative design team and first class quality equipments.

   6. Design and Producing be customized.

   7. Flexible payment. T/T  L/C D/P,WESTERN UNION be accept.

ANY REQUEST ,PLS SEND ME EMAIL
