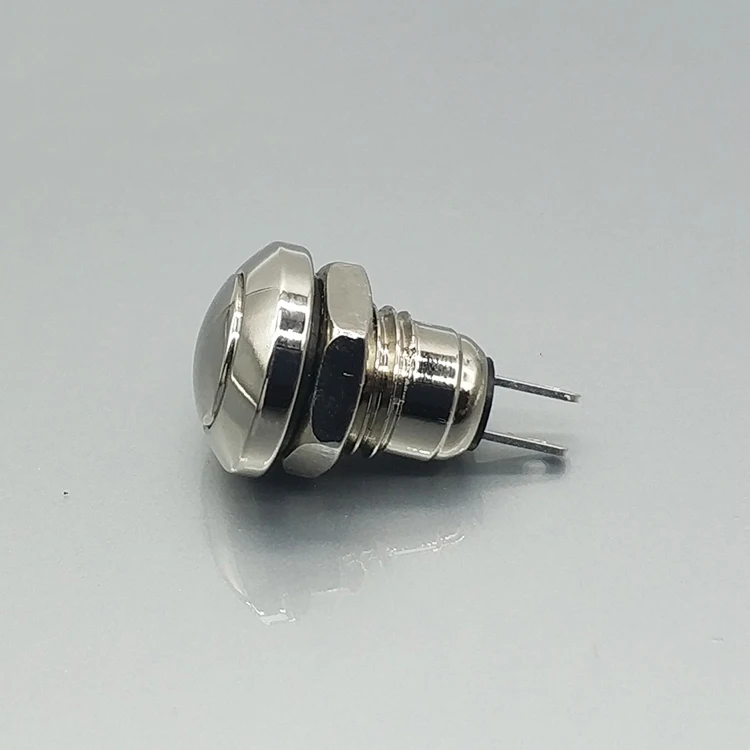

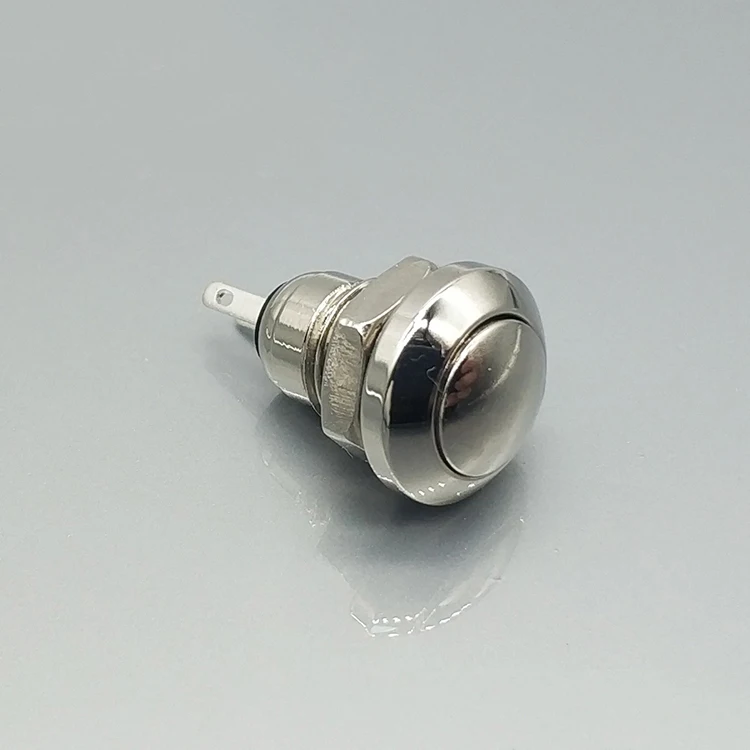

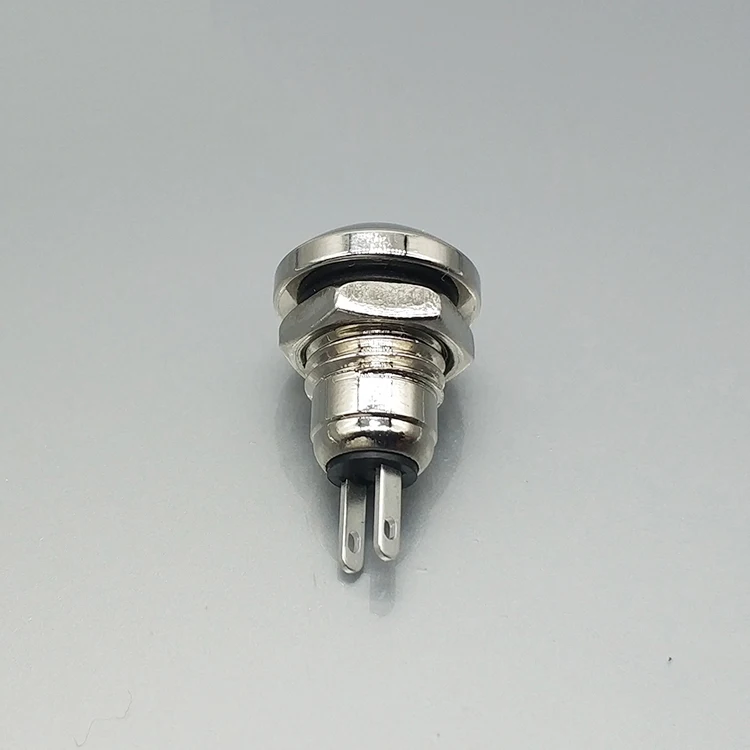

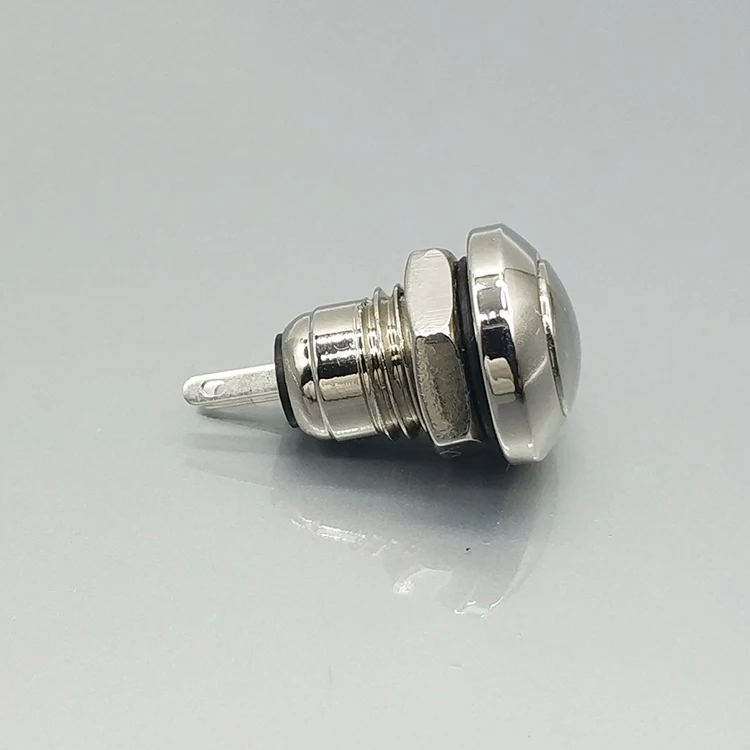

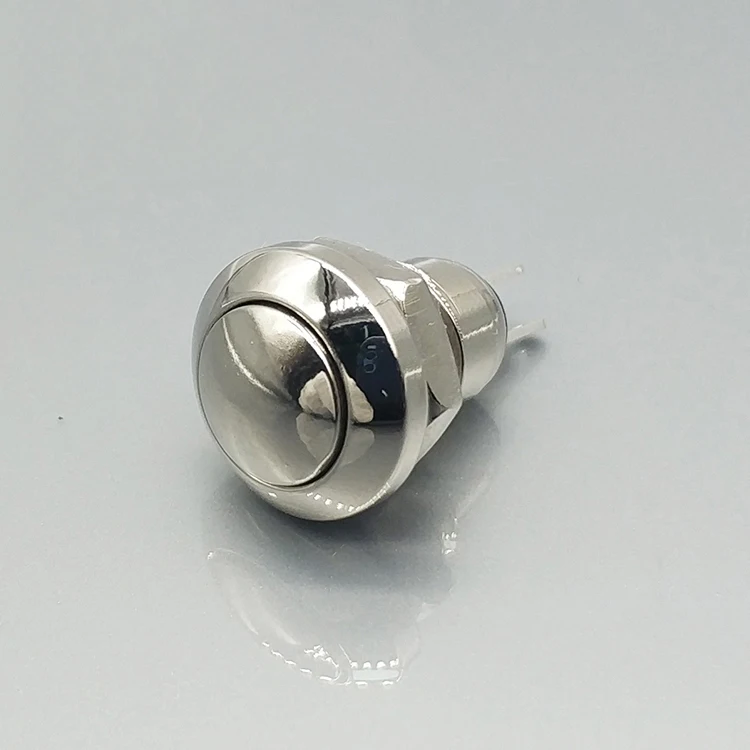

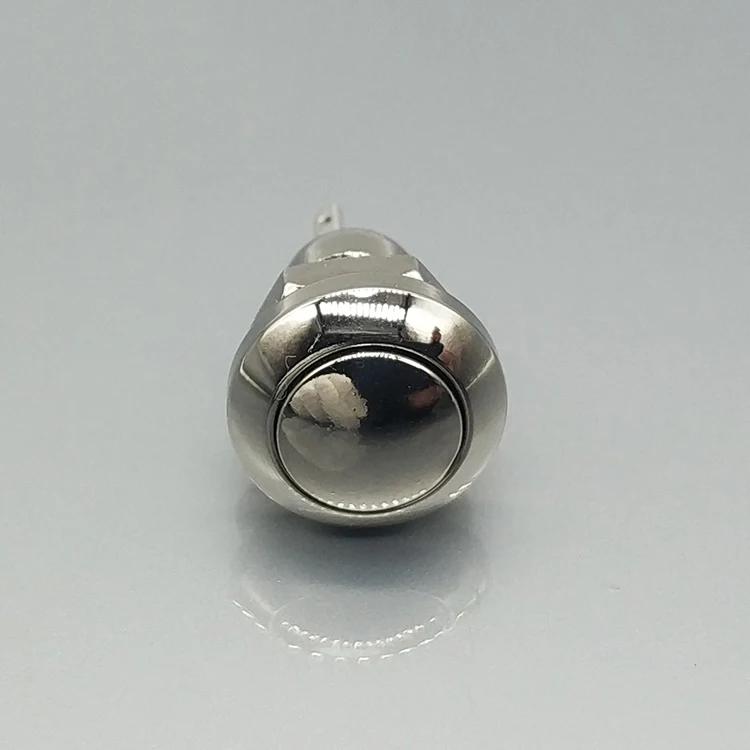

8mm Illuminated Game Machine Push Button Metal Switches
- Category: >>>
- Supplier: Xiamen Olink Import And Export Co. Ltd.
Share on (60479792959):
Product Overview
Description
- Xiamen Olink Imp&Exp is professional in ELECTRONIC 15 years, with good quality and short lead time.
- Our company occupies nearly 10,000 sq. meters and the area of the workshop is 30,000 sq. meters. There are more than 500 employees including 60 technicians.
- We have the three main series of the products containing electronic connectors, terminal blocks, wire harness and switches up to 200 types and 2000 specs.
| NO. | MODEL | ITEM NO. | HEAD SHAPE | SWITCH FUNCTION | TERMINAL | HEAD COLOR/MATERIAL | SHELL MATERIAL |
| 1 | D9 | 12QA-B10/S | Ball | 1NO
| J Pin Terminal | stainless steel | Brass nickel plated
Zn-Al alloy Made to order any color |
| 2 | D8 | 12QA-B10L/N/A(N) | Screw Terminal | Zn-Al alloy made to order any color | |||
| 3 | D10 | 12QA-B10L/N | stainless steel | ||||
| 4 | D8 | 12QA-B10L/G/N | made to order any color | ||||
| 5 | D10 | 12QA-B10L/S | stainless steel | ||||
| 6 | D7 | 12QA-B10/R/N | J Pin Terminal | made to order any color | |||
| 7 | D7 | 12QA-B10/B/N | made to order any color | ||||
| 8 | D9 | 12QA-B10/N | stainless steel |
- Technical Parameters
| Terminal Type | J Pinl/Screw Terminal | Protection Grade | IP65/IK08 | |
| Structure | 1NO | Material | Contact | Silver alloy |
| Specifications | 2A/250VAC 2A/36VDC | Button | Stainless steel | |
| Contact Resistance | ≤50mΩ | Zn-Al alloy(Made to order any color) | ||
| Insulation Resistance | ≥1000MΩ | Body | Brass nickel plated/Stainless steel | |
| Dielectric Strength | 2000VAC | Zn-Al alloy(Made to order any color) | ||
| Environent Temperature | -20℃~+55℃ | Base | PBT | |
| Mechanical Life | >1000000 times | |||
| Electical Lifer | >200000 times | |||
| Panel Thickness | 1~6mm | |||
| Nut Torque | 5-14Nm | |||
| Operating Pressure | 3-5N | |||
| Operating Distance | About 2.0mm | |||
Xiamen Olink Imp&Exp is professional in ELECTRONIC 15 years, with good quality and short lead time. We are in Xiamen city fujian province. The traffic is very convenient and the position
is predominant. The company occupies nearly 10,000 sq. meters and the area of the workshop is 30,000 sq. meters. There are more than 500 employees including 60 technicians taking up with developing and researching. After the development of 15 years and more, the company has accumulated rich experience in researching and producing insertion parts. The three main series of the products containing electronic connectors, terminal blocks, wire harness and switches up to 200 types and 2000 specs. Now we own nearly one thousand clients and the products have been sold to the countries including Europe, Southeast Asia and etc., and the supply of the products falls short of demand.
Q:Why choose us?
A:1.100% home made,competitive price and fast delivery.
2.strict quality control.Certified by ISO9001:2000/ELT/TUV/CE/PSE/CQC/ROHS/UL.
Q:How long is your delivery time?
A:Sample is 1-3 days;Mass products is 5-7 days.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Paypal,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Contact us for more details about price,packing,shipping and discount.
