Right Pneumatic High Quality VF Series Solenoid Valve VF5120 G3/8
- Category: >>>
- Supplier: Ningbo Xinyi Sunshine Pneumatic Science& Technology Co. Ltd.
Share on (60479793719):
Product Overview
Description
solenoid valve VF5120
Product pictures
Product Description

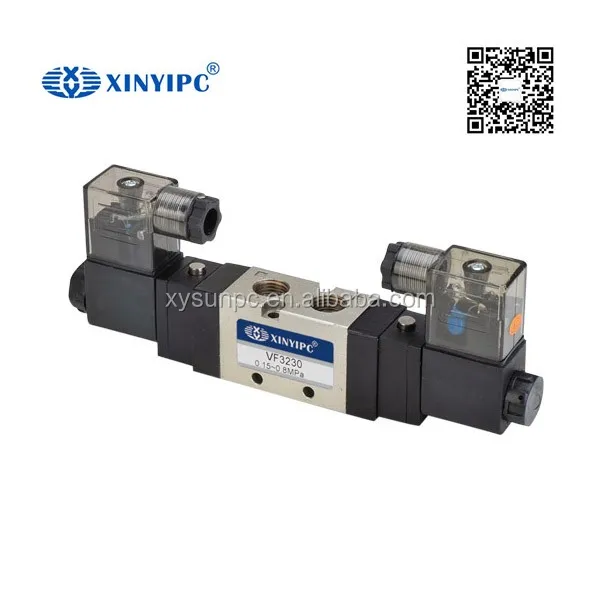

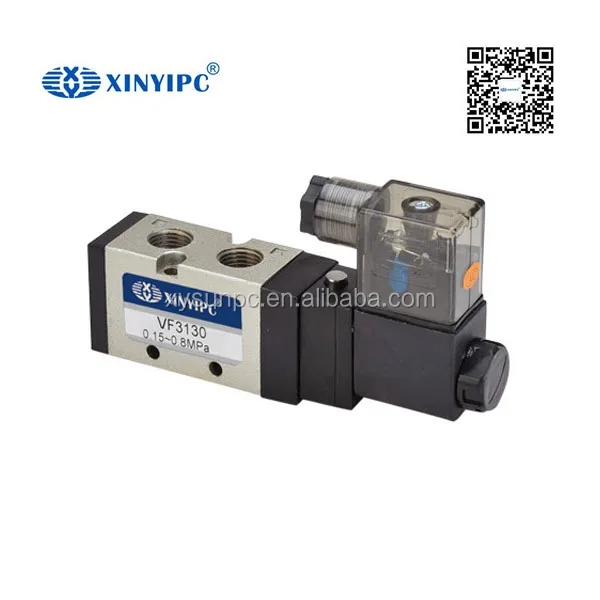

Model | VF3130 | VF3230 | VF33(4/5)30 | VF5120 | VF5220 | VF53(4/5)20 |
Position and Way NO. | Two-position five-way | Three-position five-way | Two-position five-way | Three-position five-way | ||
Effective Section Area | 16mm2 | 12mm2 | 25mm2 | 18mm2 | ||
Working Medium | 40Micron Filter Air | |||||
Motion Pattern | Inner Guide Type | |||||
Working Pressure | 0.15~0.8Mpa | |||||
Max. pressure resistance | 1.2Mpa | |||||
Operating Temp | 5~50’C | |||||
Power consumption | AC:4.5VA DC3.0W | |||||
Insulation &Protect class | IP65/F class | |||||
Highest action frequency | 5cycle/Sec | |||||
Voltage range | ±10% | |||||
Shortest excitation time | 0.05s | |||||
