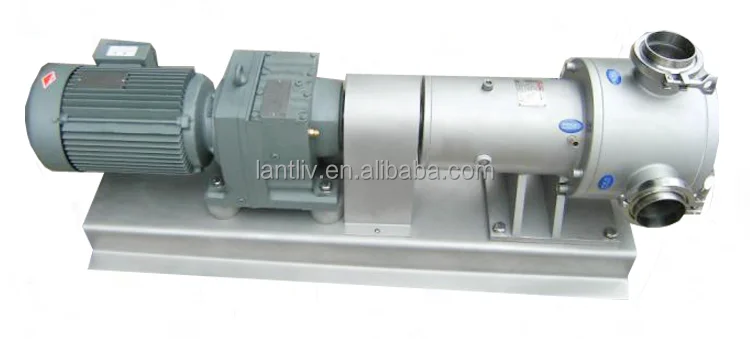

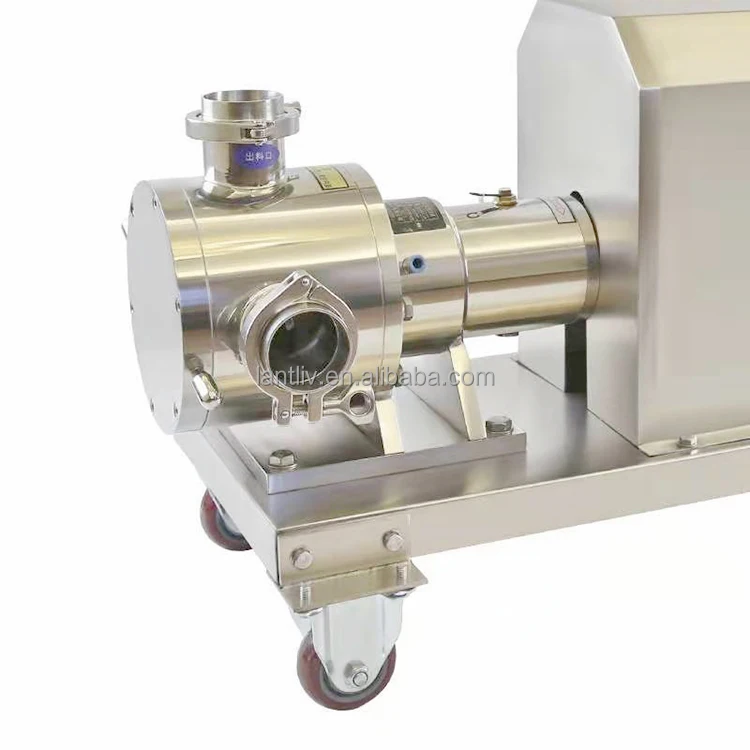

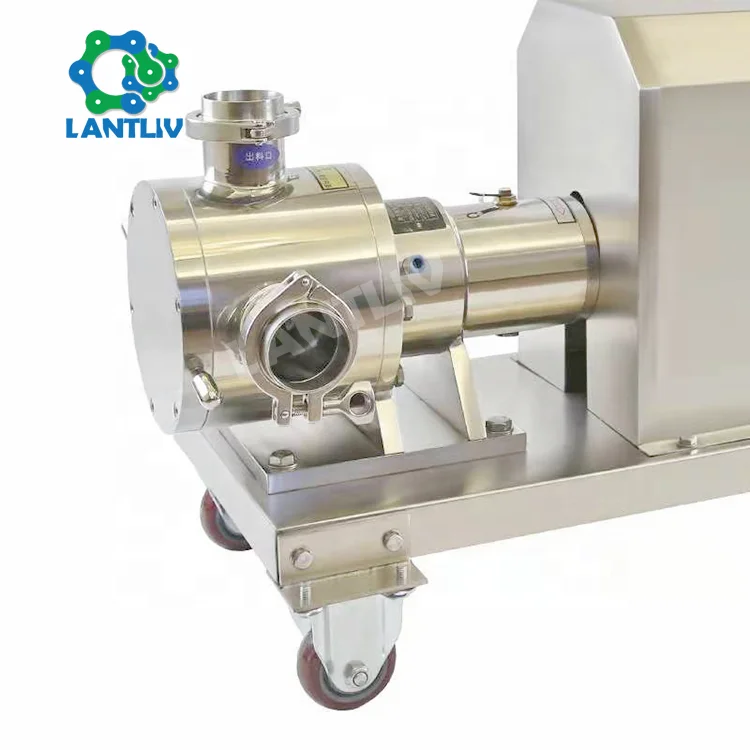

Horizontal Low Shear Transfer Feeding Food Grade Pump Stainless Steel Super Low Shearing Grinding Sanitary Sine Pump
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (60479971856):
Product Overview
Description
Product Description
Sine pump: Special two sine-curve-like vane is taken, instead of rotor, epicyclic gear or piston, and it runs with a movable panel and a fixed line, forming a special volume pump and realizing liquid super low gear, without pulse feeding, also in condition of 10 bar back pressure(water feeding), there will not be any movement on pressure gauge.
Working principle

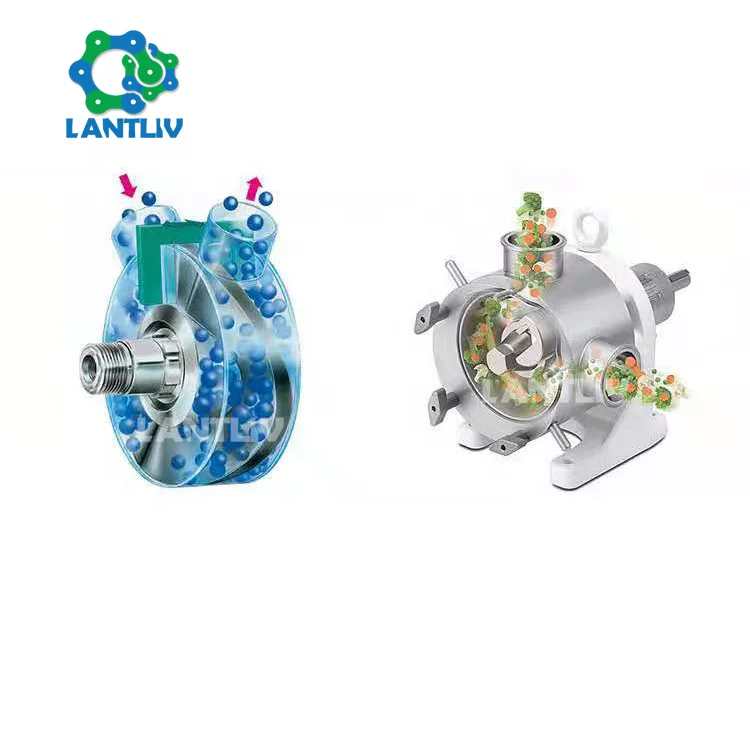

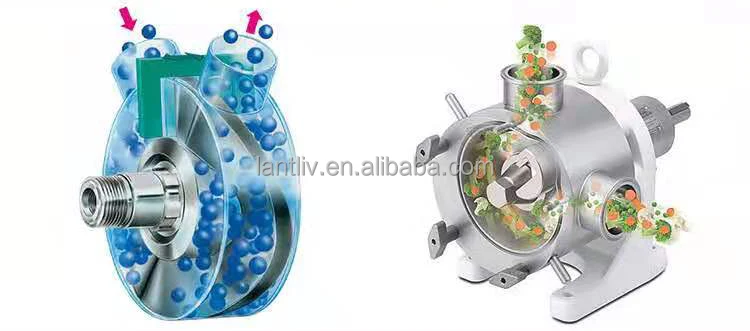

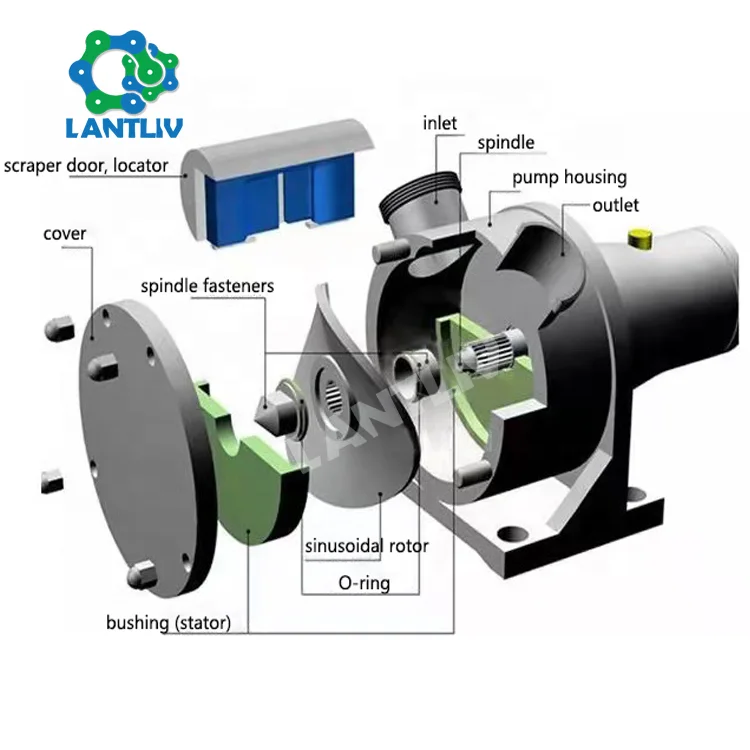

The sine wave shape of impeller means a cavity can be formed at every rotation (4 cavities can be formed every passing the lining space). This operation can "push" or "release" flowing products. The pump cavity is divided into suction chamber and extraction chamber by control panel to ensure pressure tolerances at exit and entrance. Meanwhile, control panel plays another important rote to lubricate the pump bearing by product in compulsion.
Product Paramenters
Displacement per rolation(L) | Diameter Inlet and Outlet(mm) | Range of Speed(rpm) | Rang of Flow Rate(L/H) | Electrical Power (kw) |
0.06 | 25 (1inch) | 50-1000 | 180-3600 | 1.5 (2HP) |
0.11 | 51 (2inch) | 50-1000 | 330-6600 | 2.2 (3HP) |
0.28 | 63 (2.5inch) | 50-600 | 840-11800 | 3.0 (4HP) |
0.45 | 76 (3inch) | 50-600 | 1350-16200 | 4.0 (5HP) |
0.75 | 89 (3.5inch) | 50-600 | 2250-27000 | 5.5 (7HP) |
1.05 | 102 (4inch) | 50-600 | 3150-37800 | 7.5 (10HP) |
2.5 | 152 (6inch) | 50-600 | 7500-30000 | 15 (20HP) |
Detailed Image

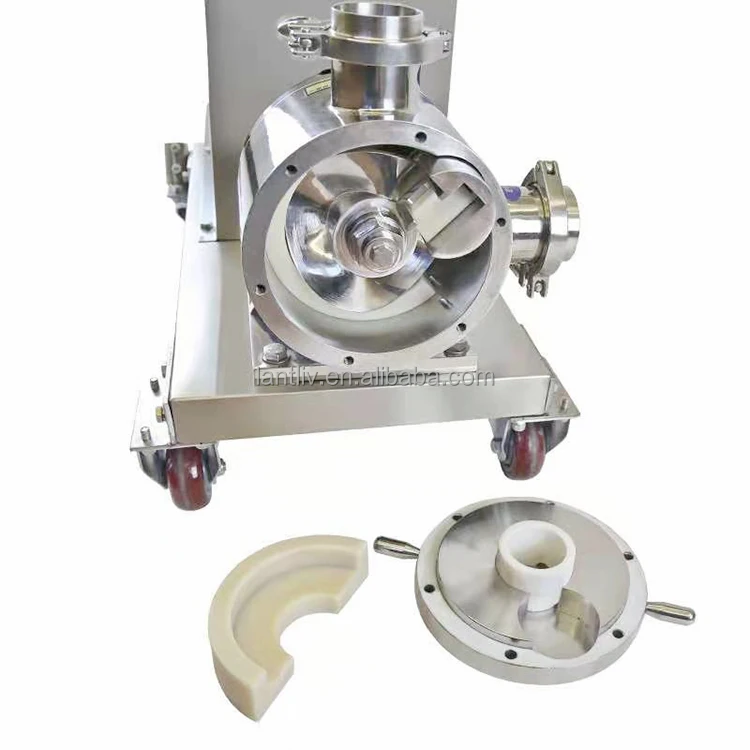

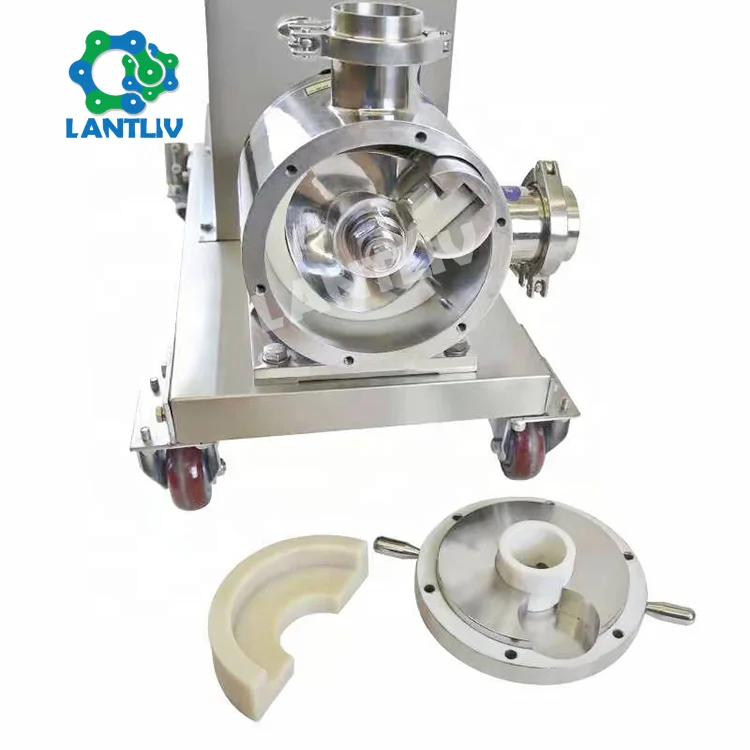

Provide a variety of interface forms: clamp, thread, flange; the figure is optional import and export connection direction.
Similar Products
Certifications
Packing & Delivery
1. The normal package is wooden box.
2. Delivery time: 15-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
2. Delivery time: 15-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
After Sales Service
1. Manual / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine. During the warranty year if any of the parts broken not by man-made, free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Independent team for after-sale service 24/7 technical support. Any emergency please call the salesman or our after-sales manager.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine. During the warranty year if any of the parts broken not by man-made, free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Independent team for after-sale service 24/7 technical support. Any emergency please call the salesman or our after-sales manager.
