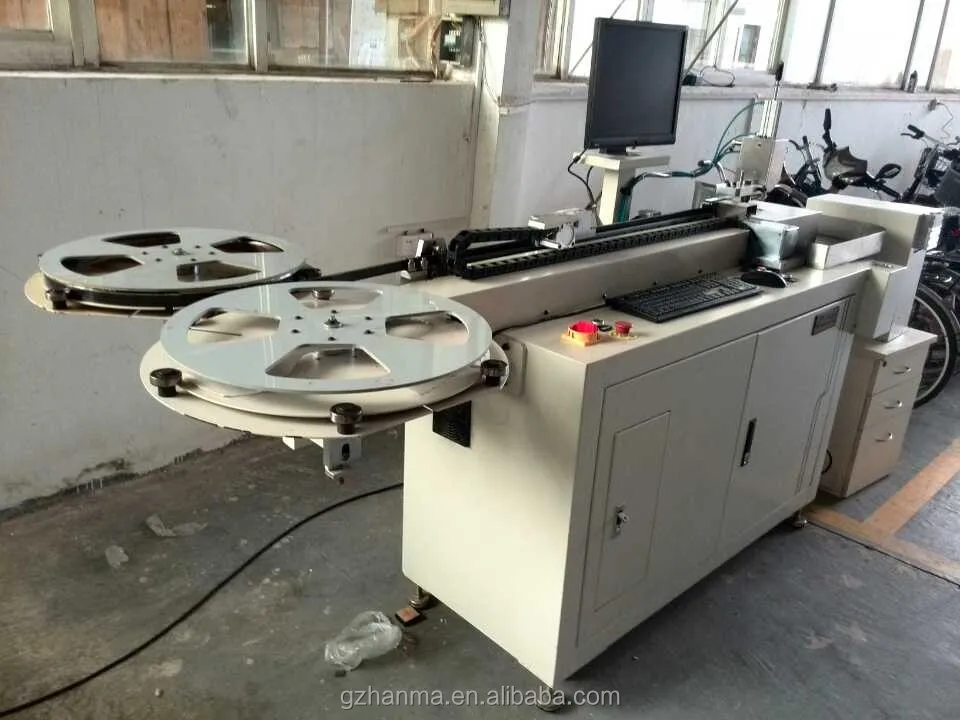

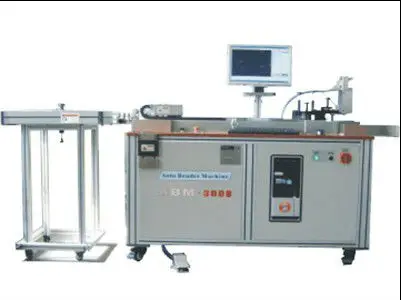

2016 top sale China Machinery Aluminium Stainless Steel Automatic Channel Letter Bending Machine
- Category: >>>
- Supplier: Guangzhou Han Ma Automation Control Equipment Co. Ltd. [Guangdong China]Guangzhou
Share on (60480070946):
Product Overview
Description
2016 top sale China Machinery Aluminium Stainless Steel Automatic Channel Letter Bending Machine
Technical parameter
Parameter | Steel Rules Thickness (mm) | |||||
0.45 | 0.53 | 0.71 | 1.07 | |||
Steel Rules Height(mm) | 7-25 | 7-25 | 7-25 | 25 | ||
Max. Angle | 110º | 110º | 100º | 90º | ||
Min. Arc 90º Radium (mm) | 0.5 | 0.7 | 1.0 | 1.5 | ||
Min. Foreside Bending Length (mm) | 1.5 | 1.5 | 2.5 | 4.0 | ||
Min. Rearward Cutting Length (mm) | 1.0 | 1.0 | 1.5 | 2.0 | ||
Feed-in Accuracy | 0.01mm | |||||
Bridges | automatic bridge marking | |||||
Straight Cutting | Automatic Swaying off | |||||
File Format | dxf,wd,format | |||||
Weight | 330kg | Size | 2350×1200×990 | |||
Power Requirements | 50/60Hz Single-Phase110V/220V | Air Pressure | 5-7kgf/cm2 | |||
Power | 1.5kw | Computer Collocate | P4,512M,17″LCD | |||
Outfit Dies | 1. Two sets of Bending Mould (0.53,0.71mm)
2. Two sets of Inside Mould Cantilever
3.. One Trimmer Cutter (This device can trim the rule into straight cut and lipper, and can punch bridges.) | |||||
Machine Advantage
a. Leading technology
b. Accurate, fast speed
c. Intelligent operation
d. Automatic, mutli function
e. Easy to use and maintain
f. Excellent design and stable performance
g. High precision in bending irregular and complicated shapes
h. Convenient replacing die moulds
i. Fit for different size of bending rules
j. No wast of rules at all
Application Industry:

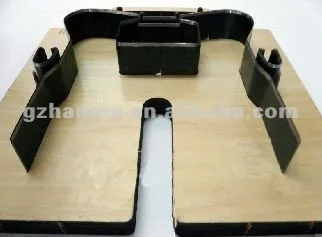

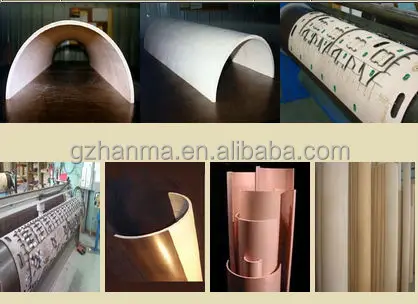

It use in die board cutting processing, cooperate with laser die cutting machine in packaging and printing industry
Stainless Steel automatic bending machine
