MI Swaco Mongoose PT Shaker Screen for Oil Drilling
- Category: >>>
- Supplier: Anping County Xinghuo Metal Products Ltd.
Share on (60480088676):
Product Overview
Description
MI Swaco Mongoose PT Shaker Screen
Composite Screens Provide Longer Life and More Screen Area
Xinghuo high-capacity composite shaker screens are the most rugged, long lasting and efficient screens available. The new composite screens, unique in the industry, provide resistance to corrosive drilling fluids. The screens also offer signifi cant fluid capacity, excellent resistance to blinding, drier solids discharge and a large net usable screen area.
Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. There are common pre-tensioned steel frame screen and composite frame screen. Composite frame screen have longer service life, better appearance, and convenience on operaion. Both steel frame and composite frame screen have main parameters as below.

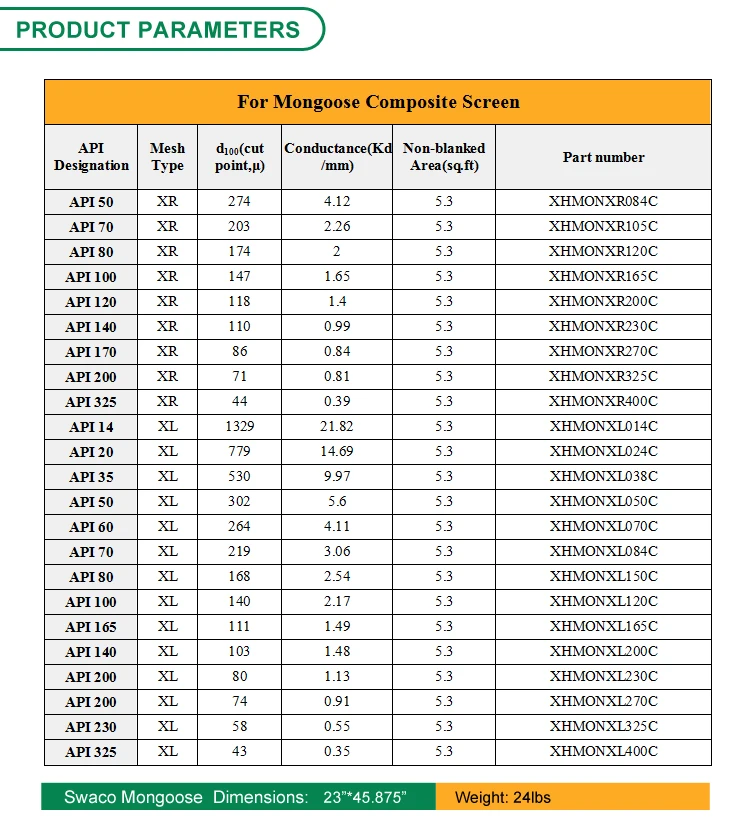

Swaco Mongoose Series Screen | |
Mesh | API20---API450 |
Dimension | Length:1165mm (45 9/10”) |
Width: 585mm (23”) | |
Weight | Steel frame: 13kg (28.6lb) |
Composite frame: 12kg (26.4lb) | |
Screen layer | 2 or 3 Layers |
Wire mesh material | S.S304 ,S.S316 (Customizable) |
Frame material | Carbon steel, Composite material |

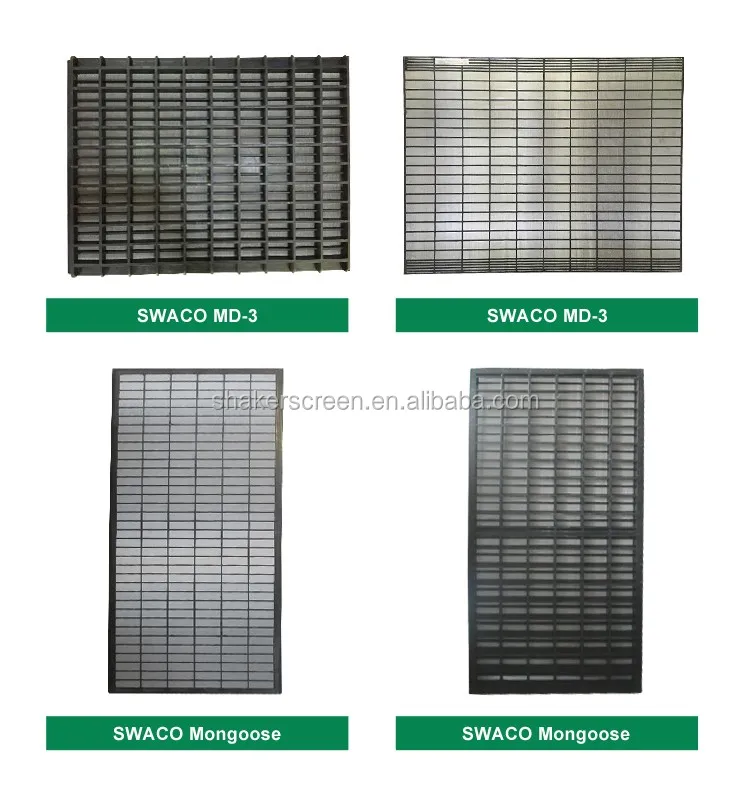

Detailed Images

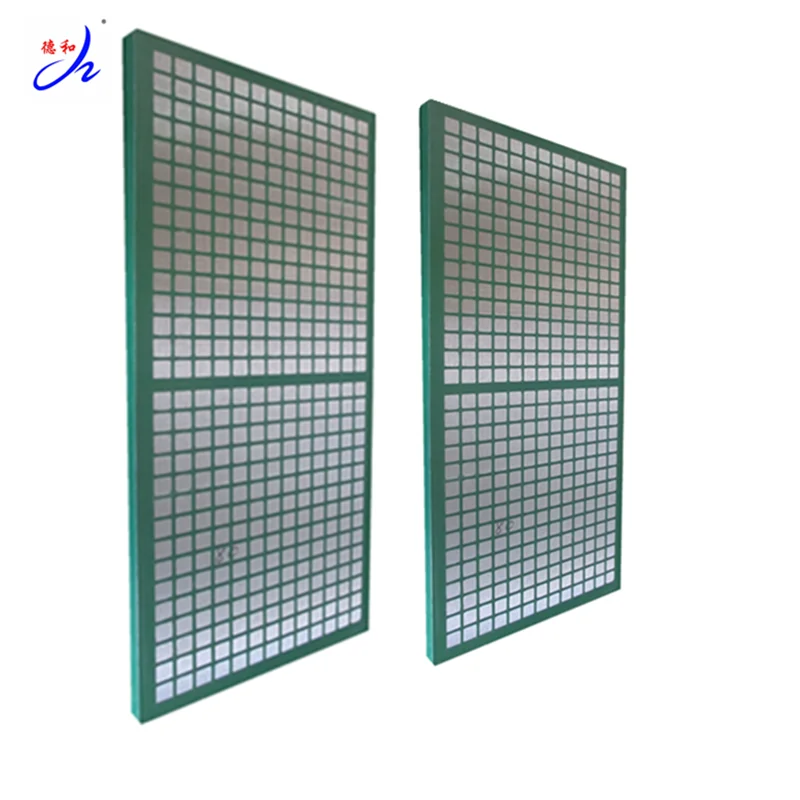

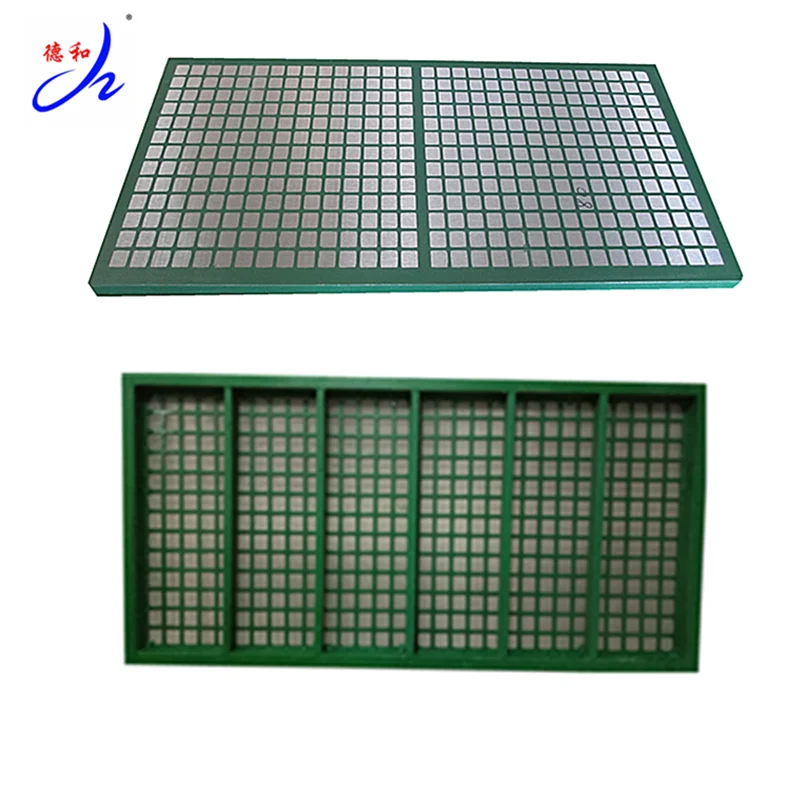

Composite MI Swaco Mongoose Shaker Screen
Steel Frame Swaco Mongoose KPT Shale Shaker Screen

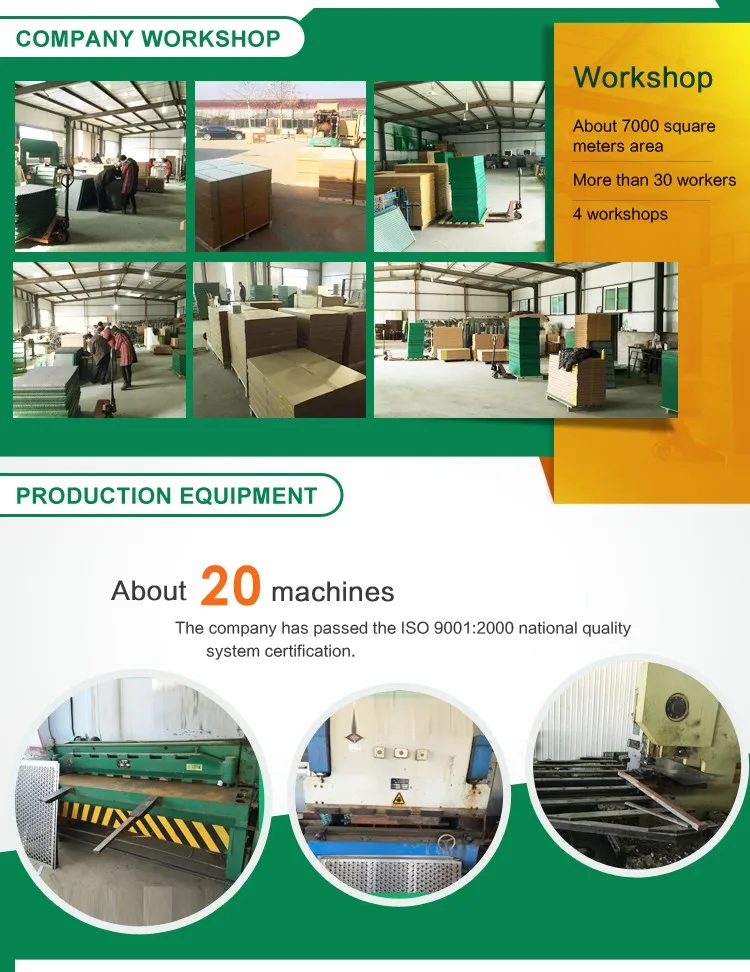

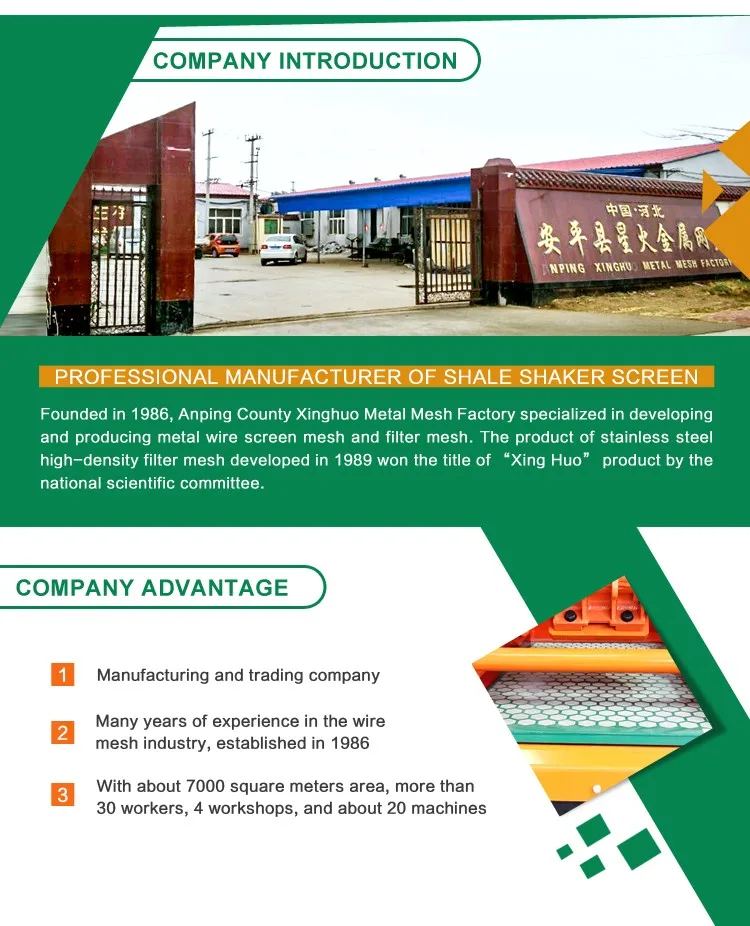

Company Information
Xinghuo shale shaker screen Applications:
(1) OIL&GAS DRILLING----Solids Control System
(2) HDD & CBM Drilling ----Mud Recycling System
(3) Mining & Industrial----Slurry Separation Plan
