STA infrared honeycomb ceramic plate for burner
Product Description

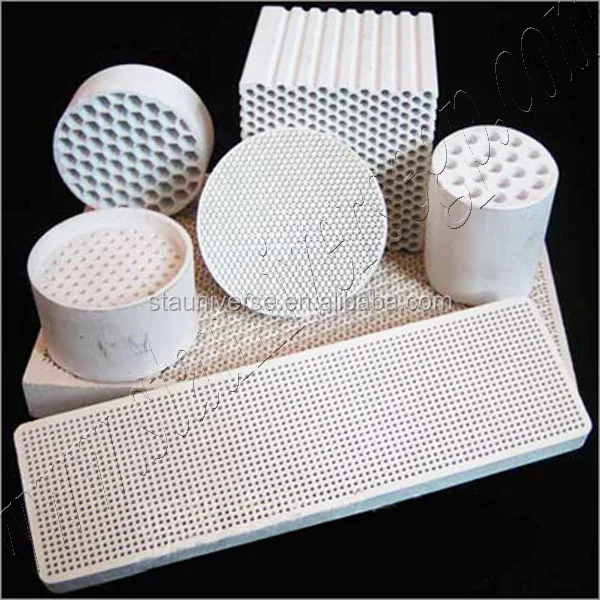

Honeycomb Ceramic is porous ceramic with parallel channels triangular, square and hexagonal internals. The honeycomb units are separated by thin walls, the materials are mainly Cordierite(2MgO.2Al2O3.5SiO2), Aluminium Titanate(Al2TiO5), Mullite (3Al2O3.2SiO2), Corundum(α-Al2O3) and compound phases, etc
Honeycomb Material:
We can make honeycomb ceramic various material. Like alumina, multiple cordierite etc.
the technical data
Item Type | Alumina |
Mullite
| Dense Cordierite | Porous Cordierite | Mullite - Cordierite | Stoneware | |
Chemical composition , % | Al2O3 | 48~55 | 66~72 | 32~36 | 32~37 | 55~65 | 20~26 |
SiO2 | 40~45 | 25~30 | 45~52 | 46~52 | 28~36 | 68~75 | |
MgO | / | / | 5~8 | 8~12 | 2.5~3.2 | 0.2~0.3 | |
K2O+NaO2+CaO | 4.0~5.5 | ≤1.0 | ≤3.0 | ≤2.0 | ≤1.0 | 2.5~4.0 | |
Density , g / cm3 | 2.7 | 2.9 | 2.4~2.6 | 1.9~2.0 | 2.9~3.2 | 2.3~2.5 | |
Coefficient of thermal expansion (20~1000),×10-6. | 5~7 | 5.5~6.5 | 2.5~3.5 | 1.3~2.5 | 2.5~4.0 | 5~7 | |
Heat capacity (20~1000),J/kg. | 800~900 | 1100~1300 | 800~1200 | 750~900 | 850~1100 | 840~920 | |
Thermal Conductivity (20~1000),W/m. | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | 1.3~1.5 | 1.5~2.3 | 1.0~1.2 | |
Spalling resistance. | ≥150 | ≥350 | ≥250 | ≥360 | ≥250 | ≥150 | |
Max. Working temp. | 1300 | 1600 | 1300 | 1300 | 1400 | 1300 | |
the detail size
Ellipse Carrier:
Num | Specification | Holes shape | Type |
1 | T146.8 × 77 × 86.4 | Square | 400Cell/In2(CPSI) |
2 | T120.6 × 80 × 152.4 | Square | 400Cell/In2(CPSI) |
3 | T169.7 × 80.7 × 76.2 | Square | 400Cell/In2(CPSI) |
4 | T144.8 × 81.3 × 152.4 | Square | 400Cell/In2(CPSI) |
5 | T144.8 × 81 × 76.2 | Square | 400Cell/In2(CPSI) |
6 | 169.7 × 80.7 × 101.6 | Square | 400Cell/In2(CPSI) |
7 | T144.8 × 81.3 × 100 | Square | 300Cell/In2(CPSI) |
8 | T127 × 63.5 × 107 | Square | 300Cell/In2(CPSI) |
9 | T144.8 × 81.3 × 70 | Square | 300Cell/In2(CPSI) |
10 | T144.8 × 81.3 × 150 | Square | 300Cell/In2(CPSI) |
Race Track Carrier:
Num | Specification | Holes shape | Type |
1 | P120 × 81 × 76.2 | Square | 400Cell/In2(CPSI) |
2 | P120 × 80 × 150 | Square | 400Cell/In2(CPSI) |
3 | P144 × 68 × 150 | Square | 400Cell/In2(CPSI) |
4 | P125 × 80 × 100 | Square | 400Cell/In2(CPSI) |
Circle Carrier:
Num | Specification | Holes shape | Type |
1 | Φ 83 × 85 | Square | 400Cell/In2(CPSI) |
2 | Φ 100 × 100 | Square | 400Cell/In2(CPSI) |
3 | Φ 130 × 130 | Square | 400Cell/In2(CPSI) |
4 | Φ 118 × 150 | Square | 400Cell/In2(CPSI) |
5 | Φ 107 × 100 | Square | 400Cell/In2(CPSI) |
6 | Φ 150 × 75 | Square | 400Cell/In2(CPSI) |
7 | Φ 83 × 125 | Square | 400Cell/In2(CPSI) |
Applications
It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost

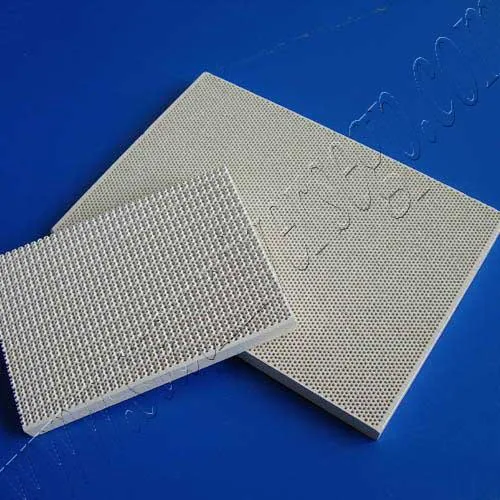

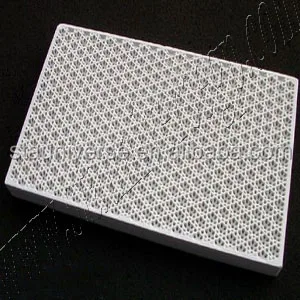

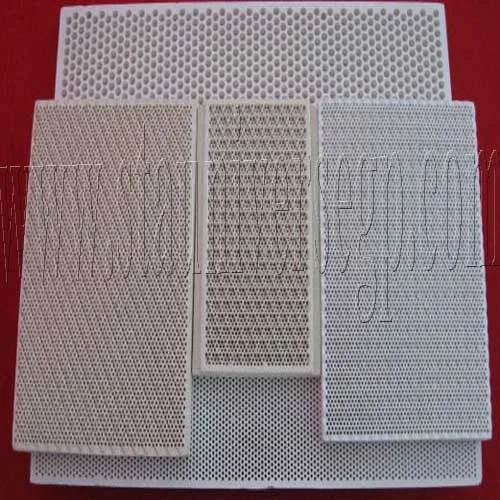

products showing
Our Services
*Can make as per your samples or instailation size.
*Provide OEM Service and label service.
*Can pack as per your request.
*Can make the inner box and outer carton as your request
Company Information
STA universe group is founded in 2001,dedicating to innovation ang creating a world famous brand.And provide various products for customers. We are a professional manufacturer of it for many 13 years,our products are exported to America ,Russia,European,Germany,Brazil,and many other countries.
FAQ
Why choose STA
High puriy material make sure high max working temperature,
Tight tolerance make sure the right installation.
Large quantity Crucibles in stock ensured fast delivery
Large capacity reduce crucible prices
1.What's your advantage to other suppliers?
We have our own factory which has more than 15years experience in producing and exporting honeycomb ceramic products,
we also have good business relations with some other factories.
Our goods’quality is high and price is reasonable and delivery is fast.
2.Can you produce as our drawing?
Yes,we have skilled technical engineer who can make products according to your photos or drawings.
3.After-Sale service:
1) 24 hours service for customers.
2) quality issue, we accept reworking if quality is not reach your requirements.
3) sample available for free
4) CE service acceptable. welcome your artwork
