Supply spz 5 air motor anti explosion dry shotcrete spray concrete gunite machine

Introduction Of spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine:

1. spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine, is mainly Efficient to spray dry mix concrete or other mortar;
2. Widely employed in Construction ,such as mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc.
3. Our products shotcrete machine have been exported to a lot of countries. The spray machine is popular in our factory and selling fast.
4. The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor and Electric Motor.
5. Gunite machines can use air pressure to convey dry material from the machine through the hose to the nozzle where water is added.

6. The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor,Electric Motor.

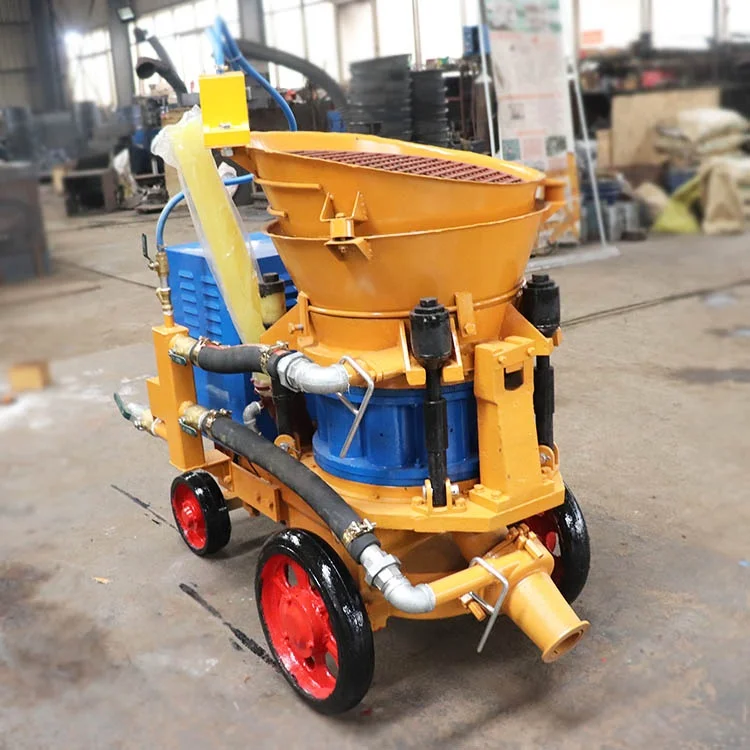

spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine

Technical Parameters of the spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine:

Applications Of spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine:

The shotcrete machine mainly is used to spraying concrete for the surface.

• spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine, Used for dry mix concrete spraying operation.


• Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;


• Shotcrete for building surface;


• Shotcrete for Tunneling , Mining ,Hydropower Project;


• Shotcrete for Slope Stabilization. For example, build up the swimming pool.

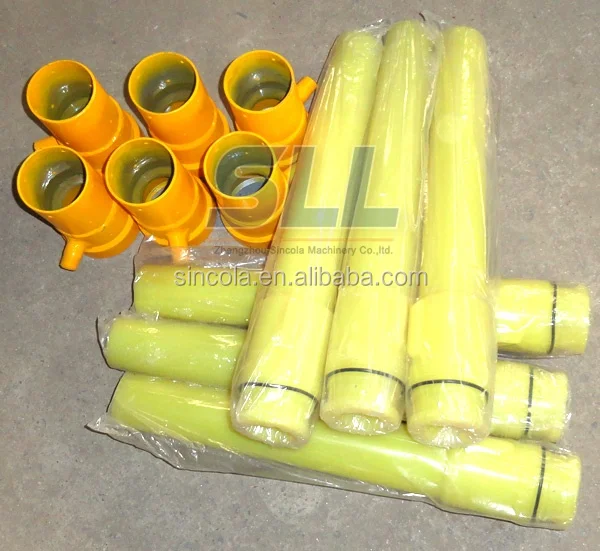

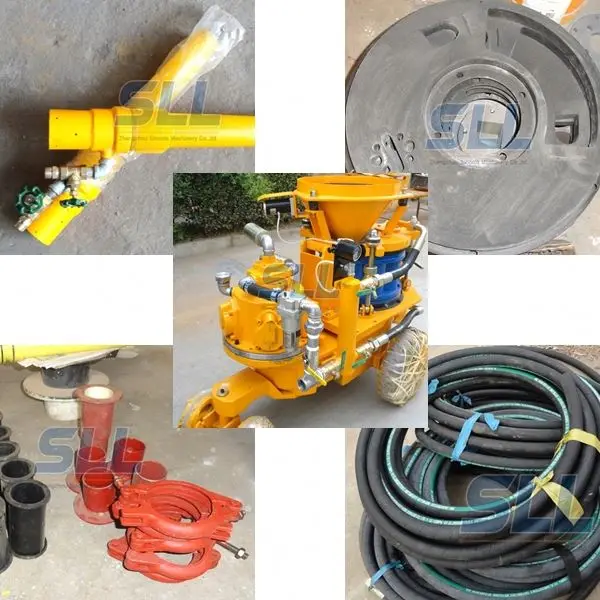

Matching Spare Parts of Air Motor Concrete Spraying Machine:

• Three Quick Coupling


• One Long Joint


• Four Joint Clamp


• One Conveying hose


• One Upper sealing plate


• One Lower sealing plate


• One Rubber Elbow


• One Taper sleeve


• Ten Rubber Chamber


• One Nozzle and seat


• One Nozzle

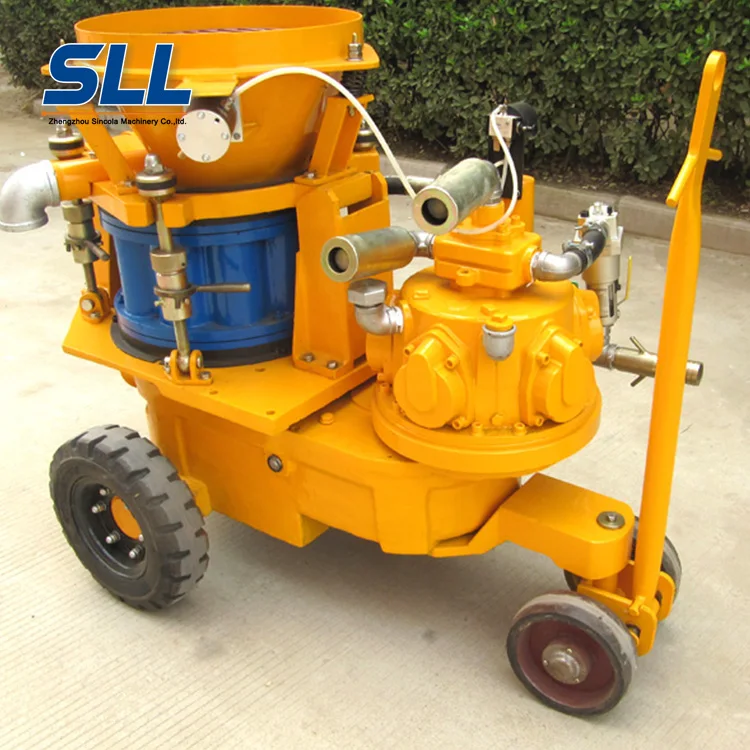

spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine

Delivery Terms of spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine:

Packing of Air Motor Concrete Spraying Machine: Wood case package.

Dimension(LxHxW): 1350x1020x750mm

Weight: 780kg

Delivery time: 10-15 days after the confirmation of the order.

Services terms of Air Motor Concrete Spraying Machine:

"creat more value to customers" is our company's service idea.we will recommand customer the most suitable machine,and as always, adhere to the 'quality first, integrity-oriented' purposes, to provide customers with maximum convenience

1. How much is the output of spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine?

Output: 3 m3/h, if you want a large output ,you can choose SPZ-5.or SPZ-9.

2. Is the voltage of the machine variable?
Acceptable if you need.

3. How much is Max.Aggregate.size of spz-5 air motor anti-explosion dry shotcrete spray concrete gunite machine?
15mm,maybe lager,we suggest you purchase SPZ-5.or SPZ-9,they can.

4. Can be used to build a swimming pool, etc.?

Of course,It is suitable.

5. Your can factory accept, the Customized machine .
We support the client Customized machine, the details questions., please contact me: (sales3 (at) shotcretemanufacturer.com), thanks!

6. How much is the lenght of delivery rubber hose?
It is 20m, If the length is not enough, a few rubber hose can be spliced together.

7. What is the difference between the wet spray machine and dry shotcrete equipment?
Wet Mix Shotcrete Machine sprays the wet concrete, While dry shotcrete equipment is dry concrete.

8. What is it used for ?
mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects, hydropower, engineering, etc

9. What is advantage?
High quality, high efficiency, environmental protection

10. If the delivery rubber hose is blocked, how to do?

Follow the instructions to use, generally It will not be blocked, if blocked, you can use water or air to rush in it
