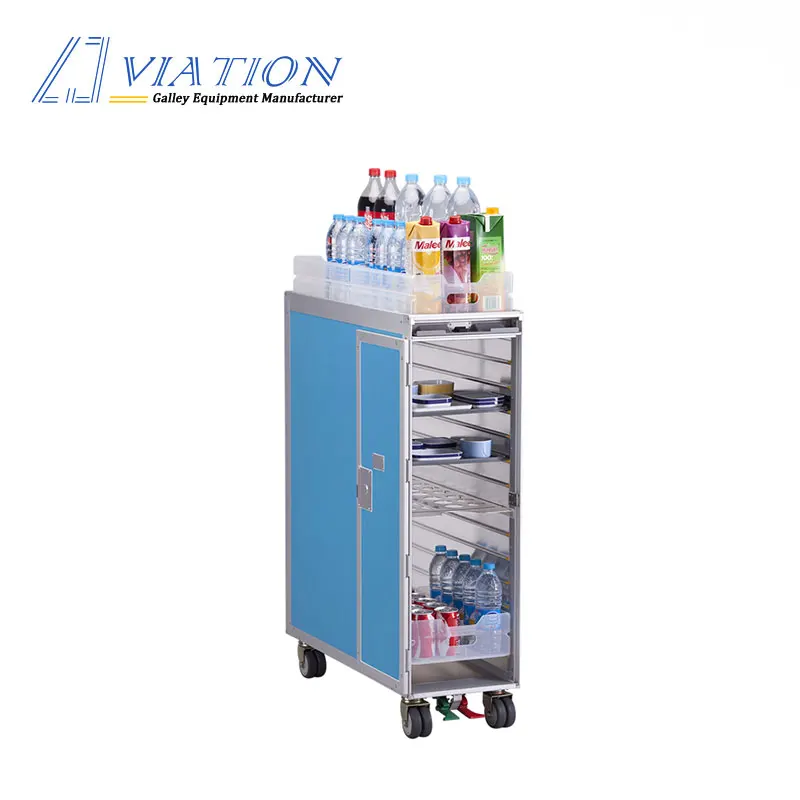

High Quality aluminium aircraft meal trolley blue airplane trolley

Product Overview

Description

High Quality aluminium aircraft meal trolley blue airplane trolley



- Product fit with aircarft galley compartment and in accordance with the use purpose.

- 2 dry ice tray included;

- Wheels: Double wheel,4 pcs full Swivel Castor,Normally "Rhombus" Brand;

- Brake: Two pedals, green pedal for brake release, red pedal for brake;

- Door: 270 degrees hinged with magnetic hold open devices;

- Card Holder(Card dimension 125x95mm);

- Pull Handle;

- High Security Lock System;

- Logo & Name plate on doors;

- Product Batch( Identification Placard), Manufacturer Tag;

- Product have related certificate,we have CAAC certificate.

- Empty Weight: 23kgs

- Max Weight in Load: about 114 kgs

- Dimension:

Overall Length: 816mm

Length over Corners: 810mm

Length Inside: 775.6 mm

Height: 1030mm

Width: 301mm

Main Runner Pitch: 60mm

- Air Vent(Option only):

Square Grill Plate Length: 135mm

64 square holes dimension: 5mm

Square Opening Height: 130 mm

Distance from Lower air vent center to floor: 298.5mm

Distance from lower air vent center to upper air vent center: 557 mm

- Capacity:

Atlas Meal Tray 1/1: 28 pcs

Atlas Aluminum Drawer or PP Drawer: 14 pcs
