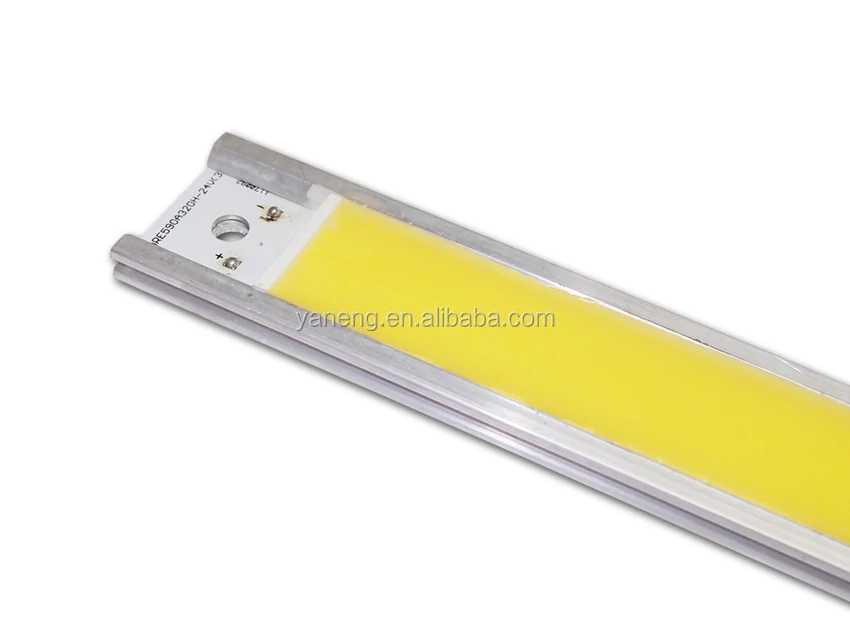

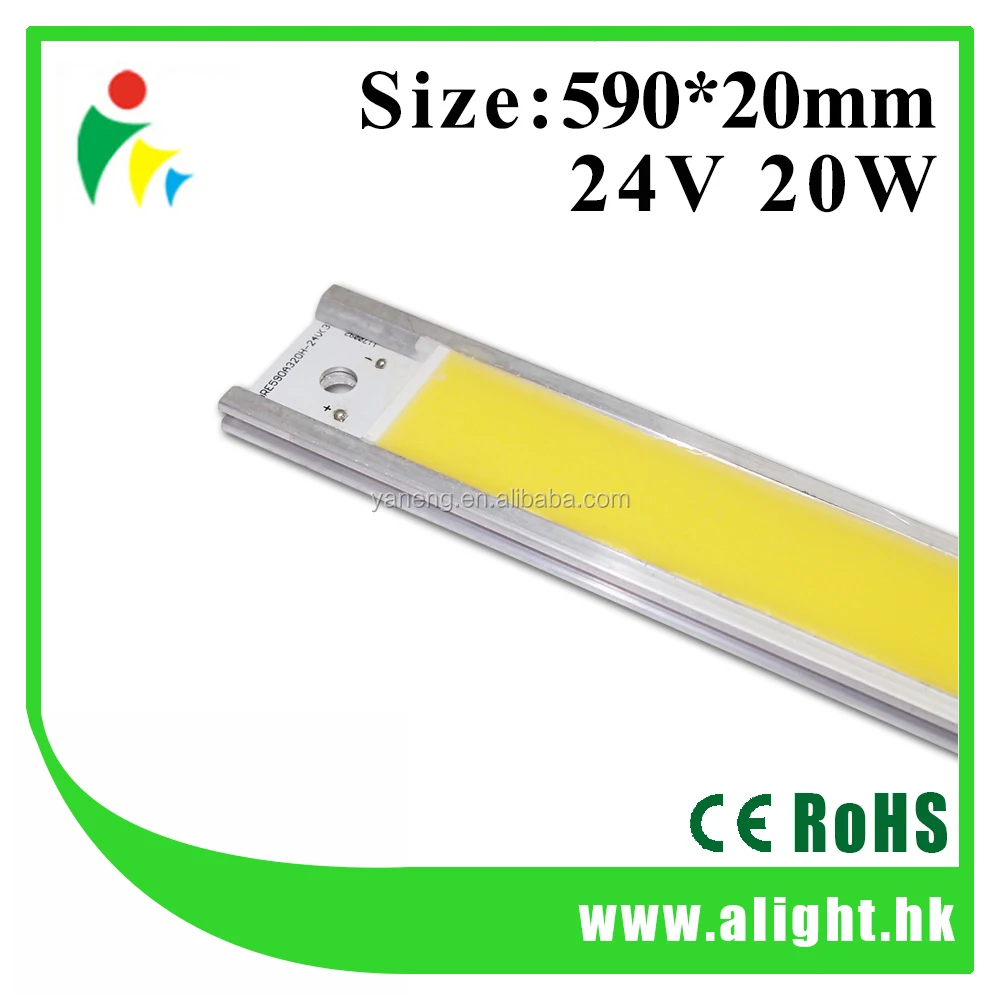

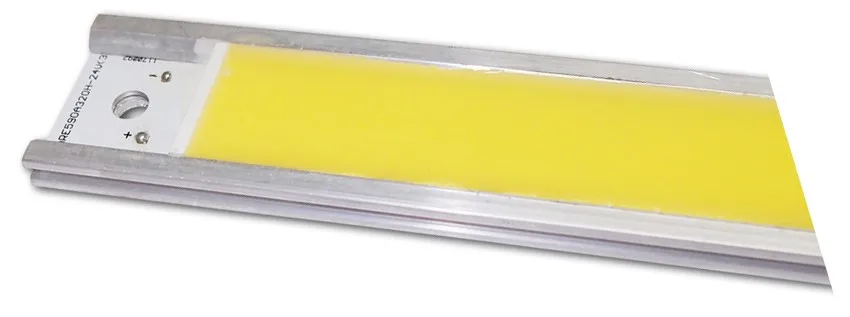

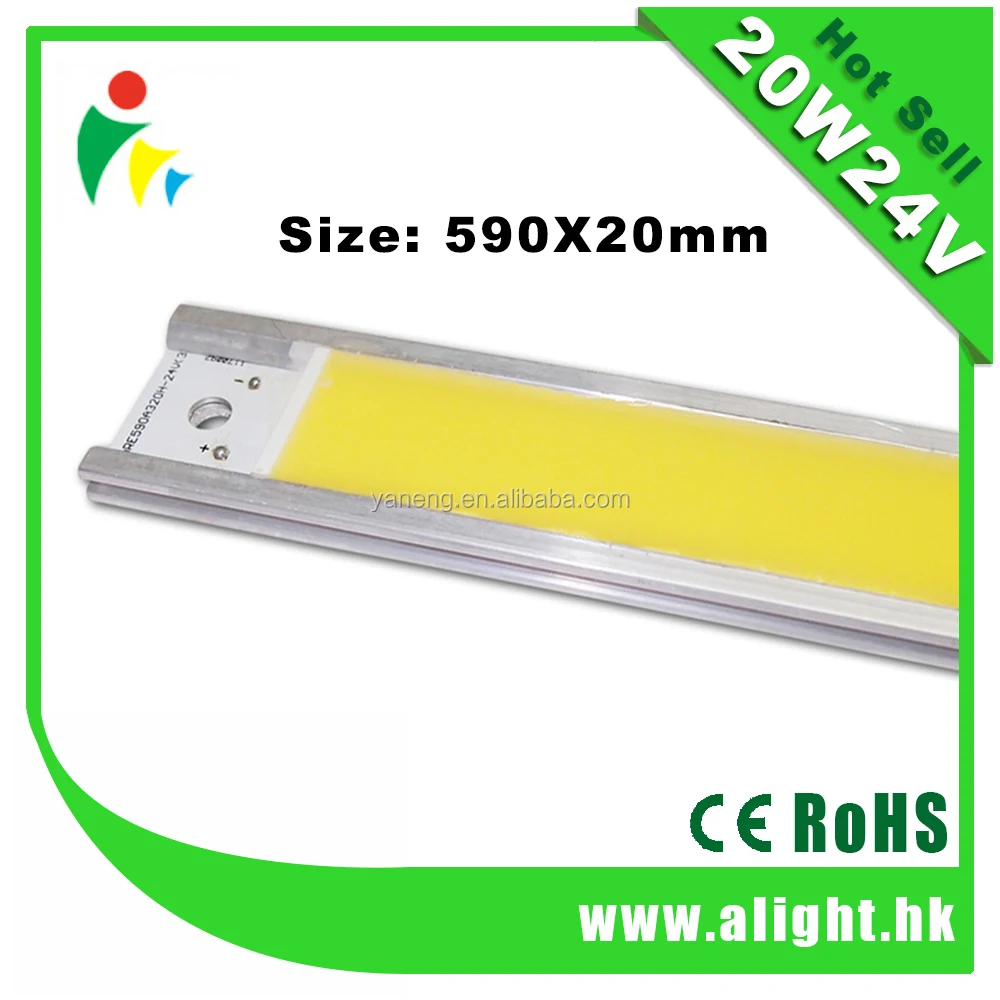

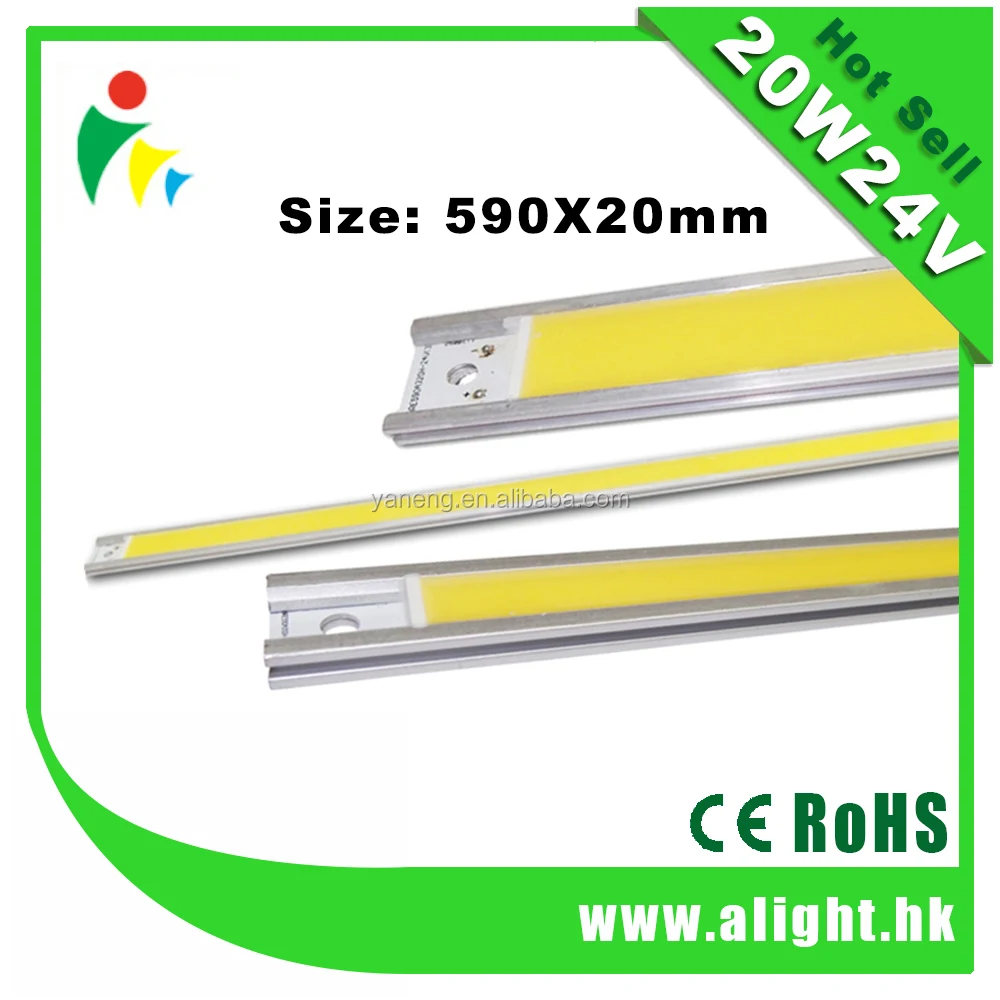

High Power 20W 24V COB LED Chip Linear Strip Grow LED Bridgelux Epistar Cob Led
Device Selection Guide
Part No.
Chip
Lens color
Material
Emitting color
ARE590A200H-24V
InGaN
White
Yellow Diffused
Parameter
item no
lighting area(mm)
pcb type
lighting source type
color temperature range(K)
ARE590A200H-24V
546×12
Aluminum
upper lighting
2700~8000
Optical Characteristics
Symbol
Parameter
Min
Type
Max
Unit
If
Operating current
-
833
-
mA
Vf
Forward Voltage
23
24
25
V
Φ
Luminous Intensity
1600
2000
-
Lm
Tc
Color temperature
2800
-
8000
K
Ra
color rendering index
75
80
-
Ra
Absolute Maximum Ratings
Symbol
Parameter
Min
Type
Max
Unit
P
power dissipation
20
-
W
To
junction temperature
-40
-
65
℃
Tstg
storage temperature range
-40
-
85
℃
Rth
thermal resistance
-
-
1
℃/W
Note: the condition of the test result data in the diagram above is Tc=25 degree, the product of Light Panel with color temperature is 5000k.
The Same Series COB
Part No.
Power
Forward Voltage
Material
pcb type
Emitting color
Lumen output
CCT
CRI

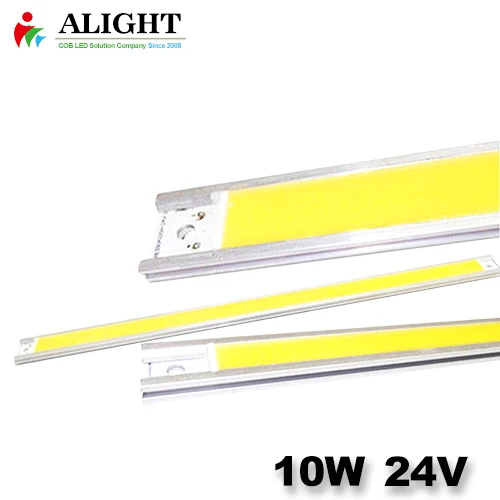

ARE310A130H-24V
10w
24v
InGaN
Aluminum
White
100-110lm/w
2800-8000k
75/80
ARE310A120H-12V
12w
12v
ARE590A200H-24V
20w
24v
ARW540Z80H-24V
8w
24v
Product Description
Caution
1. Led light panel needs to work with heat sink, control board temperature should be less than65℃.
2. Fill heat conducting pastes between LED light panel base board and heat sink.
3. Connect power according polarity mark + and -.
