Pneumatic spot welding machine, spot welding machine specification

Product Overview

Description

Pneumatic spot welding machine, spot welding machine specification



Features and use:





Main technology parameter:

Model No	DTN-150	DTN-200
Power	150KVA	200KVA
Voltage	380V	380V
Duty cycle	20%	20%
Short circuit current	36KA	42KA
Arm body size	420mm	420mm
Cylinder diameter	Φ160/200mm	Φ160/200mm
Stroke of cylinder	60mm	60mm
Projection weld terrace size	160*150mm	160*150mm
Projection weld terrace inner empty	250mm	250mm
Electrode head	Φ20mm	Φ20mm
Electrode holding pole	Φ30mm	Φ30mm
Cooling discharge of stream	≥6.0L/min	≥6.0L/min

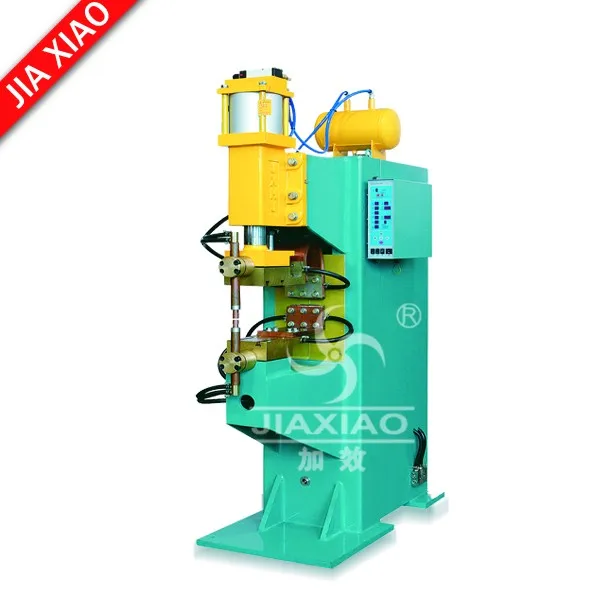

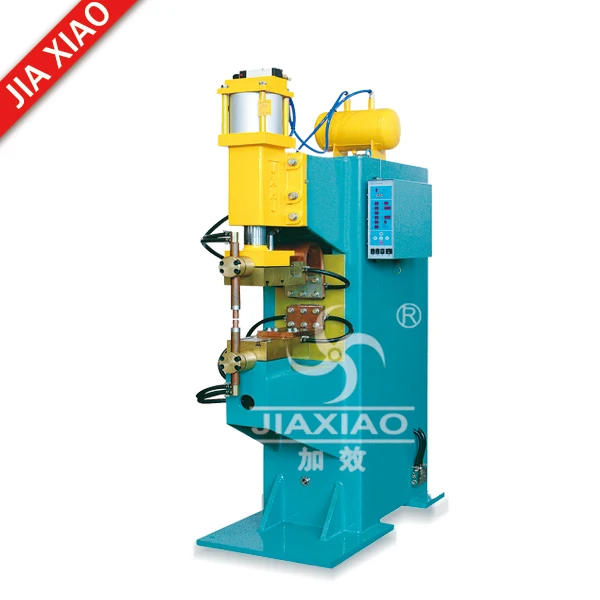

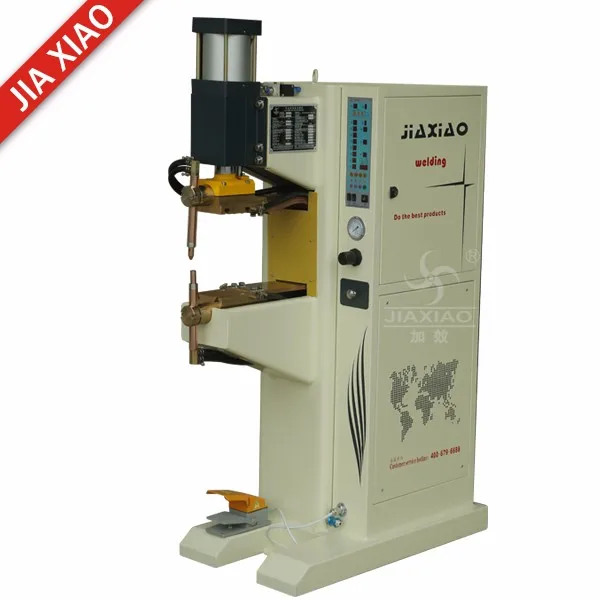

Sample picture:



Factory picture:
