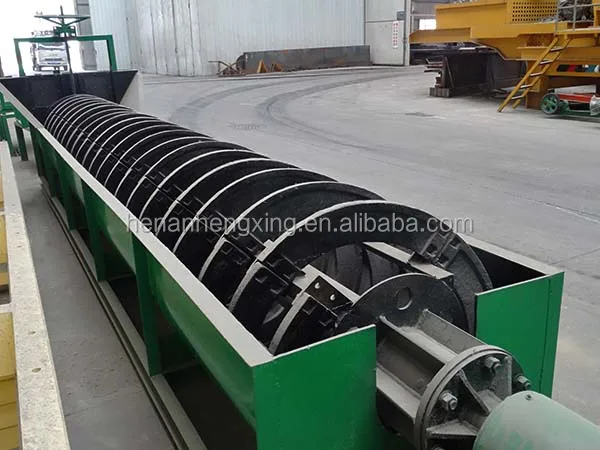

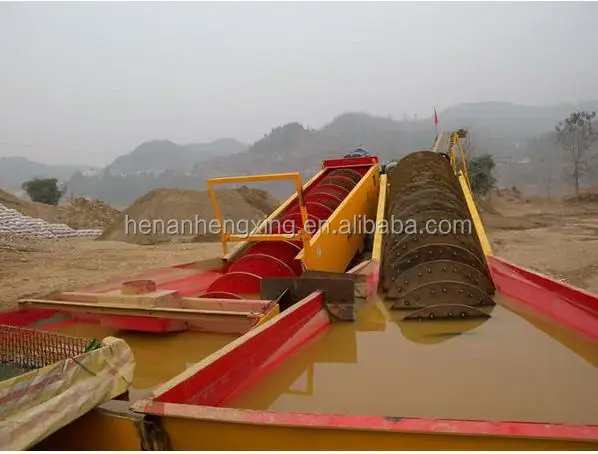

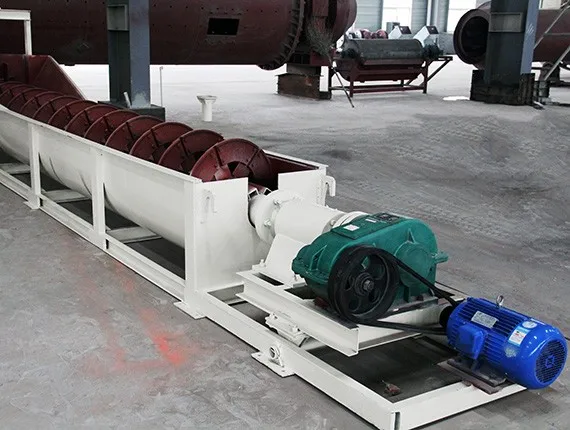

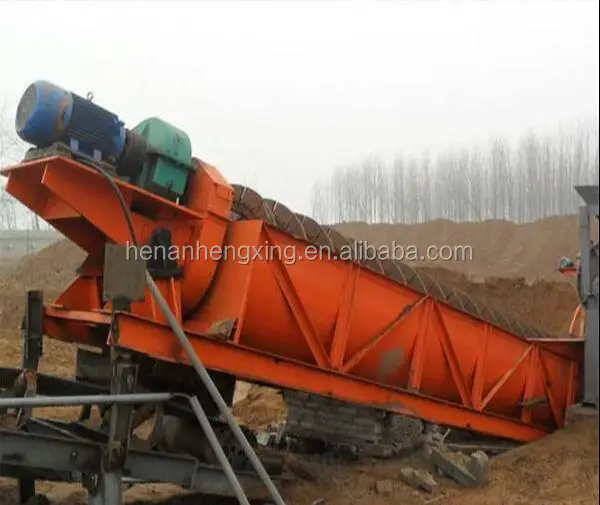

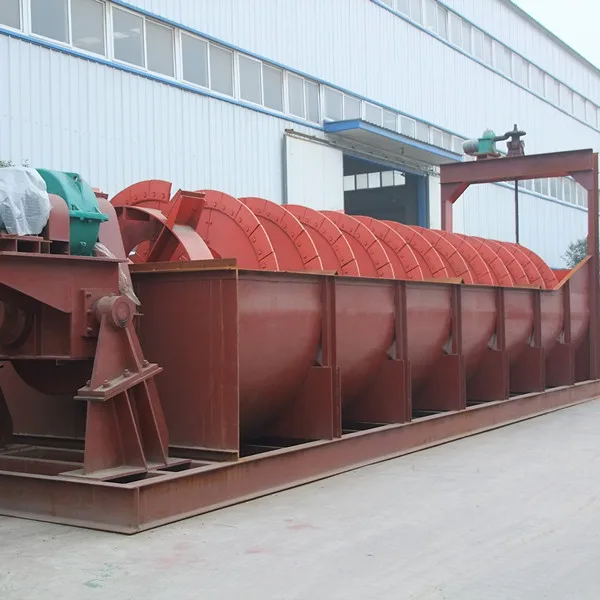

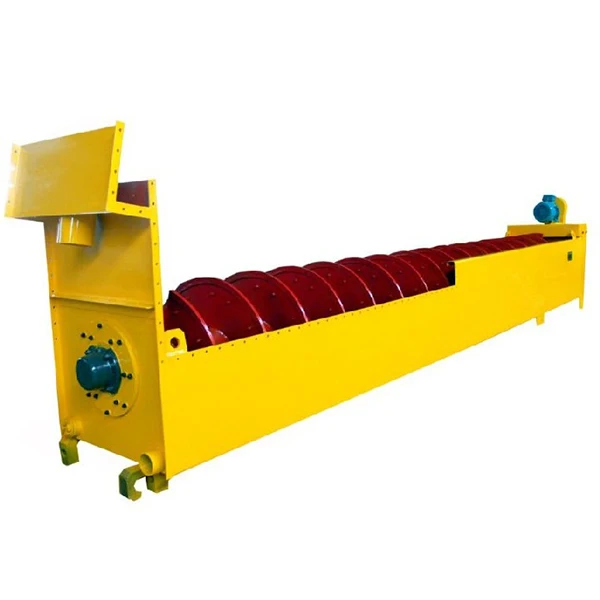

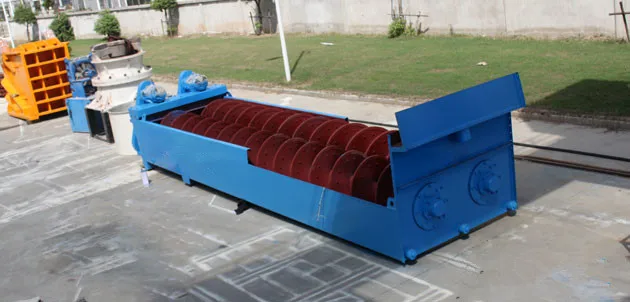

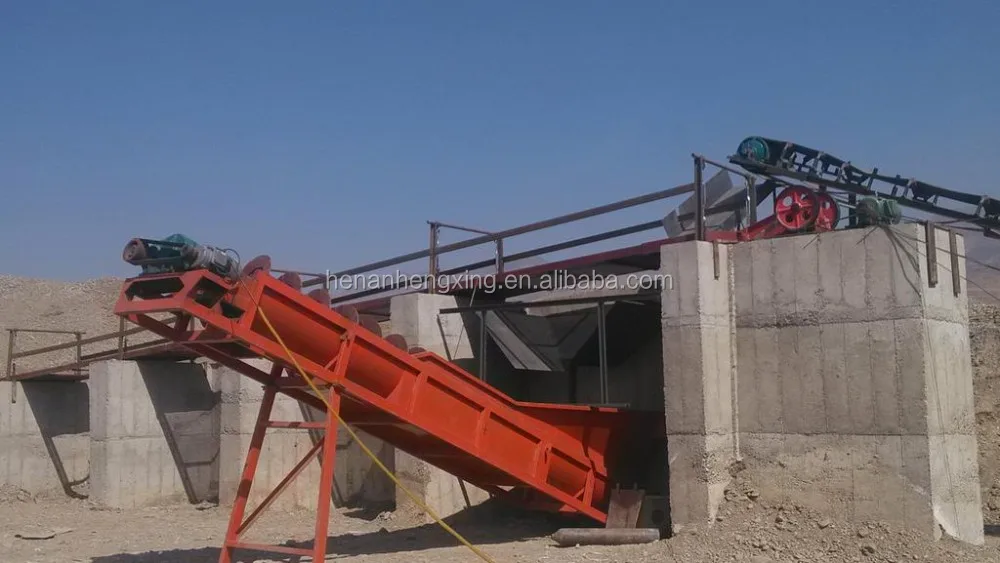

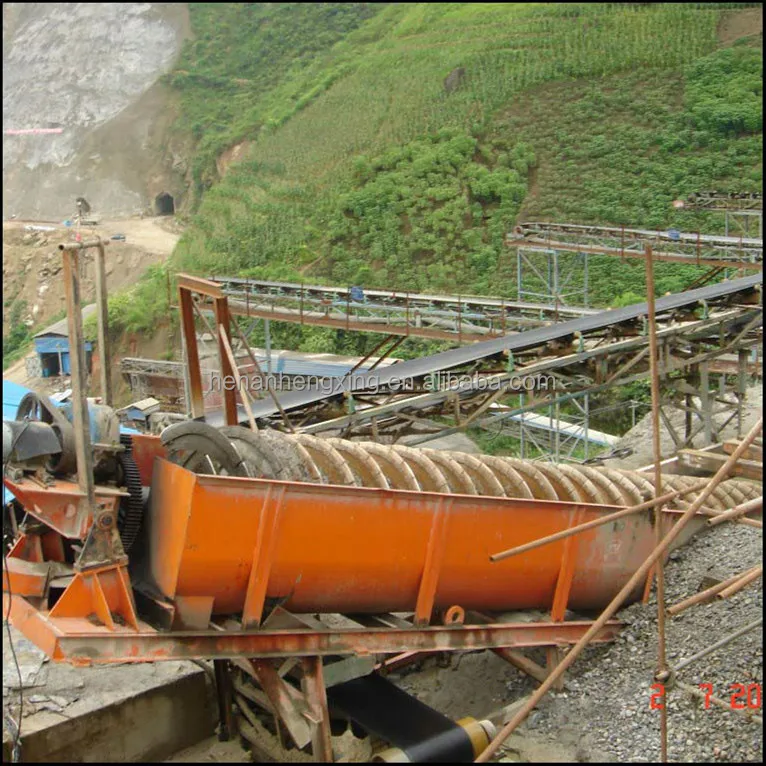

Silica Sand Processing Plant Silica Sand Washing Machine
silica sand washing machine features:
1.High degree cleaning-up.
2.Reasonable structure.
3.Large capacity,low power consumption.
4.Small lost of the sands during the washing process.

silica sand washing machine application:
Screw Sand washing machine improves the quality of sand by removing the dust in it. It is therefore widely used in building-sites, gravel factories, concrete dam sites, glass factories, cement mixture stations, quarries, hydropower stations, and electric pole factories, etc.


Working Principle of silica sand washing machine:

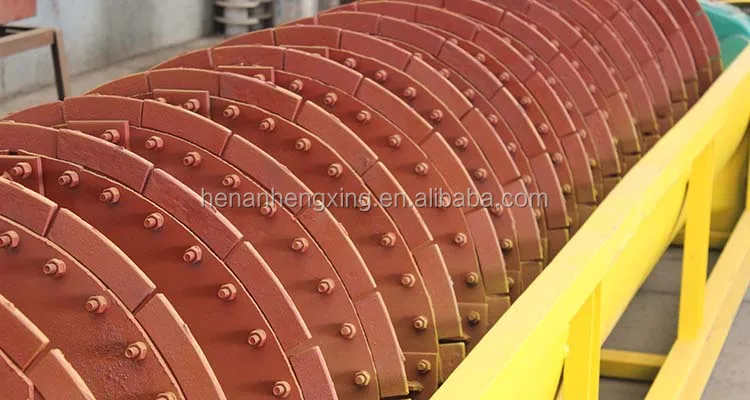

The sand and gravel flow into washing launder from feeding launder, churned, overturned by the impeller, the impurity in the sand will be washed away from washing launder. Finally, the clean sand will be lift up by the impeller to finish the washing process. the water will be remained in the launder to be reused. then the screw sand washing machine finish working.

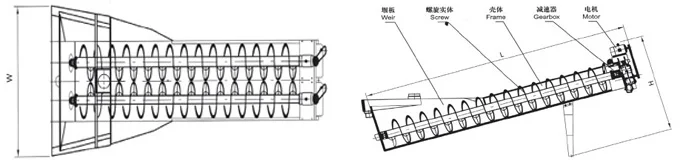

silica sand washing machine main technical Parameters:
Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
Screw Diameter(mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
Length of Tub(mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
Max Feed Size(mm) | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 |
Capacity | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
Speed of Screw | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
Motor Power | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
Water Consumption (t/h) | 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
Overall Dimensions (mm) | 8000×2343 | 8000×2050 | 8545×2650 | 8500×2810 | 8420×3765 | 10970×3945 | 10970×5250 |
Weight(t) | 2.67 | 3.80 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
