Zircon Bonded Mullite Brick with Premium Quality Chinese Manufacturer
- Category: >>>
- Supplier: Zhengzhou Sunrise Refractory Co. Ltd.
Share on (60480488270):
Product Overview
Description
Zircon Bonded Mullite Brick with Premium Quality Chinese Manufacturer
Product description
Zircon Bonded Mullite Brick for Glass Kiln with Good Thermal Shock Resistance bricks are made from good quality and superpure raw materials, with strictly classified
fillings according to their grades. These fillings can form a uniform pore structure after burnt during
the process of manufacture. Each grade of products has unique design to meet different thermal,
physical and chemical demands.
This product selected synthetic mullite sand as main raw material and added different amounts of
zircon powder .Molded by high pressure and sintered by high temperature ,we can get this
product. It has many advantages of high density, high strength,good thermal shock resistance,
high temperature erosion resistance and slag corrosion resistance. Therefore,it is widely used in
regenerator of glassfurnace, hot blast stove regenerator, non-ferrous metal smelting furnace and
other industrial furnace.
Product Advantages
1.Good thermal shock resistance
2.Resistance to acid and alkali solution or atmosphere
3.Strong high-temperature stability
Product Application
Used for corrosion resistance,abrasion resistance,spalling resistance of high temperature industrial
furnace.
Index
Item | ZM-17 | ZM-20 | ZM-25 | ZM-30 | ZM-11 |
Al2O3 | ≥70 | ≥59 | ≥57 | ≥47 | ≥72 |
ZrO2 | ≥17 | ≥19.5 | ≥25.5 | ≥30 | ≥11 |
SiO2 | ≤12 | ≤20 | ≤14.5 | ≤20 | ≤12 |
Fe2O3 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.3 | ≤0.5 |
Apparent Porosity% | ≤17 | ≤17 | ≤17 | ≤18 | ≤17 |
Bulk Density g/cm3 | ≥3.15 | ≥2.95 | ≥3.15 | ≥3.10 | ≥3.10 |
Cold crushing strength MPa | ≥90 | ≥100 | ≥120 | ≥100 | ≥90 |
0.1Mpa Refractoriness Under Load T0.6 ℃ | ≥1650 | ≥1650 | ≥1650 | ≥1650 | ≥1630 |
Permanent Linear Change On Reheating(%)1500℃X2h | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
20-1000℃ Thermal Expansion % (x 10-6) | 0-0.6 | 0-0.6 | 0-0.6 | 0-0.6 | 0-0.6 |
Thermal Conductivity (Average800℃) W / (M.K) | ≤ 2.19 | ≤ 2.19 | ≤ 2.1 | ≤ 2.1 | ≤ 2.19 |
Pyrometric Cone Equivalent ℃ SK | 31 | 31 | 31 | 31 | 31 |

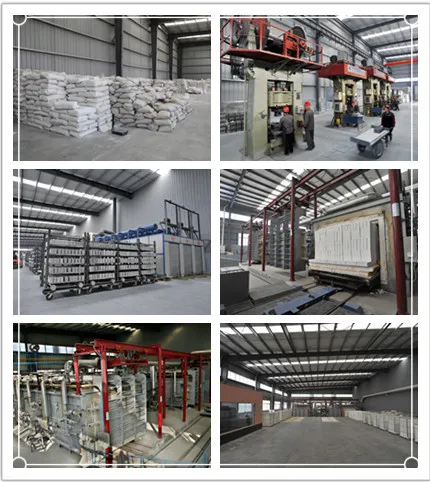

Production Equipment
Company Information
Sunrise Refractory can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
Packaging & Shipping
FAQ
1. What's the color of your products?
Reply: Different bricks are featuring with different colors, for example, the fireclay bricks are generally yellow, fused cast AZS are mostly white. You may send the specification and requirements to us, our technician and factory will provide you with pictures and specific solutions.
2. Would you please send us some samples?
Our company can provide 100*100*50 samples for free. However, the frieght should be born by the clients. In particular case, if the mould is required to be made first for some special shaped blocks, the mould cost and sample fees assumed by clients will be highly appreciated.
3. Why so many clients choose Sunrise?
a).We give suggestions to customers according to your specific requirement to extend the service life of your kiln and save money for you.
b).We pay much attention to the production procedures and testing.
c).We offer reliable after-sale service.
