Product Overview
Description

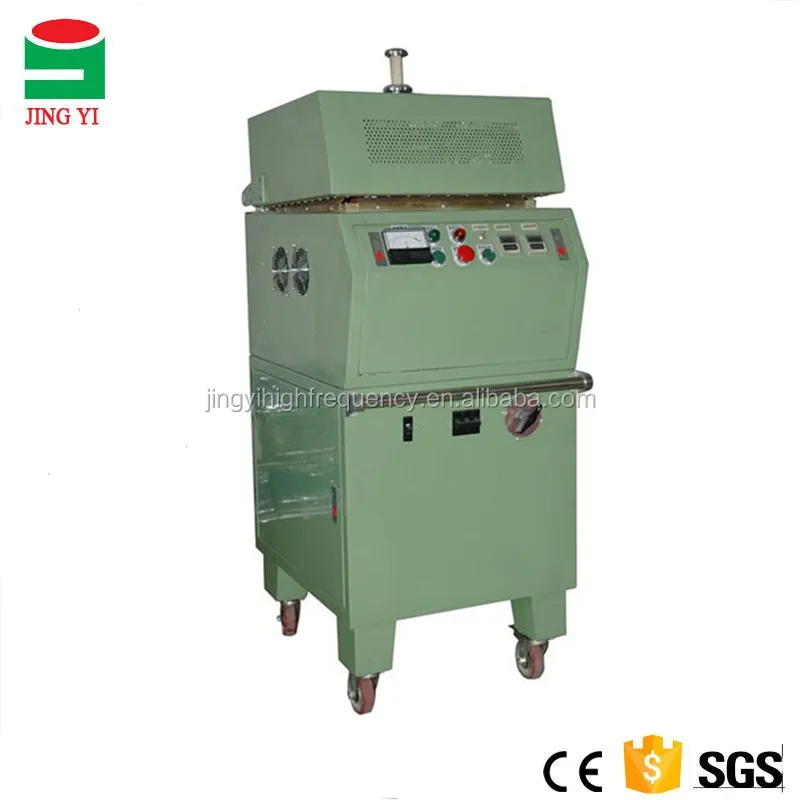

Melamine Tableware High Frequency Preheating Machine,Tableware Making Machine
Customer & Feedback
Product Description
Principle:
Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.
Application:
High frequency preheating machine widely used in the molding industry, such as semiconductor discrete electronic components, integrated circuits, microelectronics packaging, and other motor commutator, melamine imitation porcelain tableware, plastic electric appliance, etc.
Material:
Phenolic resin, urea, plastic, melamine, epoxy resin and thermosetting molding compound.
Function:
After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.
For Machine working video,please click
More Video:
https://youtu.be/g3kTCH1ZLZs https://youtu.be/gsS5aBIdz-4
Parameter:
Type | Plate electrode type | Roller electrode type | ||||
Model | JY3000YR-P | JY5000YR-P | JY10000YR-P | JY3000YR-R | JY5000YR-R | JY10000YR-R |
Output Power | 3KW | 5KW | 10KW | 3KW | 5KW | 7KW |
Power Supply | 3P 220V/380V/415V | |||||
Input Power | 6.7KVA | 11KVA | 20KVA | 6.7KVA | 11KVA | 13KVA |
Oscillation Tube | 7T85RB/7T72R | 7T69RB/7T70R | 8T20RB | 7T85RB | 7T69RB/7T70R | 7T69RB |
Preheating power | Reach to 110℃ within 90 Seconds | |||||
Oscillation Frequency | 27.12MHz | 27.12MHz | 27.12MHz | 27.12MHz | 27.12MHz | 27.12MHz |
Electrode size | 240*280mm | 310*340mm | 310*340mm | 240*280mm | 310*340mm | 310*340mm |
Dimension(mm) | 500*775*1280 | 600*850*1500 | 800*1280*1520 | 800*775*1280 | 500*850*1500 | 600*850*1540 |
Net Weight | 180kg | 260kg | 320kg | 180kg | 260kg | 320kg |
Packaging & Shipping
Our Services
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
♦ More Questions, please click here
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visiting are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. 1 years warranty when you receive the goods, life long maintenance
2. 24-hours telephone service or whatsapp/wechat
3. A large stock of components and parts, easily-worn parts.
