Product Overview

Description

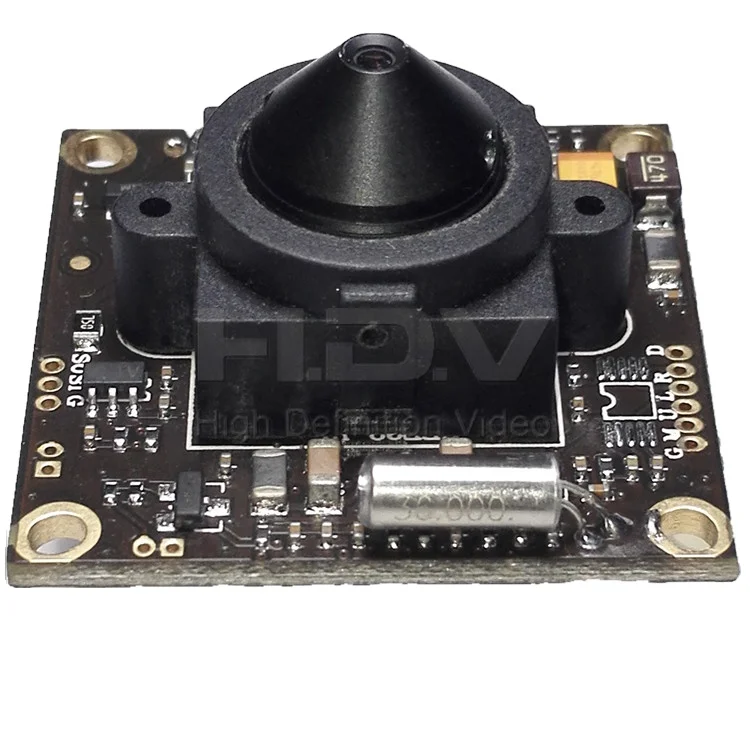

Sony CCTV camera for atm machine 32*32mm with OSD, Effio-e 1/3" Sony CCD 700TVL, 0.001Lux , 3.6mm board Lens Camera Module



Order symbol:

HDV-M32E-O-P3.7      MINI Square Camera with 3.7mm Lens

HDV-M32E-O-P2.8      MINI Square Camera with 2.8mm Lens



HDV-M32E-O-L2.1       MINI Square Camera with 2.1mm Lens

HDV-M32E-O-L2.8       MINI Square Camera with 2.8mm Lens

HDV-M32E-O-L3.6       MINI Square Camera with 3.6mm Lens

HDV-M32E-O-L4.2       MINI Square Camera with 4.2mm Lens

HDV-M32E-O-L6          MINI Square Camera with 6mm Lens

HDV-M32E-O-L8          MINI Square Camera with 8mm Lens

HDV-M32EO-L12         MINI Square Camera with 12mm Lens

HDV-M32E-O-L16        MINI Square Camera with 16mm Lens



Features:

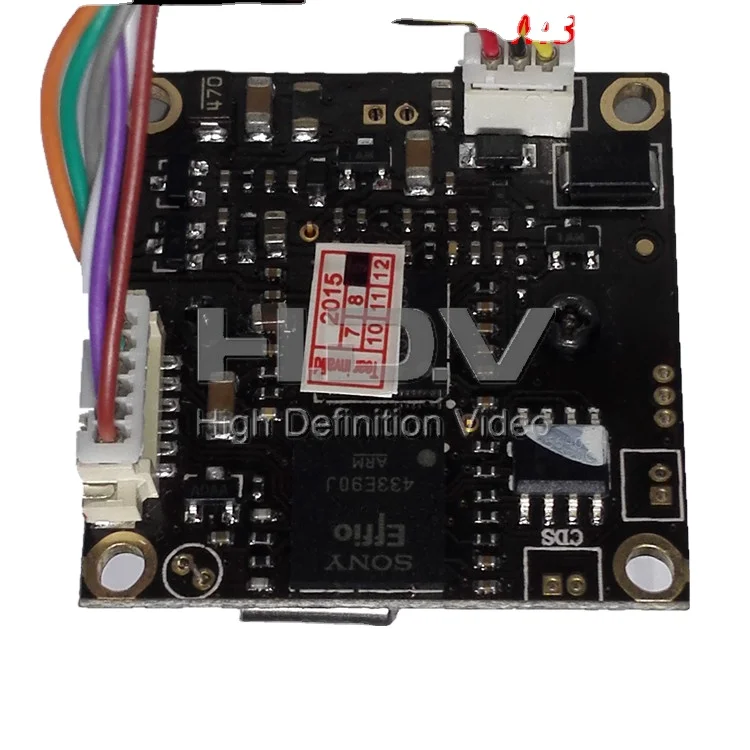

1. Color 1/3"Sony CCD + Effio-E, 4140+672/673



2. High Resolution 700TV Lines Effective

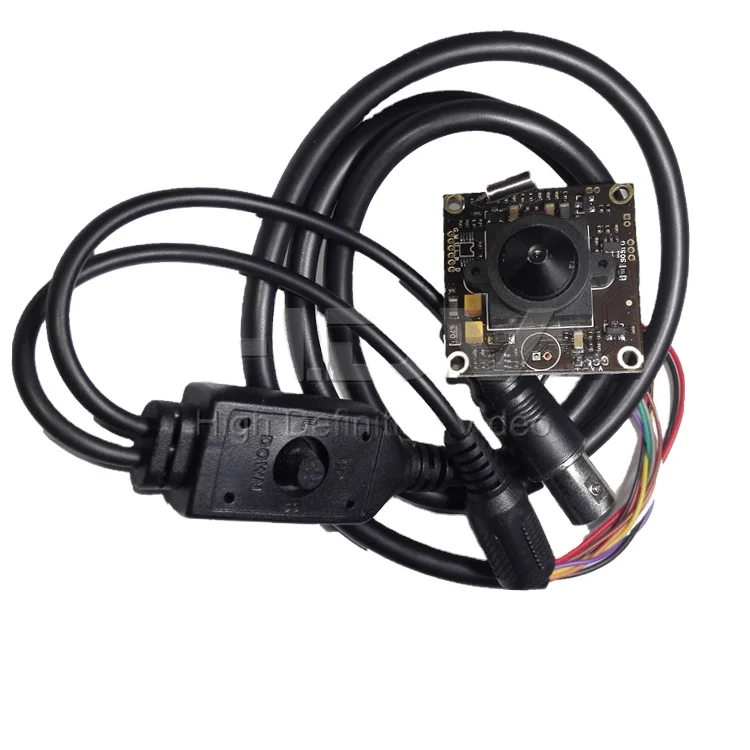

3.  OSD, keypress on cable of camera



4. 0.001 Lux


5. DC 12V, 80mA, Optional 5V


6. Dimension:32(W)*32(L)mm


7. Weight: 58g


8. Audio output Optional


9. PAL or NTSC optional


10. Manual focus


11. Angle of view around 15-180 degrees


12. BNC Connector Standard,AV connector optional


13. U Type Holder Bracket


14. Used: Banks'ATM,FPV


15. Features:Pinhole,Day to Night,White Balance,Auto


16. Can be customized by your requirements

M30 Series	Model	HDV-M32E-O-P3.7	HDV-M38E-O-P3.7
	Name	HD Mini Square with osd menu/ osd menu on the back of the camera
Camera	Image Sensor	1/3"Sony Super HAD II CCD
	DSP solution	Effio-e 4140+673(PAL)/ 672(NTSC)
	Resolution	700TVL
	Min.Illumination	0.001Lux
	Pixels	Total pixel:       PAL:1020(H)×508(V) NTSC:1020(H)×596(V)  Effective pixel:  PAL:976(H)×582(V)   NTSC:976(H)×494(V)
	Size:	32*32mm	38*38mm
	Lens	2.1/2.8/3.6/3.7/4.2/6/8/12/16mm board lens,Fisheye Lens
	Elec Shutter	1/50(1/60)s to 1/100,000s
	Day& Night	Electronic Day& Night
	White Balance	Auto
	Synchronization	Internal Synchronization
	Video Output	1Vp-p Composite Output (75Ω/BNC)
	S/N Ratio	More than 48dB
	BLC	Auto/manual
	AGC	Auto/manual
Industrial Standard	Power Supply	12 V DC ± 10%
	Working Temp	-20°C-60°C (14 °F-140 °F), Humidity 90% or less (non-condensing)
	Impact Protection:	IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10.
	Output	BNC/AV Connector
	Shell Color	Black
	Weight	38g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1
OSD Menu Function  Over 600tvl	HLC	On / Off
	D-WDR	Auto / On / Off digital WDR
	White balance	ATW/OUTDOOR/INDOOR / MANUAL / AWC (1,700°K~11,000°K)
	Gain Control	Low / Hight /Off Selectable
	Shutter speed	Auto/Manual(1/50(60)~1/120,000sec)
	Privacy Mask	On / Off (Programmable 8 zones)
	Motion Detenction	On / Off (Programmable 8 zones)
	OSD Language	English,Chinese,French,German, Spanish,Portuguese,Russian,Japanese
	BLC	BLC / HLC / D-WDR / Off
	3-DNR	On / Off
	ATR Setting	ON Low Middle High selectable
	Display	LCD / CRT/ USED
	Definition	On / Off (Level Adjustable)
	Day/Night	Color / Auto / B/W / EXT (Built In DC Motor Driver)
	Power Supply:	DC 12V Wide Voltage Design
