Product Overview
Description

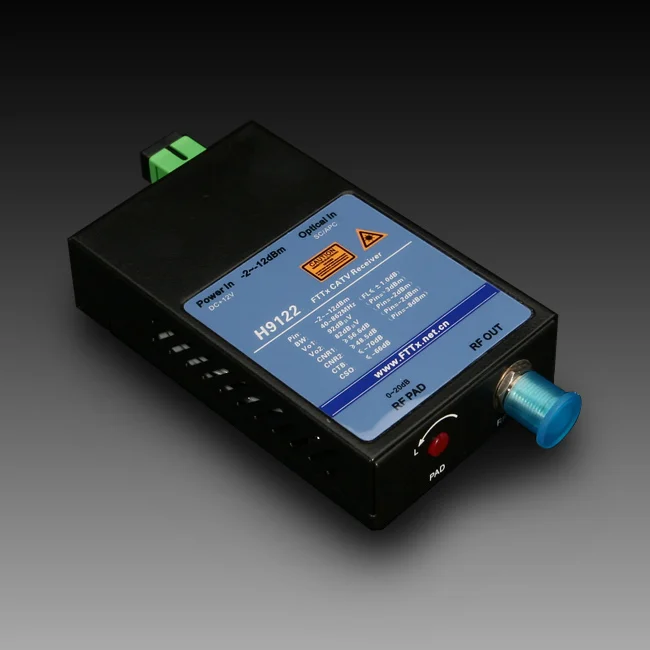

H9122 Optical Receiver FTTH CATV
Product Description
Optical Receiver FTTH CATV
Huatai H9122 product series, CATV FTTH Optical Receiver ,47~862MHz operate bandwidth, output level Vo=82dBμV (Pin=- 2dBm), suitable for FTTH optical fiber access network, which is a low power consumption, high performance, and excellent cost performance RFTV broadcast network ONU(Optical network unit).
This series product adopts high sensitivity receiving tube and Huatai special low noise matching circuit. Under 3.8% modulation, when transmitting in full channels and with receiving power of -10dBm, the CNR can still reach high index of 45dB. Therefore, if adopting H9122, it is only need very low optical power to reach 45dB CNR required by the user.
H9122 optical port have following three modes:
H9122/NC: RFTV operates in 1210~1600nm wavelength.
H9122/WF: built-in channel filter, RFTV operating in1550nm wavelength.

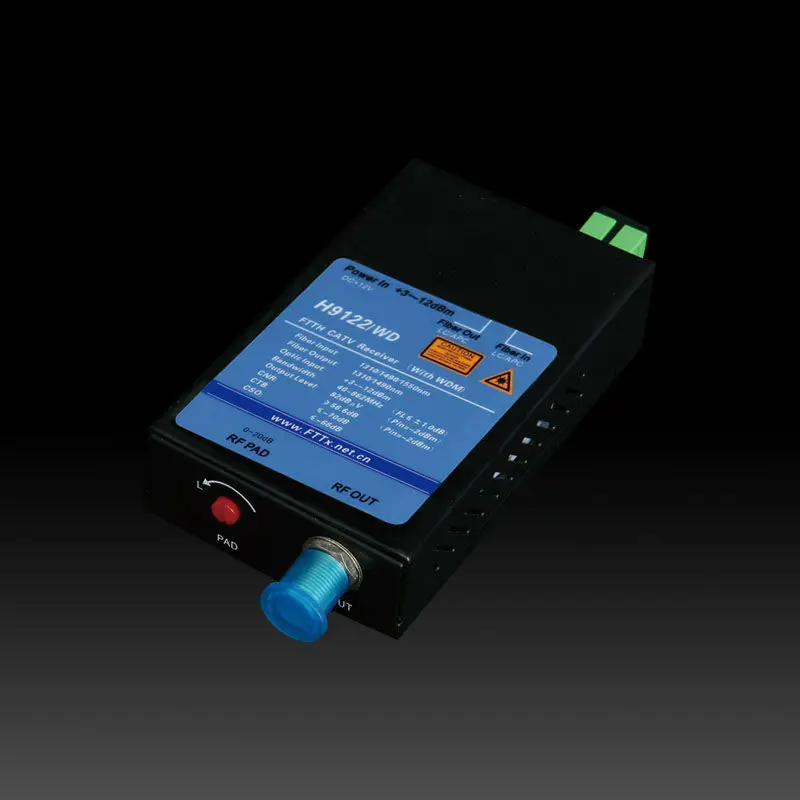

H9122/WD: built-in CWDM, RFTV operating in 1550nm wavelength, via 1310/1490nm wavelength, ( casemate EPON,GPON ONU ).
Product feature
- Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45dB)
- All receiving optical power in the range of +3dBm to -12dBm has good linearity
- In the range of 47~862MHz, all have good flatness (FL ≤± 1.0dB)
- Metal shell, supply safeguards to opto-electrical sensing device
- High output level can supply for many users
- Low power consumption, high cost performance
Main application
- FTTH
- FTTP, FTTO
Technical Index
Performance | Index | Supplement | ||
Optic feature | CATV work wavelength | (nm) | 1260~1620 | H9122 ( A -Type ) |
1540~1563 | H9122/WF,H9122/WD ( A & B & C Type ) | |||
| Pass wavelength | (nm) | 1310, 1490 | H9122/WD ( B & C Type ) | |
| Channel Isolation | (dB) | ≥40 | 1550 &1490nm | |
| Responsibility | (A/W) | ≥0.85 | 1310nm | |
≥0.9 | 1550nm | |||
| Receiving power | (dBm) | +2 ~ -10 | Analog TV (CNR>45dB) | |
+2 ~ -20 | Digital TV (MER>29dB) | |||
| Optical return loss | (dB) | ≥55 | ||
| Optical fiber connector | SC/APC | H9122, H9122/WF | ||
LC/APC | H9122/WD | |||
RF feature | Work bandwidth | (MHz) | 47~862 | |
| Flatness | (dB) | ≤±0.75 | 47~862MHz | |
| Output level | (dBμV) | >82 | Analog TV (Pin=-3dBm) | |
>82 | Digital TV (Pin=-5dBm) | |||
| Output level adjust | (dB) | 0 ~ 18 | MGC | |
| Return loss | (dB) | ≥14 | 47 ~ 862MHz | |
| Output impedance | (Ω) | 75 | ||
| Output port number | | 1 | ||
| RF tie-in | | F-Female | F-male optional | |
Analog TV Link feature | Test channel | CH | 59CH(PAL-D) | NTSS/80CH |
| OMI | (%) | 3.8 | ||
CNR1 | (dB) | 54.6 | Pin=-2dBm | |
CNR2 | (dB) | 45.1 | Pin=-10dBm | |
CTB | (dB) | ≤-65 | Pin:0~-10dBm | |
CSO | (dB) | ≤-65 | Pin:0~-10dBm | |
Digital TV Link feature | OMI | (%) | 4.3 | |
| MER | (dB) | ≥36 | Pin = -15.0dBm | |
≥30 | Pin = -19.0dBm | |||
| BER | (dB) | <1.0E-9 | Pin :+2.0 ~-20dBm | |
General feature | Power supply | (V) | DC+12V | ±1.0V |
| Power Consume | (W) | ≤3 | +12VDC, 210mA | |
| Work temp | (℃) | -20 ~ +55 | ||
| Storage temp | (℃) | -40 ~ 85 | ||
| Work relative temp | (%) | 5 ~ 95 | ||
| Size | (mm) | 38×80×20 | A -Type | |
50×88×22 | B -Type | |||
59.5×98×24 | C -Type | |||
