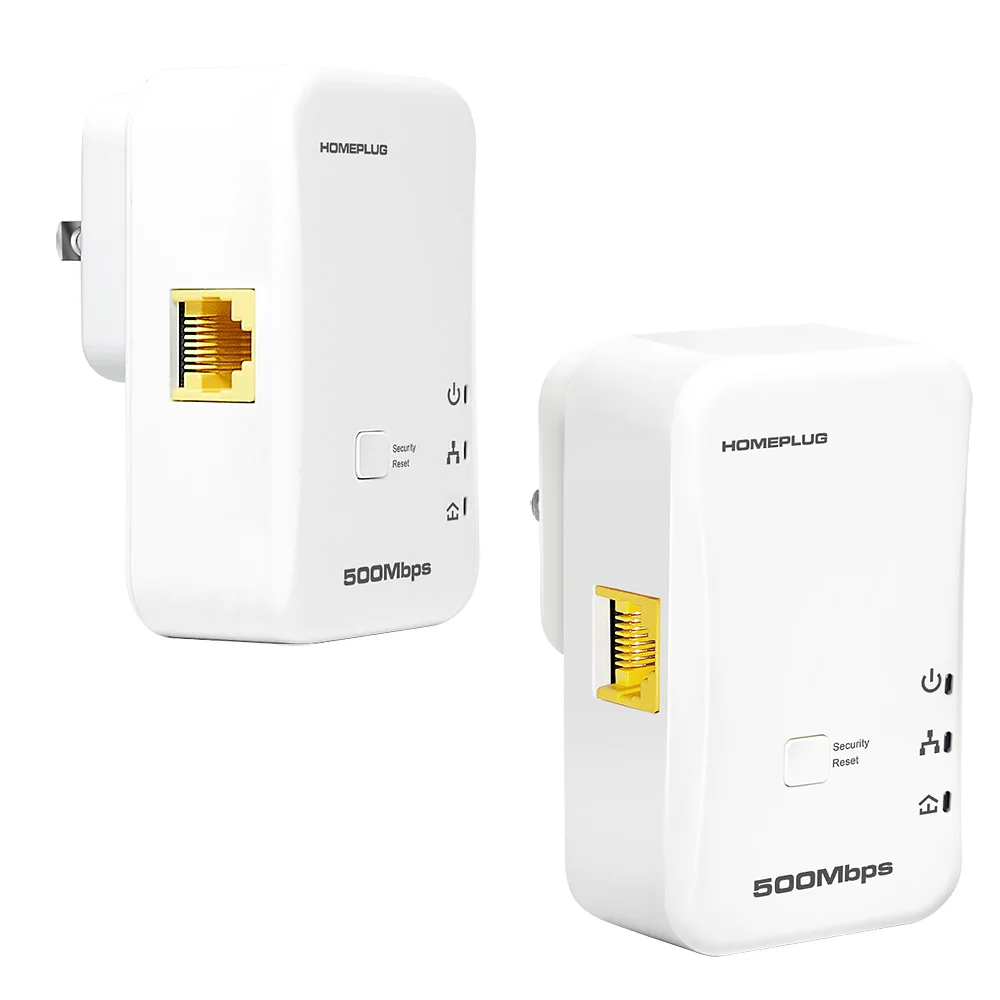

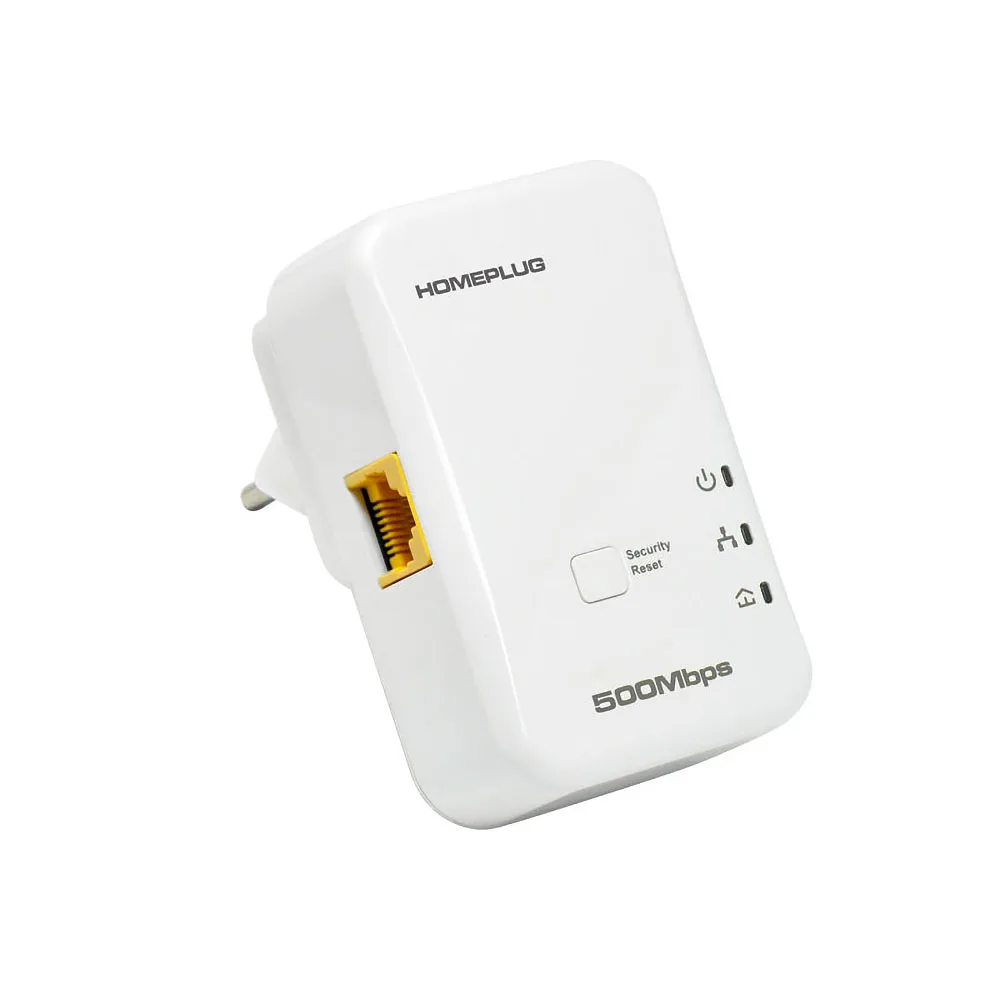

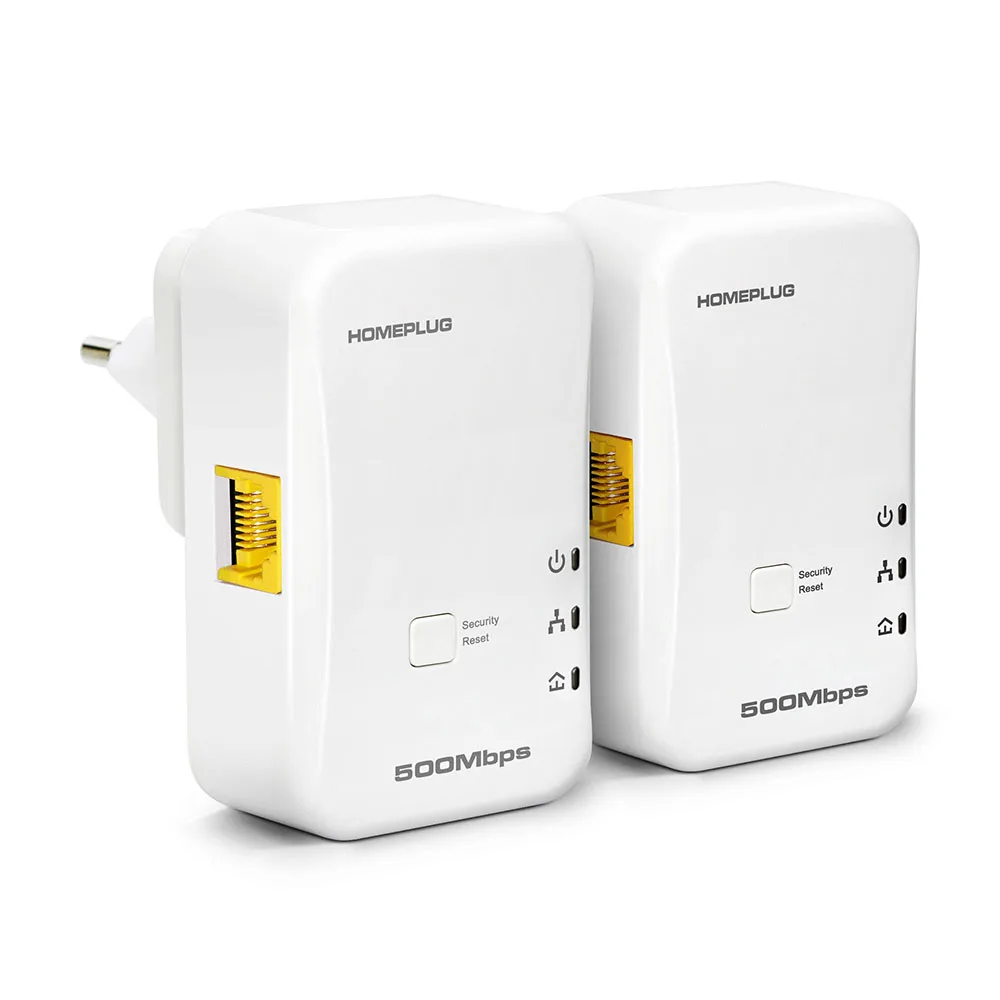

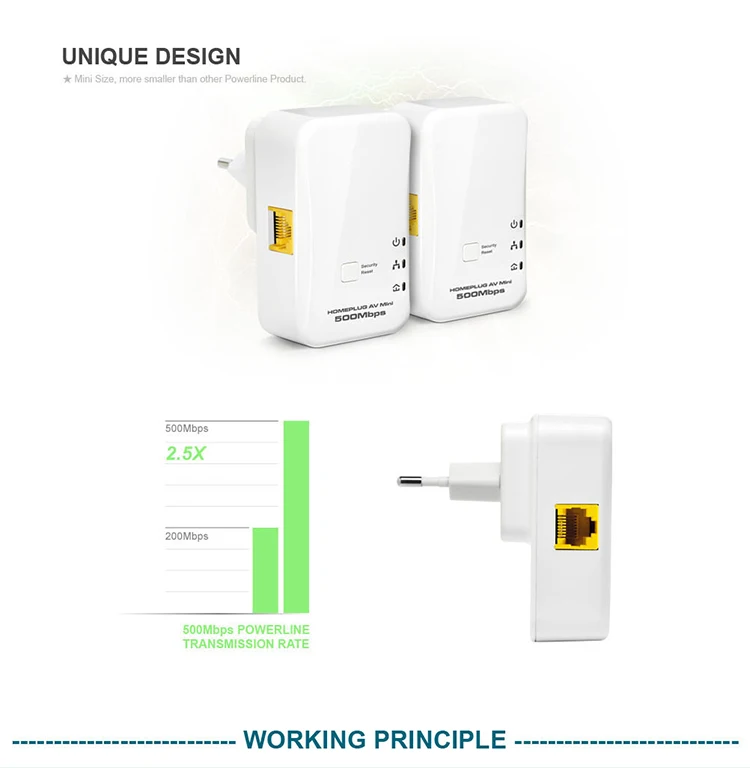

Powerline 500Mbps av500 Wired Homeplug Adapter with Competitive Price

SYSTEM SPECS

Chipset

Atheros AR7420

SDRAM

256bits

Serial Flash

64Mbits

Firmware

Support US,EU,UK,Japan

TECHNICAL SPECS

Standards and Protocols

HomePlug AV

IEEE 802.3 /802.3u

System Requirements

Windows 98SE, 2000, ME, XP, Vista ,7

PLC Data Rate

500Mbps

TCP/UDP

95Mbps TCP

95Mbps UDP

Modulation frequency band

2-68MHz

Modulation schemes

Support 4096/1024/256/64/16/8-QAM, QPSK,BPSK and ROBO

Encryption

128-bit AES

Media Access

Priority based CSMA/CA

WiFi Module SPEC

Chipset

AR9341

Standards and Protocols

IEEE 802.11b/g/n

Data rate

11n: Up to 300 Mbps in 40MHz mode

   Up to 150 Mbps in 20MHz mode

11g: Up to 54Mbps

11b: Up to 11Mbps

Wireless Frequency Range

2.4GHz to 2.484GHz

Modulation Scheme

For 802.11b: CCK,DBPSK

For 802.11g: 64QAM,16QAM,QPSK,BPSK

For 802.11n: 64QAM,16QAM,QPSK,BPSK

Safty

WPA,WPA2,64/128/152-bit WEP,SSID hide,

Address Access Control List

Wireless Receiving Sensitity

802.11n:-61dBm

Wireless Output Power

<17dBm

LED’s

Power

Data

WLAN

Ethernet

Plug type

CN\\EU\\US\\UK

WAN Port

One RJ45(IEEE 802.3 10/100Mbps),could be configured to LAN port

LAN Port

One RJ45 (IEEE 802.3 10/100Mbps)

Button

Reset

Security

WPS

System upgrade

Support

Power consumption

6.5W operation

Physical dimension

Physical size

L×W×H: 107mm*62mm*48.5mm

weight

180g
