Product Overview

Description

BJX51  ex proof aluminium alloy junction box enclosure



• Can be used in hazardous areas: Zone 1 and Zone 2 .


• Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.


• Hazardous zone : 20. 21. and 22


• Flammable dust atmosphere.


• widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.


• Verious types terminals for options.


• Enclosure is casted of aluminum alloy,stainless steel is available.


• Special terminals easy to connection.


• Thread type of cable entry is type.Metric ,NPT  etc.threads are available as per request.





Rated Voltage	EX-mark	Inlet thread	enclosure material	Outlet direction	Degree of protection	Erosionproofclass	cableouterline (mm)
AC380v	Exd II BT6 Gb DIP A21 TA,T6	G1/2"~G3"	aluminum alloy	D/X L/F	IP54,IP65	WF1,WF2	from below details

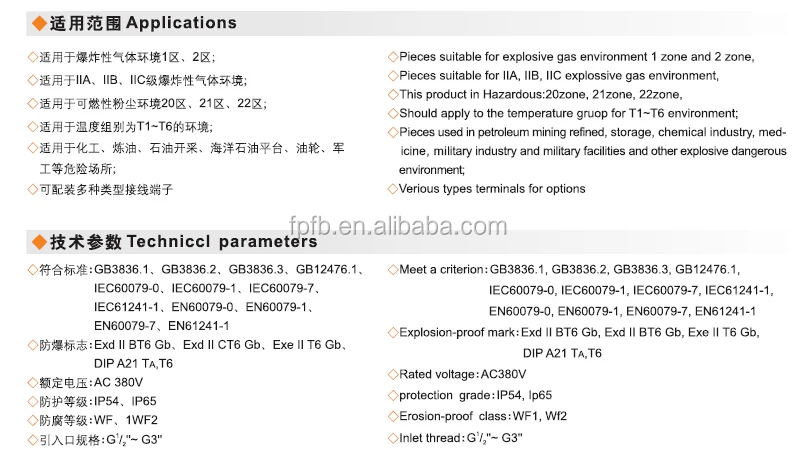

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.


• Suitable for IIA,IIB,IIC explosive gas environment.


• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.


• Can be used in the environment of  temperature group for T1~T6.


• Various types terminals for options.


• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.



Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1


• Ex-proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, Exe II T6 Gb, DIP A21 TA, T6.


• Rated voltage: AC380V


• Protection grade: IP54,IP65


• Corrosion-proof grade:WF1


• Inlet Thread: G1/2"~G3"

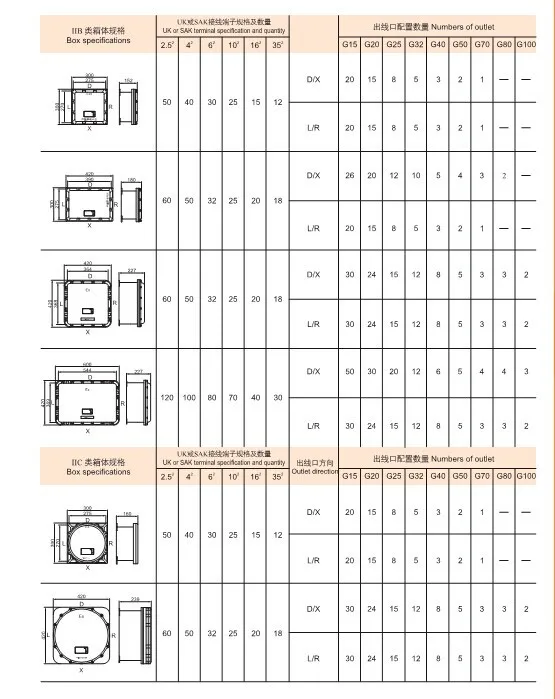

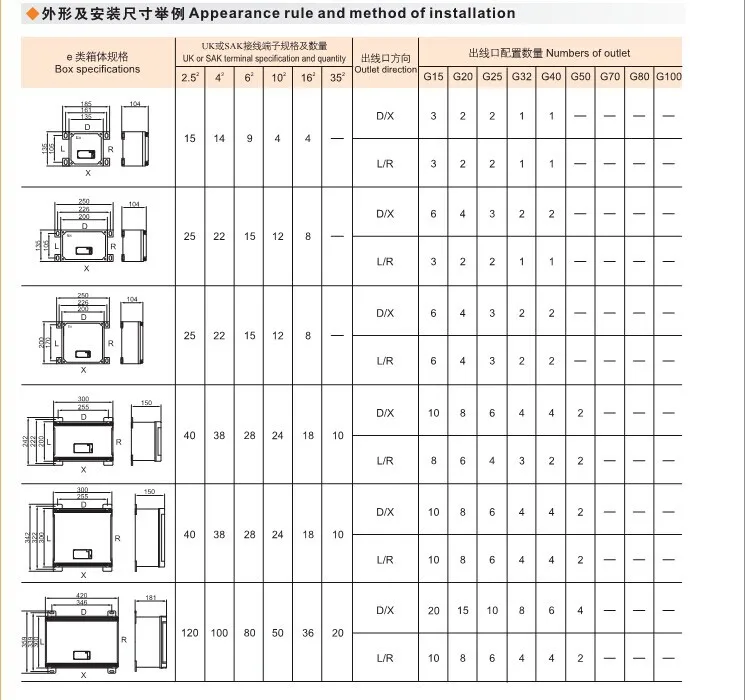

• Size:Exd(IIB):300*300mm.300*420mm,420*420mm,420*600mm,          (IIC):300*300mm,420*420mm.            Exe:135*135mm,200*135mm,200*200mm,300*200mm,300*300mm,420*300mm

Product Features:

• Steel Enclosure,high-pressure electrostatic powder coated after shot plastic.


• Stainless steel enclosure can be available on clients' request.


• Exclusive terminals, easy to connection.


• Cable entries direction can be made as per request, BDM type cable glands are available on request.


• Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.


• G type  Cable entry thread, also Metric, NPT etc. threads are available If request.


• Dimensions of Boxes can be customized.



Product Features:

• Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.


• Stainless steel enclosure can be available on clients' request.


• Exclusive terminals, easy to connection.


• Cable entries direction can be made as per request, BDM type cable glands are available on request.


• Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.

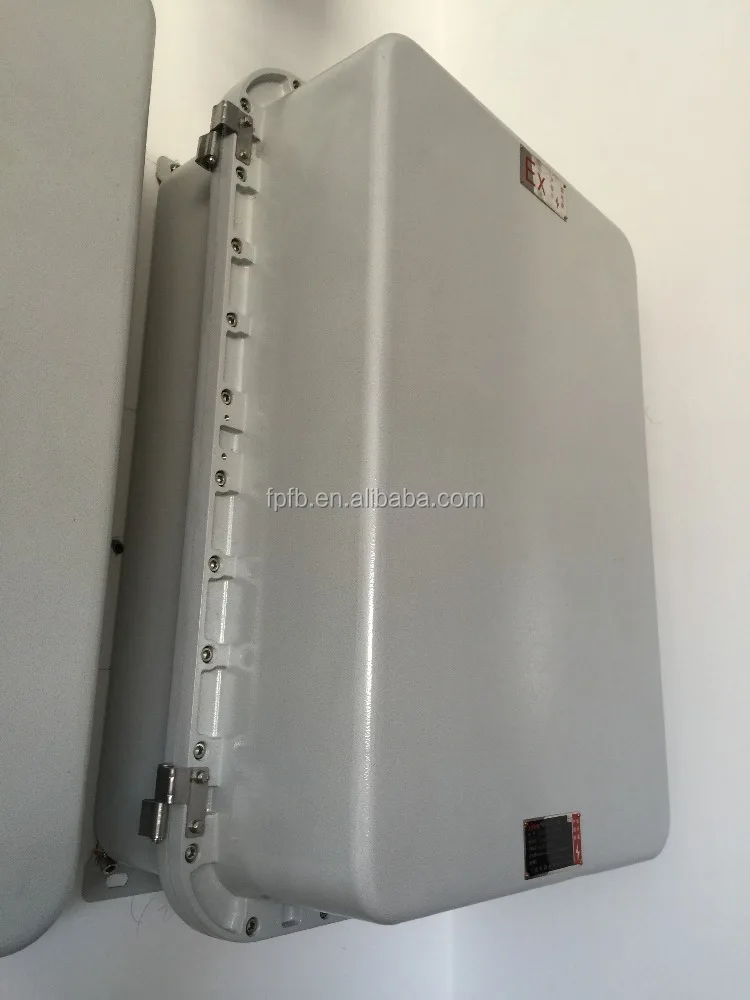

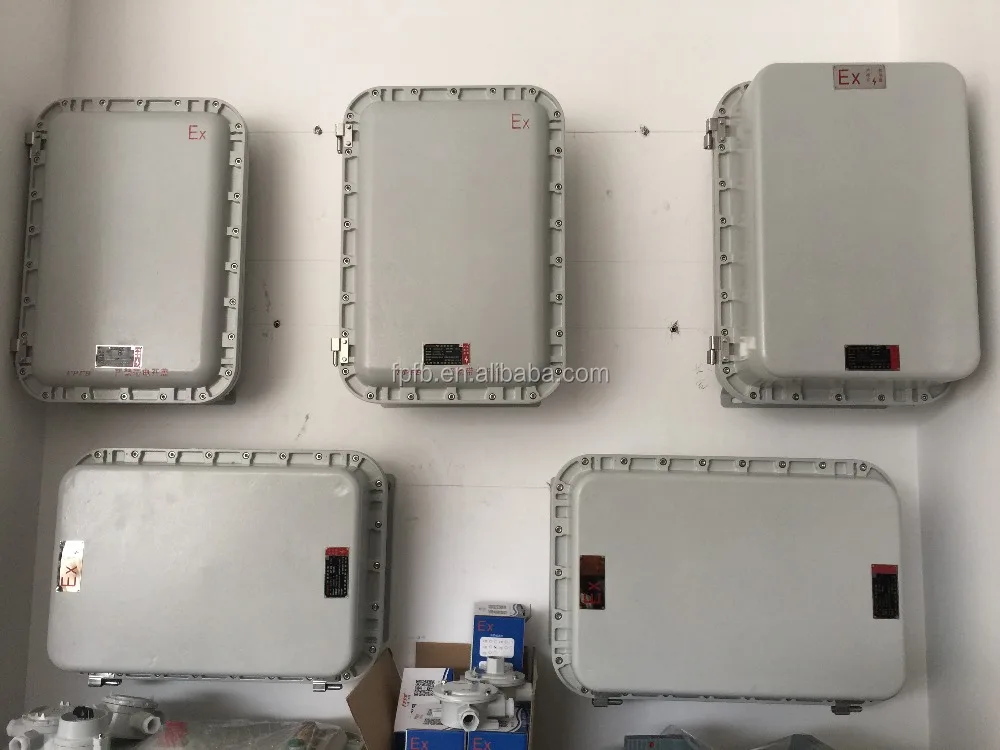

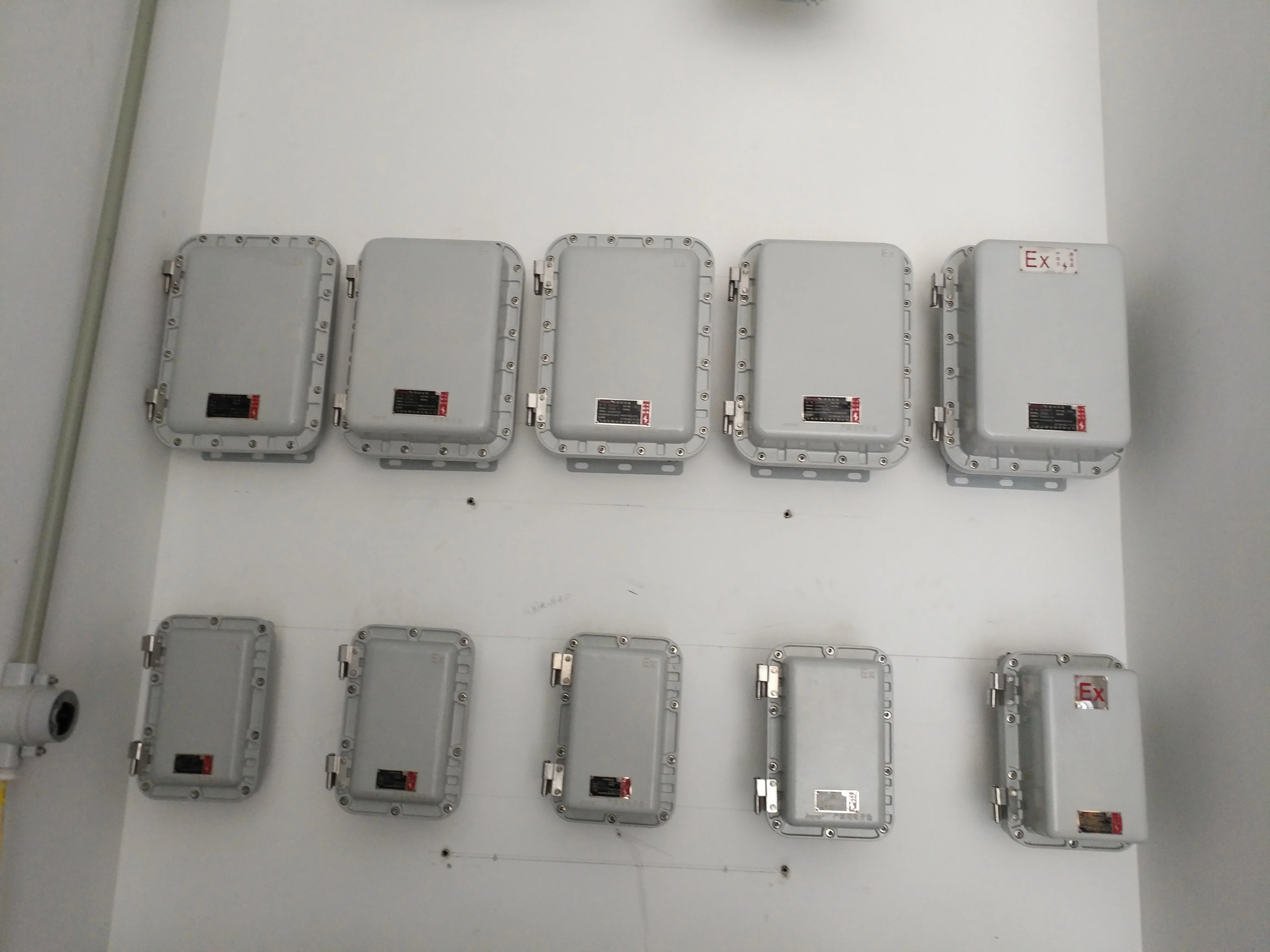

• G type  Cable entry thread, also Metric, NPT etc. threads are available If request.                                                                                                                                                                                                                                                                                                                                                                                                                                                                           DISPLAY OF SAMPLE:                                                                     EXD BOX  IIB


•

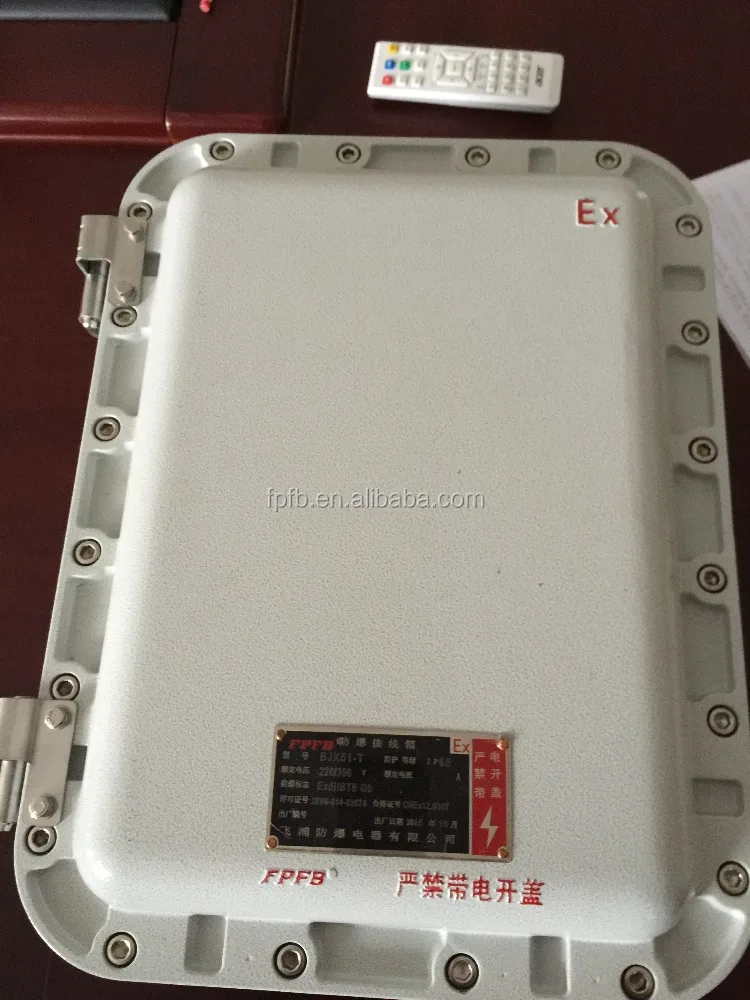

•                                                         IIC EXD BOX


•
