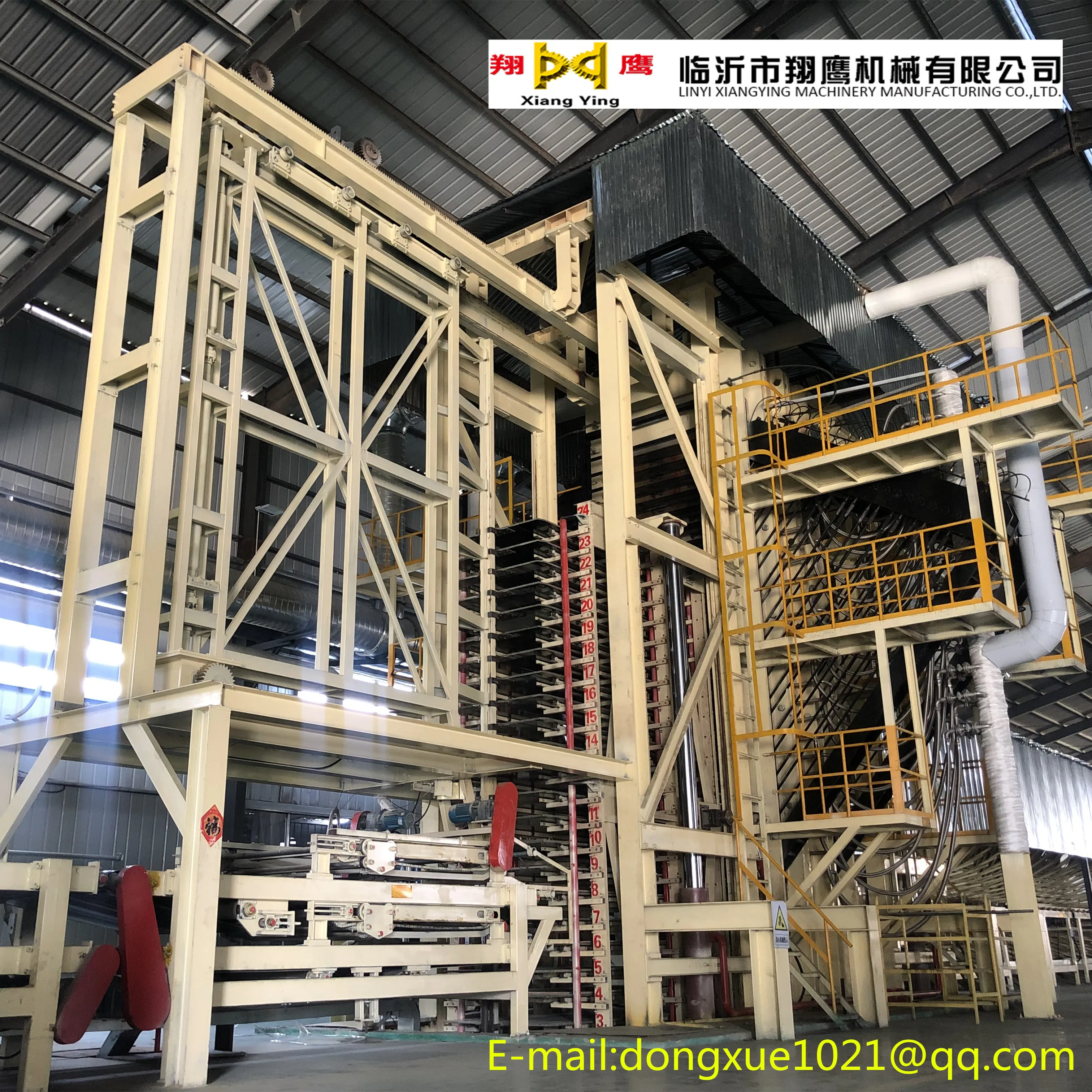

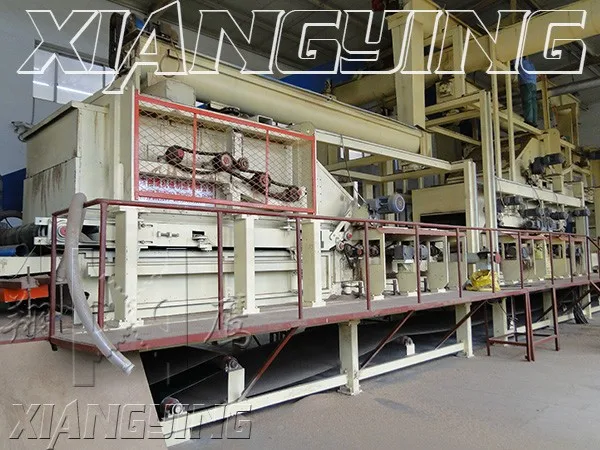

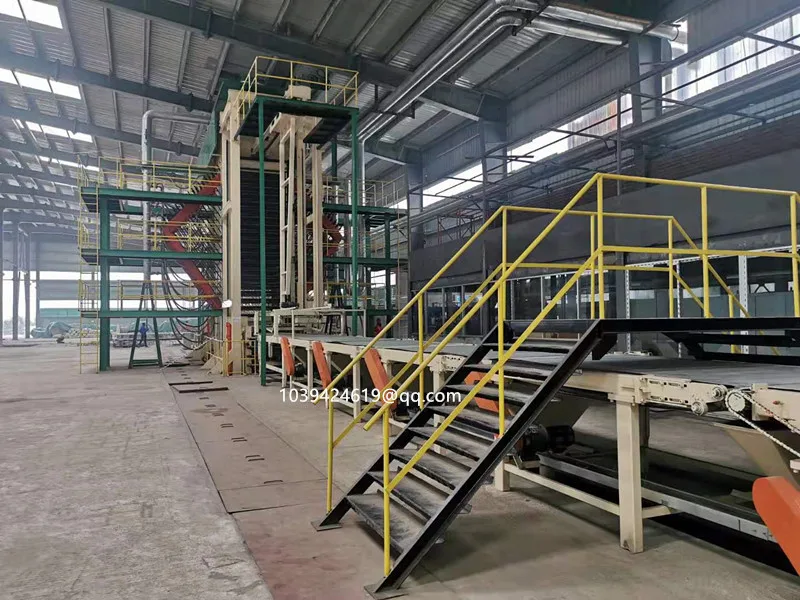

Particle board production line

Full automatic reed particle board production line

Particleboard production line can use small-diameter wood and wood branches, wood processing production residues, such as wood core, broken veneer, log truncation and plywood strips, factory shavings, as raw materials, the production of gradient structure or homogeneous structure quality particleboard. Products can be used for furniture, construction, packaging, vehicles and ships interior decoration, as well as two times the processing can be made of a variety of decorative board.

Drum Chipper

Model:BX218
Knife roll diameter:800mm
Capacity:38m³/h
Knife quantity:2
Main motor power:132kw
Chip length:30mm

Three Passage Hot Air Dryer

Roller diameter:2600mm/3300mm/3700mm
Roller length:15m/20m
Fan power:110kw/132kw/355kw
Capacity:9T-20T/h

Glue Blender

Blending diameter:600mm
Length:1800mm
Capacity:6-8T/h
Rotor speed:900r/min
Motor power:37kw

Forming Machine

Head:2-4pcs
Forming width:1320mm
Forming thickness:30-120mm
Power installation：45kw

Multi-roller Pre-press

Pre-press belt widht:1400mm
Conveying belt velocity:3-12m/min
Pressure of pressing roller:2000N/cm
Main motor power:30kw
Weigth:25000kg

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Sanding Machine

Working thickness:3-90mm
Working length:>900mm
Working width:200-1300mm
Abrasive belt speed:24m/s
Abrasive belt size:1350x2800mm
Feed speed:6-30m/min
Main motor power:75kw*2
Overall diamension:2200x3360x2900mm
