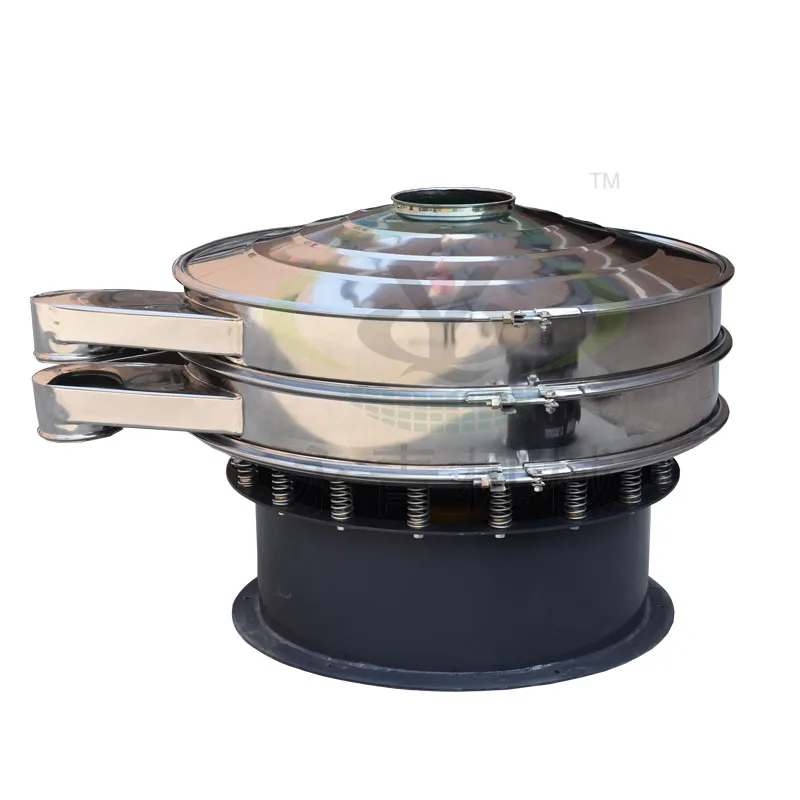

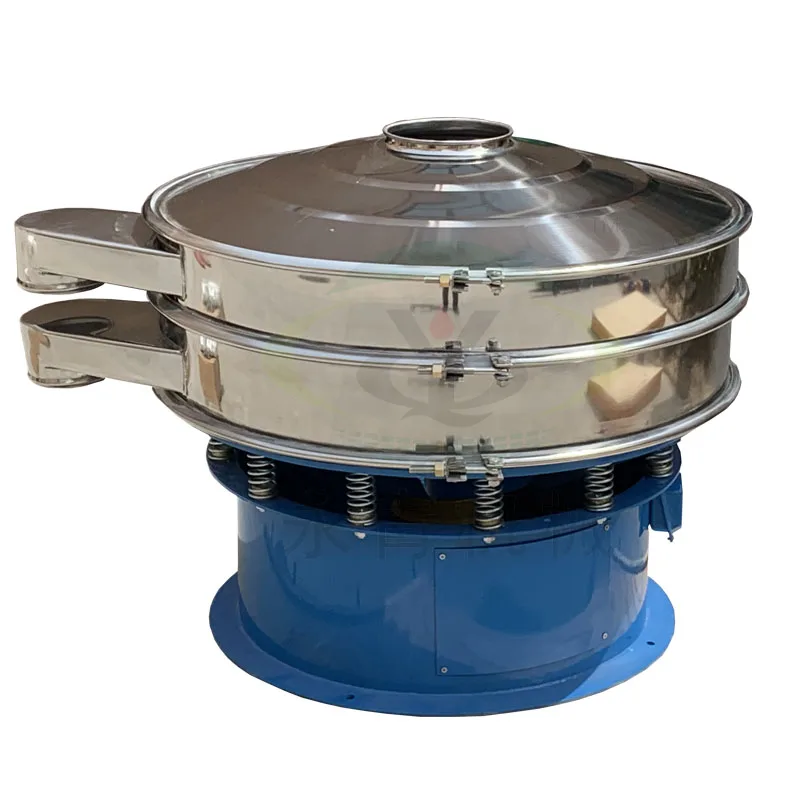

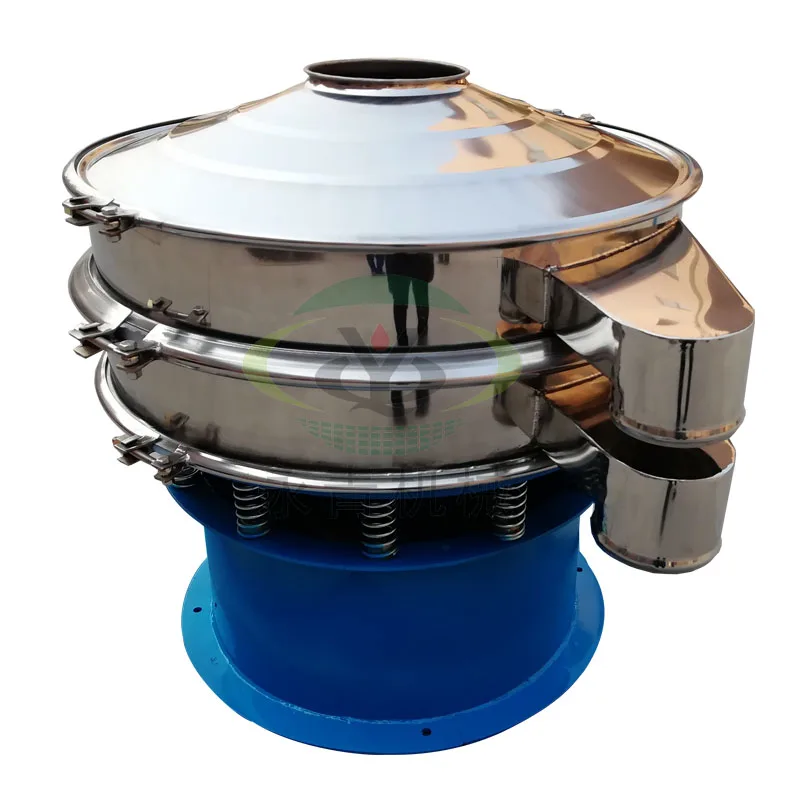

1200 mm diameter pvc resign vibratory sieve screen
- Category: >>>
- Supplier: Xinxiang Yongqing Screen Machine Co. Ltd.
Share on (60480994826):
Product Overview
Description
Product Description
Introduction
This circular rotary sieve screen is a kind of high precision sieve filter machine, which uses the vertical vibrating motor as its vibrating source. It can be widely used in any industries needing to sieve and filter powder, particle and liquid, such as milk powder, flour, soybean powder, Medicine powder, cosmetic, quicklime, juice, salt, sugar, sewage, etc.
Principle
 | This circular vibrating screen uses horizontal
vibration motor or special vibration exciter as its
vibration source. The horizontal vibration motor
and vibration exciter have a eccentric block at the

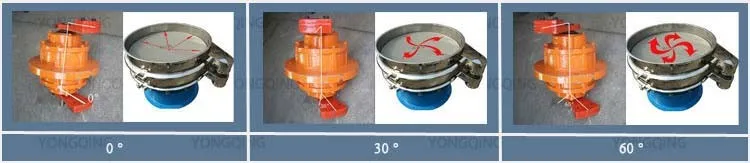

both their upper and lower sides. By adjusting the
phase angles of the upper and lower eccentric
blocks, the material on the screen can change the
movement locus,achieving suitable screening
performance. |
Main Features
 | Name:Automatic Power-off Protect Motor Brand:Yong Qing
In case of default phase, short circuit and
unstable voltage, it will power off
to prevent the motor and other electric
elements from being damaged.
|

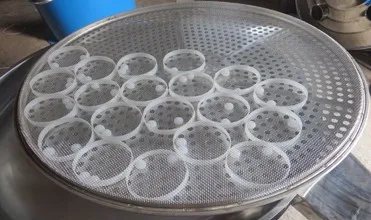

Name:Wire Frame Brand:Yong Qing
Rubber balls and isolation circles ensure the
screen non-clogging, efficient and easy to change. |  |
Application
Main Technical Parameter
Model | XZS-500 | XZS-600 | XZS-800 | XZS-1000 | XZS-1200 | XZS-1500 | XZS-1800 | XZS-2000 |
Nominal Diameter(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
Sieve Diameter(mm) | 430 | 530 | 730 | 930 | 1130 | 1430 | 1730 | 1930 |
Layer | 1-5 | |||||||
Sieve Spec(mesh/inch) | 2-500 | |||||||
frequency(rpm) | 1440 | |||||||
power(kw) | 0.25-0.55 | 0.25-0.55 | 0.55-0.75 | 0.75-1.1 | 1.1-1.5 | 1.5-2.2 | 2.2 | 2.2 |
Product Details
Detailed Images
 | Name:Screen Net Brand:Yong Qing
All kinds of woven meshes and punching hole
meshes with any size, sturdy and durable. |
Name:Sealing Device Brand:Yong Qing
The clamp, rubber seal ring and dust-
proof cover ensure the good sealing in
the process of working. |  |
 | Name:Spring and Rubber Base Brand:Yong Qing
The spring and its rubber base make the
machine have lower noise. |

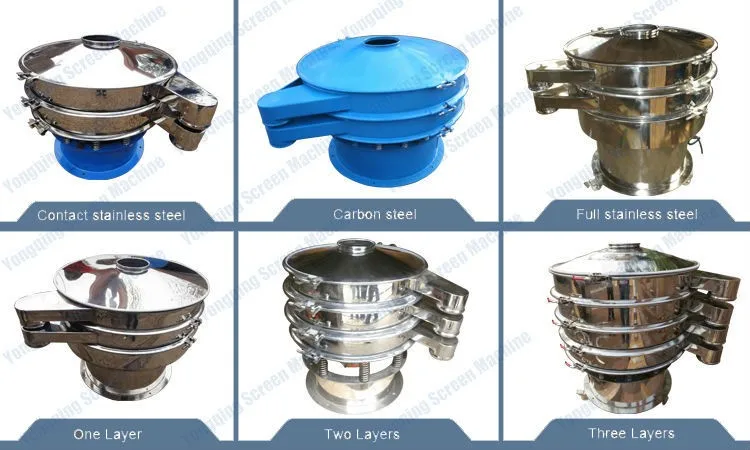

Special Design
Certifications
Main Certifications
Service
Our Services
Pre-Sales Service* Special design offered. * Buyer label paste offered. * Sample testing support. * View our Factory * 24 hours inquiry and consulting support. | After-Sales Service
* Training how to instal and use the machine.
* One year warranty.
* 24 hours inquiry and consulting support. |
Packing and Shipment
Packing:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment: 3 working days after receiving your deposit.
