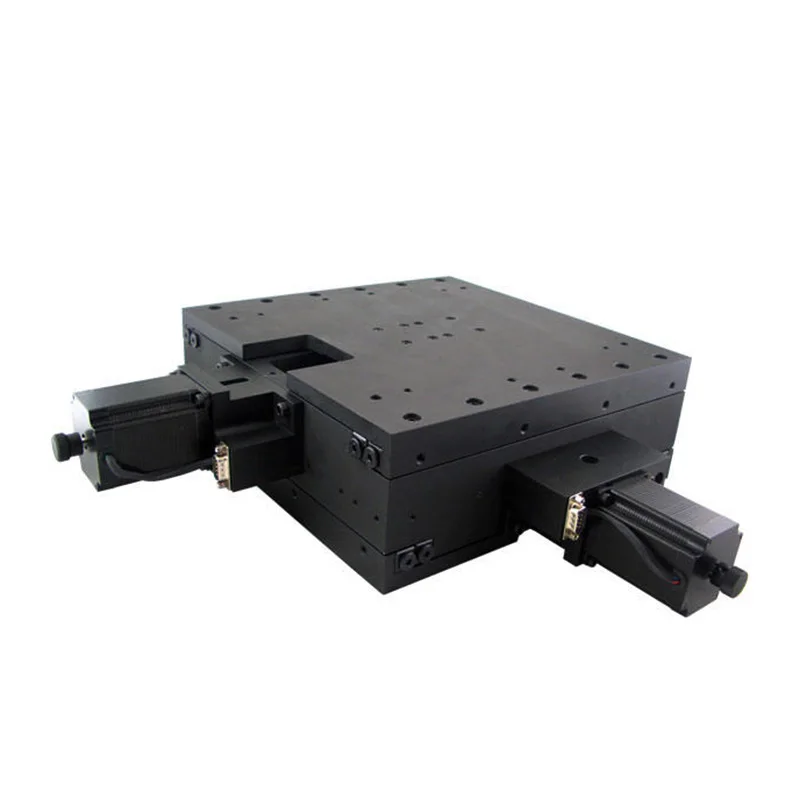

PT XY170 Motorized XY Stage XY Manual linear stage
- Category: >>>
- Supplier: Beijing Pdv Instrument Co. Ltd.
Share on (60481060895):
Product Overview
Description
Product features
Regular stage set with stepper motor and RS232 interface, can connect with motion controller convenient.
*The stage design with integrated structure for be used in limited space
*Taiwan ball screw use for smooth moving and high accuracy
*Mounting holes both on the table top and bottom for combine with other stage easily
For special specifications, custom products are available.
PT-XY170 | ||
Structure | Travel Range | 170mm |
Platform | 300mm × 300mm | |
Bearing Construction | High Precise Grinding Screw (1mm of leading) | |
Travel Guide | Crossed Roller Bearing | |
Stepper Motor (1.8°) | 57BYG | |
Material | Aluminum Alloy - Black-Anodized | |
Load Capacity | 60Kgs | |
Weight | 10.3Kgs | |
Accuracy | Design Resolution | 20μm/Pulse, Non-MS Driver 1μm/Pulse, 20MS Driver |
Max Velocity | 25mm/sec | |
Repeatability | 2μm | |
Absolute Accuracy | 3μm | |
Straightness | 5μm | |
Parallelization | 15μm | |
Pitching | 50" | |
Yawing | 25" | |
Backlash | 2μm | |
Lost Motion | 2μm | |
Others | Scales (-G), Servo Motor (-D) | |
