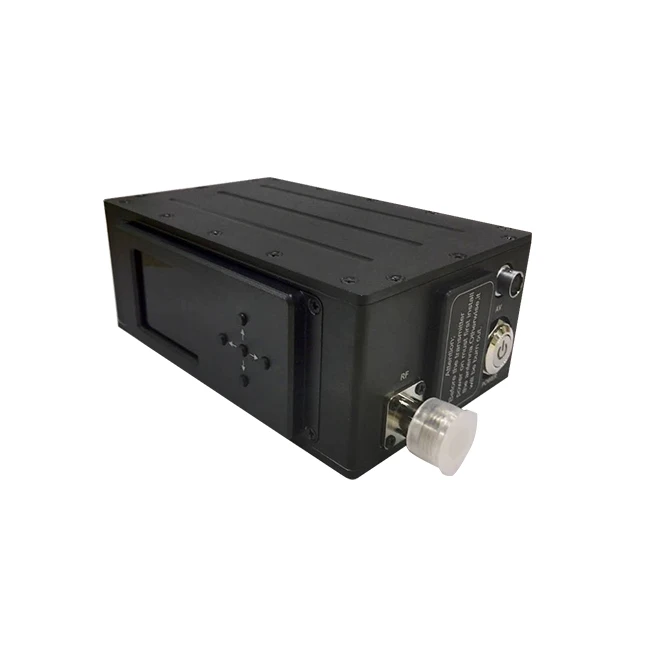

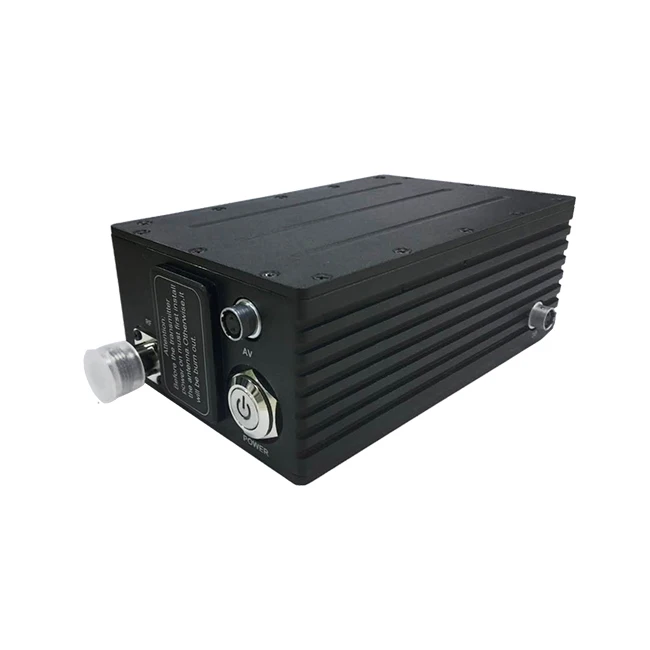

long range wireless transmitter and receiver cofdm for video helicopter.
* COFDM modulation, Stable transmission
* MPEG-4 /H.264 video compression,DVD video quality
* Support high speed mobile transmission
* Works well in case of NLOS harsh environment;
* Great security by encryption of AES128 bits
* Support custom made for you or add additional functionality.
*More intuitive and natural with a coulobmeter
Detailed Images
Tx Parameters
long range wireless transmitter and receiver cofdm for video helicopter | ||||||
Frequency | 138-4400MHz (option),only 100MHz space for user | |||||
RF output Power | 3-5Watt (adjustable) | |||||
Voltage | DC12V/1.5A | |||||
Modulation | COFDM,2K,QPSK | |||||
Constellation | QPSK,16QAM,64QAM,QPSK/16QAM/64QAM @ 6/7/8MHz | |||||
Bandwidth | 2/2.5/4/8MHz(optional) | |||||
Transfer rate | 2/4/6/8Mbps (self-adaption) | |||||
FEC | 1/2,2/3,3/4,5/6,7/8(optional) | |||||
Guard Interval | 1/32,1/16,1/8,1/4 (optional) | |||||
Type | long range wireless transmitter and receiver cofdm for video helicopter | |||||
Audio Input | stereo left and right channels | |||||
Video Compression | H.264/MEPG-4 | |||||
Data encryption | AES | |||||
Flatness | ≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) | |||||
Carrier | 2K,8K | |||||
Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive | |||||
Resolution | standard 720P | |||||

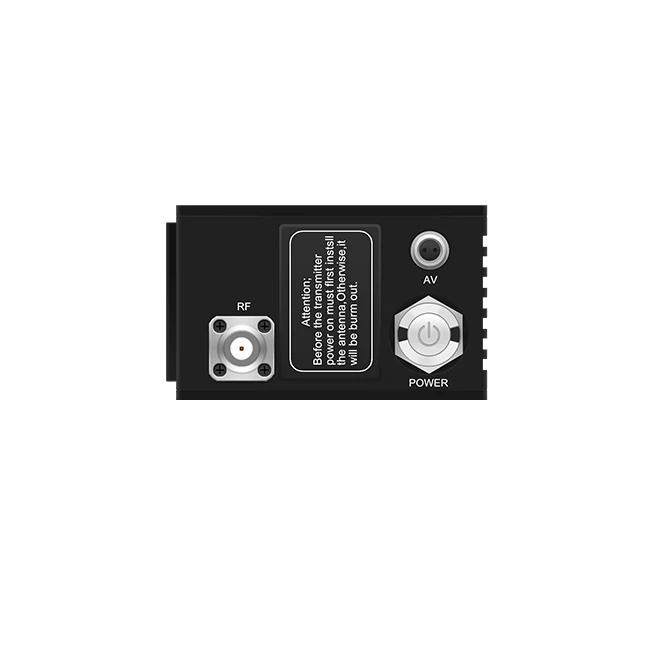

RF Interface | N(F) | |||||
Model | SG-TS350 long range wireless transmitter and receiver cofdm for video helicopter | |||||
Video Format | PAL/NTSC | |||||
AV Interface | BNC/aviation plug | |||||
Case Material | Aluminum alloy, waterproof | |||||
Work environment | -30~70° | |||||
Transmit Distance | 3km max NLOS 100km max LOS (on helicopter) | |||||

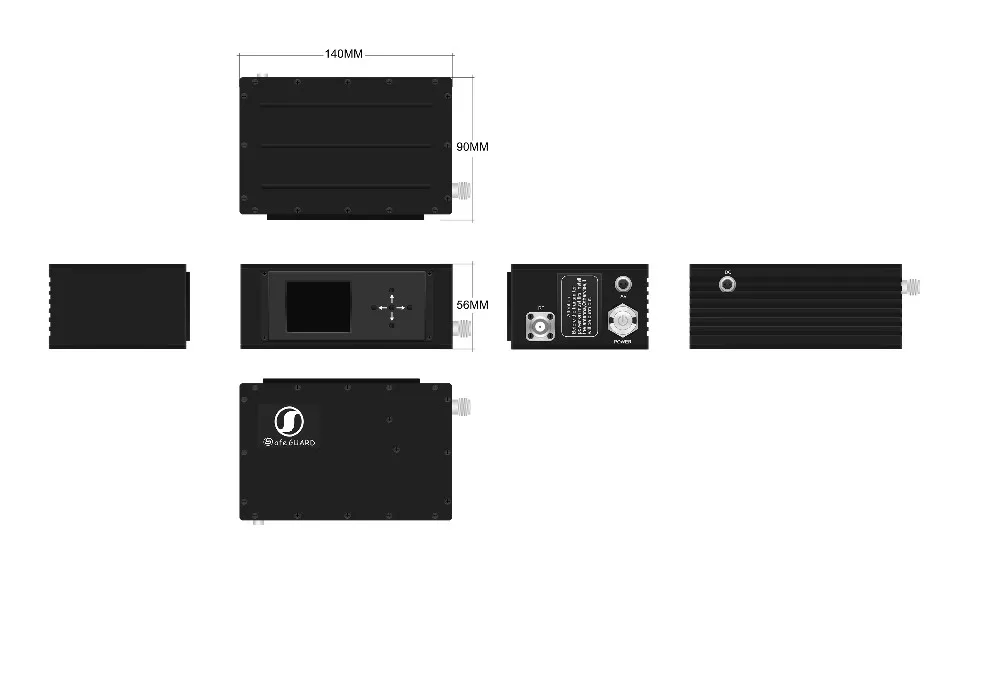

Size | 140*90*56mm | |||||
Weight | 888g (without battery) | |||||
Packing & Delivery
long range wireless transmitter and receiver cofdm for video helicopter
Professional carton paper for wireless transmitter and receiver.
Video transmitter and receiver are usually shipped by DHL, UPS, TNT, FedEx and so on.
Testing Equipments
long range wireless transmitter and receiver cofdm for video helicopter
Each transmitter/receiver/transceiver/lightbridge goes through strict and professional testing!
Why us
Professional manufacturer for COFDM wireless video audio transmitter and reciever.
* One year free warranty;
* Three months for free spare parts (Replacement parts will be charged after a year);
* 24-h technical guidance;
* One-stop ODM/OEM solution;
* Over 20 years' experience in studying, designing and manufacturing in wireless AV transmission area;
* Direct plant source, offering you top quality with competitive price.
