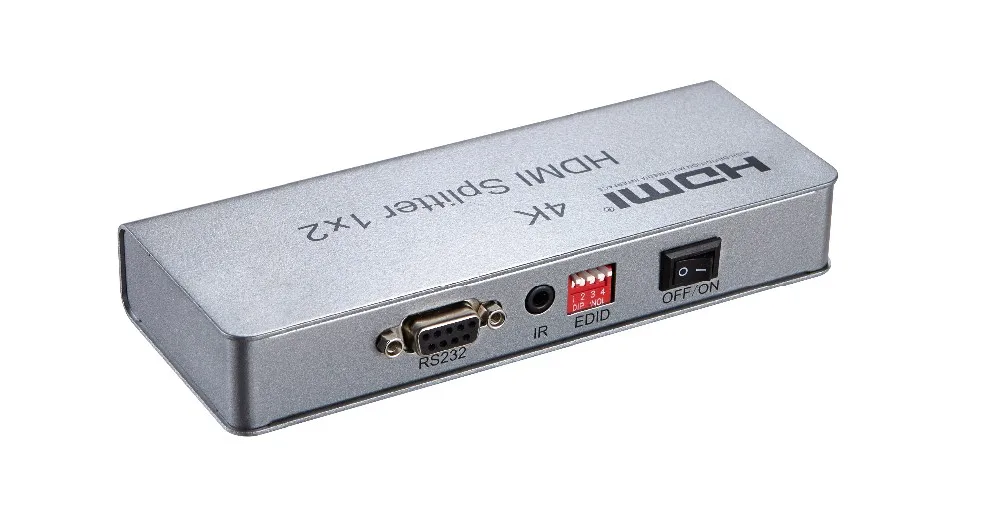

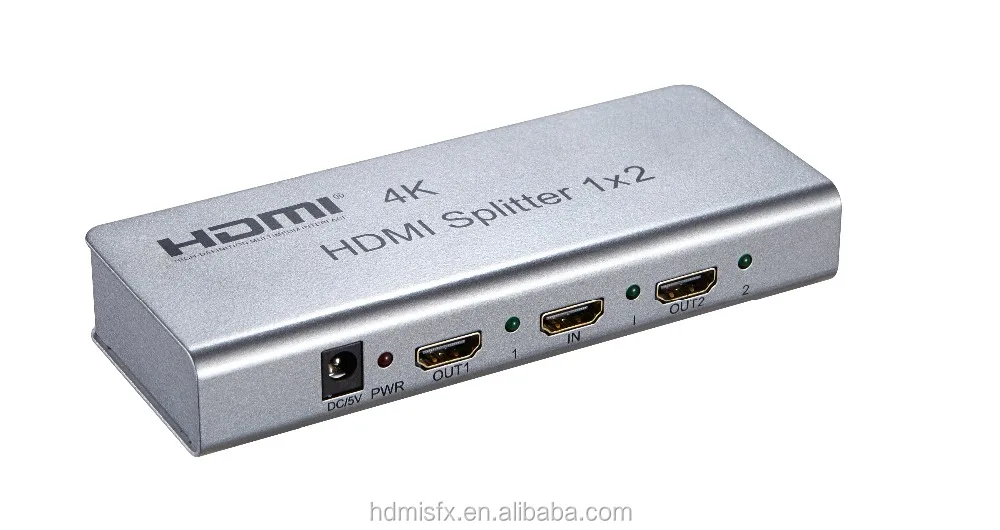

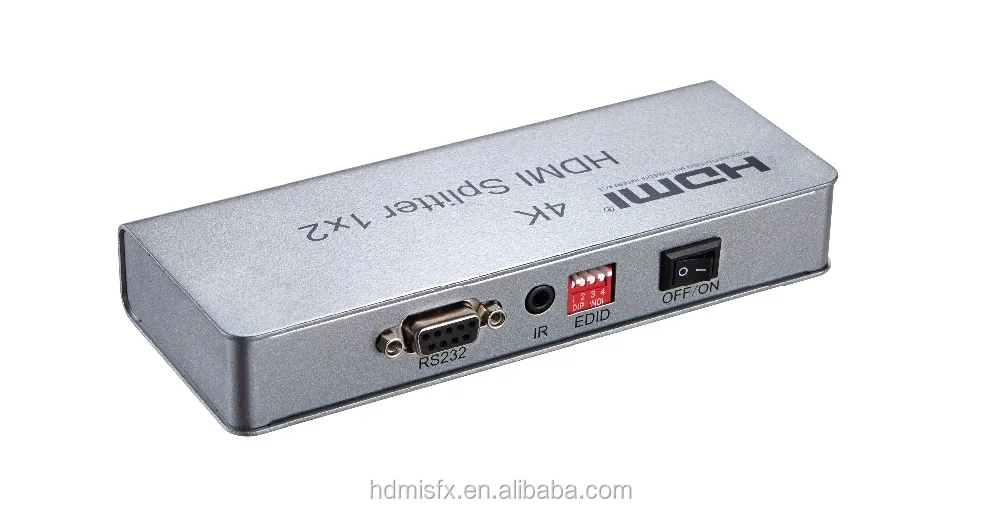

HDMI splitter 1X2 with HDPC1.4

Product Overview

Description



4K hd HDMI splitter 1X2 with HDPC1.4 with ir feature from shenzhen manuafacturer

Introduction



The 1x2 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/30Hz.



This product can support EDID management function, comes with seven kinds of EDID mode, the users can choose according to their own needs. In addition, it is with built-in IR extension function, it can work with our hdmi repeater which has IR-RX to receive the IR command to control the source.

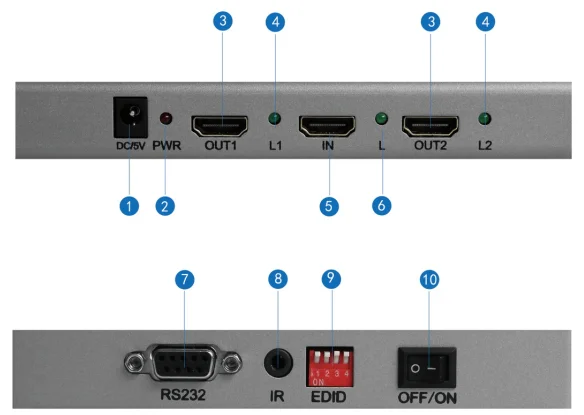

Product

1.    5V Power Interface

2.    Power adapter indicator

3.    HDMI output port

4.    LED Output indicator

5.    HDMI input port

6.    LED Input Indicator

7.    RS232 port

8.    IR TX Extension Interface

9.    DIP switch,using for EDID management

10.  Power switch

DIP EDID Switch Description:

DIP 1   2   3   4
       X  0   0    0    : copy output1 EDID only
       X  0   0    1    :  EDID MIX
       X  0   1    0    :  EDID Download (RS232)
       X  0   1    1    : 4K X 2K  30HZ
       X  1   0    0    : 4K X 2K  60HZ
       X  1   0    1    : 1080P 3D 2ch
       X  1   1    0    : 1080P 2D 2ch
       X  1   1    1    : 1080P 2D 5.1ch

1 is used for upgrades, 1 is upgraded mode, 0 is normal working mode

Specifications:

HDCP version  ……………………………………….……………………………………. HDCP 1.4

HDMI resolution ……………………………….. ……….. ……….. …………up to 3840*2160/30Hz

Support video format ………………………………..…………………………8/10/12bit Deep color

Support audio format………………..……….…….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………….450MHz

Max baudrate……………….…….………………….…………………………………………..4.5Gbps

Input cable distance.…………………………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Output cable distance…………………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Max working current………………………………………………………………………………....1 A

Power adapter format………………….….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A

Operating Temperature range……………………………..…………….………………(-15 to +55℃)

Dimension (L x W x H)………………...............…………..……………………….154x60x24 (mm)

Weight…….…..………………………………………………………..…….……………………335g



IR Extension description:

There is an IR TX Extension port, it can work with our hdmi repeater which has IR-RX to receive the IR command to remote control the source.

 Connection and Operation:

1: connect the HD source to the splitter input with one hdmi cable

2: connect the splitter output to the diaplays with 2 hdmi cables

3: connect 5V/2A power adapter to the splitter

  certificates

IB_~IL~2ZL4ODJ8O4)M8.jpg" ori-width="600" ori-height="600"/>

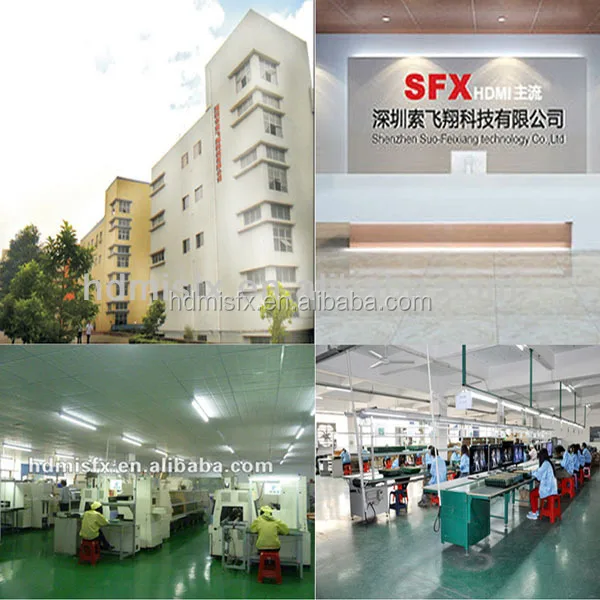

Factory
