Soybean milk machine / TG 300 Soybean grinding Soy milk making machine

Share on (60481335869):


Price:$10,000.00

Quantity:


Product Overview

Description

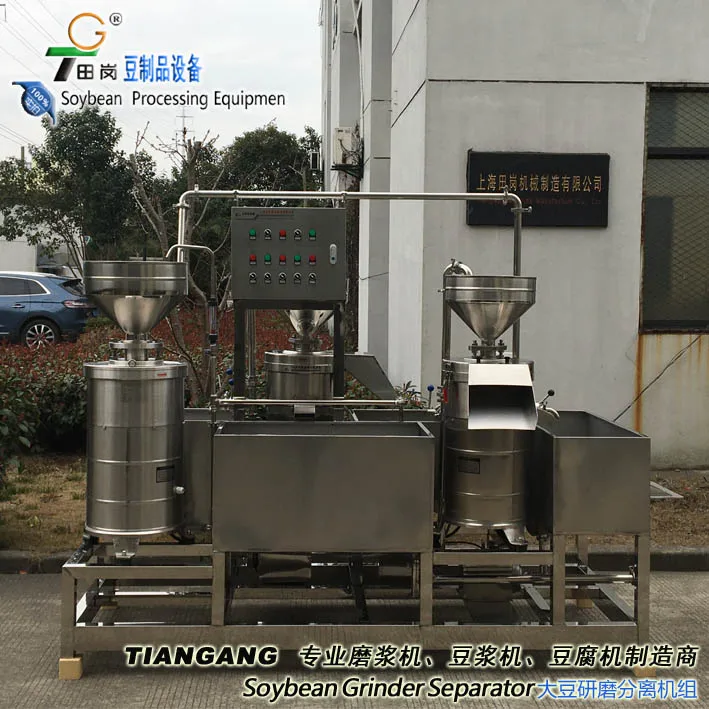

Soybean milk machine / TG-300 Soybean grinding - Soy milk making machine
TG-300 Soybean Grinding- Soybean milk Production Process (300Kg/hr ,calculated by dry soybeans)
1; Soybean soaking system.
2;Soybean lifting。 Use screw metering to lift.
3;TGM-300 Soybean grinder (soaked soybeans are grinded with water to produce soybean paste).
4; TGM-200 Grinding & separating (After the soybean paste is ground again, the soybean milk comes out and the Soy Okara are separated)
5; Bean dregs mixer (the Soy Okara is mixed with water, and the geared motor is mixed into bean paste)
6; TGM-200 Grinding Separation twice.

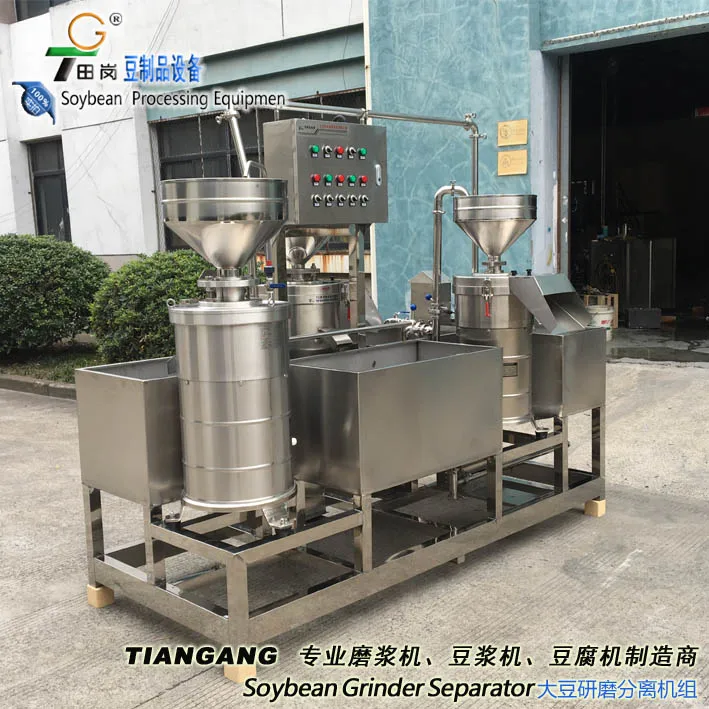

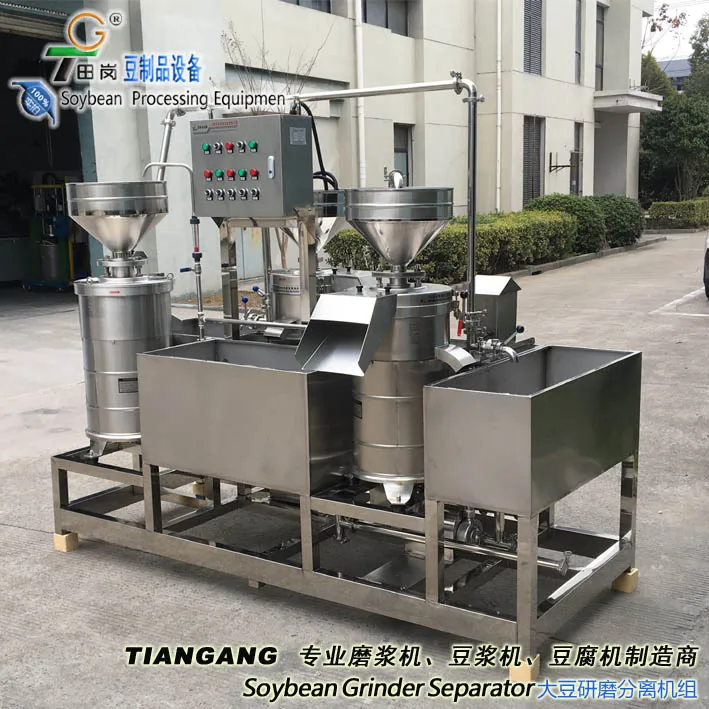

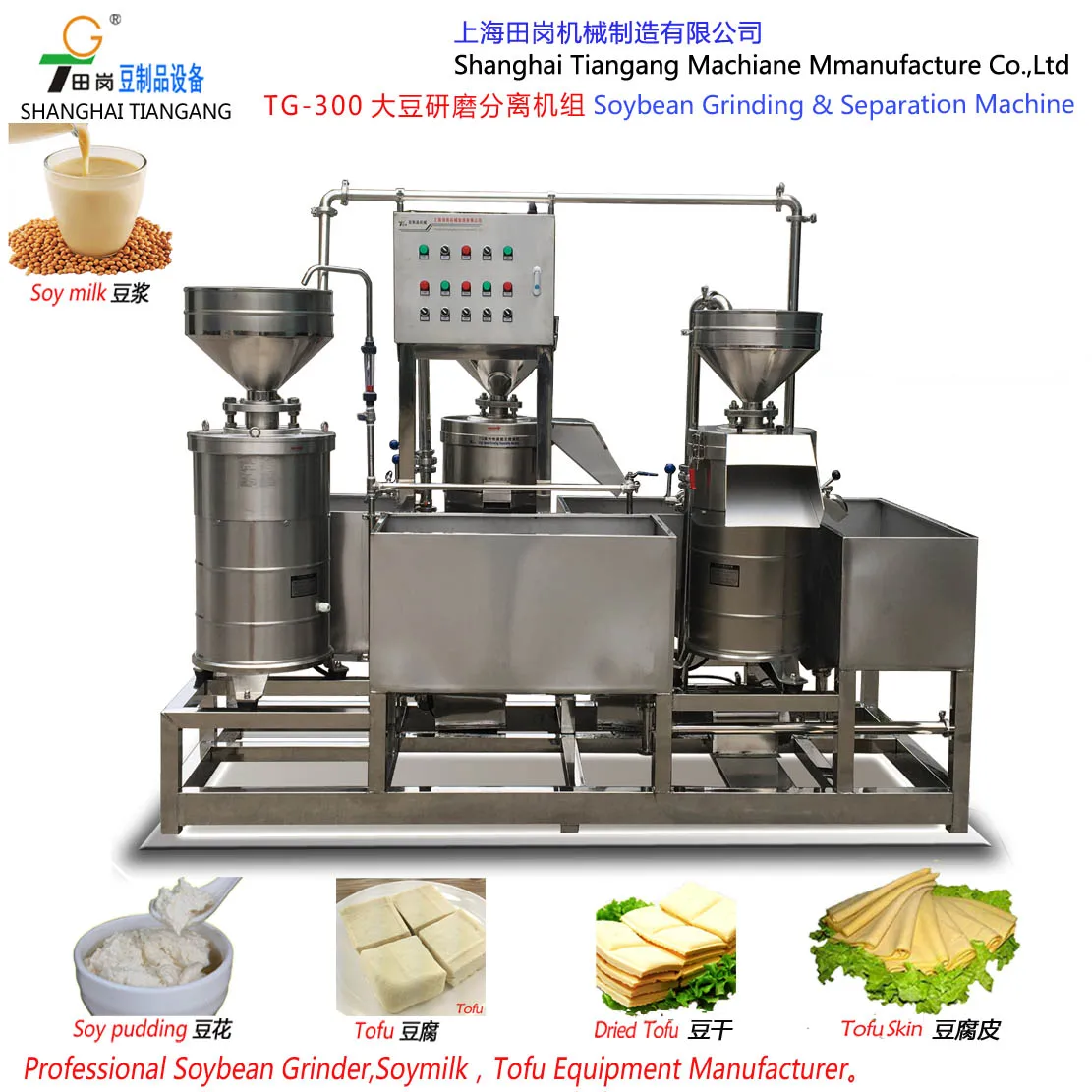

TG-300 soybean grinding and separating unit;
1. Power of TGM-300 Refiner: 7.5kw;
2. Power of Soya milk pump: 0.9kw;
3. Power of TGM-200 Grinding Separation Machine: 5kw;
4. Power of Okara pump: 0.9kw
5. Power of stirring motor; 180w;
6. Power of TGM-200 Grinding Separation twice: 5kw;
7. Soymilk pump reflux pump: 370W;
8. Size: 2400*1000*1850mm;
9. Weight: 700kg;
Power supply is 380V/50Hz, total power is 19.85KW.

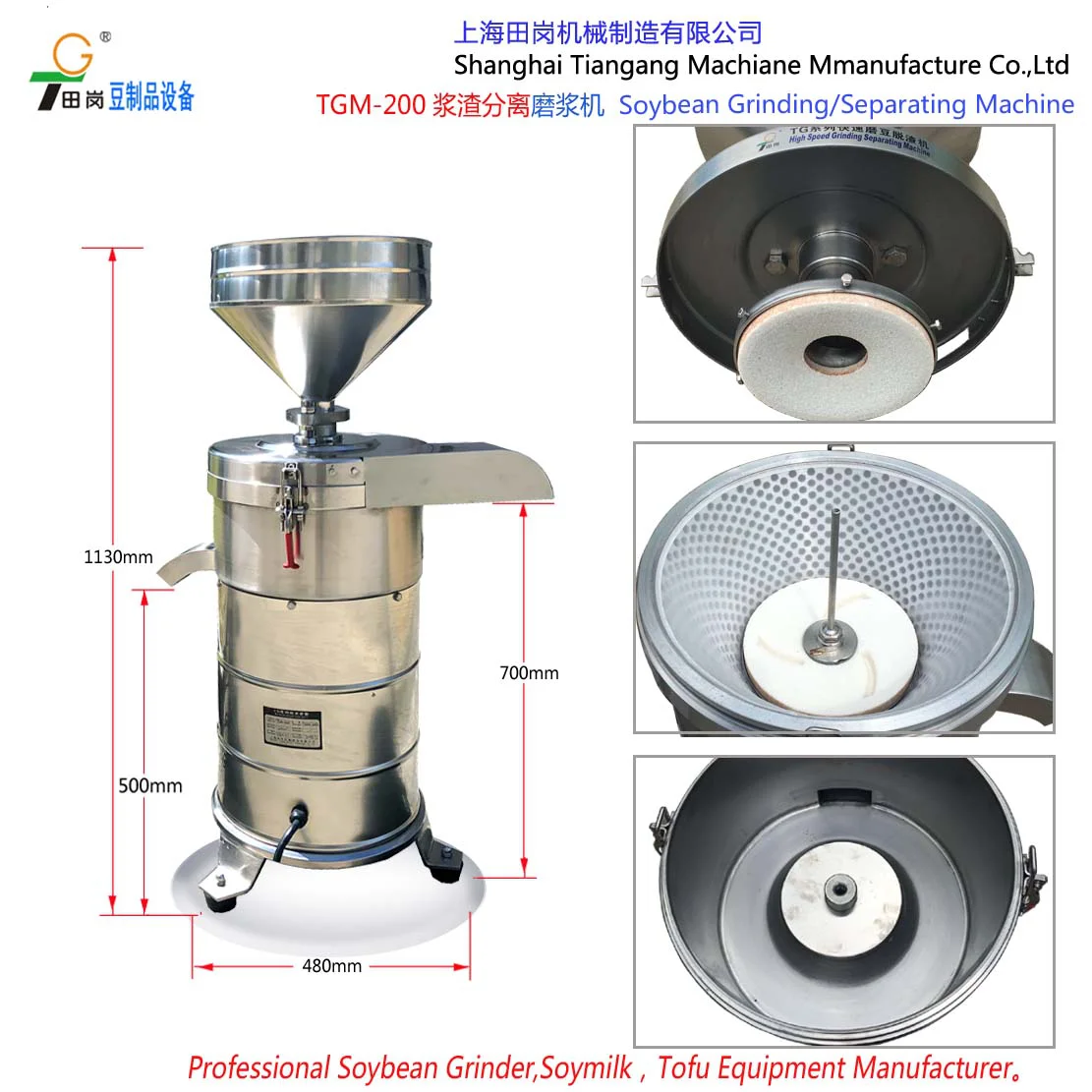

TGM-200 Soybean Grinding Automatic Separator
Voltage:380V/50Hz;Power:5KW; Speed:2880 R.P.M ;Filter:100 mesh ;
Capacity:100-175kgs/hr(Dried soybean calculation)
Diameter of grinding stone :200mm;
Weight:96kgs;Size: 480*600*1150mm;
Gross Weight:105kgs;Packing size:530*470*1250mm;




Soya milk machine / Bottled Soy milk Production Line Equipment - Soy products processing equipment
The production line equipment is suitable for food and beverage production enterprises and soybean product production plants. Capacity: 2000 bottles per hour. The shelf life is up to 1-6 months.

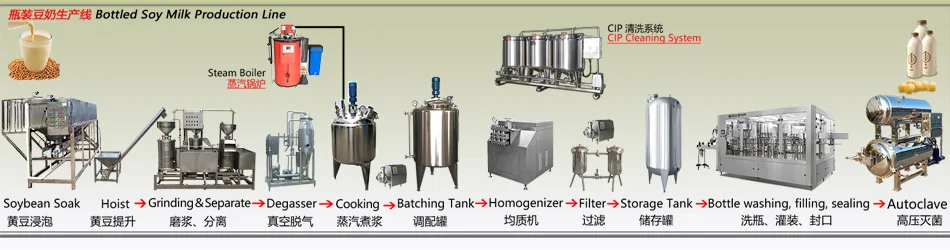

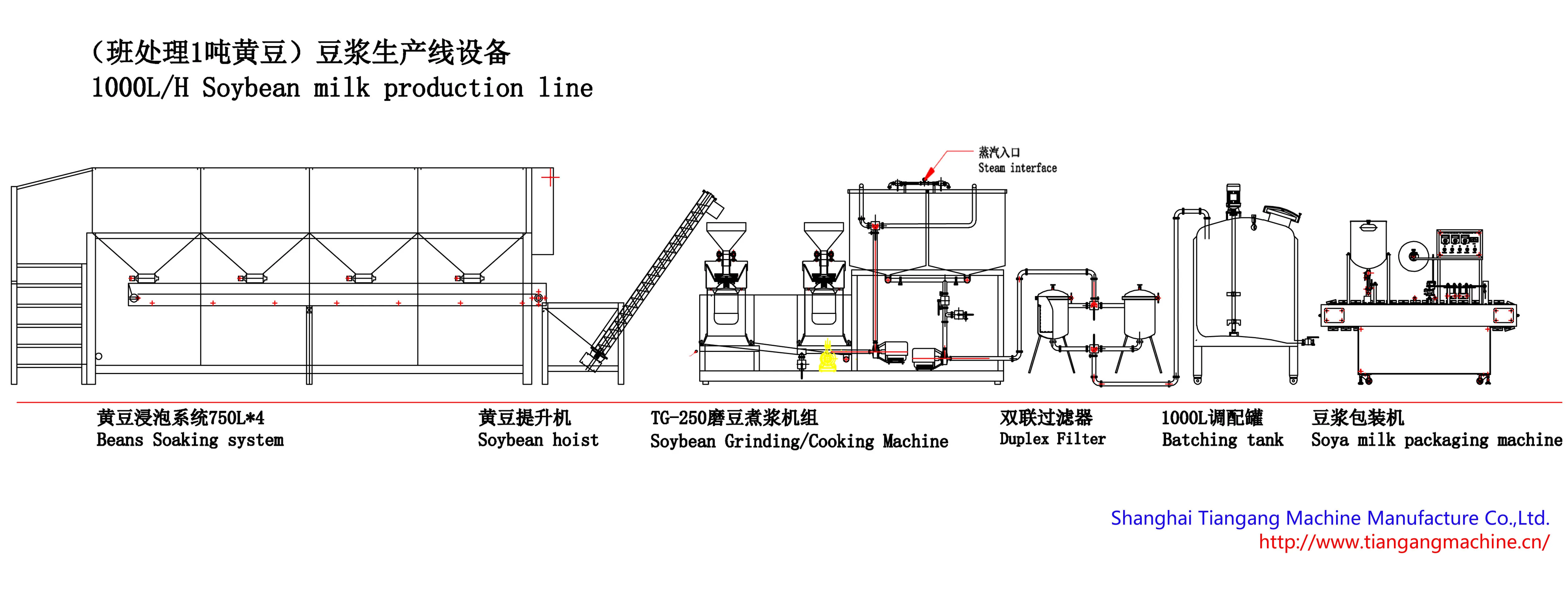

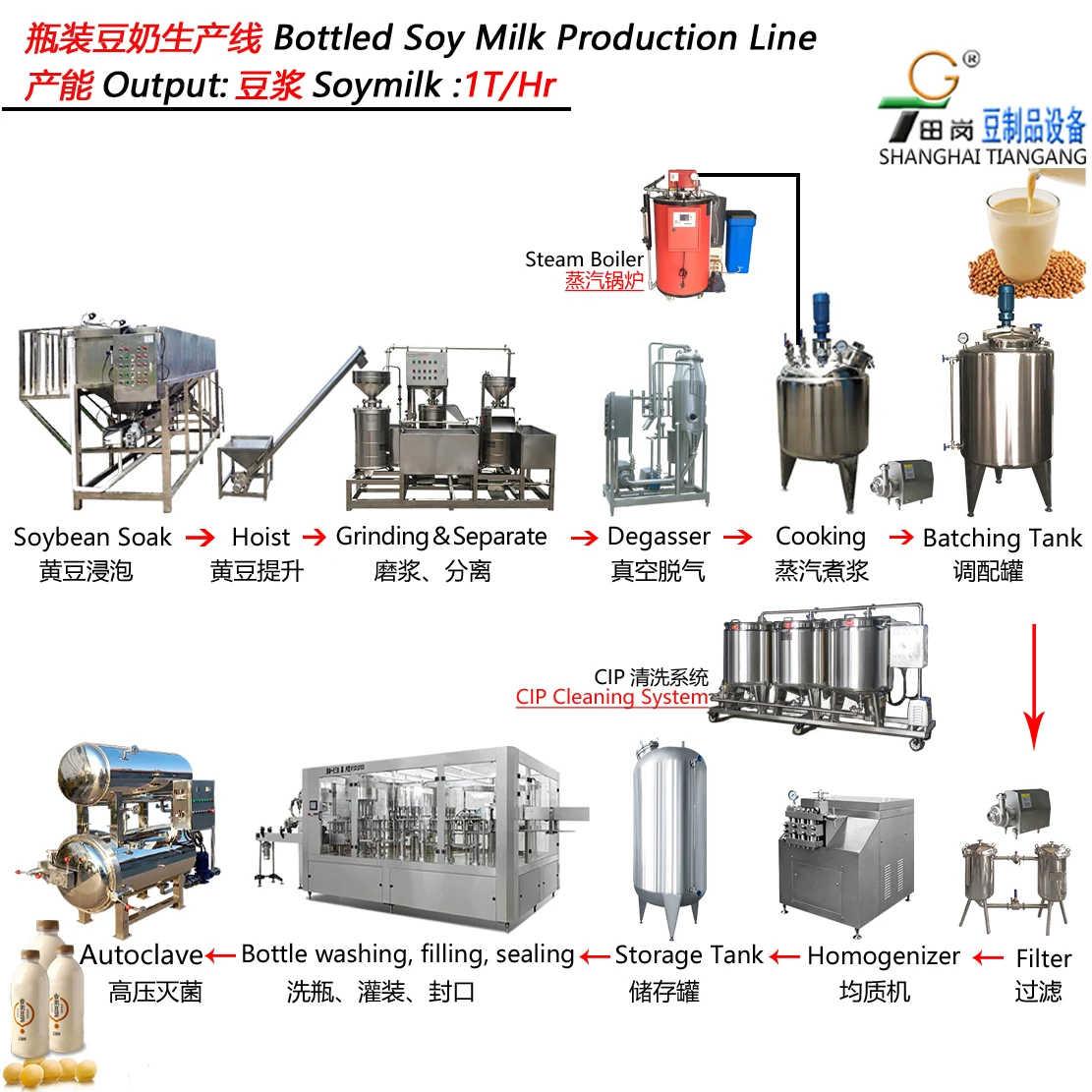

Soy milk production process:
1, Soybean soaking system:
2. TG-200 soybean grinding and separation unit:
3. Vacuum degasser
4. Soy milk cooking pot:
5. Blending tank:
6. Double filter:
7. High-pressure homogenizer
8. Bottle washing, quantitative filling, capping and sealing
9. High temperature and high pressure sterilization pot.
10. CIP cleaning system:


1、 Soybean soaking system:
Set automatic soaking time, rinse and drain. Adjustable speed conveyor belt output.
Time setting, automatically add water, rinse, soak..Equipped with conveyor belt.
Barrel capacity: 750L*4,
Each barrel can soak 250kg dry soybeans.
Size: 1600*4600*2200mm; weight: 750kg




2、 TG-200 soybean grinding and separation unit:
soybean screw elevator to TGM-200. After 2 times of grinding and separation.
Voltage:380V/50Hz;TGM-200 Grinding/separating :2 sets ;Power:5KW*2.
Dregs Suction pump Power :900W ;Power of stirring motor: 180W; Milk Suction pump Power:750W;

Size: 1000*1500*1800mm; Weight:480kg

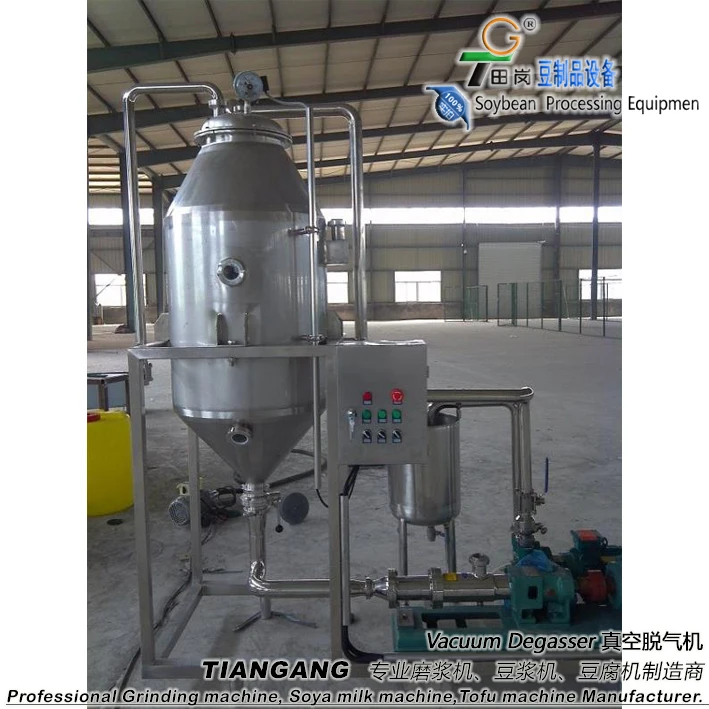

3、 Vacuum degasser :
It removes air (oxygen) and suspended particulate gas in the feed liquid to inhibit browning, oxidation of pigments and other substances.
Prevent foaming during filling and high-temperature sterilization from affecting the sterilization effect;
Voltage. : 380V/50Hz; Vacuum pump power: 1500W;Sanitary pump power: 1500W;Capacity: 1000L/hr
Size: 1200*800*1800mm; Weight:300kg.

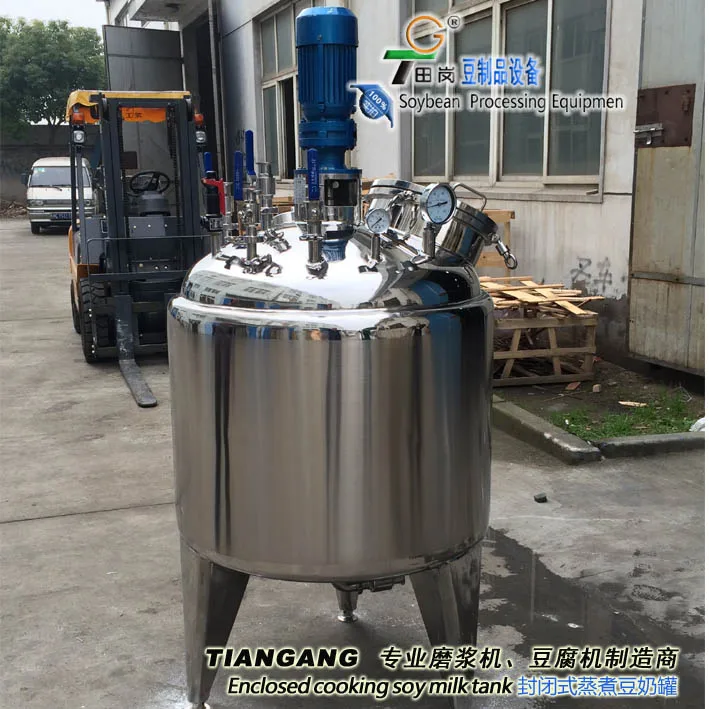

4、Soy milk cooking pot:
Closed high-temperature steam enters the tank, and quickly cooks soy milk to 100°C.
Voltage: 3N/380V; Power of stirring motor: 0.75kw; Rated pressure: 0.2Mpa;Tank Capacity: 600L.
Size: Φ1000 × 1850mm,Weight:280kg

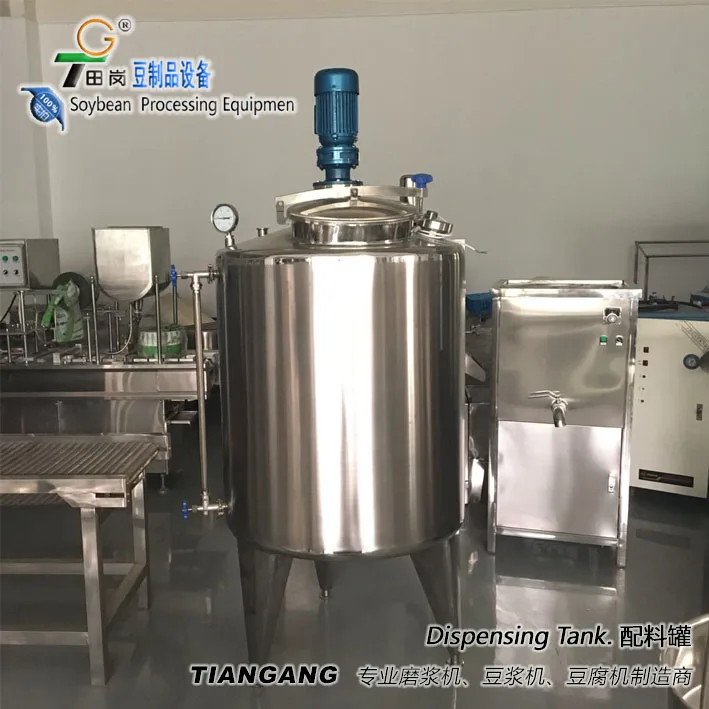

5、Blending Tank:
Soymilk goes to the blending tank through centrifugal pump, and it is blended with food additives.
Stirred Motor: 380V; 370W; Capacity :1000L
CIP Cleaning Head; Liquid Level Meter.
Size: Φ1000 × 2200mm,Weight:250kg

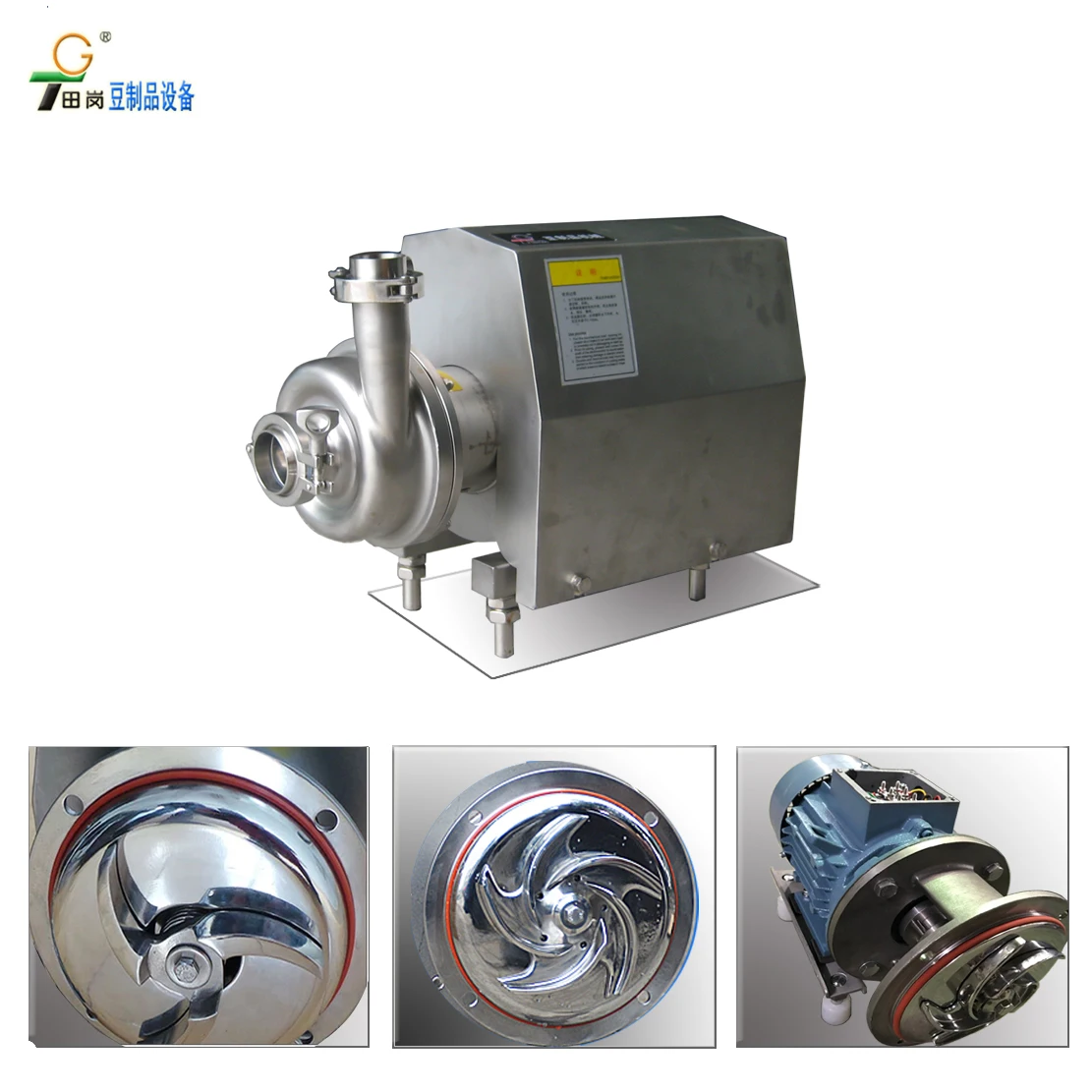

6、Sanitary centrifugal pump
Motor Power (750w);Output (3T/h).
Inlet / Outlet Diameter (38/32mm).
Weight: 26KG; Size: 430 × 200 ×320mm.
Gross Weight: 32KG; Packing Size: 52*29*37mm.

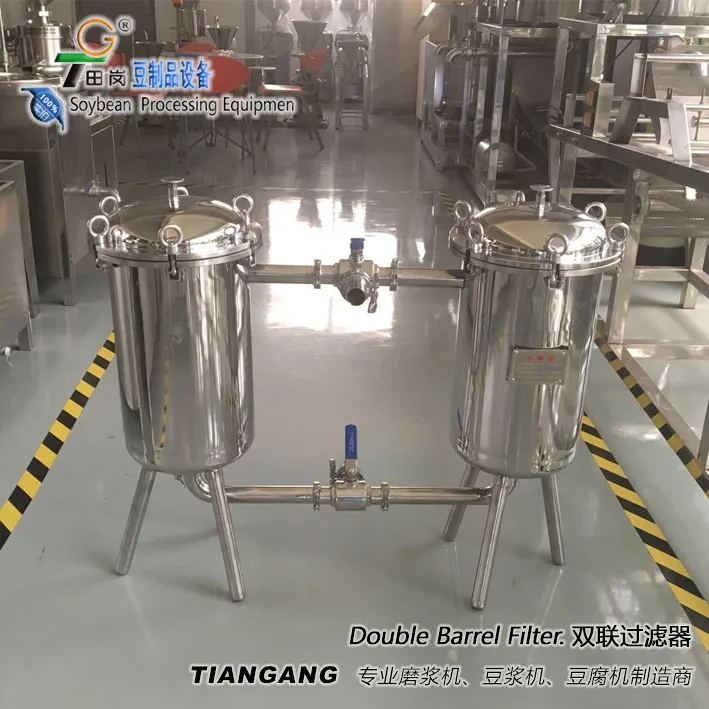

7、 Double filter :
Soymilk is input to the filter through a centrifugal pump for filtration.
Cooked soy milk filter
The two filters alternately applicable, without stopping the machine to replace the filter cloth.
Filter: 30-200 mesh; Filter area: 0.3m2; Filter diameter 250 * 300mm
Weight: 38KG; Size: 1000 × 300 × 800mm

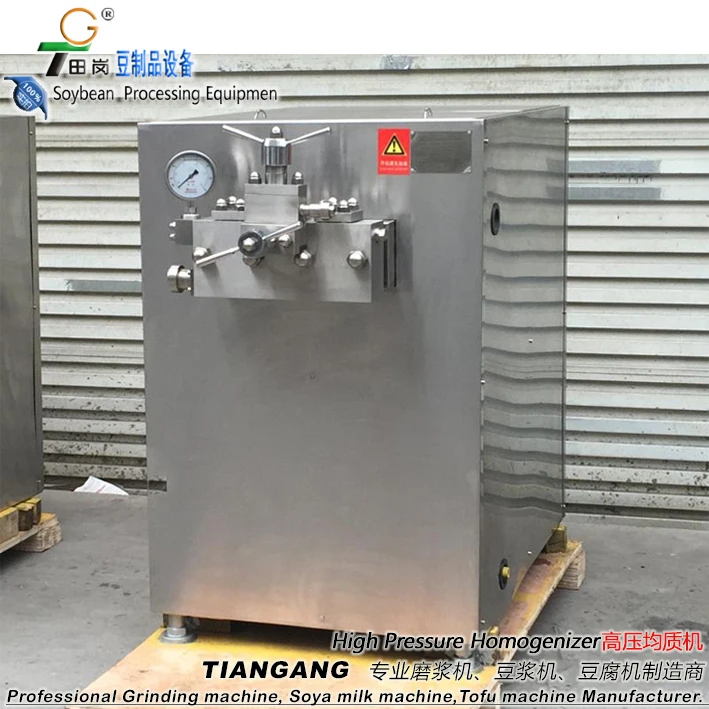

8、High Pressure Homogenizer :
Soymilk passes through a high-pressure homogenizer, and the pressure can reach 60Mpa. Enter the buffer tank after homogenization.
Voltage:380V/50Hz ;Power : 22kw.
Capacity:1000L/hr ;Maximum pressure:70MPa;Work pressure:0-60Mpa.
Size:1410×850×1280mm, Weight:1000kg.

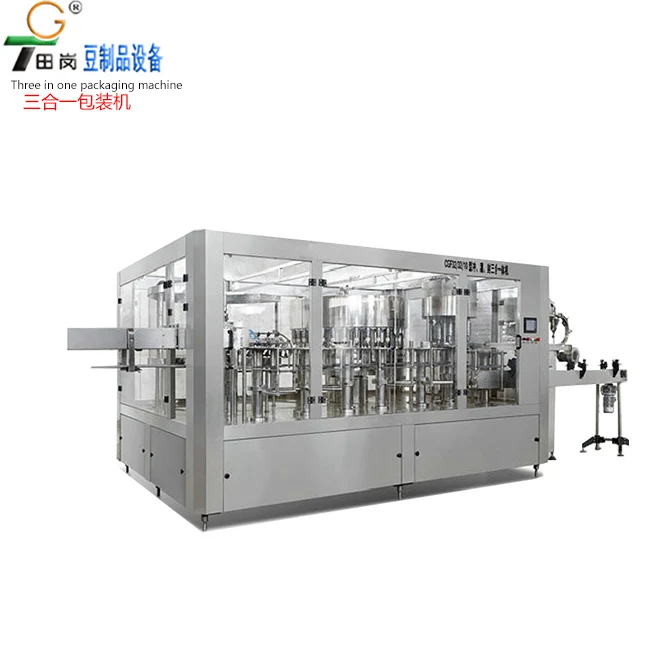

9、 Bottle washing, quantitative filling, capping and sealing :
Three-in-one filling and sealing production line equipment packaging soybean milk.
(Customized according to bottle style)
Voltage: 380V;Total power: 4kw;Production capacity: 3000 bottles / Hr
Size:2100×1500×2000mm;weight:2500kg

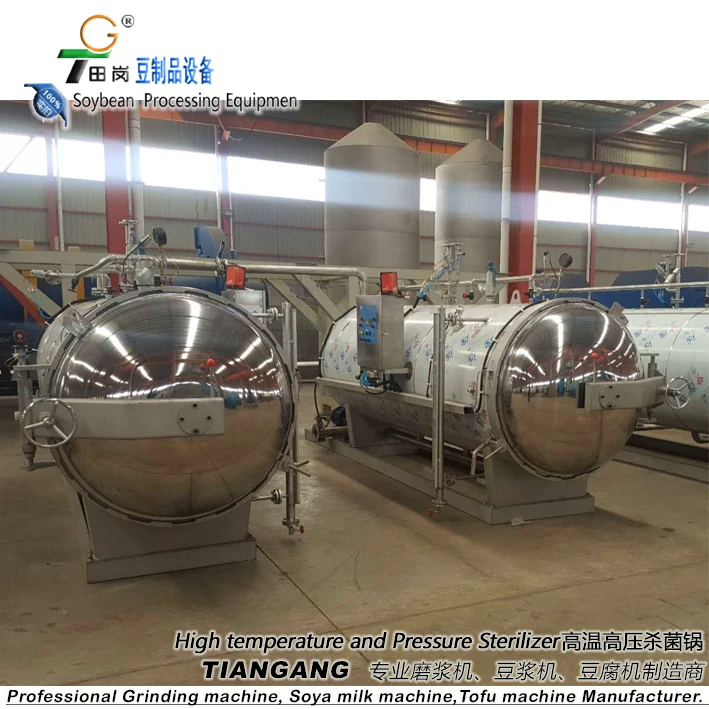

10、 High temperature and high pressure sterilization pot :
High-pressure steam heating, automatic temperature control and pressure control of hot water circulation. (Need to be additionally equipped with steam boiler, air compressor, gas storage tank)
Inner diameter: 1.2mm, pot length: 3.6m.
Design pressure 0.36MPa.; Working pressure 0.25MPa.;
Total volume:4.5m3.;Effective volume:2.5m3.
Size:5400×1800×2200mm, Weight:1500kg.

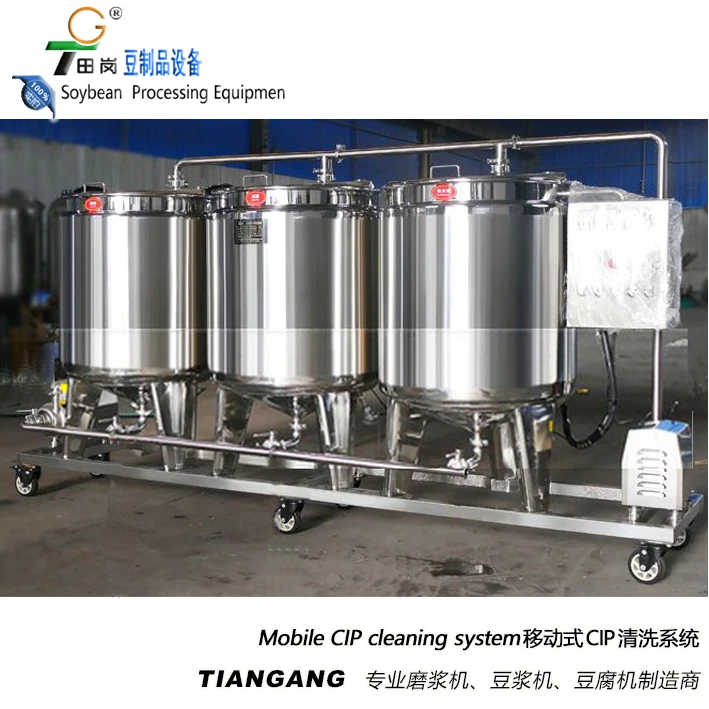

11. CIP cleaning system :
CIP cleaning system: That is, a method of using a high-temperature, high-concentration cleaning solution to exert a strong effect on the equipment and automatically clean the food contact surface.
Acid tank\\ alkali tank\\ water tank capacity: 300L*3 tanks,
pump power: 750W*2.Heating power: 36kw
Size: 3200 *950*1800mm,Weight:750kg












Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
