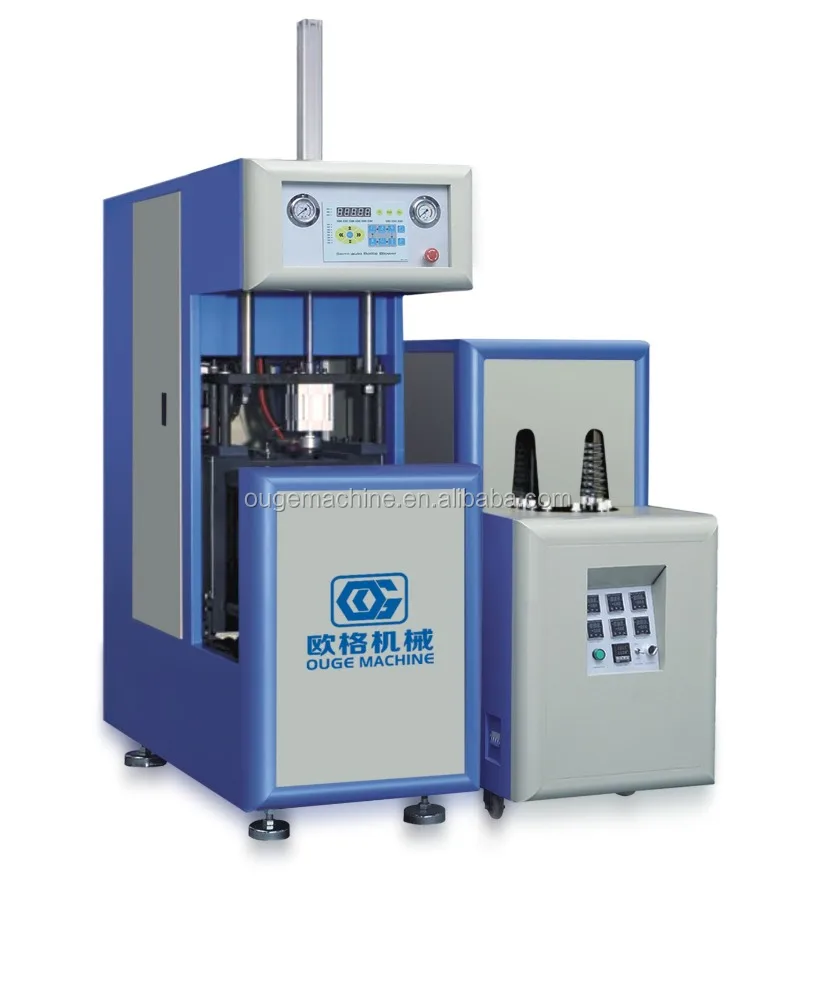

5 gallon PET blowing machine to make glass bottles

Product Overview

Description

1.Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.
2.Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
3.The preform will be heated evenly, not be influenced by outside environment.
4. Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
5.The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.
7.The system is equipped with silencer, connecting rod and articulated refueling devices.
8.Two modes of operation: semi-automatic mode and automatic mode.
9.Small size, low investment. one person enough to operate, simple and safe.

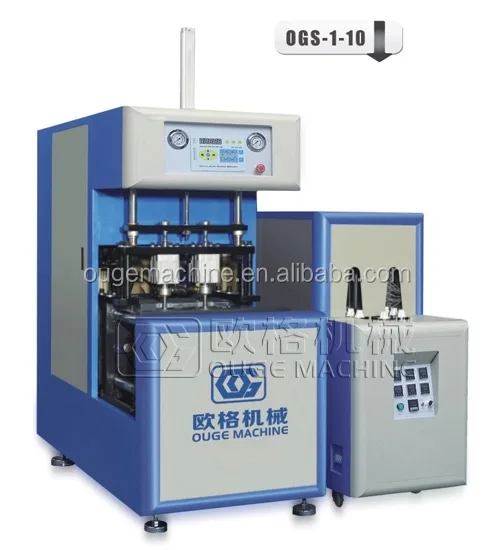

ITEM		UNIT	OGS-1	OGS-2	OGS-4	OGS-1-20
	Theoretical output	Pcs/h	500	900	1800	90
PRODUCT	Max. Volume	L	5.0	2.0	2.0	20
	Max. height	mm	360	360	360	550
	Max. diameter	mm	120	105	105	300
MOULD	Number of cavities	/	1	2	4	1
	Mould plate dimension (L*H)	mm	490*470	490*405	490*405	620*620
	Mould thickness	mm	250	220	220	380
	Mould opening stroke	mm	220	180	180	360
ELECTRICAL	Power		220-380V/ 50-60Hz	220-380V/ 50-60Hz	220-380V/ 50-60Hz	220-380V/ 50-60Hz
	Total Power	KW	11	11	21	36
	Heating Power	KW	10	10	20	37
MACHINE	Main body dimension (L*W*H)	M	1.5*0.65*2.0	1.50*0.65*2.0	1.5*0.65*2.0	2.1*0.75*1.8
	Main body weight	KG	600	550	550	900
	Pre-heater (L*W*H)	M	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.7*0.7*1.6
	pre-heater weight	KG	300	300	350	400



The above technical parameters are subject to continual update, please take the real product as the base. Machines can be customized for specia products.

















[1] Q: Are you a factory or trading company?

A: We are a factory directly supplier.



[2] Q: Where is your factory located?

A: Our factory,near Shanghai, located in Huangyan,Taizhou.



[3] Q: How about quality control in your factory?

A: “ Quality first,Reputation above all.”

OUGE machine focuses on quality,quality controls from beginning to the end. Every piece of goods is tested strictly before packing and delivery.



[4] Q: How about guarantee ?

A: One year guarantee.



[5] Q: Do you provide bottle blow mould and air compresor ?
A: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc



[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy operation.
