LKPG series 8-30HP top discharge refrigeration condensing unit |
COMPONENSTS OF top discharge refrigeration condensing unit
² 1mm cold rolled steel housing, white paint, Aluminum alloy frame.
² Copeland ZB scroll compressor, three phase
² Condener with blue hydrophilic aluminum fins
² Axial condenser fan motor
² Pressure control , liquid sight glass, filter drier, solenoid valve
² Liquid receiver
² Low pressure and high pressure gauge
² Ball valve for inlet and outlet
TECHNICAL DATA FOR LKPG series 8-30HP top discharge refrigeration condensing unit
Model | HP | Power supply (V-Ph-Hz) | Capacity(W) R404a Evaporating Temp. (°C) | Fan | Dimensions (mm) | Noise (db) | Connection Pipe (inch) | |||||||
-15 | -10 | -5 | 0 | 5 | N°x Dia. | W | D | H | Inlet | Outlet | ||||
LKPG800SM | 8 | 380-3-50 | 11115 | 13680 | 16625 | 19950 | 23655 | 1 x 550 | 1130 | 880 | 1250 | 55 | 1-1/8" | 5/8" |
LKPG1000SM | 10 | 380-3-50 | 15295 | 18430 | 22135 | 26410 | 31350 | 2 x 500 | 1600 | 880 | 1310 | 60 | 1-1/8" | 5/8" |
LKPG1300SM | 13 | 380-3-50 | 18816 | 22896 | 27408 | 32544 | 38400 | 2 x 550 | 1600 | 880 | 1310 | 60 | 1-3/8" | 7/8" |
LKPG1500SM | 15 | 380-3-50 | 22135 | 26695 | 31825 | 38000 | 44935 | 2 x 550 | 1600 | 880 | 1310 | 60 | 1-3/8" | 7/8" |
LKPG2000SM | 20 | 380-3-50 | 30590 | 36860 | 44270 | 52820 | 62700 | 3 x 550 | 2000 | 1000 | 2000 | 62 | 1-3/8" | 7/8" |
LKPG3000SM | 30 | 380-3-50 | 44270 | 53390 | 63650 | 76000 | 89870 | 3 x 550 | 2000 | 1000 | 2000 | 62 | 1-5/8" | 1-1/8" |

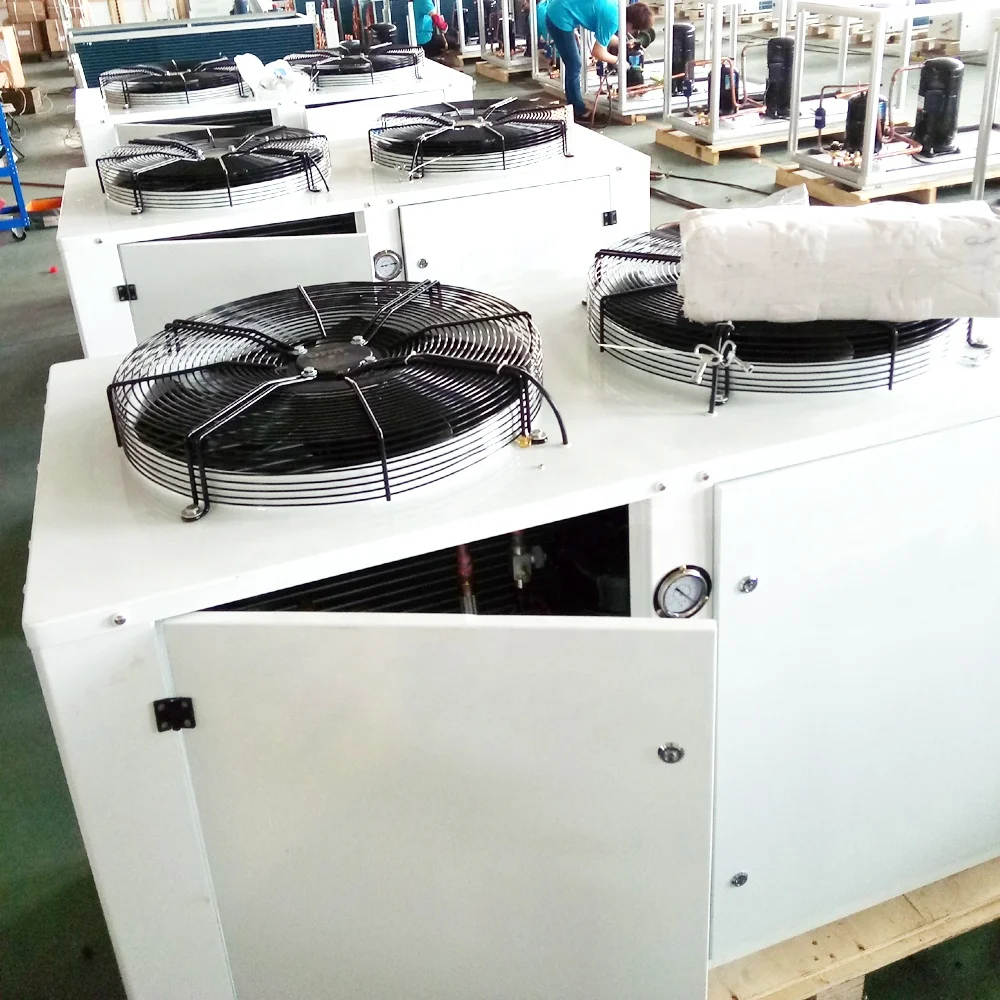

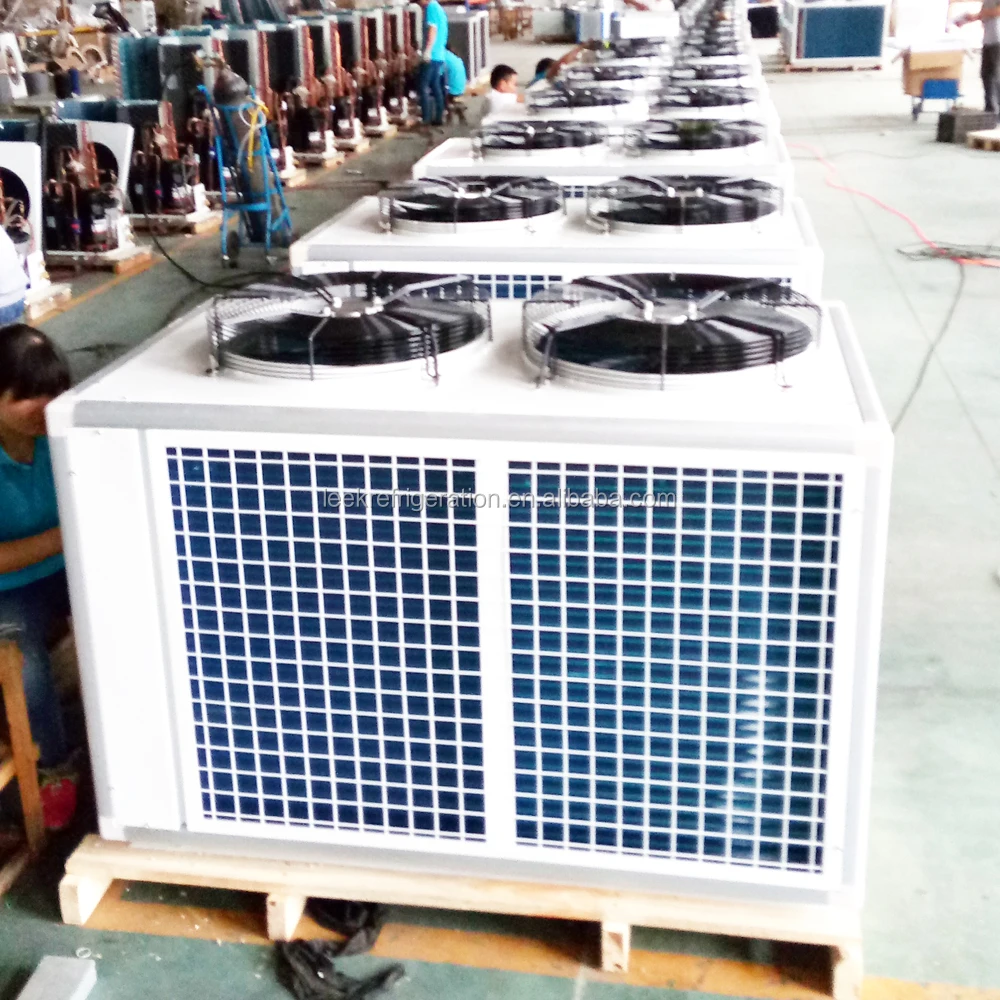

WORKSHOP of 8-30HP top discharge refrigeration condensing unit

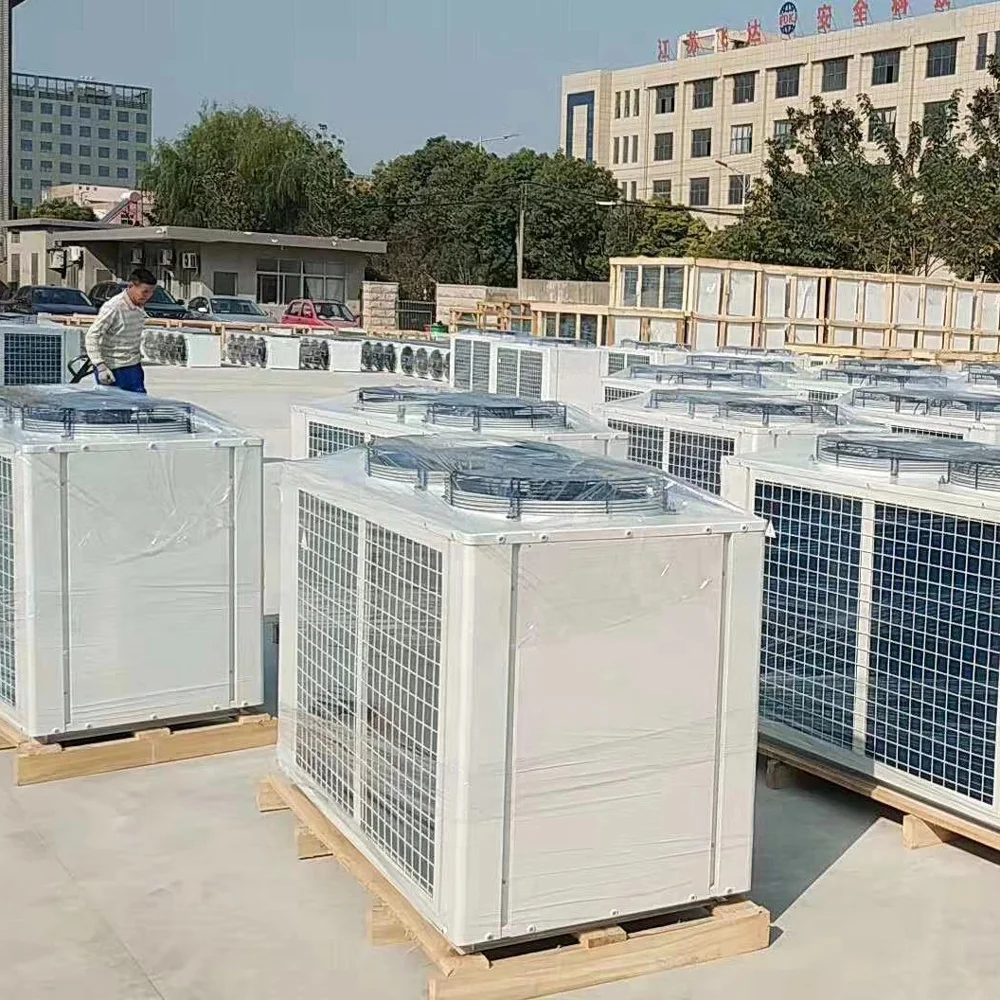

PACKAGE & DELIVERY of 8-30HP top discharge refrigeration condensing unit
AT REFRIGERATION FAIR

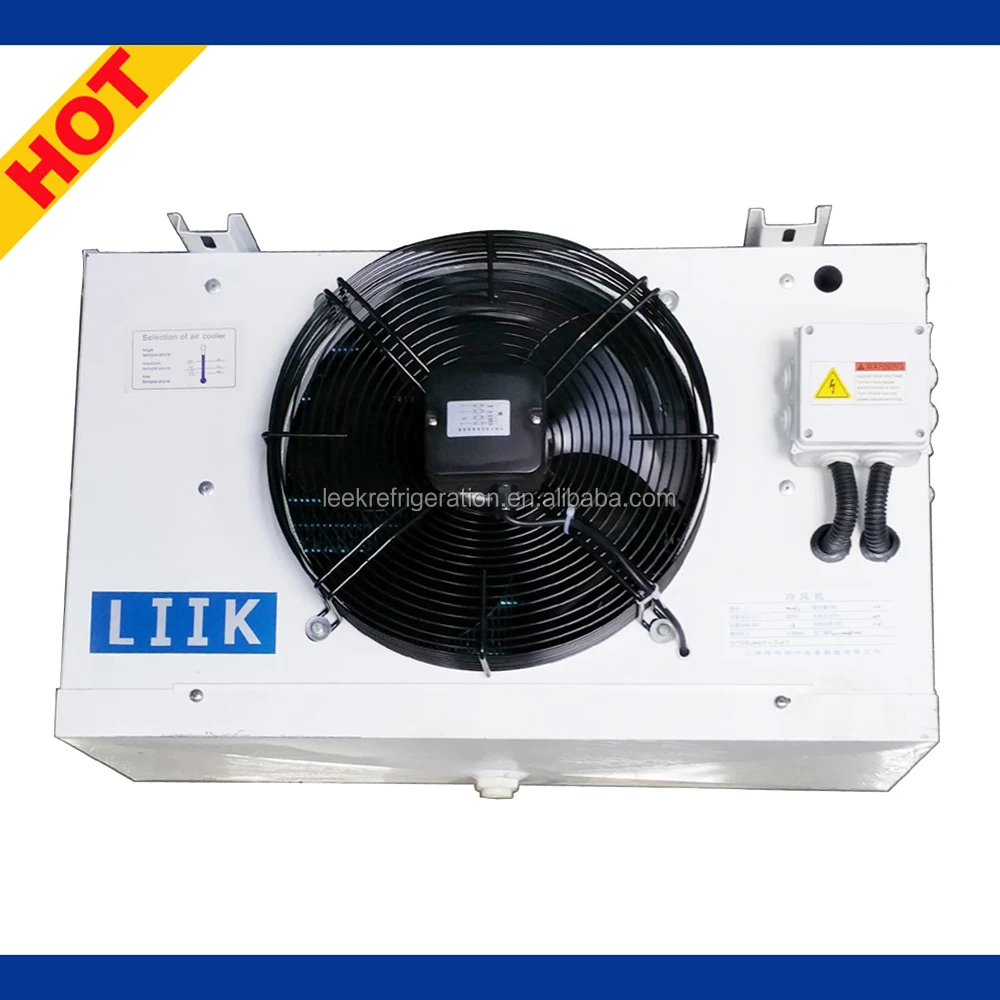

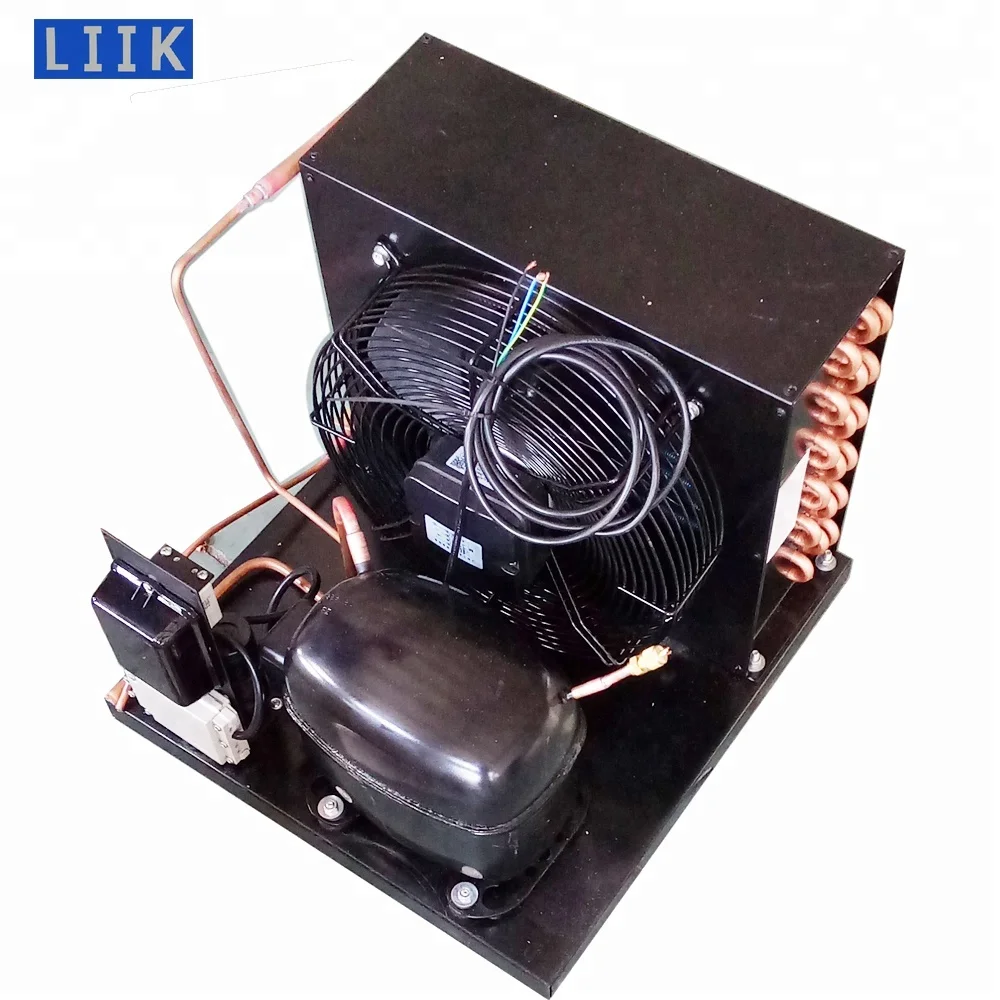

RELATED PRODUCTS
