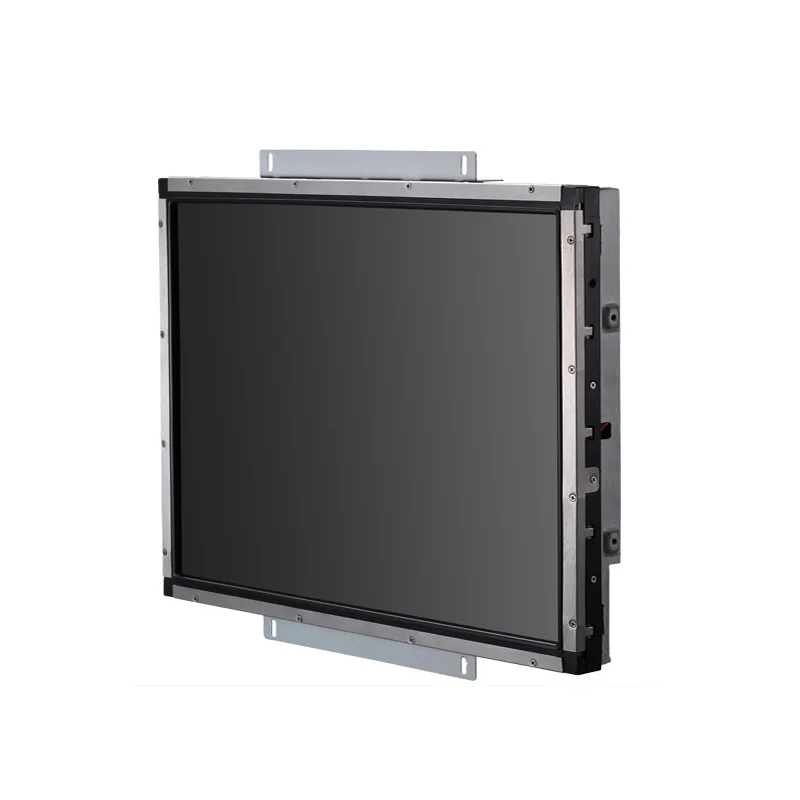

KeeTouch 17 inch SAW monitor touch screen, lcd touch monitor

Model No.

KOT-0170US-SA4BCW

Series

OT,Water-proof and Compact

Display Type

5:4 Ratio 17Active matrix TFT-LCD

Active Area

13.3"(338mm)×10.6"(270mm)

Monitor Dimensions

Width: 369mm

Width with brackets:389.4 mm
Height: 307mm

Height with brackets: 327.4mm
Depth: 49mm(not include lip):50mm(include lip)

Suggested Resolution

1280×1024 @ 60Hz

Support Colors

16.7M

Brightness(Typ.)

Pure LCD Panel

250cd/m²

With SAW Glass Sensor

225cd/m²

Response Time(Typ.)

6ms

Viewing Angle

(Typ.at CR10)

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio(Typ.)

800:1

Video Input

 Analog RGB

FrequencyH/V

30~80KHz / 60~75Hz

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Environment

Operating Temp.

0~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%

MTBF

50,000 Hours

LCD Back light Life(Typ.)

50,000 Hours

WeightN.W/G.W

5Kg / 12.8Kg (Approx.) (2pcs in one package)

Power Consumption

50W Max.

Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

(Standard mount brackets are supplied)

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch screen Type

Keetouch 17" SAW 4mm compact touch sensor

Touch System Interface

Having USB and Serial(RS232) interface

Touch Response time

USB/Serial: 8.4ms

Agency Approval

ETL,FCC,CE,RoHS

Regular Warranty

 1 year
