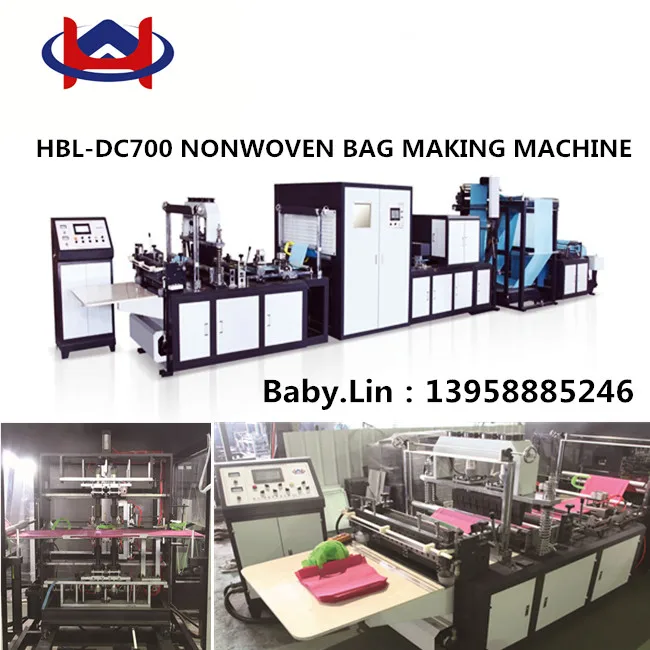

Baby.Lin five in one NON WOVEN AUTOMATIC BAG MACHINE making shopping bag

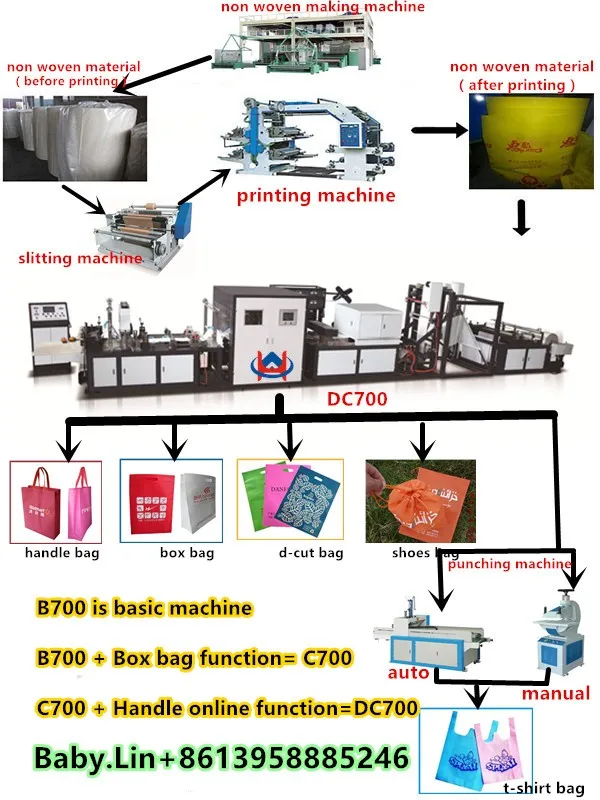

DC700 is for nonwoven only,speed equals 6 workers operating 6 handle machines separate,Auto do different type and size of handle bag, T-shirt bag (vest bag), box bag, flat bag, drawstring bag etc which popular in worldwide.

Five-In-One

Name: DC700 Original: huabo

Do handle bag，box bag，d-cut bag，shoes bag directly. t-shirt bag need add puncher，auto and hydraulic for ur choice

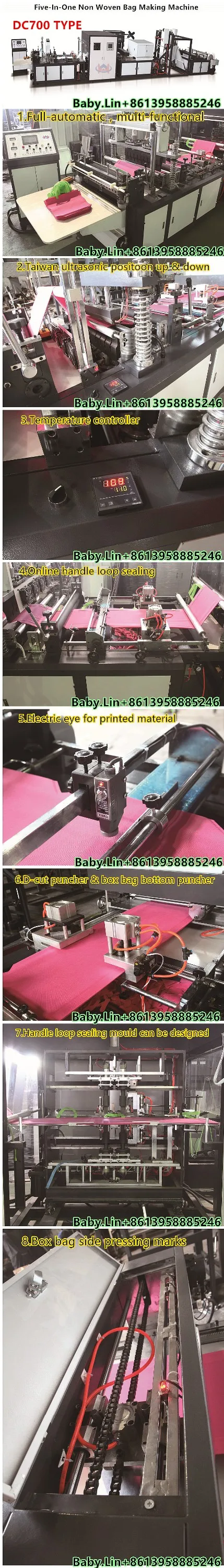

Ultrasonic

Brand: mingyou from Taiwan
Position can be up or down

Temperature Controller

Suitable temperature get perfectly sealing

Online Handle Sealing

Speed: 20-70pcs/min

D-cut: online

Loop Length Range：DC700：38-58cm

                                             DC800：38-68cm

Loop Sealing Point Range：DC700：9-20cm

                                                           DC800：9-20cm

Electric Eye

This is for printed material

D-cut puncher &  box bag bottom puncher

D-cut bag online making，box bag bottom triangle puncher

Online Handle Sealing Funtion

sealing mould can be designed

Box Bag Side Pressing Marks

Box Bag function, do other bag off this function

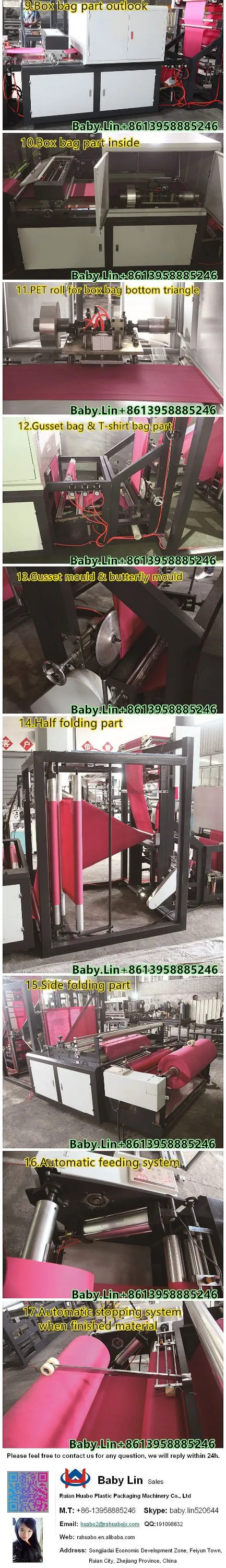

Box Bag Part Outlook

Box Bag Part Inside

Same as NO.9 but inside,  pet roll must needed to prevent upper and lower material be sealed.1pet roll reuse 2-3 times at most.

PET ROLL.

Pet cant be sealed with nonwoven thats y use it. we can buy for u if need

Gusset Bag & T-shirt Bag Function Part

Standard gusset is 9cm depth,after splay out is 18cm width, side and bottom

Gusset Mould & Butterfly Mould

Design size is available

Half Folding Part

Now this part can make machine “L”  or "I" shape at will

Side Folding Part

The roller here can be designed with shortcompany name or number，If no any special requirements,give standard

Automatic Feeding System

Use Cylinder to feeding material automaticly.

Dia of nonwoven roll usually is 800mm，1000⁺   need DC800 type or do special design

Automatic Stopping System

When material use off，machine stop automaticly to protect machine and sounds an alarm to reminds u put new one

We'd like to invite u view our factory to show u machine

If need Invitation Letter pls tell before coming and kindly send ur passport etc to my mail.Coz government Invitation Letter need 1 week for apply，Welcome to contact me.
