Product Overview

Description

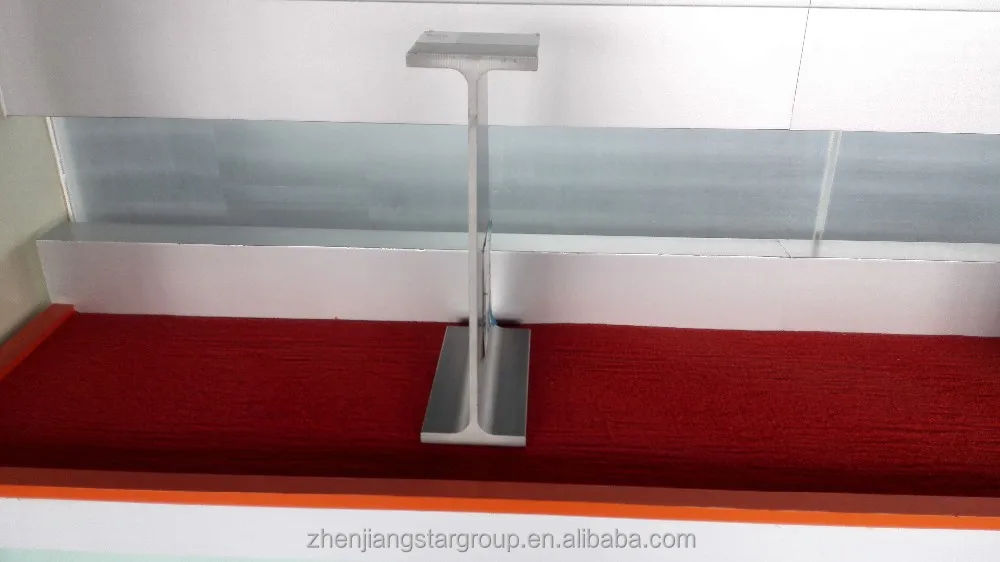

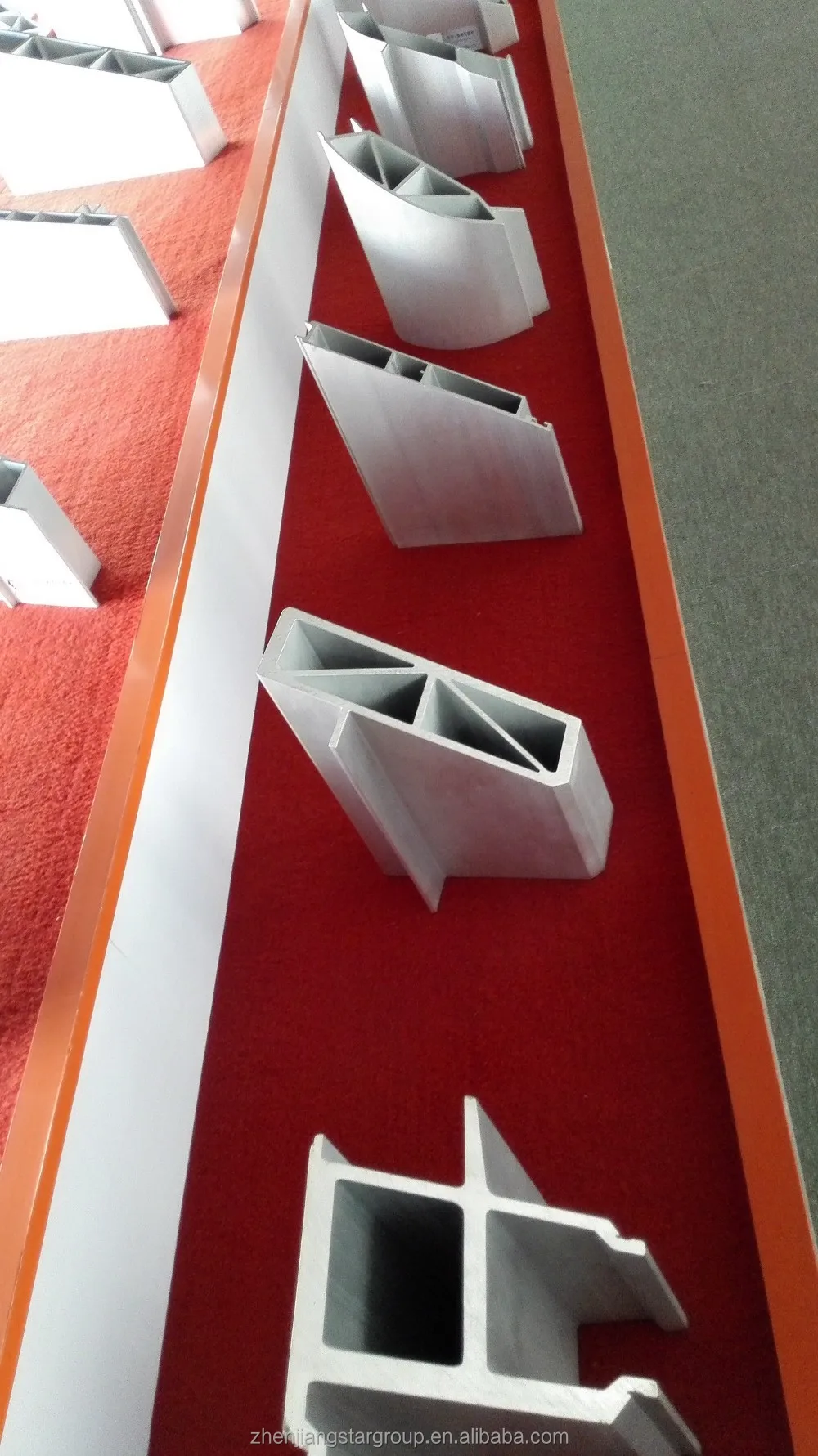

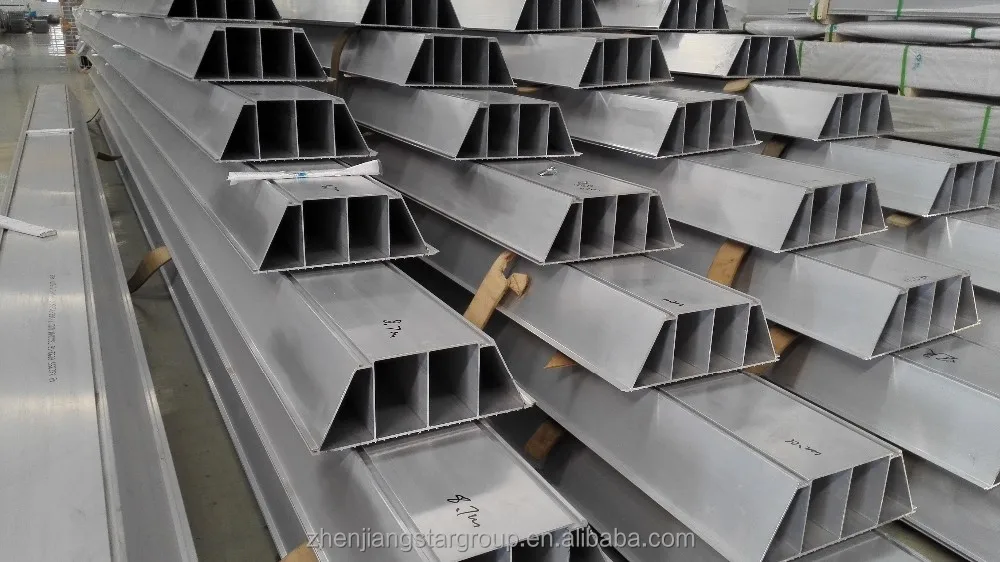

Heavy Aluminum Profile





Alloy: 5083,  6063/6061/6005/6060 T5/T6, 6006A, 6082, 7N01

Width: 600-700mm

Final Uage: Transporation, Railway, Heavy industry, Cars, Trucks etc.





Coner Aluminum Profille:



A(mm)	B(mm)	TK1(mm)	TK2(mm)	(mm²)	(kg/m)
10	10	1.1	1.1	20.7	0.056
12	12	1.1	1.1	25.2	0.068
15	15	3	3	81	0.219
19.05	19.05	3.18	3.18	111.046	0.3
20	10	2	2	55.785	0.151
	20	3	3	111	0.3
	22	2	2	80	0.216
23	19	3	3	116.785	0.315
25	10	1	1	69.785	0.092
	22	3.5	3.5	169.674	0.404
	25	3	3	141	0.381
	50	3	3	216	0.583
25.4	25.4	1.1	1.1	54.5	0.147
	25.4	1.59	1.59	78.24	0.211
	25.4	3.18	3.18	151.431	0.409
30	20	2	2	95.082	0.257
	20	2.5	2.5	132.22	0.357
	25	3	3	155.785	0.421
	30	2.5	2.5	119.785	0.388
	30	3	3	171	0.46
	30	3	3	171	0.462
	30	4.5	4.5	249.75	0.674
31.75	31.75	3.18	3.18	191.603	0.518
32	19	2.5	2.5	121.25	0.327







 U Shape Aluminum



A(mm)	B(mm)	TK1(mm)	TK2(mm)	R1(mm)	R2(mm)	R3(mm)	(mm²)	(kg/m)
18	18	1.5	1.5	1.5	0.5	3	73.39	0.198
19.7	18	1	1	1	0.5	2	52.412	0.142
26	20	3	4	1	2	3	207	0.56
27	30	3	3	1	0.5	1	243	0.66
30	6	4	3	0.5	1	1	130.71	0.353
	30	2	2	0.5	0.5	1	171.57	0.463
31.6	19	2.4	2.4	3.6	FR	6	144.4	0.39
32	25	4	4	2	0.5	2	296	0.8
33	40	3	3	0.5	0.5	3	317.137	0.88
37	40	3	3	0.5		3	326.444	0.88
38.4	31.8	3.2	3.2	1.6	FR	4.8	293.93	0.794
39	20	4	4	2	0.5	1	285.395	0.793
40	50	5	4	2	0.5	4	555	1.51
	50	5	4	2	0.2	4	555	1.5
45	38	4	4	2	0.5	4	446.85	1.206
50	80	5	5	3	0.5	3	1000	2.7
	80	5	5	3	0.2	3	1000	2.7
	80	5	5	6	0.5	6	1000	2.7
	100	4	4	16	0.5	20	906.191	2.447
51	51	3.2	3.2	0.8	0.5	1.5	468.43	1.26
52	35	20	5.5	2	2	2	1201.57	3.34
53.5	30	3	3	0.3	0.5	4	316.06	0.853
55	58	8	6	2.5	0.5	1.6	1041.58	2.812
55.3	25	5	5	0.5	0.5	2	474.784	1.282
59	14	4.5	4.5	3	1	3	350.184	0.946
59.5	28	3.2	3.2	1	FR	3.2	342.13	0.924
60	10	3	3	4	0.5	4	222	0.599
	34	8	8	4	1	12	841	2.271
	35	4.5	4.5	4	1.5	2	539.719	1.458
64	55	6	6	6	0.5	3	983.589	2.66
75	30	4	4	5	0.5	9	483.75	1.345
75	55(41)	3.5	4(5.5)	4	1	1	680.33	1.837
76	44	4	3	2	0.2	1	545.28	1.47
80	38	5	5	6	0.5	6	730	1.97
	55	6	6	2	0.2	1	1069.37	2.898
85	53	2.5	2.5	1.5	0.5	4	459.1	1.24
90	58	8	6	2.5	0.5	1.6	1321.584	3.568
95	40	20	8	5	1	2	2228	6.04
96	80	12	12	3	0.5	2	3080.15	8.316
100	12	5	5	1	1	2	602	1.63
	70	3.5	3.5	10	0.5	4	851.56	2.37
107	45	7	7	10	0.5	10	1208.79	3.26
120	14	5	5	1	0.5	2	687.854	1.857
	60	6	6	3	0.2	3	1368	3.694



Professional,  over 20 years aluminum exportation and importation

Reliable,  over 7 years certificate in alibaba

Qulified,  SGS, Bureau Veritas, ISO9001, CIQS certificates





We are now supply to Italy, USA, MEXICO, YEMEN, SYRIA and Brazil market , could be used for the electricity industry, powerstation Industry, decoration and other industry usage.



Welcome to vist our factory to test the quality, service and reputation
