Automatic 2 Colors BOPP Adhesive Tape Printing Machine

Product Overview

Description



Automatic 2 Colors BOPP Adhesive Tape Printing Machine

Parameter of Automatic 2 Colors BOPP Adhesive Tape Printing Machine

Model	ST-JDY150-1	ST-JDY150-2
Printing color	1 color	2 colors
Tape width	30-150mm
Printing size	140*230mm
Plate size	160*251mm
Printing speed	50-60m/min
Corona system	optional
Plate thickness	1.7mm (or as customer required)
Plate	aniline resin relief printing plate
Ink	UV ink/water based ink
Total power	220V/1.75kw	220V/2.75kw
Machine weight	150kg	250kg
Dimension	1645*530*1110mm	2500*530*1110mm

Features of Automatic 2 Colors BOPP Adhesive Tape Printing Machine

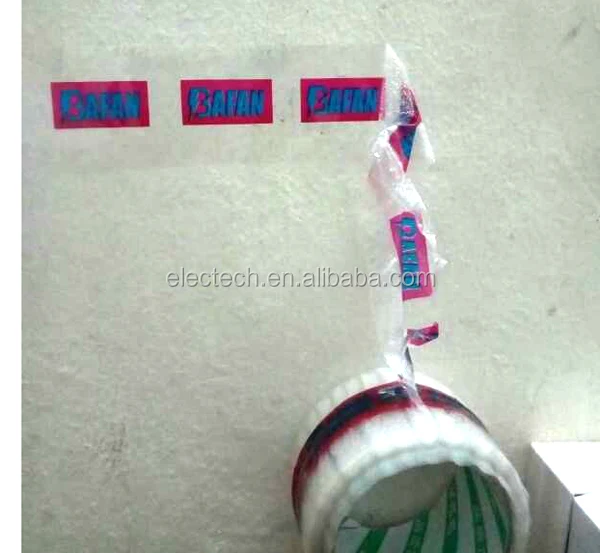

1.Directly print on finished tapes (print on glue side).

2.Low cost printing plate, simple plate making, can be operated by one person.

3.Excellent mechanical structure. Printing,slitting, rewinding are finished at one process.

4. 360 degree high speed rotary printing.

5.With slitting device, double-shaft rewinding, can print multi rolls of tapes at the same time.

6.This machine can be used as rewinding slitting machine .

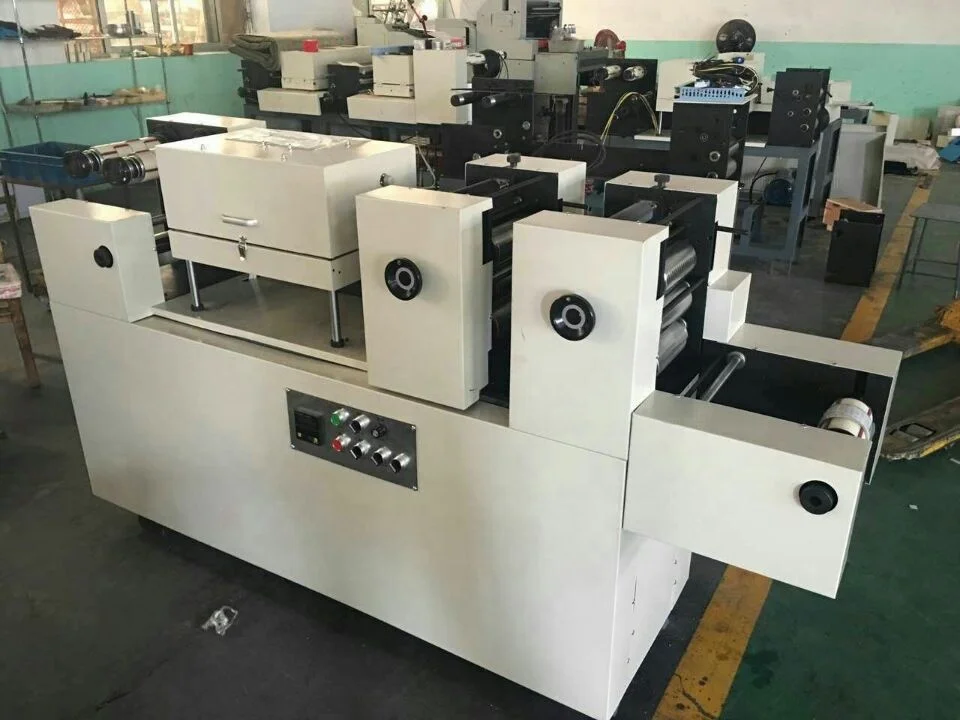

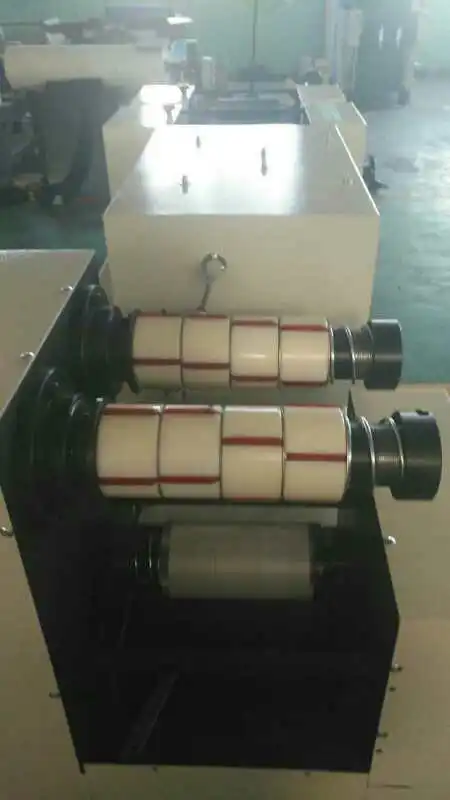

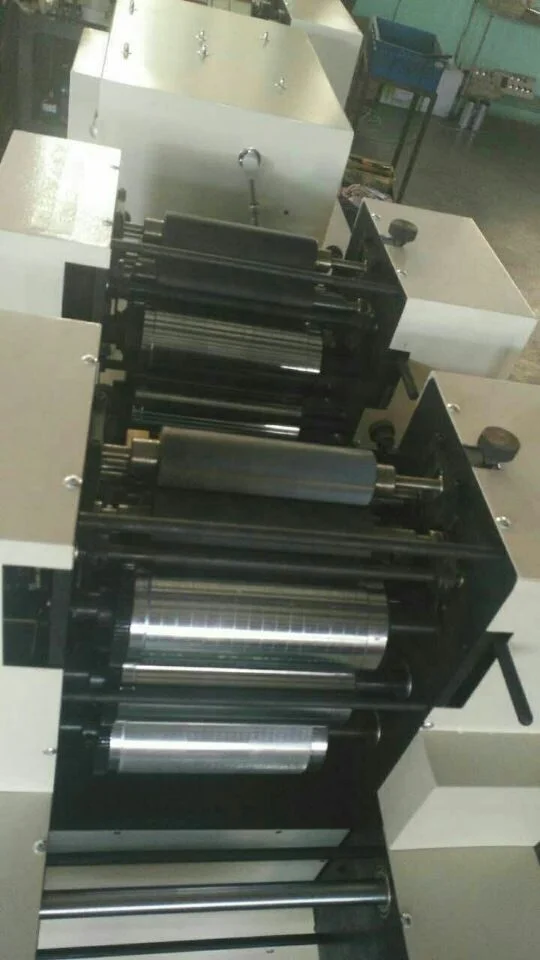

More pictures of Flexo printing machine Adhesive BOPP Tape Printing Machine







Packaging Detail:	Packing condition: strong wooden case
Delivery Detail:	15-20 days after receiving payment





Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing

and marketing Machinery for more than 17 years. Firstly we mainly sever china mainland

customers. In order to adapt to world market development, now we do the exporting

business directly. After these years of development, we have high quality professional

teams,skillful talents, strong technical force, strong and independent research and

development capabilities, advanced productione quipment and a perfect after-sales

service system.
