ADMT 200S воды finder подземный детектор воды

Product Overview

Description

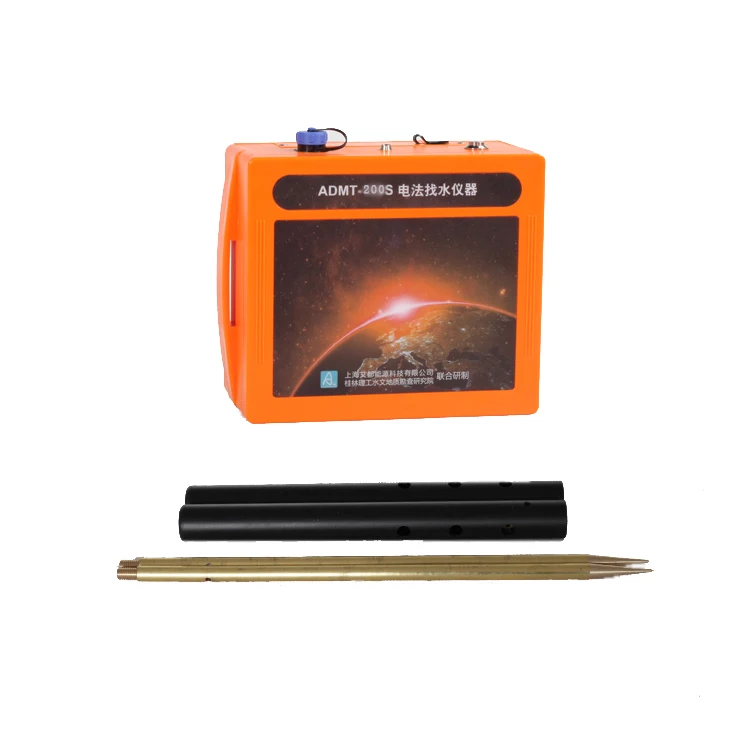

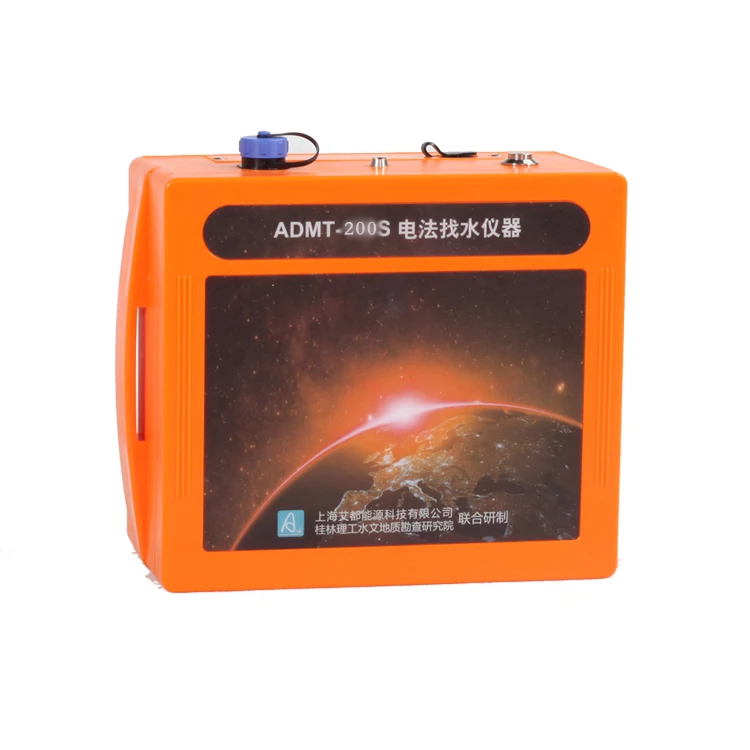

ADMT-200S water finder underground water detector









1. Characteristics:



1) Monitoring 7 frequency at the same time
2) Suitable for depths of 300m
3) Easy of handling, esay to learn
4) Auto-monitoring, auto-storing data, auto-drawing curves
5) USB ports.





2. Brief Introduction:



ADMT-200S Multi-Function Natural Electrical Field detector is a water detector which is specifically designed for depths of 300m.
It monitors the changes of underground electrical resistivity by measuring the intensity of natural electrical field, then analysing the position and depths of underground water.
This instrument solved a major issue, which is freqency choosing and anti-jamming in a natural electrical field.
It uses waterproof shell and touch screen, which is easy of handling and easy to learn.
This instrument was patented, patent number: 201310205318.9,201110454869.X,201320054153.5,201120214308.8,201120567915.2,201320303919.9







ADMT-200S Multi-Function Natural Electrical Field detector is portable, efficiency, easy-handling and accurate analysis. It is auto-measuring which could show data and curves clearly and simple.

Comparing with traditional DC electrical water detector, its speed of measuring was increased more than 8 times, but the instrument weight was decreased 8 times.
In the past 20 years experience, we won a high reputation and were high acclaimed by our customers.







3, Compare with traditional geo-electrical water detectors:



Traditional geo-electric water detectors	ADMT-200S Ground Water Detector
Heavy meter and complicated wiring due to manual power supply.	No need power supply, use natural electric field and 20 meters receiver pole, through special amplify method to complete survey.
Need 3-5 persons or more to operate it and cause heavy work and low efficiency.	2 people are enough to finish the work High efficiency
Heavy, about 50-500KG, hard to remove.	Light weight, <5KG, easy to carry.
Need to convey data to PC and use various software to draft and analyze.	We configure a 4G U-disk storage to introduce the data! Then you can do various operations for the measured data.
Professional operations and expensive	Very practical and low cost
Just know water location and depth	Can know water location, water supply direction, water depth and water outflow.







4. Application:



Metal and non-metal ore survey;

Decrease mineral invest venture and increase exploration success rate;

Underground water detect in all kinds of the geological conditions;

Meet demand of drinking water, industrial usage and agricultural irrigation;

Engineering geological prospect and disaster geological detect;

Coal goaf, archaeological mining, city exploration and non-metal pipe survey.





5. Main features:



Fast and high efficiency

Easy to carry

Easy operation

Good precision and high accuracy

Very practical and low cost

Flexible array—traditional and unique array method





6. Main technical parameters of ADMT-1S groundwater detector:





Measuring range	0-255mv
Detection depth	<200m
Measuring channel	7 channels
Measuring frequency	4900,2000,600,170,67,35,25HZ
Frequency tolerance	2%
Resolution	0.001mV
Repetitive error	±2% ±2 Bit
A/D switch	16 Bits 1Msps
Input impedance	≥10MΩ
Power frequency suppression	>80dB
Data storage	48W
Display	mobile phone
Interface	USB2.0
Power source	DC7.4V 5200mAh lithium battery
Power Consumption	400mA
Temperature	-20℃~+60℃
Humidity	80%
Dimension	27×22×15CM
Weight	0.8KG







7. Advantage:

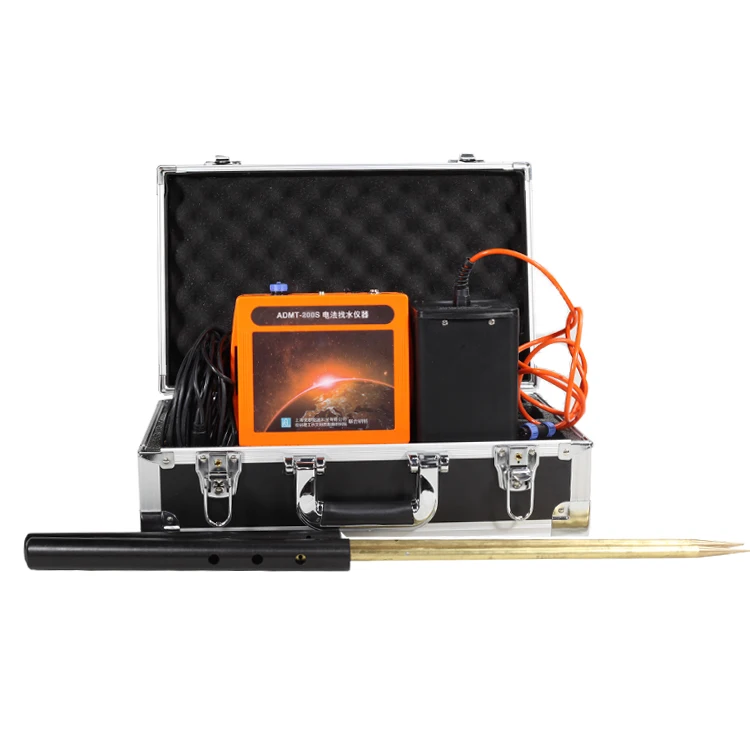

1) It is integrated into an aluminum alloy tool case, then can be carried freely.

2) Built-in charging lithium batteries, can fast charge for 4 hours, then you can use it for 16 hours.

3) Special rough measurement and fine measurement electrodes largely improve the speed and precision of equipment.

4) Multiple anti-jamming design and unique anti-jamming modes to choose largely increase the accuracy and stability of data.

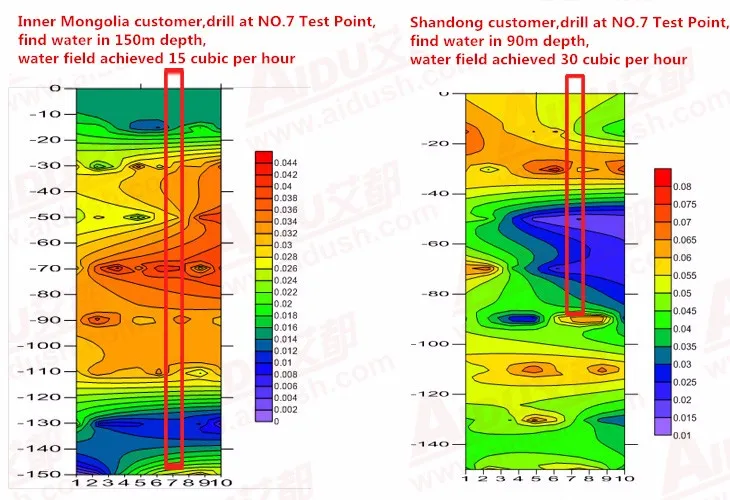

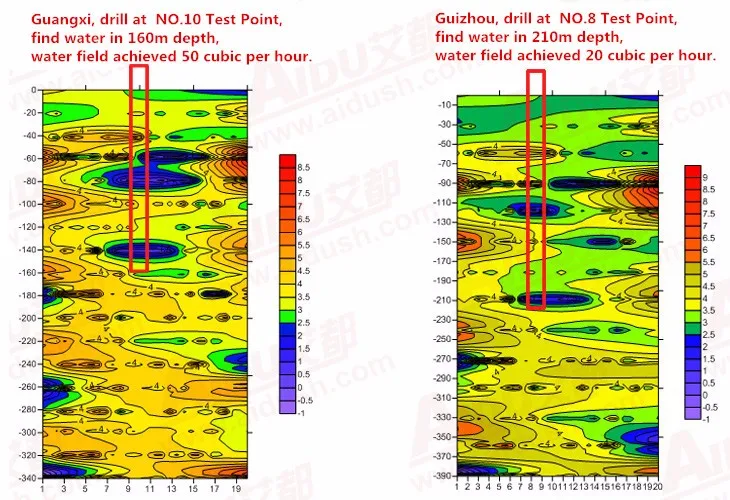

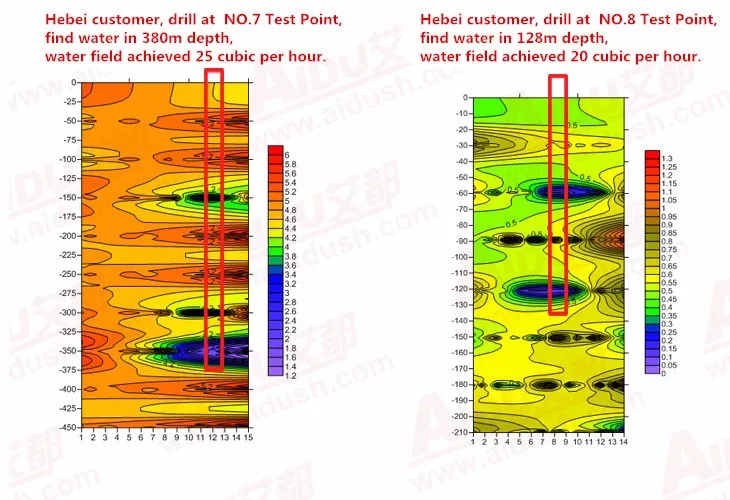

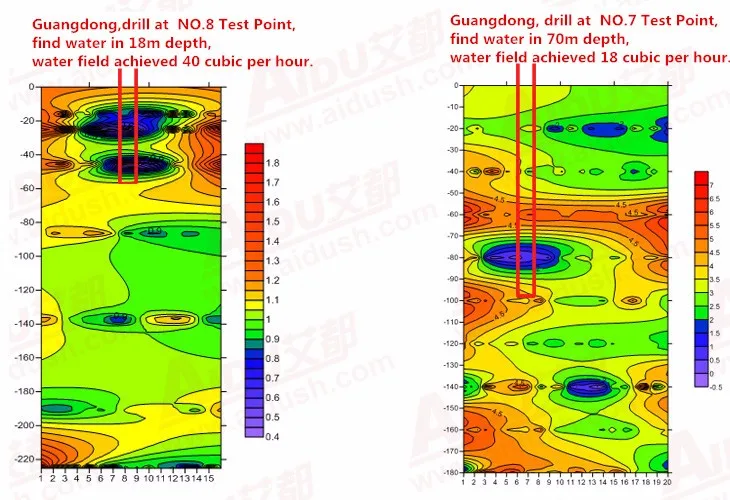

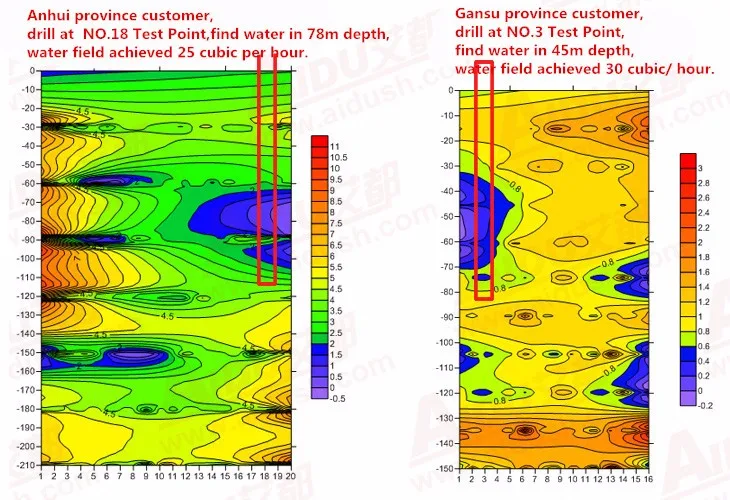

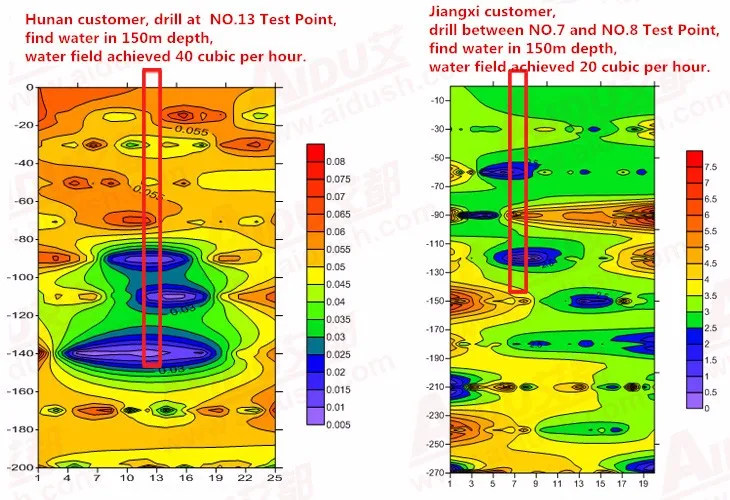

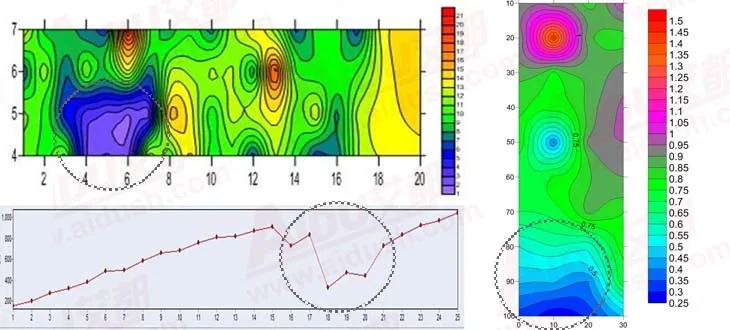

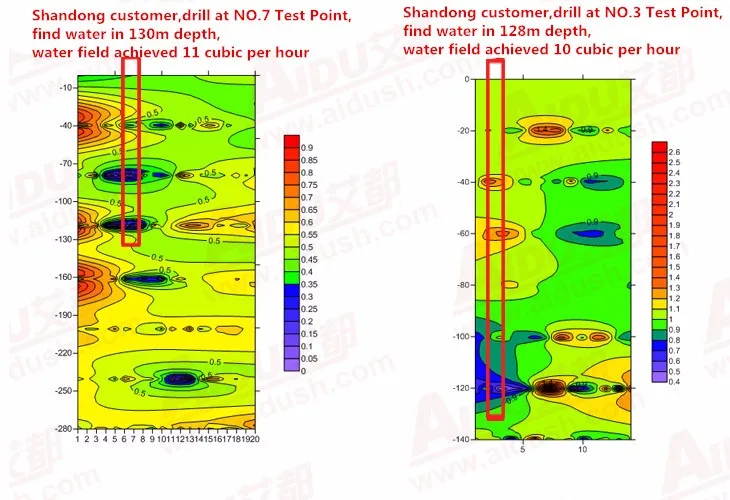

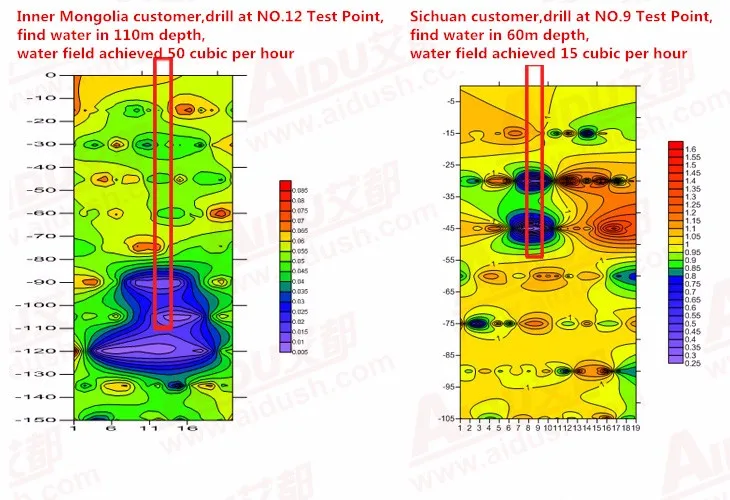

8. Example of Case:





--------------------------------------------------------------water detector underground-------------------------------------------------------------

--------------------------------------------------------------water detector underground---------------------------------------------------------------





-------------------------------------------------------------water detector underground----------------------------------------------------------------



-------------------------------------------------------------water detector underground---------------------------------------------------------------------



------------------------------------------------------------------water detector underground------------------------------------------------------------------

-------------------------------------------------------water detector underground-------------------------------------------------------------------------





------------------------------------------------------------------water detector underground----------------------------------------------------------------
